InTANK

 iT2771-S3(1 floppy bay 2.5” Internal JBOD Module Storage)



Features

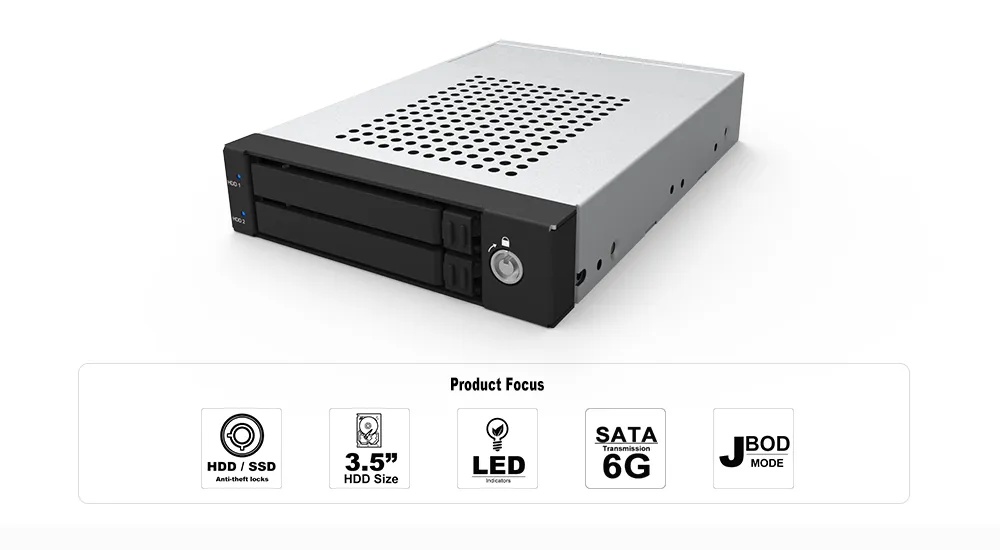

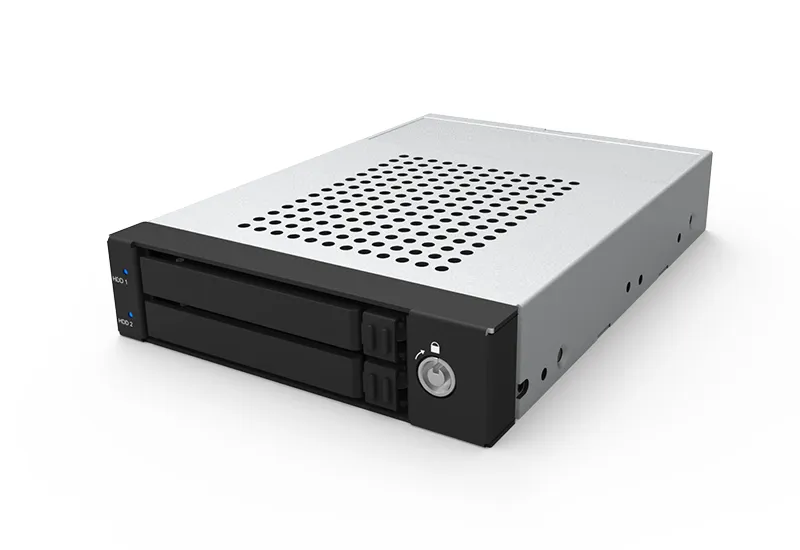

A compact enclosure for two 2.5" HDDs/SSDs



An InTANK iT2771-S3 is a compact size like a 3.5" HDD product for two 2.5" SATA III HDD/SSD products.  You could use it for your tower/1U server, DVR, Mail Exchange Server, POS, …, etc. applications.  Its compact size fits into most of your systems which require the compact chassis.

Widely used in different needs



iT2771-S3 JBOD mode could use both of 2.5" HDD/SSD products and extensively use in vaious storage requirement:



- PC/Server, Soho Workstation, MIS server and high rank business use PC.



- Industrial PC applications, like POS, DVR, and Workstation.



- Mini-server products Video/Music editing applications.



Mechanism

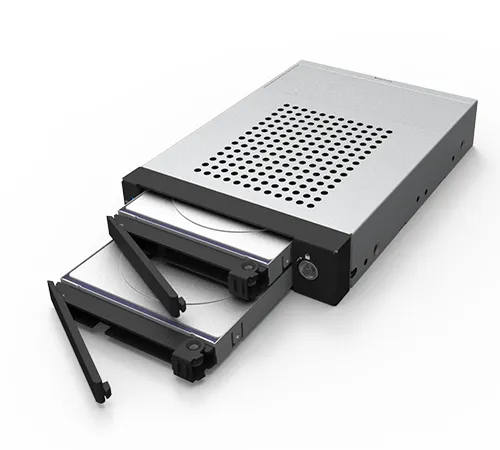

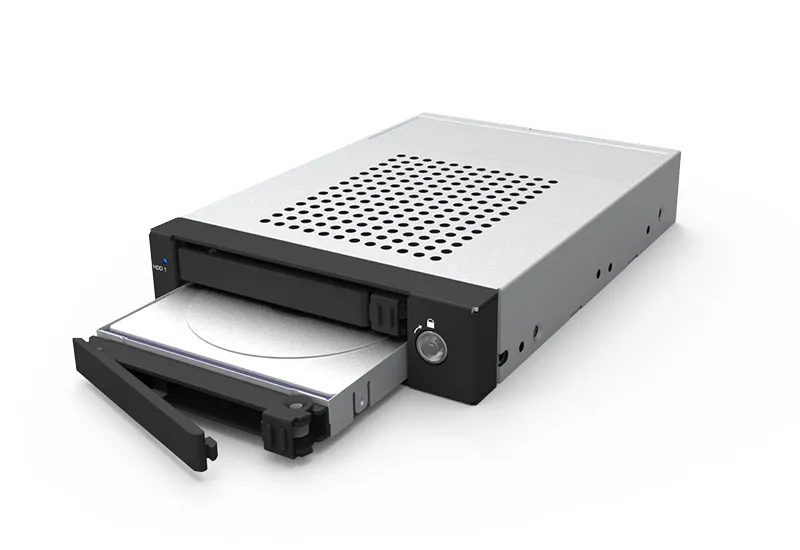

Screwless Tray Design together with a Tray Lock



iT2771-S3 uses our screwless tray which provides an easy use Tray Lock to protect your data.  You could easily replace the defective HDD from its easy-to-use tray design even though you haven't  got any experience in doing that before.



More Tray product information  >>>>

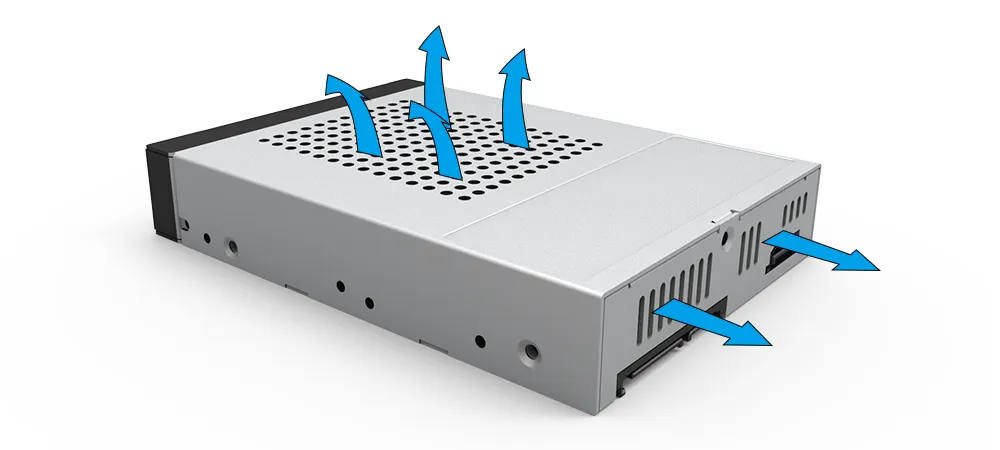

An Excellent Ventilation design



Overheat is one of the major problems to cause system failure, and causes a huge loss at the downtime period in the 24-hour full-automation production equipments.  Our iT2771-S3 has an excellebnt ventilation design to help dissipating the heat generated from two HDDs/SSDs efficiently and reduces the loss caused by system downtime.

iT2771-S3 is recommended being used in your CNC machinery to the huge IC production equipments.

Application

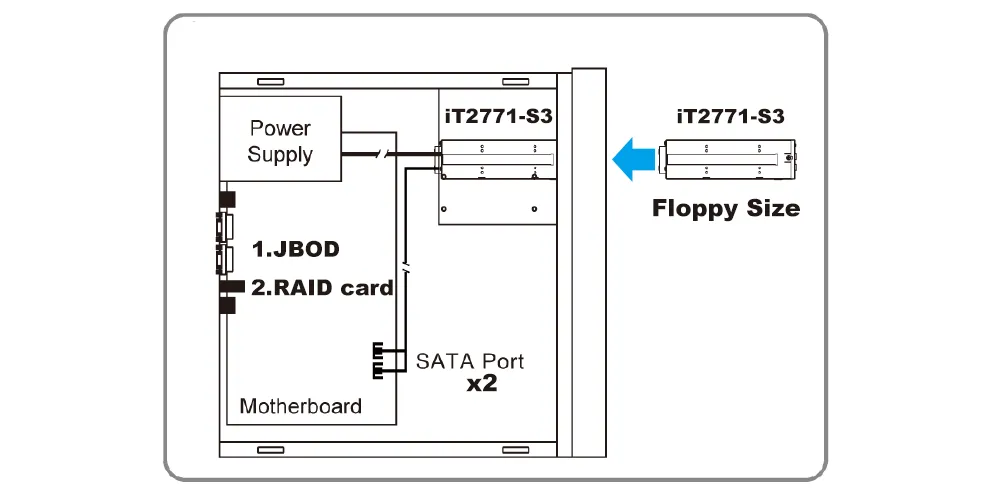

Help Upgrading Your System with RAID features



iT2771-S3 provides JBOD feature and it lets you keep OS and DATA seperatedly in two HDDs/SSDs.  And you could easily upgrade it with RAID feature from installing a RAID Adapter thru SATA cable.



More iR2771-S3 Product information  >>>>

More iR2772-S3 Product information  >>>>

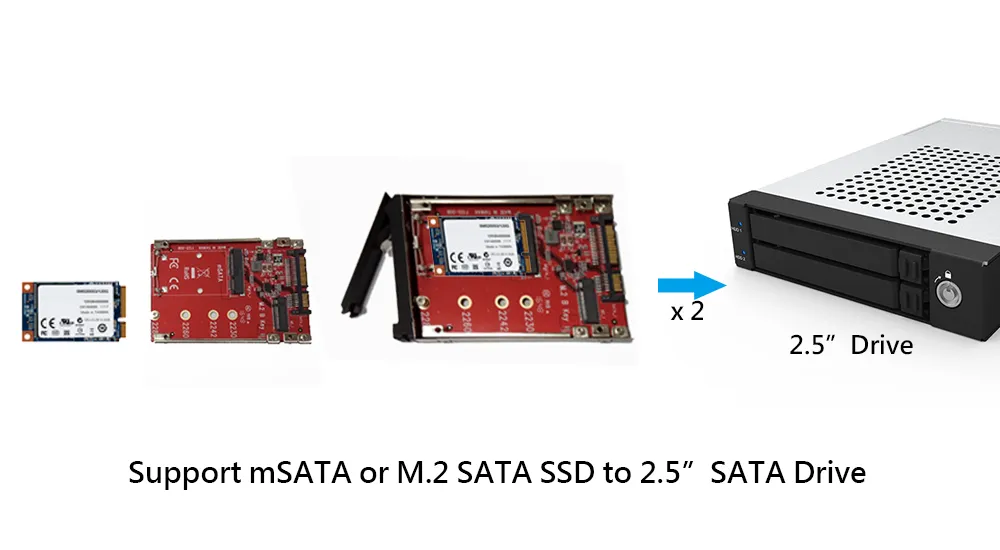

iT2771-S3 2.5" drive support mSATA(or M.2) to SATA


iT2771's 2.5" drive can use mSATA(or M.2) to SATA adapter that convert Fast Speed mSATA or M.2 6Gbps SATA based SSD to Standard 7mm height 2.5 inch SATA Solid State Drive!

Enterprises nominated Professionals appointed


iT2771 is an internal JBOD storage system and compatible 6Gbps drive designed in A Floppy Bay to satisfy the demands of SMB and industrial computing environment. With LED signal leaving you to easily grasp HDD status.

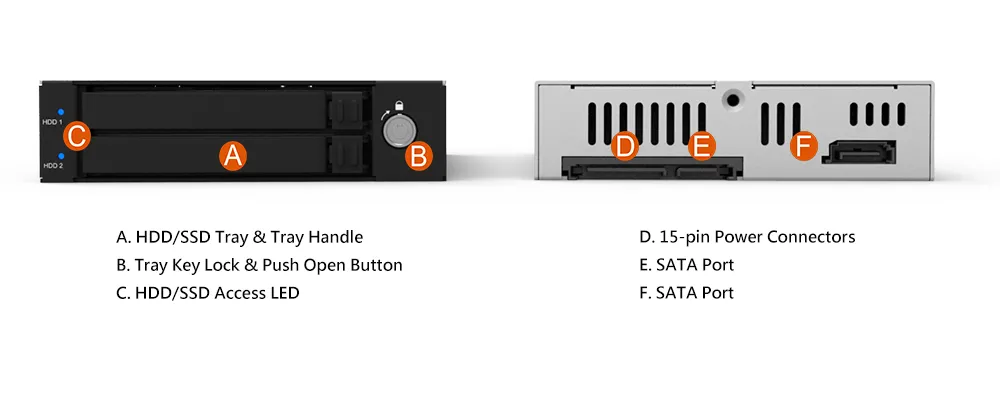

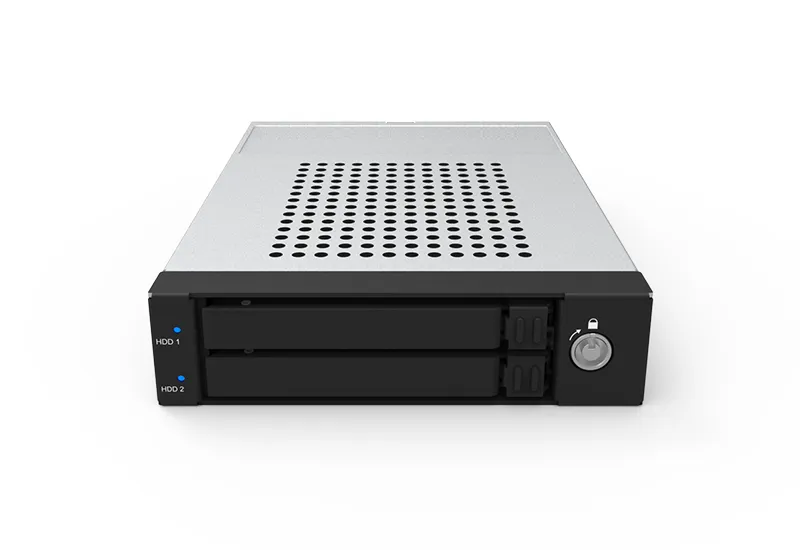

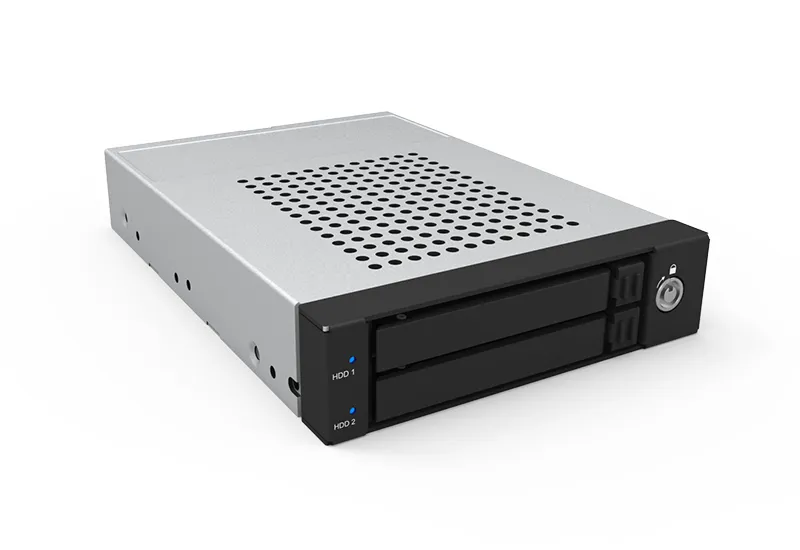

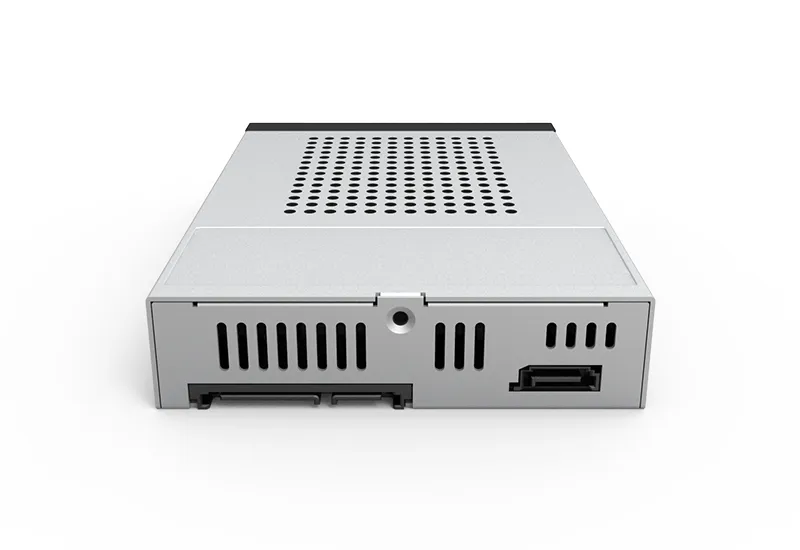

iT2771-S3 Product View

iT2771-S3 Specification



Model no. iT2771-S3
Interface SATA III 6.0 Gb/s
Support Hard Drive 2×2.5” SATA III 6.0Gb/s HDD/SSD
RAID Level JBOD
The Largest Capacity 2TB
Power Supply SATA 15pin (12v/5v)
LED Indicators Yes
Operating System Windows, Linux
Certification CE & FCC
Packing Content CD, Quick Installation Guide,
Accessory Kit
Dimension 102(W)×26(H)×147(L) mm
Operating temperature 50° to 95° F (10° to 35° C)
Storage temperature -4° to 116° F (-20° to 47° C)
Relative humidity 5% to 95% noncondensing



iT2771-S3 Download

Product
Datasheet
QM
UM
CE & FCC
other
iT2771-S3
Image Download

iT2771-S3 Question & Answer



iT2771-S3 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
iT2771-S3Toshiba2.5" HDD MK5055GSX500GB
iT2771-S3Toshiba2.5" HDD MQ01ABF050500GB
iT2771-S3Toshiba2.5" HDD MQ01ACF050500GB
iT2771-S3Toshiba2.5" HDD MK6459GSX640GB
iT2771-S3Toshiba2.5" HDD MQ01ABD1001000GB
iT2771-S3Kingston2.5" SSD SHSS37A240GB
iT2771-S3Samsung2.5" SSD 850 PRO128GB
