SafeTANK Series



GR5630-SB3+ (4bay 2.5"-3.5" RAID Storage Solution)

Embedded the latest interface USB3.0, GR5630 delivers the fastest data transfer rate in performance.



Features

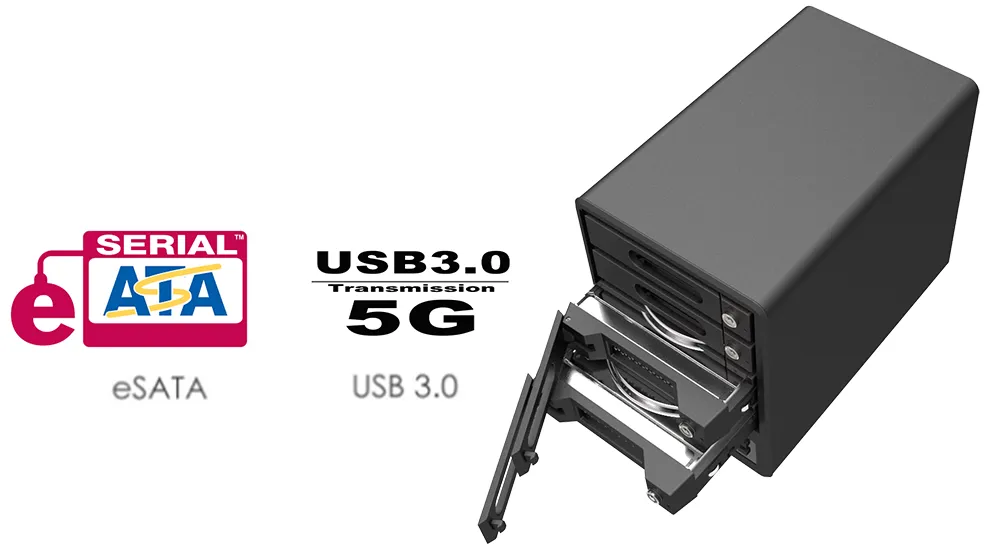

Two host interfaces of Super-speed USB3.0/eSATA



GR5630-SB3+ offers two host interfaces of Super-speed USB3.0/eSATA and the equipped LCM enables the convenience of configuration for a desired RAID level among JBOD / RAID 5 / RAID 0 by fully taking the advantage from the largest supporting capacity up to 40TB. GR5630 is not only giving a big storage capacity, but delivering data security and performance to various applications and environments.



More GT4670-TB product information  >>>>

Application

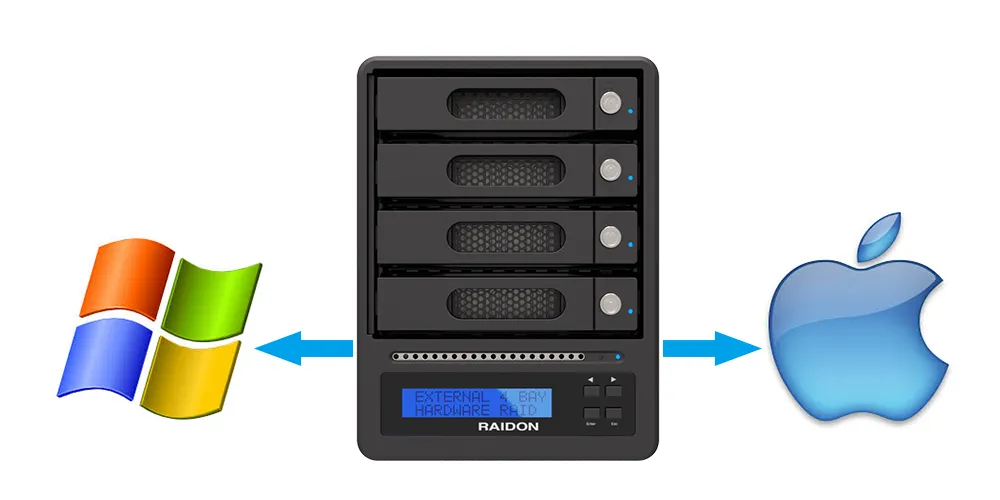

Suitable for PC and Mac user


With USB3.0 / eSATA host inter- faces, GR5630 can be used both in PC and MAC environment flexible.

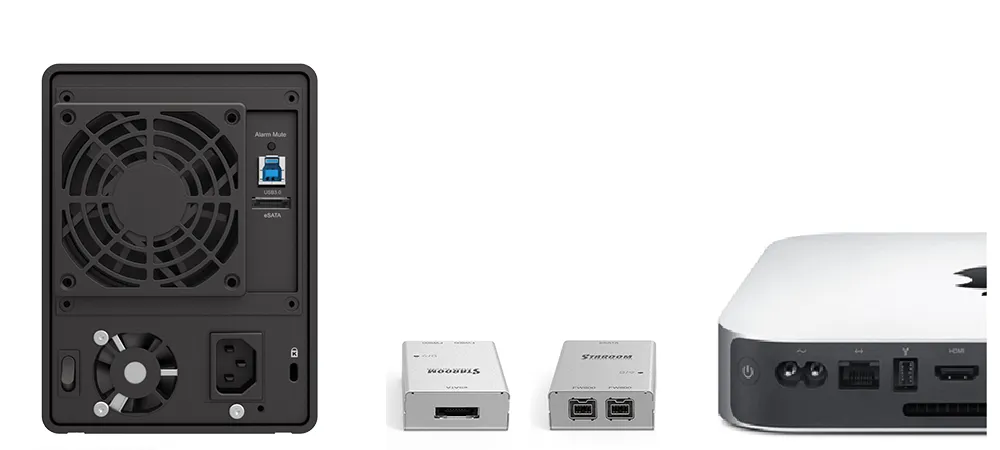

Use S2F product extends All Your Storage Products


GR5630-SB3+ and S2F combination eSATA and FireWire 800 interface extends your storage, from your only FireWire Mac to connect to Non-FireWire device, S2F provides you a great flexibility to choose a good storage product from Raidon. And also, S2F could not only connect to one Non-FireWire Raidon storage product but one more storage thru a second FireWire 800 port.



(S2F only for RAID mode and a single hard drive in JBOD mode)


More S2F product information  >>>>

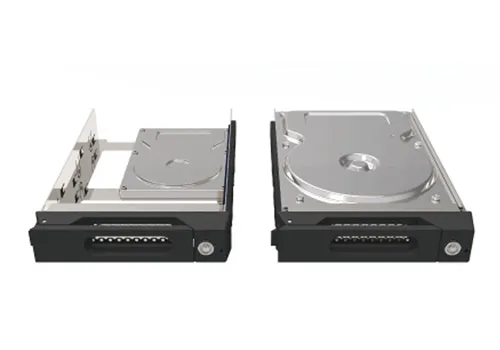

Removable design, use multiple hard drives flexibly



The GR5630-SB3+ is a quadruple drive storage enclosure system that supports the latest 3.5" and 2.5" SATA hard drives to deliver high- capacity data storage solutions. Featuring flawless structural design, optimized internal configuration, and a durable aluminum casing to protect your internal drives, the GR5630-SB3+ is perfect for creative and highly mobile professionals.

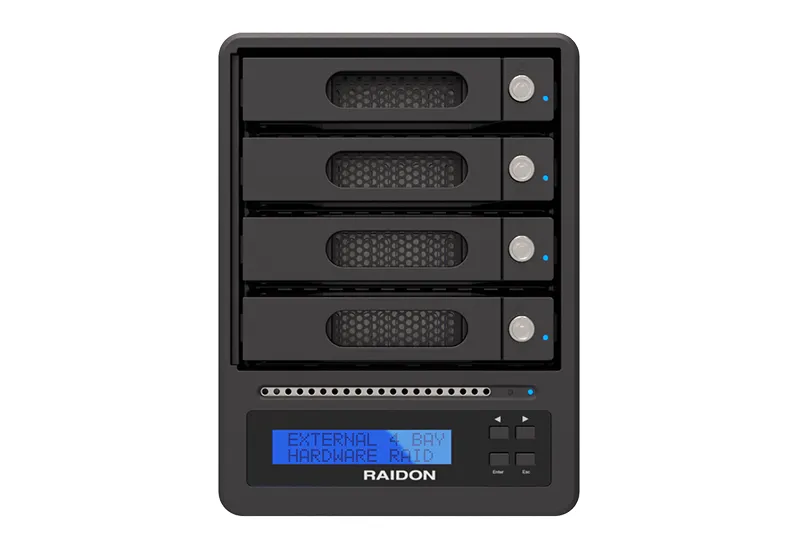

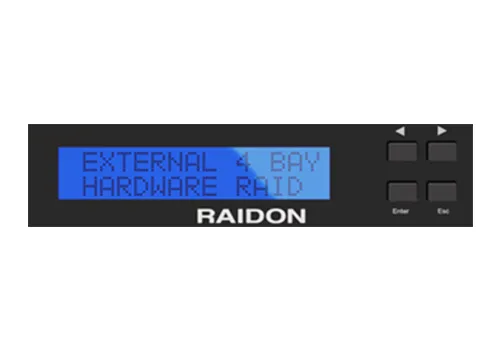

Setting via LCM with ease!



Users can set up GR5630-SB3+ via the LCM and buttons on the front panel while clearly knowing the real-time status of GR5630-SB3+ from the LCM.

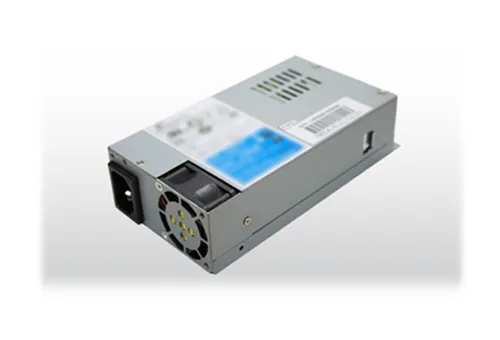

Full 250 watts and stable power supply



GR5630-SB3+ uses a full 250 watts and stable power supply. As the capacity of single HDD reaches 8TB, the power consumption of it also comes with higher requirement. By using this power supply, users can be worriless about GR5630 for not working properly or unable to boot the HDD causing by lack of wattage.

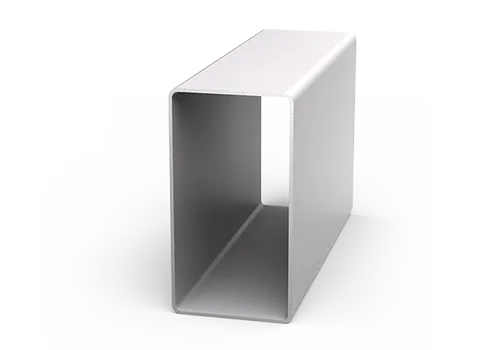

3mm thick Aluminum housing


With 3mm thick Aluminum housing design, not only effectively assisting heat dissipation, but also provides a better physical protection from outer forces, even if moving GR5630 with four HDD installed there will be no concerns of excessive weight causing exterior deformation.

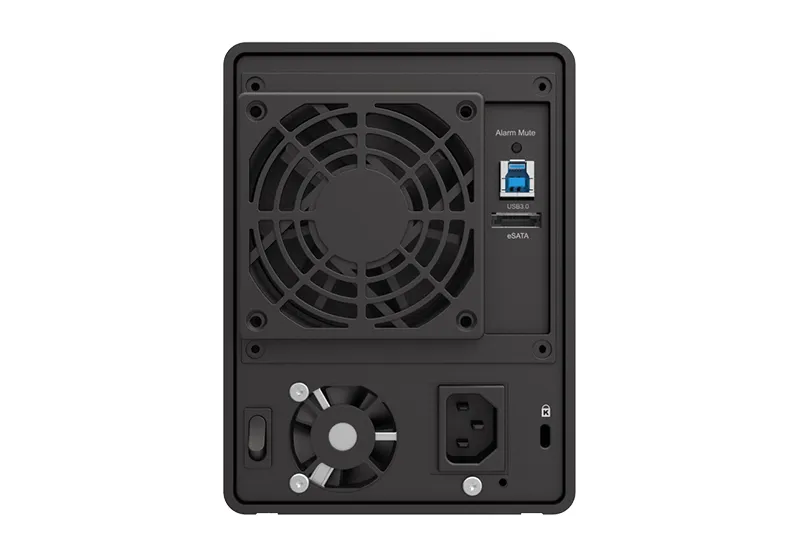

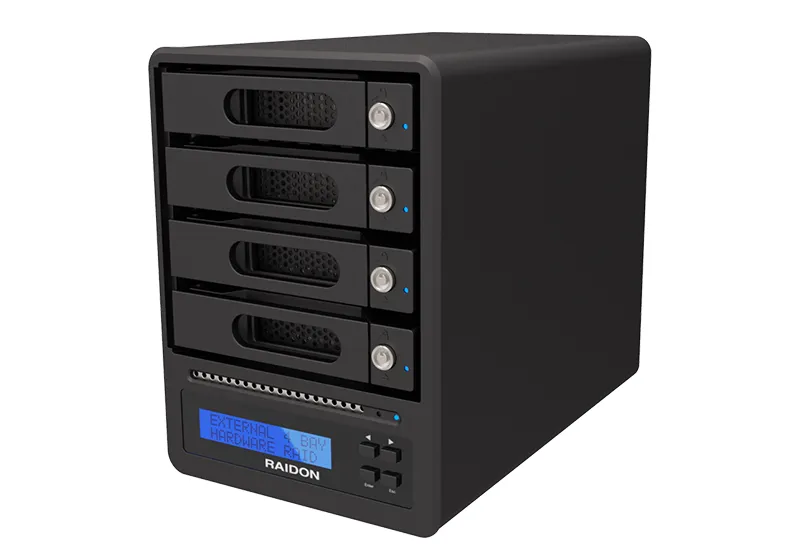

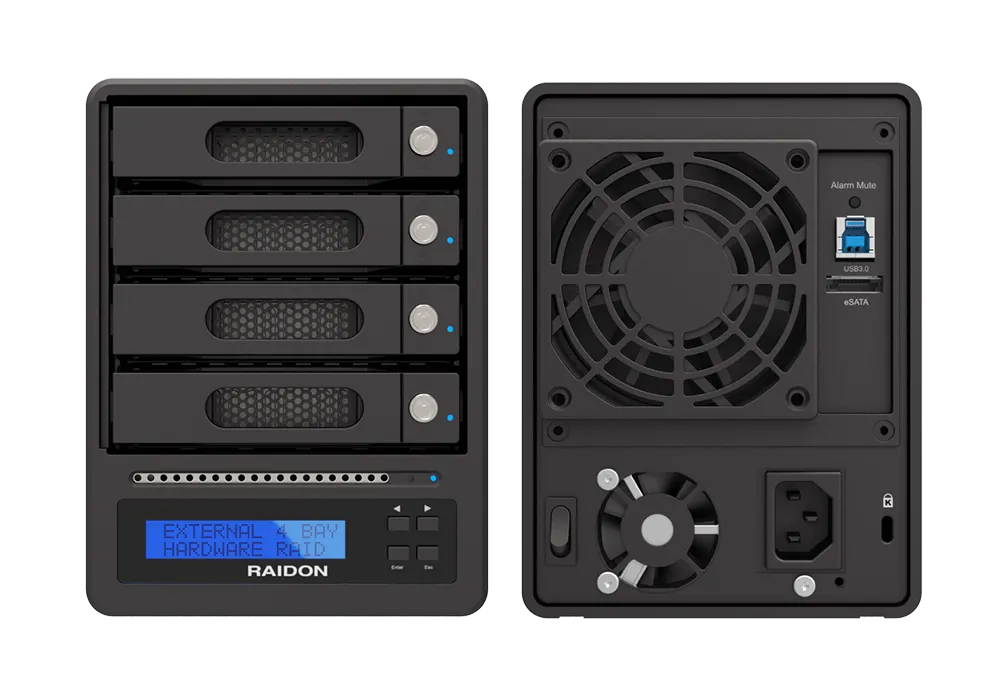

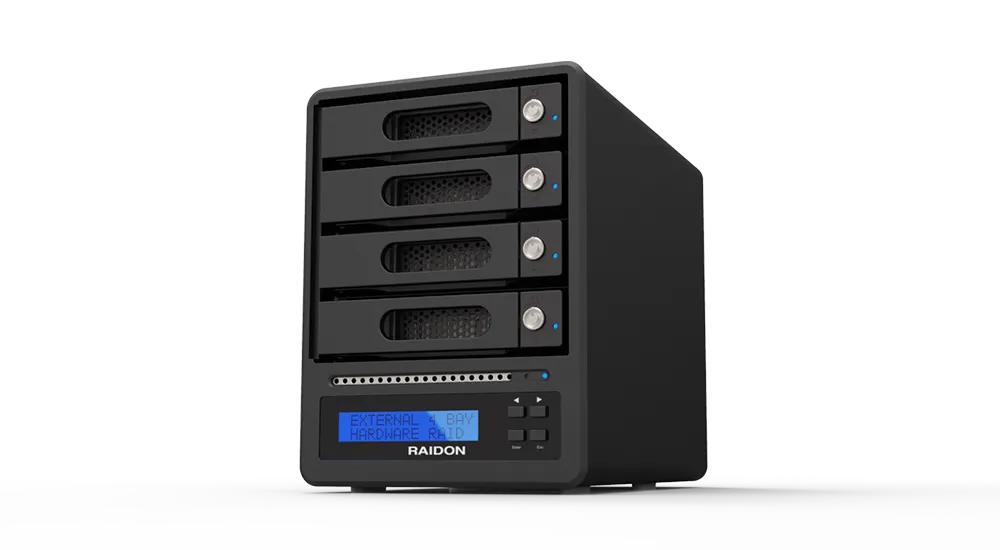

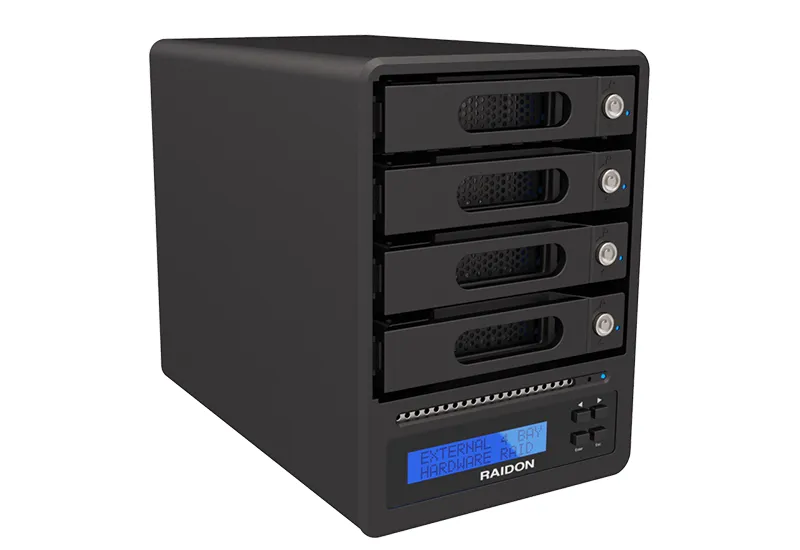

GR5630-SB3+ Product View

GR5630-SB3+ Specification



Model No. GR5630-SB3+
RAID chip JM539 + JMB394
Drive Fit 3.5" - 2.5" SATA HDD/SSD x 4
RAID Level RAID 0, 5, JBOD
Hot-Swap RAID 5
Auto Rebuilding RAID 5
Host Interface USB 3.0 & eSATA Connector
Power Supply AC Input : 100V ~ 240V
HDD Access Indicator LED
Cooling Fan 8cm Fan
Buzzer Alarm Yes
Environment Detector Fan Failure / Overheat
Color Matt Black
Structure Metal Body
Dimensions 125W x 212L x 168H(mm)
Weight 3.4(kg)
Certifications CE & FCC
Operating System
Support
Windows, Mac, Linux
Function Control
Interface
GUI (Windows Only)
Packing Content
USB3.0 Cable、eSATA Cable、Power Cable、CD
Quick Installation Guide、Accessory Kit
Operating temperature
Storage temperature
Relative humidity
41° to 95° F (5° to 35° C)
-4° to 116° F (-20° to 47° C)
5% to 95% noncondensing



GR5630-SB3+ Download

Product
Datasheet
QM
UM
CE & FCC
other
GR5630-SB3+
Image Download

GR5630-SB3+ Question & Answer



GR5630-SB3+ HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
GR5630-SB3+Toshiba3.5" HDD DT-01ACA-1001TB
GR5630-SB3+Toshiba3.5" HDD MK1002TSKB1TB
GR5630-SB3+Toshiba3.5" HDD DT-01ACA-2002TB
GR5630-SB3+Toshiba3.5" HDD MK2002TSKB2TB
GR5630-SB3+Toshiba3.5" HDD DT-01ACA-3003TB
GR5630-SB3+Toshiba3.5" HDD MG03ACA3003TB
GR5630-SB3+Toshiba3.5" HDD MG03ACA4004TB
GR5630-SB3+Hitachi3.5" HDD HDT721010SLA3601TB
GR5630-SB3+Hitachi3.5" HDD HDS721010KLA3301TB
GR5630-SB3+Hitachi3.5" HDD HUA722020ALA3302TB
GR5630-SB3+Hitachi3.5" HDD HDS722020ALA3302TB
GR5630-SB3+Hitachi3.5" HDD HDS723030ALA6403TB
GR5630-SB3+Hitachi3.5" HDD HUA723030ALA6403TB
GR5630-SB3+Hitachi3.5" HDD HUS724030ALA6403TB
GR5630-SB3+Hitachi3.5" HDD HUS724030ALE6403TB
GR5630-SB3+Hitachi3.5" HDD HUS724040ALA6404TB
GR5630-SB3+Hitachi3.5" HDD HUS724040ALE6404TB
GR5630-SB3+Hitachi3.5" HDD HUS726060ALA6406TB
GR5630-SB3+Hitachi3.5" HDD HUH728080ALE6008TB
GR5630-SB3+WD3.5" HDD RE3 Enterprise WD1002FBYS1TB
GR5630-SB3+WD3.5" HDD AV-GP HDD-WD15EVDS1.5TB
GR5630-SB3+WD3.5" HDD RE4 Enterprise-WD1503FYYS1.5TB
GR5630-SB3+WD3.5" HDD RE4 Enterprise-WD2003FYYS2TB
GR5630-SB3+WD3.5" HDD RED NAS HDD-WD40EFRX4TB
GR5630-SB3+WD3.5" HDD RED NAS HDD-WD60EFRX6TB
GR5630-SB3+Seagate3.5" HDD ST31000340AS1TB
GR5630-SB3+Seagate3.5" HDD ST31500341AS1.5TB
GR5630-SB3+Seagate3.5" HDDIronWolf (NAS)ST10000VN000410TB
GR5630-SB3+Seagate3.5" HDDIronWolf Pro (NAS)ST10000NE000410TB
GR5630-SB3+WD3.5" HDDGoldWD8002FRYZ8TB
GR5630-SB3+WD3.5" HDDGoldWD6002FRYZ6TB
GR5630-SB3+WD3.5" HDDRedWD100EFAX10TBConnecting USB 2.0 host interface;performance about 4-6 MB/s.
