SR2760-2S-S2+(1 floppy bay 2.5" RAID)


Balance of cost and performance,  Signature of professions


The SR2760 features compact size but accommodates 2 x 2.5” SATA hard drives which allows you to install it in the mini-server, digital surveillance, 1U server, Email server and POS system that has limited space.

With patented and magically engineering design, the SR2760 2.5” SATA RAID module not only unites RAID 1 technology and enables to accommodate 2 x 2.5 ” SATA hard drives , but conforms perfectly to the dimension of a standard 3.5” SATA hard drive!





Data Security Comes in Handy


SR2760 is the world first and smallest 2.5" SATA RAID module.


RAIDON SR2760-2S-S2+ internal RAID module supports SATA 3.0 G/bs host interface and SATA 22 pin power supply; even the connector location exactly the same with a 3.5” hard drive. Thus it is not necessary to install any other brackets but just install the SR2760+ inside to existing operating system and then the system will be upgraded as a RAID storage to secure data!

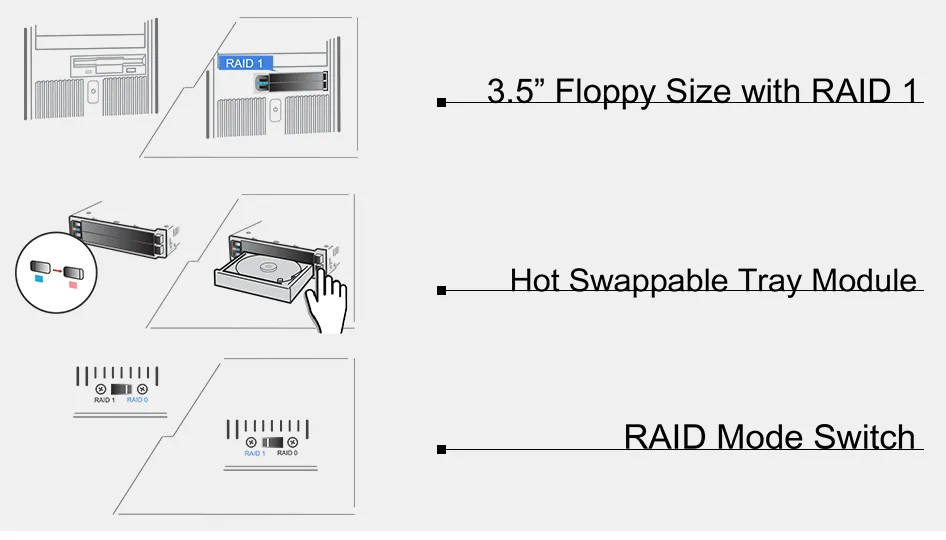

SR2760-2S-S2+ Features

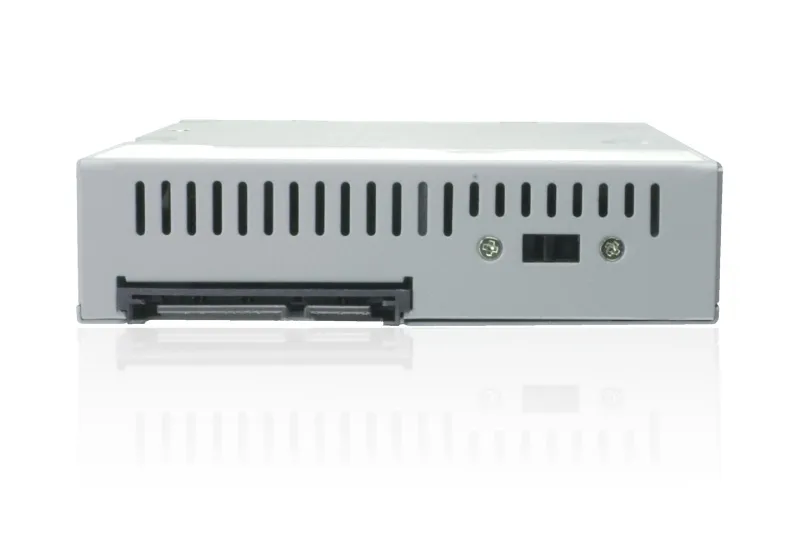

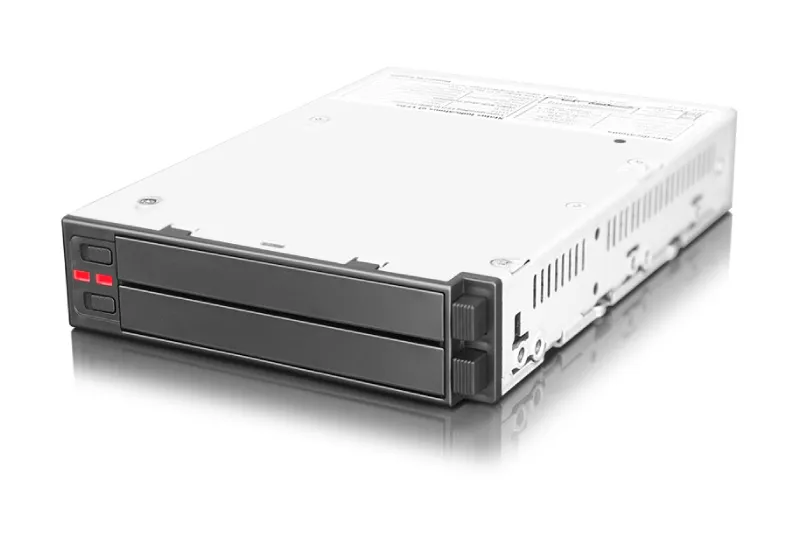

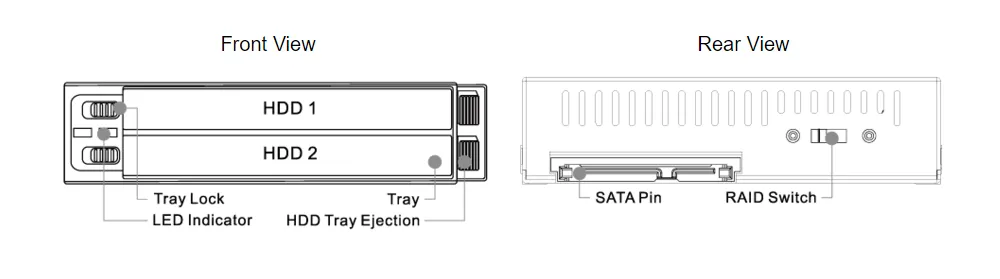

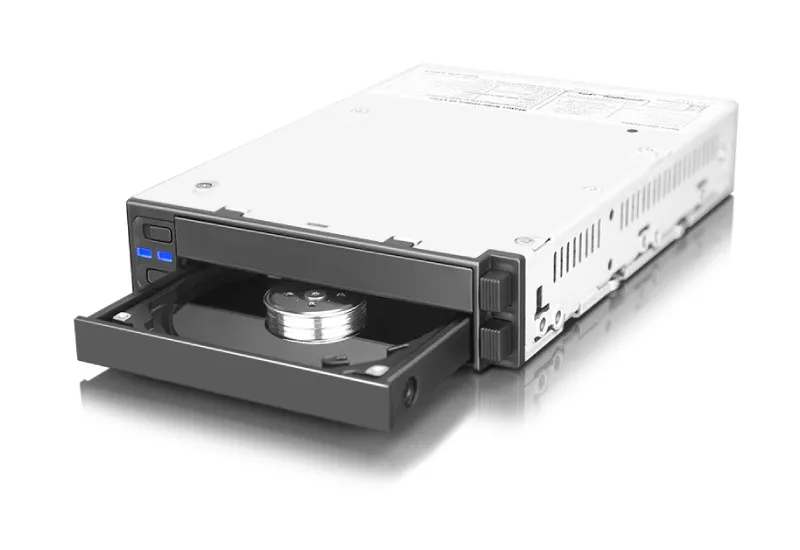

SR2760-2S-S2+ Product View

SR2760-2S-S2+ Specification

Model No. SR2760-2S-S2+
Chipset RAIDON SR2045
Drive Bay 3.5" Floppy DriveBay
Drive Fit 2.5" SATA II HDD x 2 (9.5mm thickness)
RAID Level RAID 0, 1
Hot-Swap RAID 1
Auto Rebuilding RAID 1
Host Interface SATA II Connector (7Pin)
Power Supply SATA Connector (22Pin)
HDD Access Indicator LED
Cooling Fan 3cm Fan
Buzzer Alarm Yes
Environment Detector Fan Failure / Overheat
Color Matt Black
 Structure Metal Body
Dimensions 101.7W x 147L x 25.8H(mm)
Weight 0.4(kg)
Certifications CE & FCC
Operating System
Windows, Linux
Function Control
GUI (Windows Only)
Packing Content CD、Quick Installation Guide、Accessory Kit
HDD Capacity Single HDD tested up to 2TB RAID 0 Two HDDs tested up to 4TB
Operating temperature 50° to 95° F (10° to 35° C)
Storage temperature -4° to 116° F (-20° to 47° C)
Relative humidity 5% to 95% noncondensing


SR2760-2S-S2+ Download

Image Download

SR2760-2S-S2+ Question & Answer


SR2760-2S-S2+ HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
SR2760-2S-S2+Toshiba2.5" HDD MK5055GSX500GB
SR2760-2S-S2+Toshiba2.5" HDD MK6459GSX640GB
SR2760-2S-S2+Toshiba2.5" HDD MQ01ABD1001000GB
SR2760-2S-S2+Hitachi2.5" HDD HTS545032B9A300320GB
SR2760-2S-S2+Hitachi2.5" HDD HTS723232L9A360320GB
SR2760-2S-S2+Hitachi2.5" HDD HTS545050B9A300500GB
SR2760-2S-S2+Hitachi2.5" HDD HTS725050A9A364500GB
SR2760-2S-S2+Fujitsu2.5" HDD MHZ2320BJ320GB
SR2760-2S-S2+Seagate2.5" HDD ST95005620AS500GB
SR2760-2S-S2+Seagate2.5" HDD ST9750420AS750GB
SR2760-2S-S2+WD2.5" HDD WD3200BEKT-22F3T0320GB
SR2760-2S-S2+WD2.5" HDD WD3200BEVT320GB
SR2760-2S-S2+WD2.5" HDD WD3200BJKT320GB
SR2760-2S-S2+WD2.5" HDD WD5000BEVT-22ZAT0500GB
SR2760-2S-S2+WD2.5" HDD WD6400BEVT640GB
SR2760-2S-S2+WD2.5" HDD WD7500BPVT750GB
SR2760-2S-S2+Kingston2.5" SSD 100V128GB
SR2760-2S-S2+Kingston2.5" SSD KC300120GB
SR2760-2S-S2+Kingston2.5" SSD 300V120GB
SR2760-2S-S2+OCZ2.5" SSD VERTEX 2 Series60GB
SR2760-2S-S2+Intel2.5" SSD SSDSA2M040G2GC40GB
SR2760-2S-S2+SanDisk2.5" SSD SDSSDA-240G240GB
