iT4300-U6 (1 CD-ROM Bay, 4x 2.5” SAS/SATA HDD/SSD, JBOD Storage Solution)



Numerous Data in Compact Space


Support JBOD mode

Support SFF-8643 miniSAS 12Gbps Port

Support  4x 2.5”SAS/SATA HDD/SSD

1 of 5.25”CD-ROM Form Factor

With hard drive hot-swappable features

Built-in 4-cm silent fan

iT4300-U6 is a 4 bays internal storage solution for 5.25-inch CD-ROM. Using the JBOD function enables you to store the operating system and data file in different hard disk space. The advantage of storage distribution can help to enhance the performance of system operation.

RAIDON also delivers iT4300-U6 with only JBOD function to SAS interface, users may collocate a RAID card whenever is necessary to upgrade to a RAID storage for desired applications.

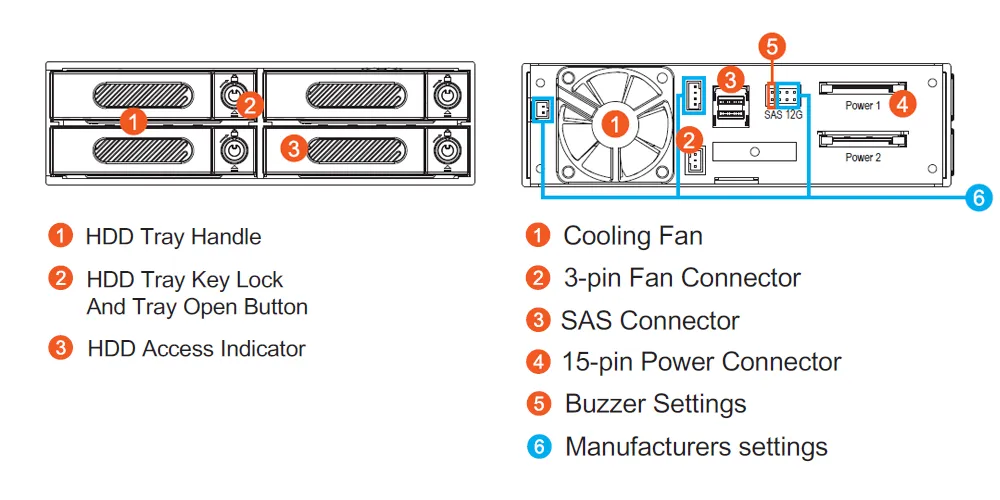

Mechanism

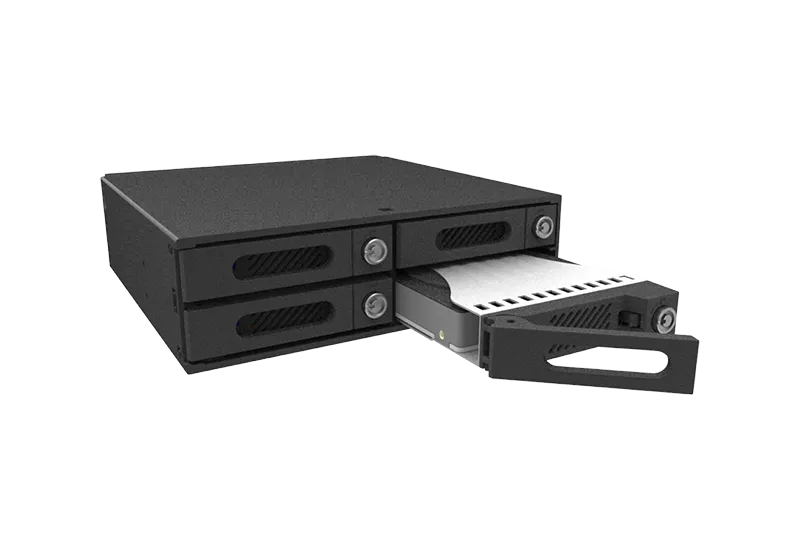

iT4300-U6 to support 4 x 2.5" SAS/SATA HDD/SSD

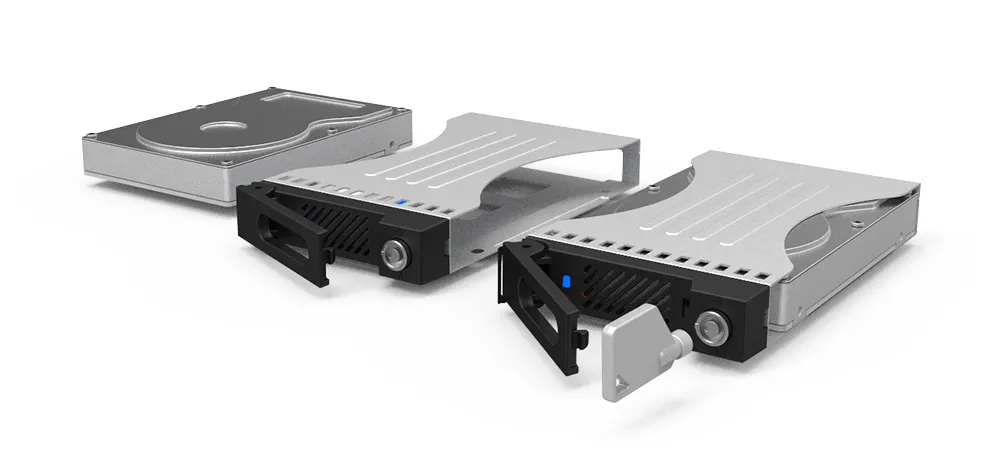

To bundle with four new easy-to-use Trays, iT4300-U6 supports any kinds of  2.5" SAS/SATA HDD/SSD. And also, iT4300-U6's aluminum housing help protecting your data from its solid structure design and the excellent heat dissipation. Since this new easy-to-use Tray is dimensional compliant to most of our RAIDON products, you could easily transfer your data among different storage devices. And also, its key lock design could provide a double protection at your data from any improper Tray extracting.



More Tray information  >>>>



More Tray Product information  >>>>

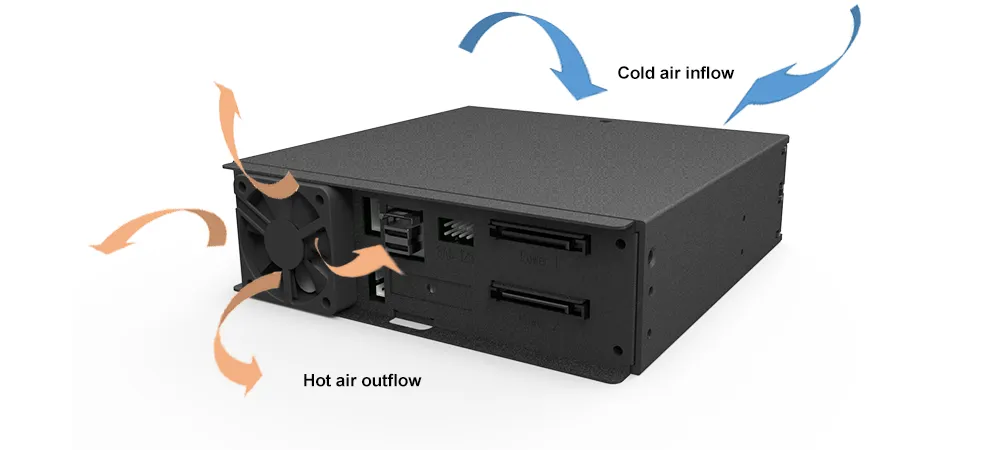

Good Heat Dissipation Can Extend The Life Of The Hard Disk.



The iT4300-U6 is equipped with a 4-cm silent fan, by constantly creating air flow, heat generated by the high-speed rotation of the hard disk can be easily taken away. This maintains the normal operating temperature of the hard disk at all times. A longer life of your hard disk will properly protect your data.

Application



iT4300-U6 Good Performance & Easy to Upgrade to RAID Solution

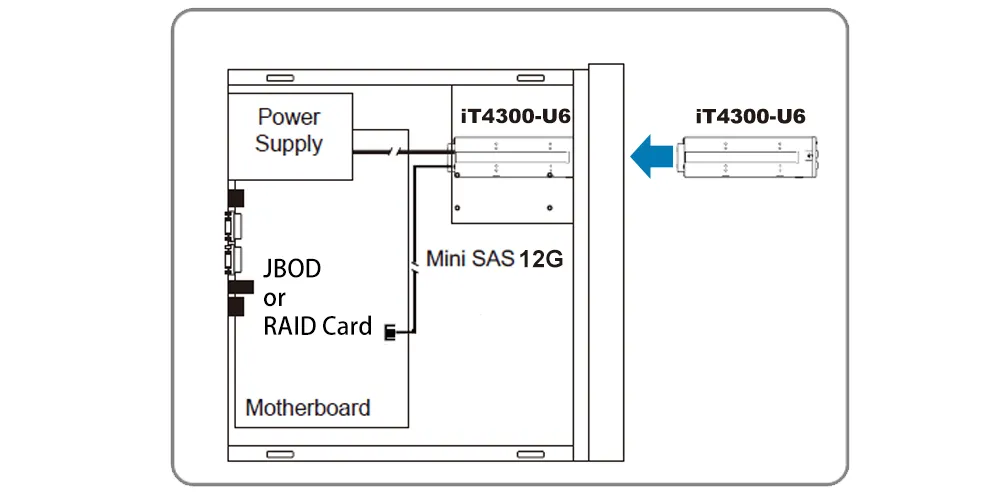

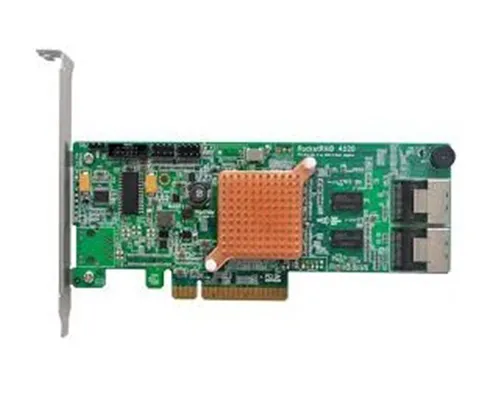

iT4300-U6, a SAS/SATA solution provides 4 of 2.5" HDD housing and JBOD function in only 1 of standard 5.25" CD-ROM bay, offering a massive storage capacity with minimized space requirement. Upon demands of various applications, users may freely accommodate SAS HDD for a stable performance or SATA HDD for a budgetary solution. iT4300-U6 can be easily upgraded to RAID solution when collocating a RAID card which can be conveniently purchased from the market.



More iT4300-S3 product information  >>>>

More iT4300-U5 product information  >>>>

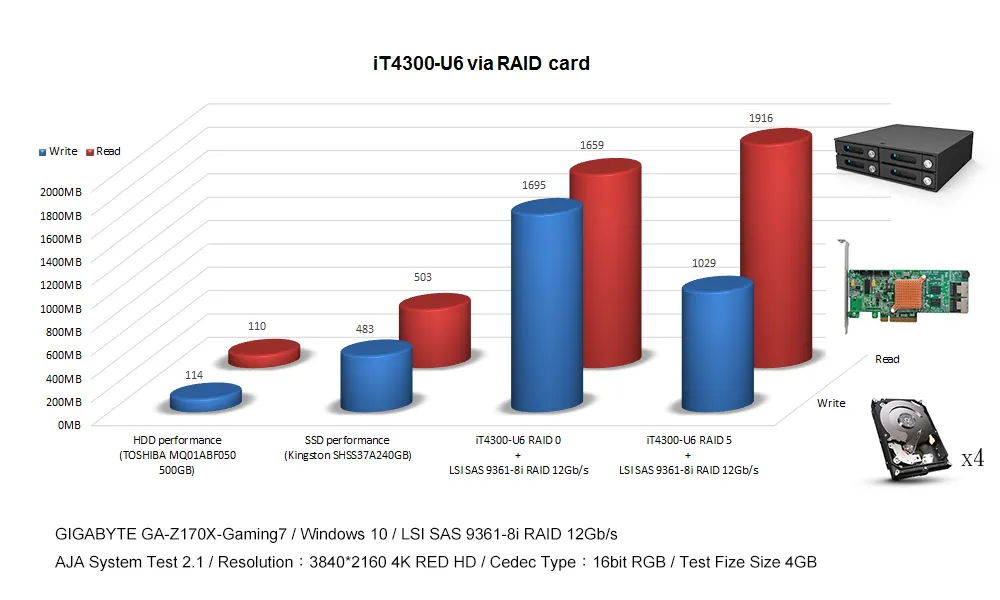

High-Speed, External RAID for Video Editing Applications.



A single mini-SAS cable provides 12Gbps x 4 data transfer. When combined with the iT4300-U6 in RAID 0 mode, users can allot 48Gbps of bandwidth for iT4300-U6, enabling each drive to reach its maximum read and write speeds—even 12Gbps SAS or SSD drives! Get ready to experience higher transfer rates and increased productivity like never before!

Enterprises nominated Professionals appointed

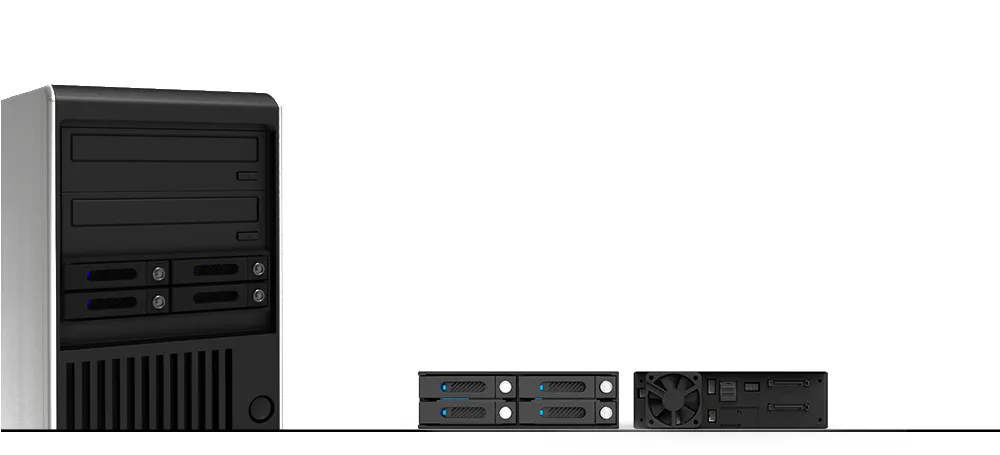

iT4300 is an internal JBOD storage system and compatible 12Gbp SAS / 6Gbps SATA drives designed in 5.25” CD-ROM bay to satisfy the demands of SMB and industrial computing environment. With LED signal leaving you to easily grasp HDD status.

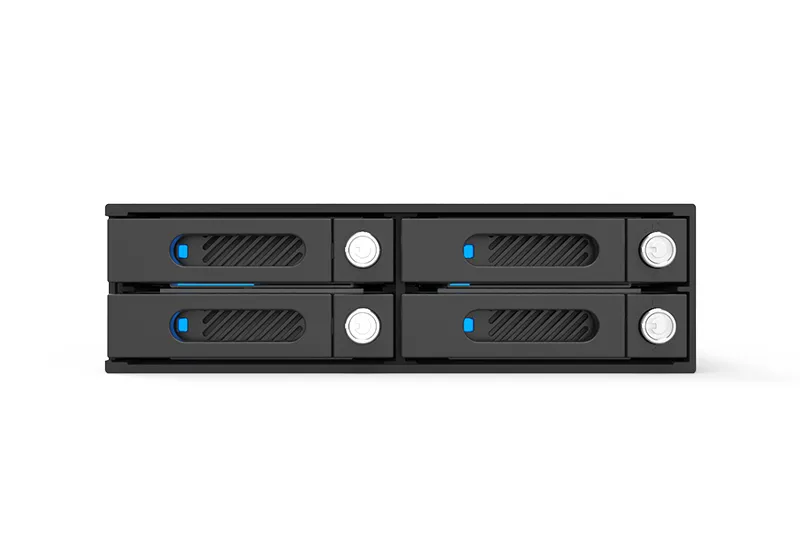

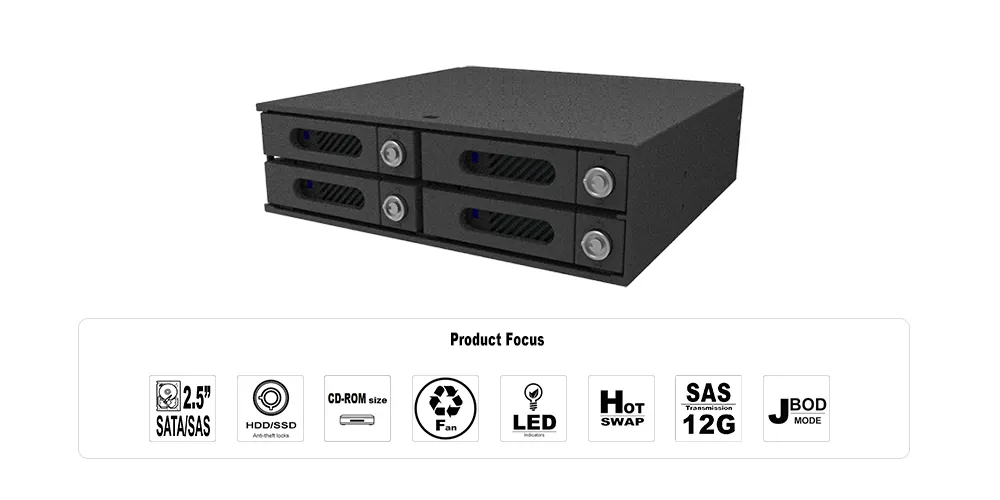

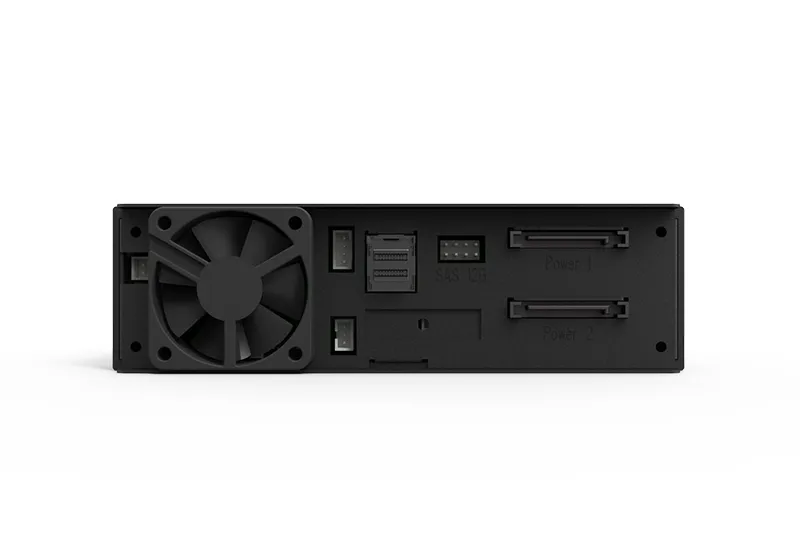

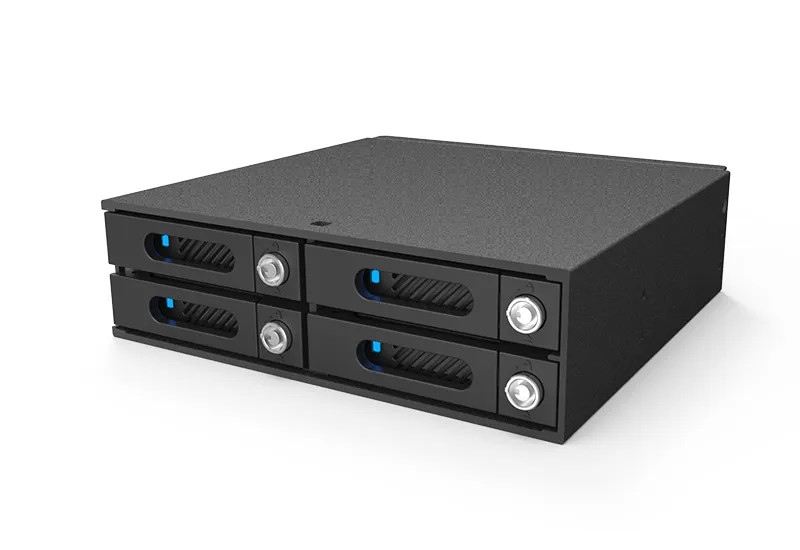

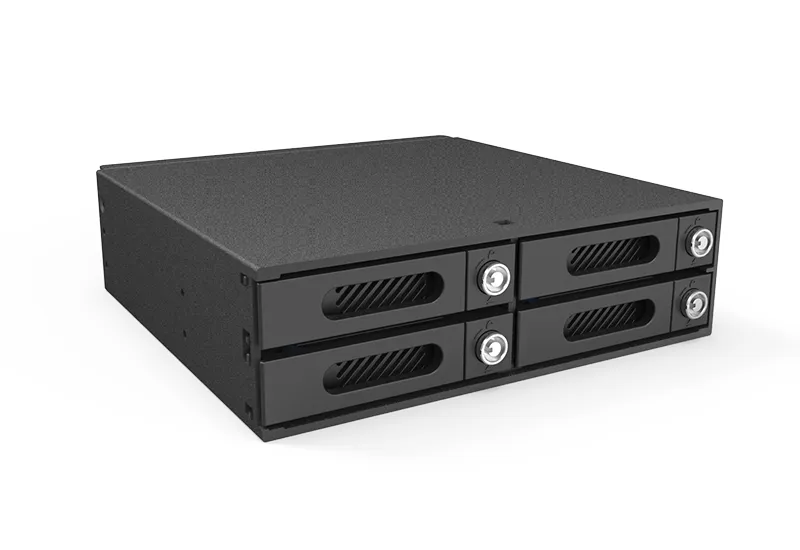

iT4300-U6 Product View

iT4300-U6 Specification



Model no. iT4300-U6
Interface SFF-8643 miniSAS 12Gbps Port
Support Hard Drive 4x 2.5” SAS/SATA HDD/SSD
RAID Level JBOD
Cooling Fan 4 cm
Power Supply 15-pin Power Connector
LED Indicators Yes
Operating System Windows, Linux
Certification CE & FCC
Packing Content Quick Installation Guide、
Accessory Kit、Key、
MiniSAS 12Gbps Internal Cable
Dimension 146(W)x 42(H) x 153(L) mm
Operating temperature 41° to 95° F (5° to 35° C)
Storage temperature -4° to 116° F (-20° to 47° C)
Relative humidity 5% to 95% noncondensing
