SafeTANK Series

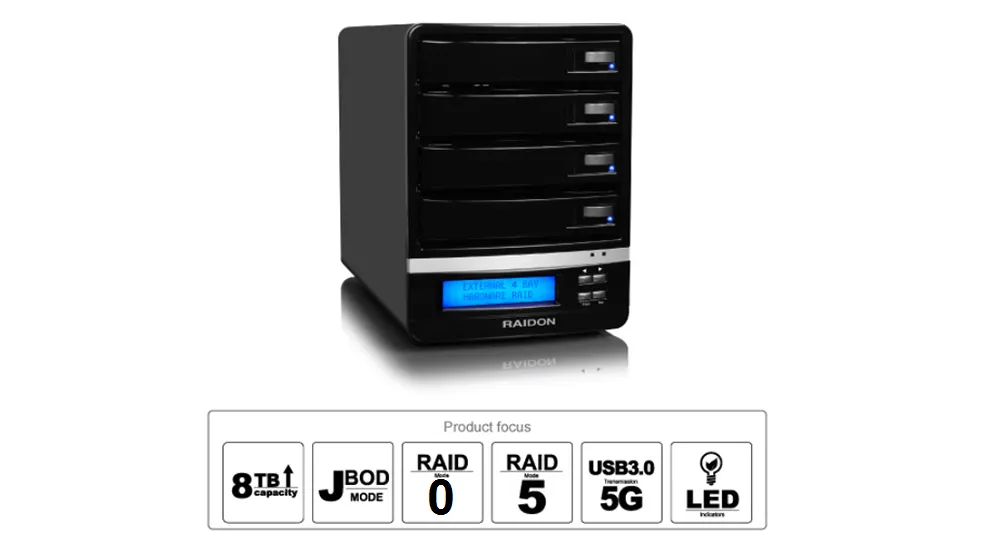

GR5630-WSB3+(4bay 3.5" RAID)

GR5630 is not only giving a big storage capacity, but delivering data security and performance to various applicatins and environments.

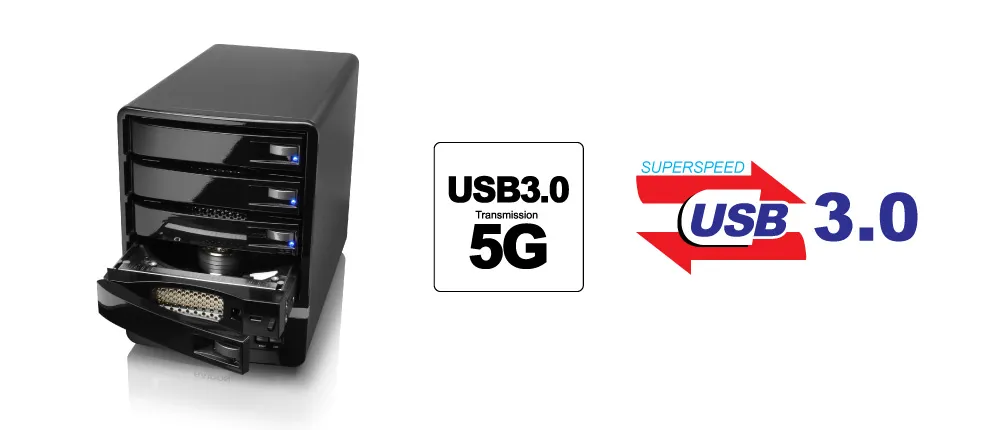

GR5630-WSB3+ offers multiple host interfaces of Super-speed USB3.0/eSATA/Firewire 800 and the equipped LCM enables the convenience of configuration for a desired RAID level among JBOD / RAID 5 / RAID 0 by fully taking the advantage from the larg- est supporting capacity up to 32 TB . GR5630 is not only giving a big storage capacity , but delivering data security and performance to various applications and environments.

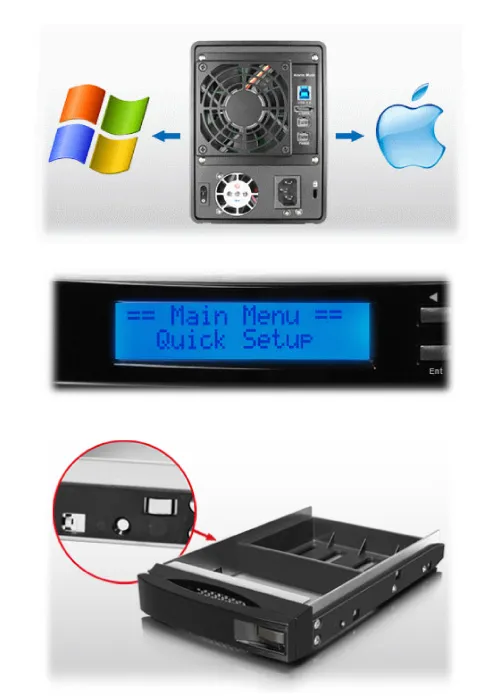

Suitable for PC and Mac user



With Super-speed USB3.0 / eSATA / Firewire 800 host inter- faces, GR5630 can be used both in PC and MAC environment flexible.













Setting via LCM with ease!



Users can set up GR5630 via the LCM and buttons on the front panel while clearly knowing the real-time status of GR5630 from the LCM.





Simple and shock absorption HDD Tray module



GR5630 equips four simple and easy-installed HDD Tray mod- ules which are manufactured with plastic rail strips and metal bomb splinters on both sides, to efficiently reduce the vibra- tion from operating HDD and unexpected impacts or shakes to GR5630.

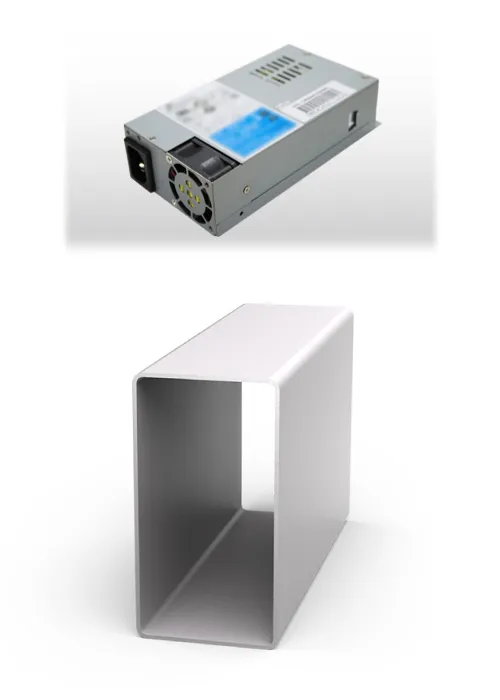

Full 200 watts and stable power supply



GR5630-WSB3+ uses a full 200 watts and stable power supply. As the capacity of single HDD reaches 8TB, the power con- sumption of it also comes with higher requirement. By using this power supply, users can be worriless about GR5630 for not working properly or unable to boot the HDD causing by lack of wattage.













3mm thick Aluminum housing



With 3mm thick Aluminum housing design, not only effectively assisting heat dissipation, but also provides a better physical protection from outer forces, even if moving GR5630 with four HDD installed there will be no concerns of excessive weight causing exterior deformation.

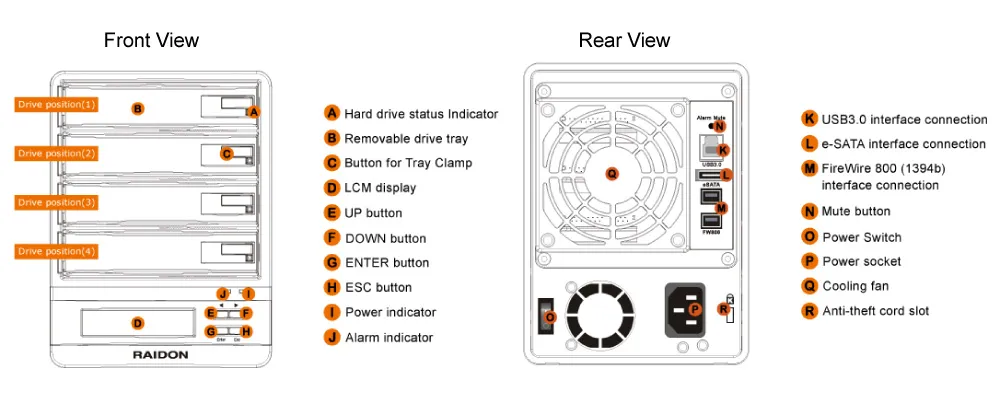

GR5630-WSB3+ Product View

GR5630-WSB3+ Specification



Model No. GR5630-WSB3+
RAID chip JMS394 + JMS539
Drive Fit 3.5” SATA II HDD x 4
RAID Level RAID 0 / 5 / JBOD
Hot-Swap RAID 5
Auto Rebuilding RAID 5
Host Interface USB 3.0 & eSATA Connector & Firewire800 × 2
Power Supply AC Input : 100V ~ 240V
HDD Access Indicator LED
Cooling Fan 8cm Fan
Buzzer Alarm Yes
Environment Detector Fan Failure / Overheat
Color Matt Black
Structure Metal Body
Dimensions 212L × 125W × 168H mm
Weight 3.7(kg)
Certifications CE & FCC
Operating System
Support
Windows, Linux, Mac
Function Control
Interface
GUI (Windows Only)
Packing Content
1394 Cable、USB3.0 Cable、eSATA Cable、Power Cable、
CD、 Quick Installation Guide、Accessory Kit
Operating temperature
Storage temperature
Relative humidity
50° to 95° F (10° to 35° C)
-4° to 116° F (-20° to 47° C)
5% to 95% noncondensing



GR5630-WSB3+ Download

Product
Datasheet
QM
UM
CE & FCC
other
GR5630-WSB3+
Image Download
Image Download

GR5630-WSB3+ Question & Answer

  • Q1GR5630-WSB3+ only in Mac Pro OS 10.11.x or 10.12.x version, via USB 3.0 have USB hot-plug issue, you can refer to the following instructions:
  • Q2Why can’t my GR5630-WSB3+ reach the transfer performance speed of 200 MB/s via e-SATA interface as stated on your website?
  • Q3Which drive format should I choose to format the hard drives in the GR5630-WSB3+?


GR5630-WSB3+ HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
GR5630-WSB3+Toshiba3.5" HDD DT-01ACA-1001TB
GR5630-WSB3+Toshiba3.5" HDD MK1002TSKB1TB
GR5630-WSB3+Toshiba3.5" HDD DT-01ACA-2002TB
GR5630-WSB3+Toshiba3.5" HDD MK2002TSKB2TB
GR5630-WSB3+Toshiba3.5" HDD DT-01ACA-3003TB
GR5630-WSB3+Toshiba3.5" HDD MG03ACA3003TB
GR5630-WSB3+Toshiba3.5" HDD MG03ACA4004TB
GR5630-WSB3+Hitachi3.5" HDD HDT721010SLA3601TB
GR5630-WSB3+Hitachi3.5" HDD HDS721010KLA3301TB
GR5630-WSB3+Hitachi3.5" HDD HUA722020ALA3302TB
GR5630-WSB3+Hitachi3.5" HDD HDS722020ALA3302TB
GR5630-WSB3+Hitachi3.5" HDD HDS723030ALA6403TB
GR5630-WSB3+Hitachi3.5" HDD HUA723030ALA6403TB
GR5630-WSB3+Hitachi3.5" HDD HUS724030ALA6403TB
GR5630-WSB3+Hitachi3.5" HDD HUS724030ALE6403TB
GR5630-WSB3+Hitachi3.5" HDD HUS724040ALA6404TB
GR5630-WSB3+Hitachi3.5" HDD HUS724040ALE6404TB
GR5630-WSB3+Hitachi3.5" HDD HUS726060ALA6406TB
GR5630-WSB3+Hitachi3.5" HDD HUH728080ALE6008TB
GR5630-WSB3+WD3.5" HDD RE3 Enterprise WD1002FBYS1TB
GR5630-WSB3+WD3.5" HDD AV-GP HDD-WD15EVDS1.5TB
GR5630-WSB3+WD3.5" HDD RE4 Enterprise-WD1503FYYS1.5TB
GR5630-WSB3+WD3.5" HDD RE4 Enterprise-WD2003FYYS2TB
GR5630-WSB3+WD3.5" HDD RED NAS HDD-WD40EFRX4TB
GR5630-WSB3+WD3.5" HDD RED NAS HDD-WD60EFRX6TB
GR5630-WSB3+Seagate3.5" HDD ST31000340AS1TB
GR5630-WSB3+Seagate3.5" HDD ST31500341AS1.5TB
GR5630-WSB3+WD3.5" HDDGoldWD8002FRYZ8TB
GR5630-WSB3+WD3.5" HDDGoldWD6002FRYZ6TB
