iX2625 (2 CD-ROM bay 2.5” RAID)


Safety and efficacy of both the best storage device





Data Transfer Performance and Data Correction


iX2625 supports 5 pieces of 2.5" HDD/SSD.  You could set 4 of them with RAID X mode which still protects your data from two defective disks at the same time.  It's just like what RAID 6 mode can do for you and even with a better data protection feathre than that of RAID 5 mode's.  And also, you could get the same data transfer rate as what RAID 0 or RAID 5 provide you.  iX2625 not only provides you an excellent data protection but also a good data transfer proference.


The Special Features:

1.  It 4+1 HDDs/SSDs design gives a multiple choices.


2.  Its RAID X feature provides you a RAID 6 level data protection and RAID 0 data transfer efficiency.


3.  Its data transfer rate is with 1.5 times faster than the only available hardware RAID 5 3Gb/s solution in the market.


4.  Its Background REBUILDING feature lets you keep a stable data transfer efficient even though it's at REBUILDING WORKS.


5.  Double Tray Lock designs helps reducing the DEGRADED RAID happening from ectracting HDD/SSD Trays accidently!

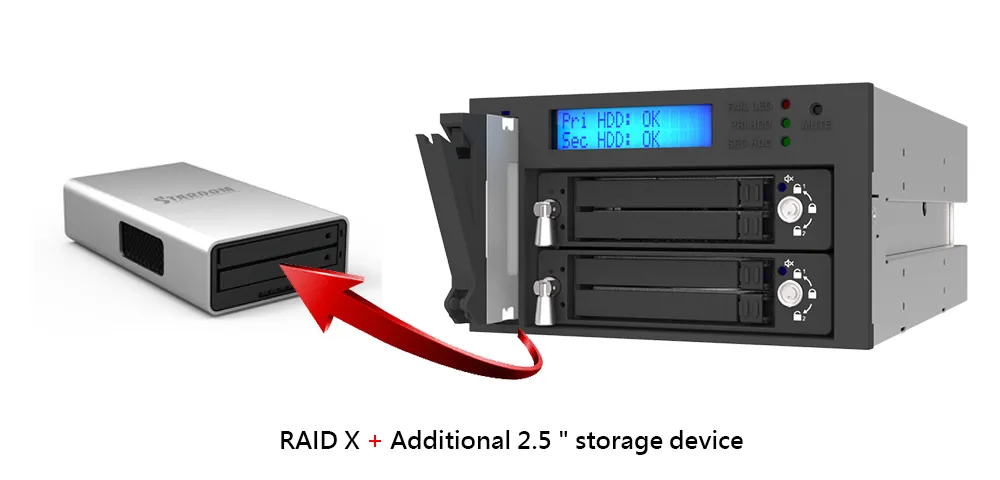

iX2625's 4+1 Design brings you a multi-purpose storage application


iX2625 not only supports the RAID X feature from its standard 4 2.5" HDDs/SSDs but also provides you another 2.5" HDD/SSD for use.  And this 5th HDD/SSD has its own SATA port for your storage application.


You could definitely use this 5th bay with a SSD for booting purpose for to pull up the system performance.  And the rest RAID X 4 disks could be used for data protection purpose.


Of course, you could use RAID X 4 disks as the booting disk together with its data protection feature, and let this 5th disk be a mobile back-up disk as well.

RAID X gives you an equivalent data protection feature as what RAID 6 provides you


iX2625 could still protect your data while there are two defective HDDs/SSDs at the same time just like what RAID 6 givess you.  And also, its data transfer performance is equivalent to what RAID 0 gives you too.


Because of these two excellent features, the RAID 6 grade data protection and RAID 0 grade data transfer performance, you, as the CEO of a small entity (or enterprise), could definitely rely on it for your daily MIS use.

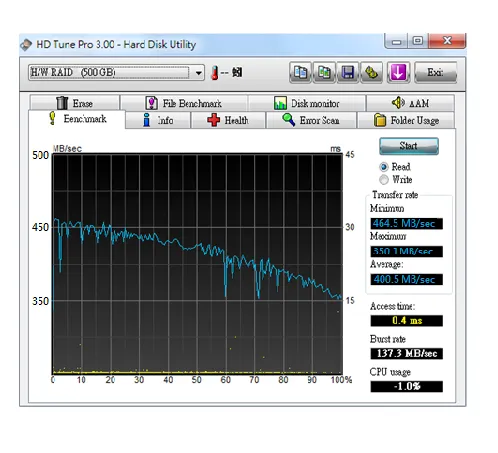

It's 1.5 times faster than hardware RAID 5 storage you could buy in market today


iX2625 supports 4 HDDs or SSDs and the RAID X which performs a better data protection feature together with 1.5 times faster data transfer rate than the ordinary SATA II (3Gb/s) for RAID 5 feature which you could only buy in the market.



Even though it's in REBUILDING WORK, iX2625 still keeps the same data transfer rate


iX2625's very special REBUILDING WORK keeps the same data transfer performanve even though it doing the heavy duty REBUILDING WORK.  iX2625's three independent RAID X sets helps providing the same data transfer performance even though one of them is defect.

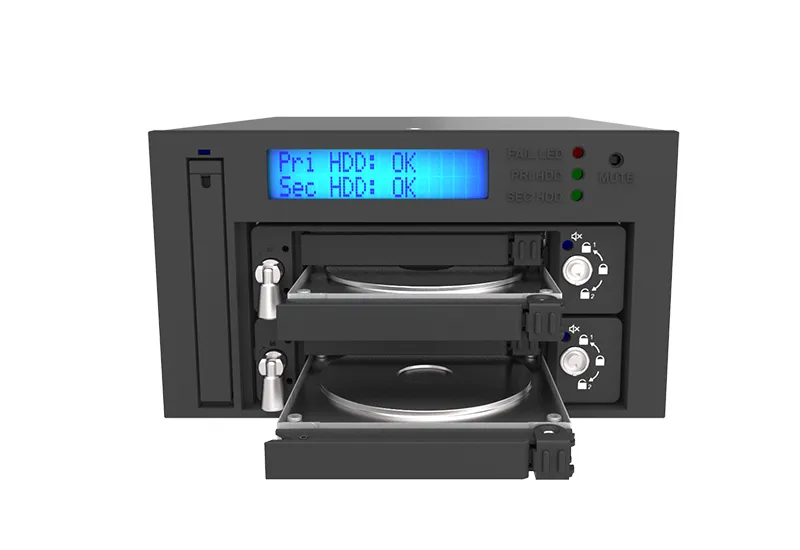

Its new Tray Lock design to help preventing improper extracting Tray


According to the strict restriction at RAID, any improper work to extract HDD/SSD may cause a serious damage to your data.  And iX2625's new Tray Lock design is to protect any improper extraction at HDD/SSD and then help protecting your valuable data.

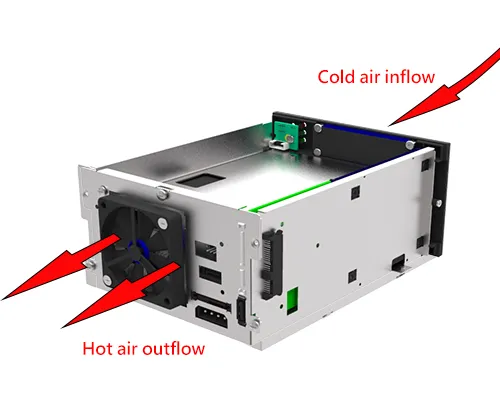

Its excellent heat dissipation to prolong the HDD life cycle


iX2625's 6 cm silent fan helps dissipating out the heat generated from HDDs/SSDs efficiently and always keep them with low working environment which helps their life cycle.



This is what iX2625 could do for you

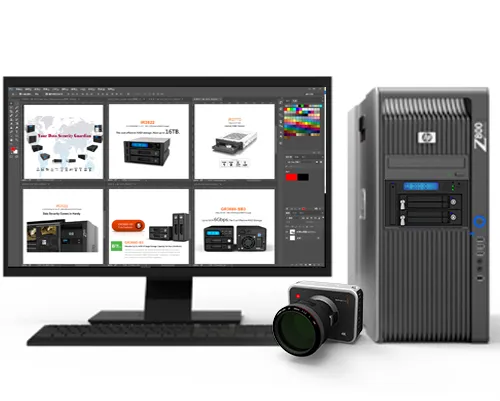

Photo editing, iX2625 to help not only protecting all your photos but editing them efficiently


While using PhotoShop or Lightroom Photo Editing softwares, you, as a professional photographer or the habbyist, could use your iX2625 with 2.5" SSDs to help managing your huge photo library.  Your RAID X's data protection and fast data transfer rate could definitely help could definitely help you to keep your RAW files and their finished photos.

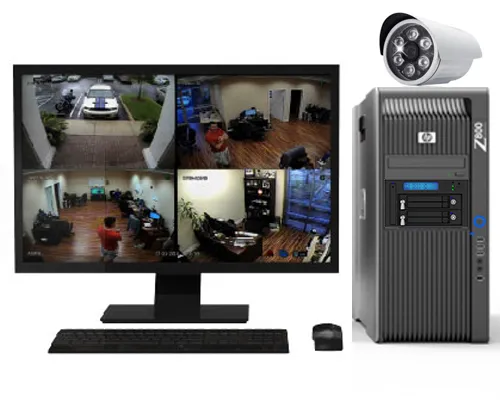

Surveillance application, iX2625 - a good devide for your DVR monitoring system


iX2625 is to designed for you to easily install into your DRV monitoring system.  And being with 2TB HDD, you could enjoy its RAID X level data protection with a huge memory size for video storage. And the RAID X level feature still protects your data and keeps your DVR working properly even if two of the 4 HDDs are defect at the same.

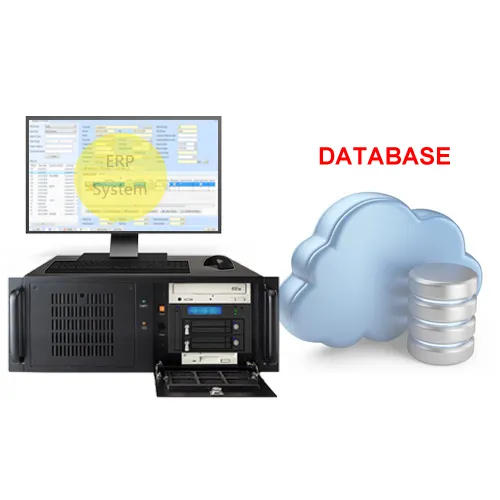

ERP application for enterprises, RAID X feature to always keep back-up data file for you


iX2625's RAID X with 4 1TB SSDs not only helps protecting your ERP data from its RAID X level feature but also creating your data back up work efficiently once a while.

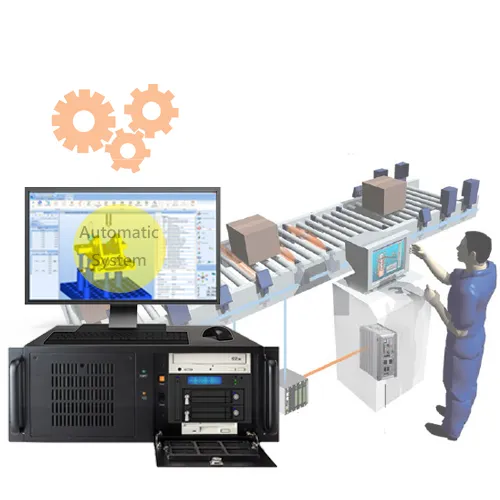

Full automation application, RAID X to help a better automation process


Low down time is the main key to use automation production quipment successfully.


Because two defective HDDs happening at the same time is almost imposible, iX2625's RAID X provides almost ZERO Down Time in controlling your production quipment. iX2625 still works properly while one of the 4 HDDs/SSDs is defect.


From the huge automation quipment in semiconductor plant to you small CNC Machine, it's your best choice to have one iX2625 in your system controller product.

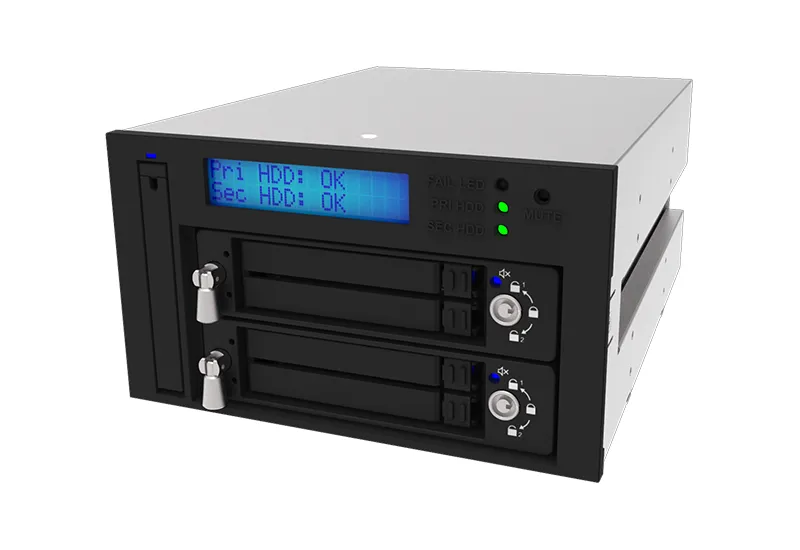

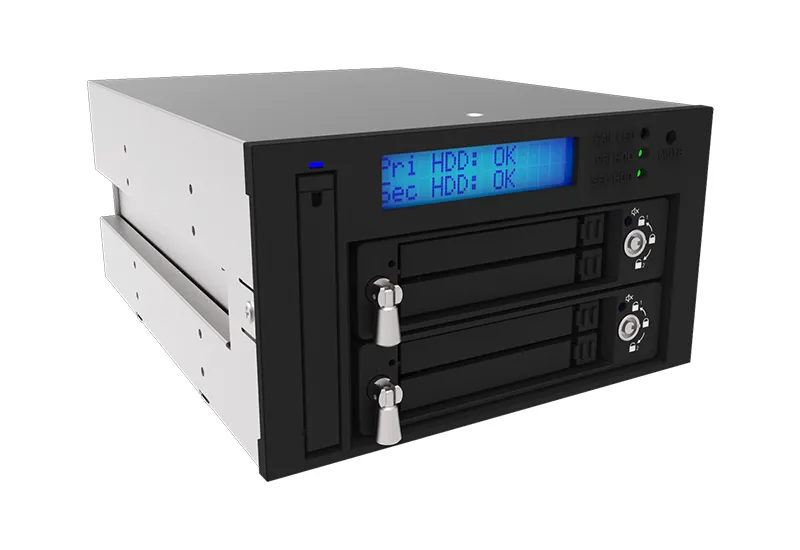

iX2625-S3 Product View

iX2625-S3 Specification

Model No iX2625-S3

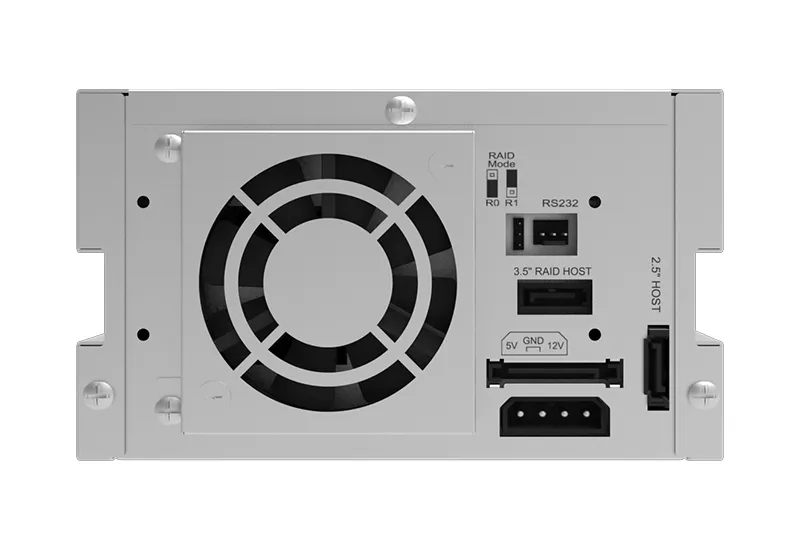

Interfaces 6Gbps SATA III 1 Ports ( 3.5" RAID Module )
6Gbps SATA III 1 Ports ( 2.5" HDD/SSD )
Compatible Drive 4 x 2.5" SATA III ( 6.0 Gbits) HDD for RAID X model
1 x 2.5" SATA III ( 6.0 Gbits) HDD/SSD for Single port
ASIC WM6182A x3
RAID Level RAID X + Independent volume
iX2625 default
RAID mode
X Tray default
RAID mode
RAID 1 x 2
Power Supply BIG 4Pin Connector x 1
SATA 15Pin Connector x 1
Status Display LCD Display
Cooling Fan 6cm Fan
Buzzer Alarm Yes
Environment Detector Fan Failure / Overheat
Electrical and
* Line voltage: 12V + 5V DC
* Operating temperature: 50° to 95° F (10° to 35° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% noncondensing
Size and Weight 148 mm (W) x 84 mm (H) x 202 mm (D)
Package Accessories * iX2625-S3 x 1
* SATA Cable x 2
* Software CD
* Accessory kit
* Quick Installation Guide
