iR2024::Mobile

Features

1. Flexible Storage Options with SSD and hard drive Compatibility.

2. Comprehensive Support for SATA 6G with RAID 0 and RAID 1 Configurations.

3. STATUSGAUARD GUI and drive S.M.A.R.T monitoring (for Windows only).

4. RAID Configuration Displayed via LCD Status Screen.

5. Drives monitoring with LED light indicator.

6. Tray with KeyLcok protection.

7. Hot-swappable and plug-and-play for easy replacement of drives.

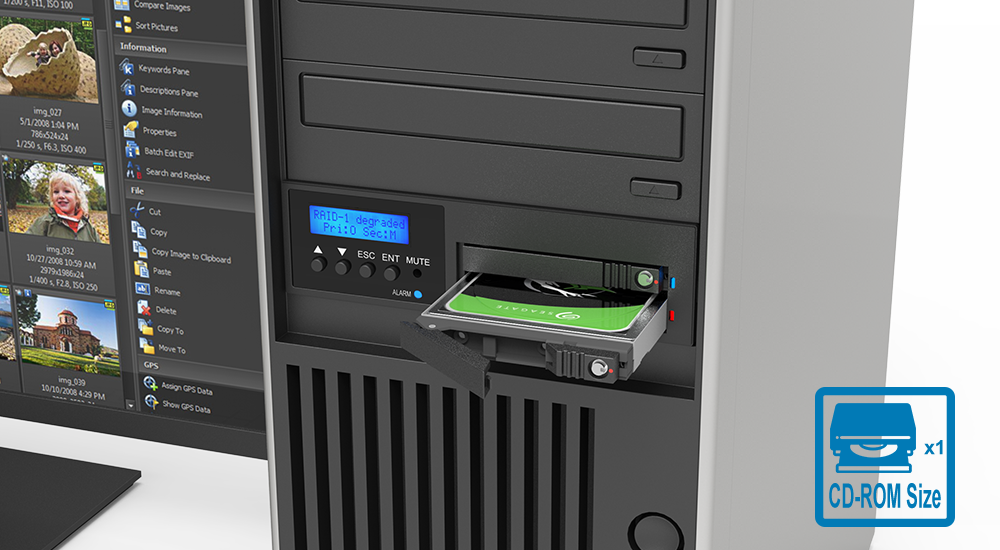

8. Compact Size: fits perfectly into a 5.25-inch CD-ROM bay.

9. Versatility: for server, IPC, or workstation installation.

10. Optimal heat management with MCU controlled silent fan.

11. Advanced Overheat alarm buzzer.

Benefits

1. RAID 1 supports Data Redundancy and Protection.

2. RAID 0 supports Increased Performance.

3. Versatile Storage Options supports SATA 3 6G SSD and Hard disk.

4. STATUSGAUARD GUI Eases of Management.

5. KeyLock feature provides Enhanced Security.

6. Excellent Heat Management with MCU-controlled silent fan and overheat alarm buzzer.

7. Real-Time Drive S,M.A.R.T. Monitoring.

8. Efficient Space Utilization with compact design fit into one CD-ROM Bay.

Your Compact and Efficient Solution for High-Speed, Secure Data Storage and Management

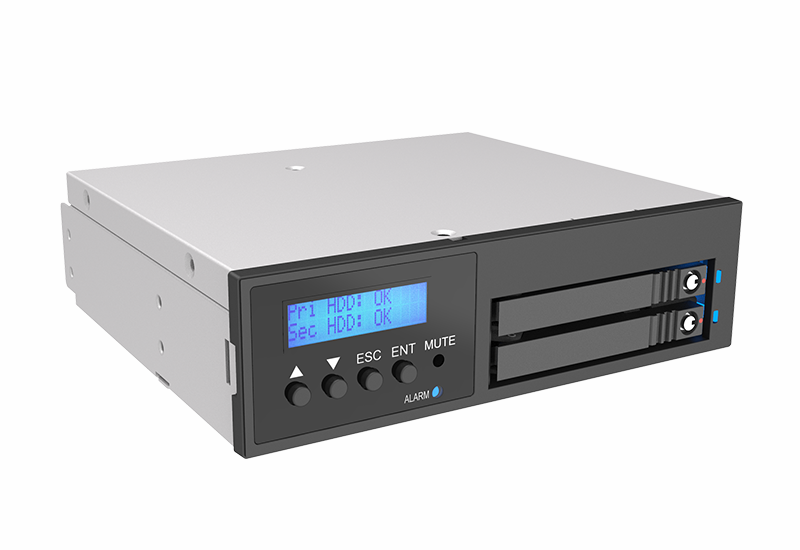

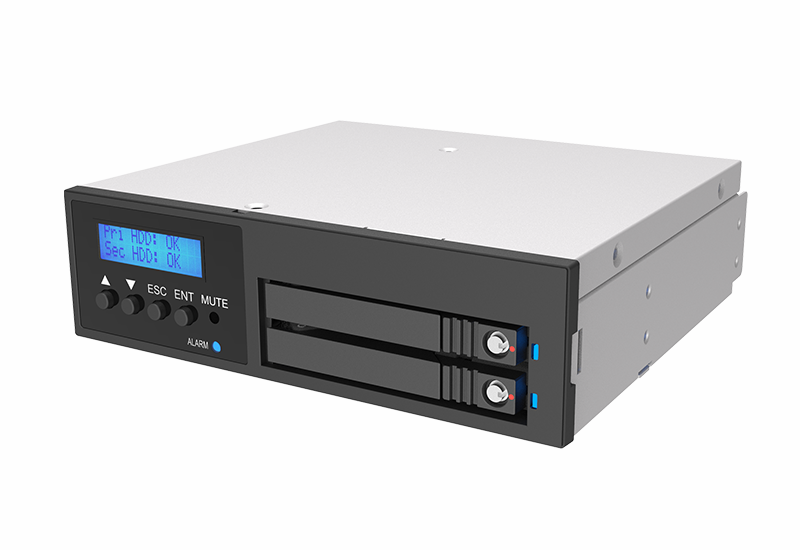

The iR2024 Internal RAID Device - a comprehensive, efficient, and versatile solution for your data storage and management needs. Designed with advanced features, the iR2024 is a reliable component for any server, IPC, or workstation setup.

Flexible Storage Options with SSD or hard drive Compatibility

The iR2024 has been thoroughly designed to support either two 2.5-inch SATA 6.0 Gb/s SSDs or hard drives. This versatile accommodation enables a diverse range of high-speed storage possibilities, making it a perfect match for the demands of today's high-performance computing scenarios.

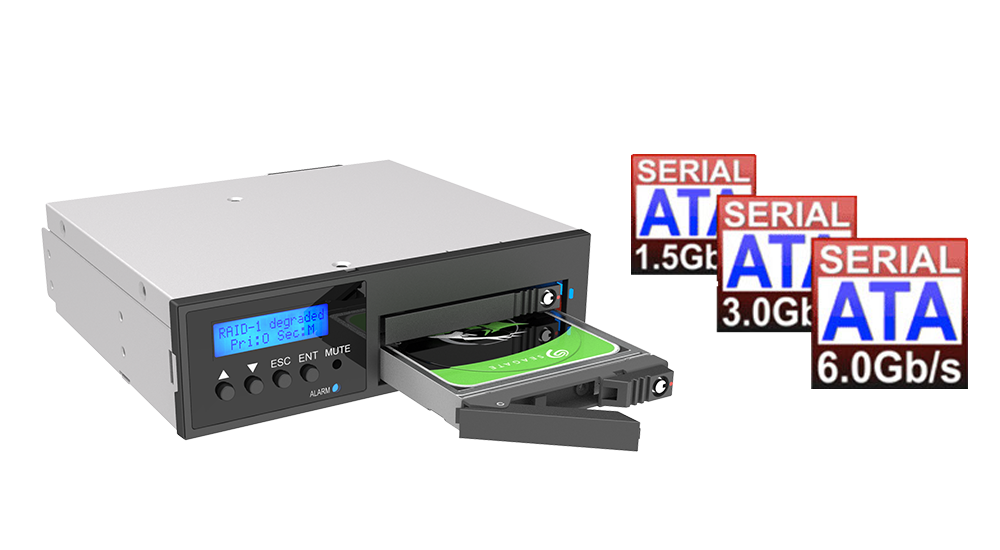

Support SATA 6G with RAID 0 and RAID 1

The iR2024 offers comprehensive support for SATA 6G, integrating seamlessly with the latest generation of high-speed data interfaces. This robust support ensures you can leverage the speed and efficiency of SATA 6G, significantly enhancing your system's overall data transfer rates and performance. Furthermore, the iR2024 supports RAID 0 and RAID 1 configurations. With RAID 0, also known as striping, you can enjoy increased data throughput by spreading data across multiple drives. Conversely, RAID 1, known as mirroring, duplicates your data across two drives, providing an immediate backup and ensuring data integrity and reliability. The comprehensive support for both these RAID configurations, combined with SATA 6G compatibility, make the iR2024 a highly adaptable and powerful storage solution that caters to a broad spectrum of user needs.

Comprehensive Support for SATA 6G with RAID 0 and RAID 1 Configurations

Tray with KeyLock Protection

To enhance the physical security of your drives, the iR2024 is designed with a tray system that includes a KeyLock feature. This prevents unauthorized access and removal of your valuable drives.

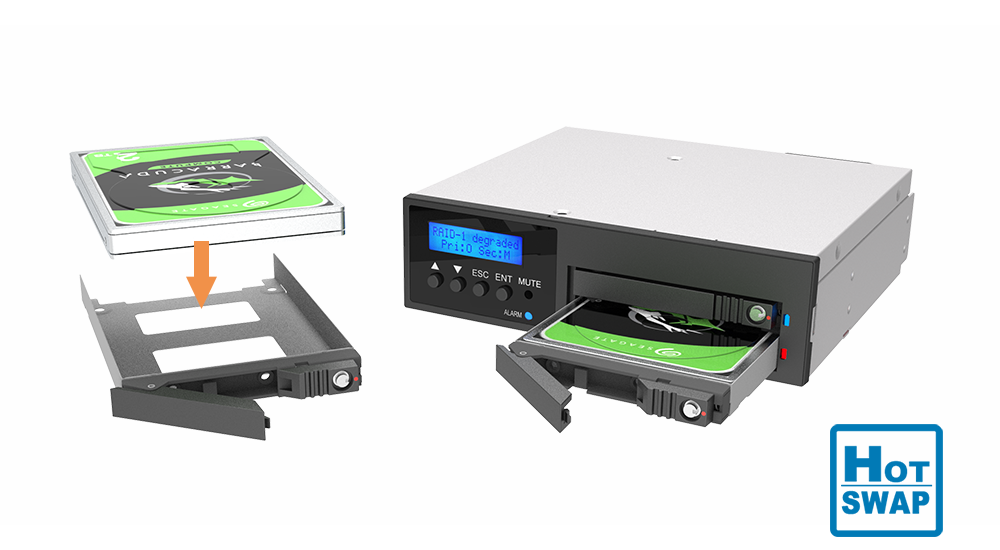

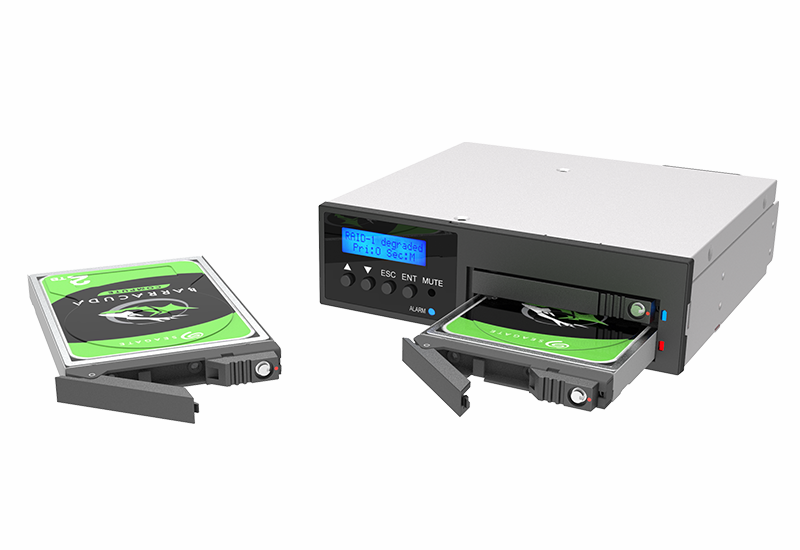

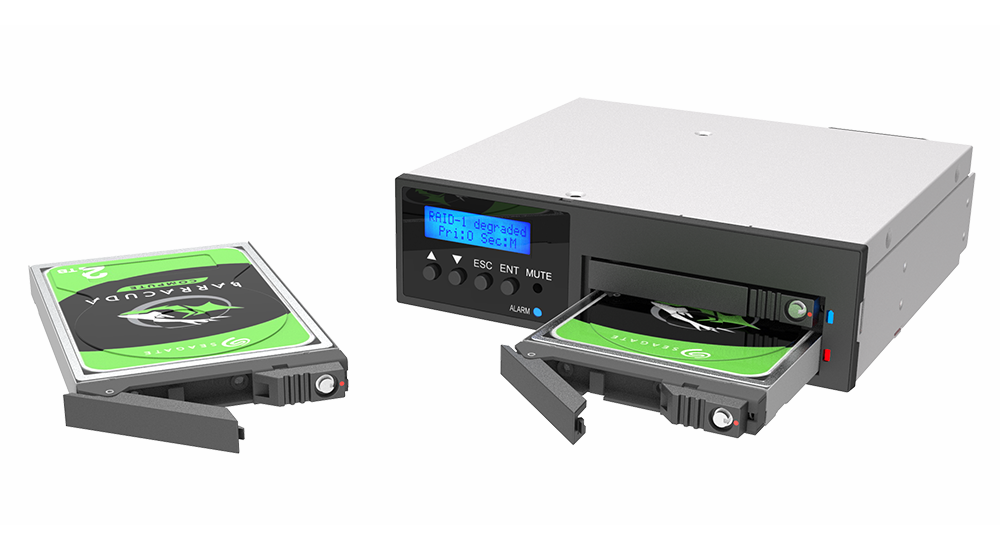

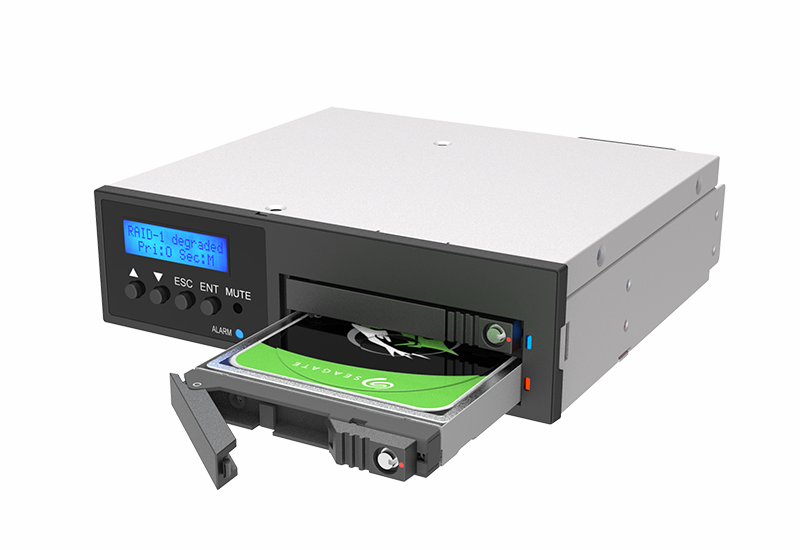

Hot-swappable and plug-and-play for easy replacement of drives

One of the standout features of the iR2024 Compact RAID Enclosure is its hot-swappable and plug-and-play capability. This user-friendly design allows for effortless replacement and upgrading of drives, minimizing downtime. If a drive fails or you simply want to upgrade your storage capacity, the hot-swap feature lets you replace the drive without having to power down the system. Additionally, the plug-and-play functionality ensures the new drive is immediately recognized and operational, making the whole process seamless and convenient. This aspect truly embodies the iR2024's commitment to blending advanced technology with superior user experience.

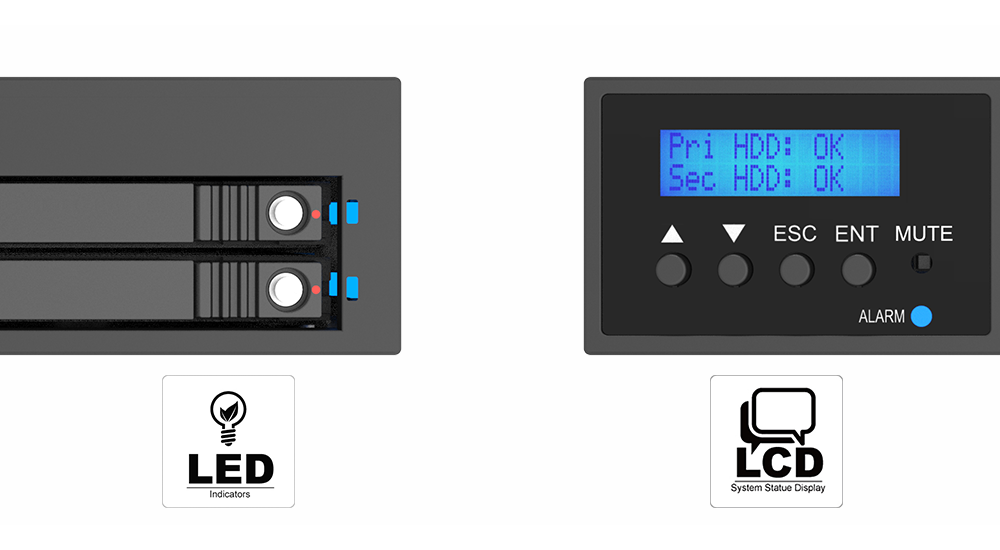

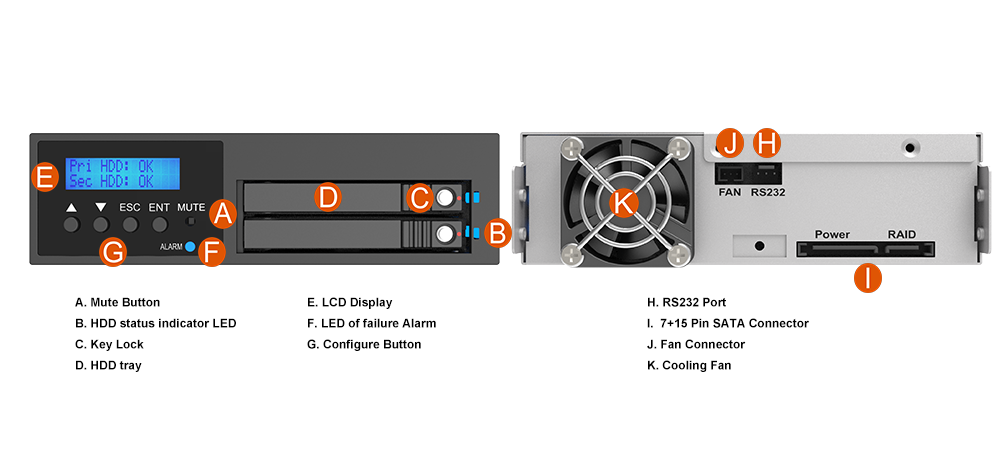

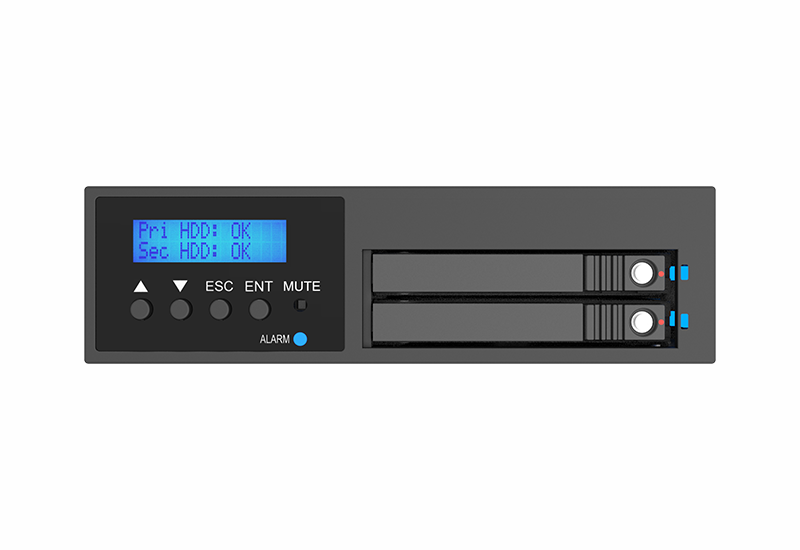

RAID Configuration Displayed via LCD Status Screen

The iR2024 comes equipped with a state-of-the-art LCD status screen that dynamically displays your RAID configuration settings. This user-friendly feature allows you to have an at-a-glance view of your storage arrangement, providing real-time updates on your RAID settings and data management status. The clear and concise display ensures that you can quickly understand and manage your system's performance and storage parameters, effectively reducing the complexity of data management. The LCD screen also makes it easy to adjust your RAID configurations, allowing for a seamless transition between different storage preferences. With the iR2024's LCD status screen, staying informed and in control of your storage system has never been more straightforward.

LED Light indicators

The iR2024 features a separate LED display for each SSD or hard disk, presenting data access status or the condition of the SSD or hard disk concisely. This allows users to stay informed about the overall status of the iR2024 at any time.

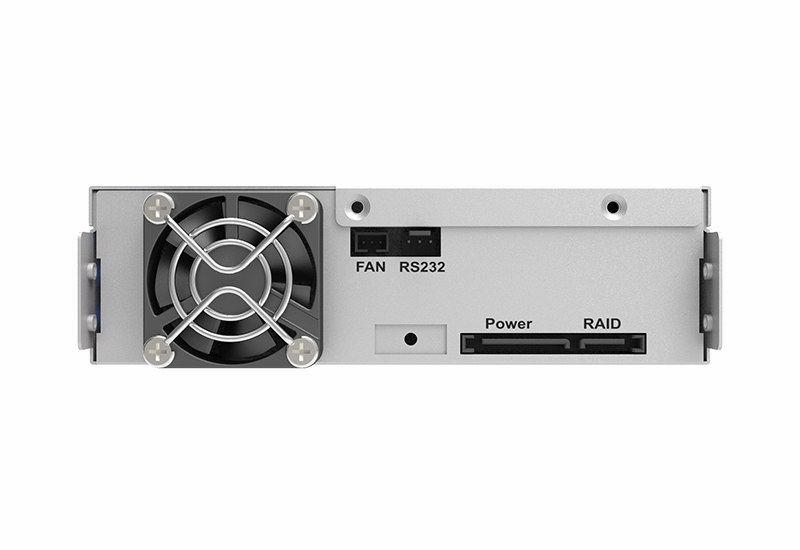

Optimal heat management with MCU controlled silent fan

The iR2024 incorporates a Microcontroller Unit (MCU) controlled heat dissipation system. The MCU intelligently operates a 4-cm silent fan to maintain optimal temperature for your drives, extending their lifespan and ensuring consistent performance.

Experience reliable, secure, and efficient data management with the iR2024 Internal RAID Device - a tool engineered for the modern digital world.

Overheat alarm buzzer

The iR2024 Compact RAID Enclosure is built with an intelligent overheat alarm buzzer to ensure the safety and longevity of your drives. This advanced feature continuously monitors the temperature of your storage devices. In the event of a significant rise in temperature that surpasses the safe operating limit, the alarm buzzer will sound, alerting users to potential overheating issues. This immediate auditory alert allows for swift corrective action, which could involve ramping up the cooling system or shutting down to prevent any potential damage. The inclusion of this overheat alarm buzzer is a testament to iR2024's commitment to proactive protection of your valuable data and hardware.

1. Data Centers: The iR2024's high-speed data access and redundant data protection make it ideal for deployment in large-scale data centers where reliable and efficient data storage and management is critical.

2. High-Performance Computing: For systems running complex simulations or data-intensive tasks, the iR2024 can deliver the performance boost and data security required.

3. Network Attached Storage (NAS) Systems: By integrating iR2024 into NAS systems, businesses and individuals can benefit from improved data access speeds and increased redundancy.

4. Industrial PCs (IPCs): In industries like manufacturing, healthcare, or Semiconductor automation, IPCs can utilize the iR2024 for efficient, secure data handling and storage.

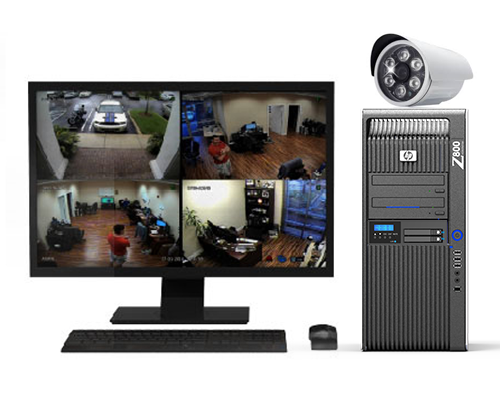

5. Surveillance Systems: Security systems that generate large volumes of video data can leverage the iR2024's storage capabilities, ensuring quick data retrieval and secure backups with its RAID 1 function.

6. Media Editing and Production: With high-speed data access and secure storage, the iR2024 can be a vital tool for professionals working with large media files for editing, rendering, or production.

7. Server Environments: In various server implementations, the iR2024 can provide essential data management and backup, along with performance enhancement.

8. Research and Development: For institutions generating and working with large volumes of data, the iR2024 can ensure reliable, high-speed storage and safeguard against data loss.

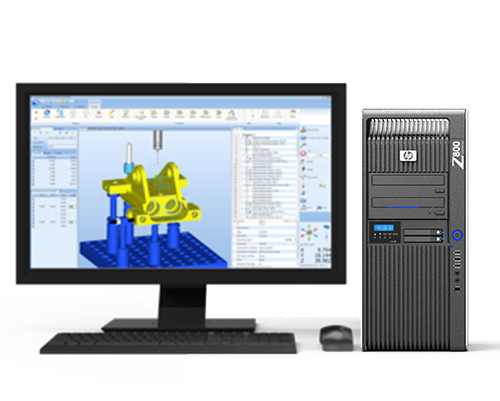

The iR2024 Internal RAID Device, with its advanced features and compact size, makes it an excellent choice for Industrial PC (IPC) and automation applications:

1. Process Automation: The iR2024 can serve as a reliable data storage and management solution in various process automation scenarios. Whether it's for storing process data, operational logs, or programming and controlling automated machinery, the iR2024's high-speed data access and redundant data protection are invaluable.

2. Manufacturing and Assembly Lines: For automated manufacturing and assembly lines, the iR2024 can be used to store and manage machine data, performance metrics, quality control data, and more. Its RAID 1 function ensures data safety, and RAID 0 configuration offers improved data access speed, vital for real-time control and monitoring.

3. Robotics Control Systems: In robotics applications, where large volumes of data are generated and need to be stored securely and accessed swiftly, the iR2024 is an ideal choice. It can be used to store control algorithms, machine learning models, sensor data, and operational logs.

4. Data Acquisition Systems: In industrial applications where real-time data acquisition and processing are crucial, such as in predictive maintenance or quality control, the iR2024 provides high-speed data access and secure data storage.

5. SCADA Systems: The iR2024 can be an essential component of Supervisory Control and Data Acquisition (SCADA) systems, used for storing operational data, logs, and control parameters. The device's RAID functions ensure that the stored data is always secure and readily available.

6. Industrial IoT (IIoT) Devices: For IIoT applications, the iR2024 can be used to store and manage data collected from a multitude of IoT sensors and devices. Its high-speed data access and redundancy features make it an optimal choice for these data-intensive environments.

By deploying the iR2024 in IPC and automation environments, industries can enjoy reliable, secure, and high-speed data management, ensuring efficient operations and aiding in informed decision-making.

Model No	iR2024
Interfaces	1 x SATA III (6Gbps) Ports
Compatible Drives	2 x 2.5" SATA III (6Gbps) HDD/SSD (9.5mm)
Storage Level	RAID 1 , 0
System Monitoring	Fan Failure / Overheat
Operating System	Windows, Linux
Function Control Interface	GUI (Windows Only)
Cooling System	4 cm Low noise fan
Electrical and Operating Requirements	* Line voltage: 12V + 5V DC * Operating temperature: 32° to 104° F (0° to 40° C) * Storage temperature: -4° to 116° F (-20° to 47° C) * Relative humidity: 5% to 95% non-condensing
Dimension & Weight	148(W)x 43(H) x 140(L) mm
Product Code	iR2024 EAN:4713227440783 UPC:884826505341
Carton	10 pcs per carton
Package Accessories	iR2024 SATA Cable Accessory Kit-for Tray Accessory Kit-for Case *Quick installation guide

iR2024 Question & Answer

Q1Upgrading Your System: Integrating iR2024 with Legacy RAID 1 Hard Drives.

1. Ensure the legacy device is functioning properly before powering down the system.

2. With the system off, replace the legacy device with the iR2024.

3. Remove a hard drive from the legacy device and install it into the iR2024.

4. Turn on the system, ensuring only one hard drive is installed in the iR2024 initially.

5. Upon booting, verify that all information is accurate and correct.

6. Once you've verified the accuracy of the data, proceed to insert another hard drive (either from the previous model or a new one) into the iR2024 while the computer remains powered on. The iR2024 will detect the newly added hard drive and automatically initiate data rebuilding.

7. Completion of the data rebuild signifies the successful update of the system.

* NOTE 1: If the legacy device is currently rebuilding data, please wait for this process to finish before undertaking the steps mentioned above.

* NOTE 2: In cases where the legacy device has only one functioning hard drive, ensure you back up its data prior to starting these operations to prevent potential data loss from hard drive failure during the process.

* NOTE 3: If the old model contains two hard drives, it's advisable to retain one of them as a precautionary measure to prevent damage during the process, which could lead to irreversible data loss.

Q2Upgrading from a Legacy RAID Device to iR2024 with New Hard Drives.

1. Begin by backing up the data from the functioning legacy device using a third-party application (e.g., Ghost).

2. Turn off the system, then replace the legacy device with the iR2024.

3. Install the two new hard drives into the iR2024 and power on the system.

4. Once the system has booted, proceed to restore the backed-up data onto the iR2024.

*NOTE: If the legacy device is undergoing a data rebuild, wait for this process to complete before starting these procedures.

Q3What causes RAIDbox to be unable to recognize my non-brand-new hard drive?

The issue may arise from existing records or data on the hard drive, preventing RAIDbox from recognizing it. To address this, connect the hard drive to your computer individually, clear its sectors using the operating system, and proceed to reformat it. For step-by-step instructions, please consult the operating system's guidelines. Once completed, you can then reintegrate the formatted hard drive into the RAIDbox for utilization.
