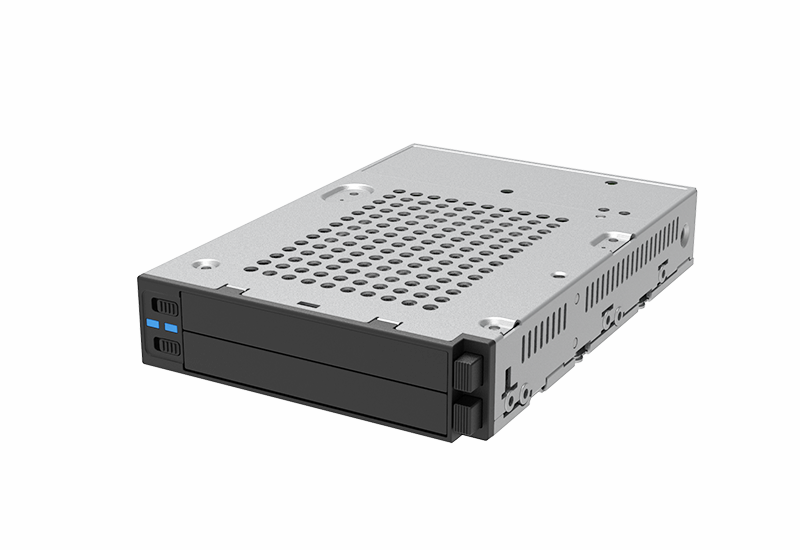

iR2770::Mobile

Features

1. Versatile Storage Options with Compatibility for SSDs and Hard Drives.

2. Support SATA 6G with Configurations for RAID 0 and RAID 1.

3. SATUSGuide GUI and Drive S.M.A.R.T Monitoring (Windows Only).

4. LED Indicators for Monitoring Drive Status.

5. Hot-Swappable and Plug-and-Play for Convenient Drive Replacement.

6. Compact Size: Perfect Fit for 3.5-Inch Hard Drive or Floppy Bay.

7. Efficient Heat Dissipation with Fan-less Cooling Hole Designs.

8. Easy extraction drive tray design.

9. Advanced Overheat Alarm Buzzer.

Benefits

1. Flexible storage options: The iR2770 supports both SSD and hard drives.

2. RAID 0 and RAID 1 configurations. This gives you the flexibility to choose the storage solution that best meets your needs.

3. S.M.A.R.T monitoring: The iR2770 supports S.M.A.R.T monitoring, which allows you to track the health of your drives. This can help you to prevent data loss and extend the lifespan of your drives.

4. LED indicators: The iR2770 has LED indicators that show the status of your drives. This makes it easy to track the health of your drives at a glance.

5. Hot-swappable and plug-and-play: The iR2770 is hot-swappable and plug-and-play, which means that you can easily replace drives without having to power down your system.

6. Compact size: The iR2770 is a compact device that fits perfectly into a 3.5-inch hard drive or floppy bay. This makes it easy to install and use.

7. Fan-less cooling: The iR2770 features fan-less cooling hole designs for efficient heat dissipation. This helps to keep your drives cool and operating at peak performance.

8. Versatility: The iR2770 can be installed in servers, IPCs, or workstations. This makes it a versatile solution for a variety of environments.

Applications

The iR2770 storage solution has a range of possible industrial applications, including:

1. Servers: The iR2770 can be used in server systems, providing reliable and flexible storage options for data centers, hosting services, and enterprise-level applications.

2. Industrial PCs (IPCs): The iR2770 is suitable for integration into IPCs used in industrial automation, manufacturing, and control systems, offering efficient and durable storage capabilities.

3. Workstations: The iR2770 can be utilized in high-performance workstations used for demanding tasks such as video editing, graphic design, and 3D modeling, providing fast and reliable storage solutions.

4. Network Attached Storage (NAS): The iR2770 can be incorporated into NAS devices, enabling efficient and scalable network storage for small businesses or home office setups.

5. Surveillance Systems: The iR2770 can be employed in surveillance systems, providing reliable storage for storing and retrieving surveillance footage in security applications.

6. Data Centers: The iR2770 can be utilized in data center environments, offering flexible storage options for cloud computing, virtualization, and large-scale storage infrastructure.

7. Broadcasting and Media: The iR2770 can be used in broadcasting and media applications, where high-performance storage is crucial for managing and accessing large media files.

8. Medical Imaging: The iR2770 can be employed in medical imaging systems, offering reliable and fast storage for storing and accessing medical images and patient data.

9. Gaming: The iR2770 can be integrated into gaming systems, providing fast and responsive storage for gaming installations, reducing loading times, and enhancing overall gaming experience.

The versatility, performance, and features of the iR2770 make it a suitable storage solution for various industrial applications that require reliable, high-performance storage capabilities.

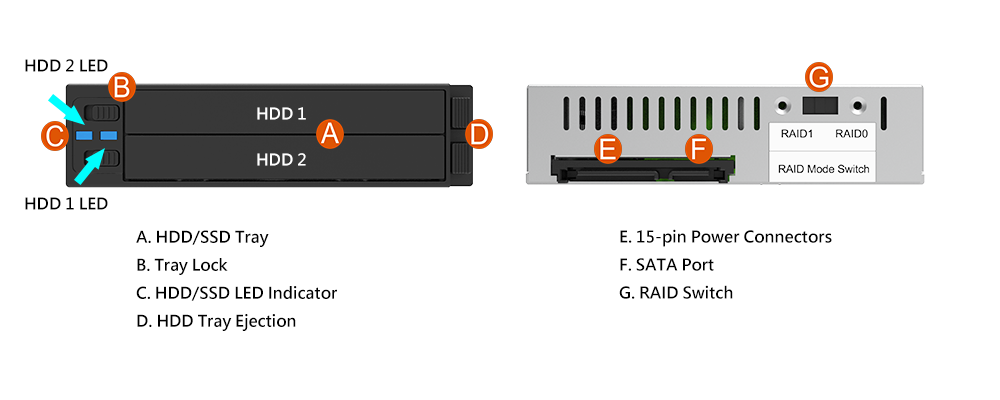

Overview

The iR2770 is a versatile storage solution that supports both SSDs and hard drives. It offers flexible RAID 0 and RAID 1 configurations for enhanced data protection and performance. With LED indicators, users can easily monitor drive status. The hot-swappable design and easy extraction tray make drive replacement effortless. Its compact size allows it to fit perfectly into a 3.5-inch bay, while the fan-less cooling design ensures efficient heat dissipation. Suitable for servers, IPCs, and workstations, it includes an overheat alarm buzzer for added protection. The iR2770 combines flexibility, performance, and user-friendly features, making it an ideal storage solution for various applications.

Flexible storage options

The iR2770 offers flexible storage options, supporting both SSDs and hard drives. This flexibility allows users to choose the storage medium that best fits their needs, whether it's the speed and durability of an SSD or the cost-effective capacity of a traditional hard drive. With the iR2770, you have the freedom to customize your storage solution to meet your specific requirements and preferences.

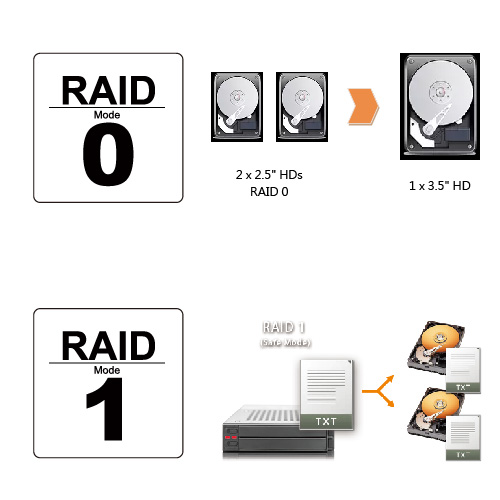

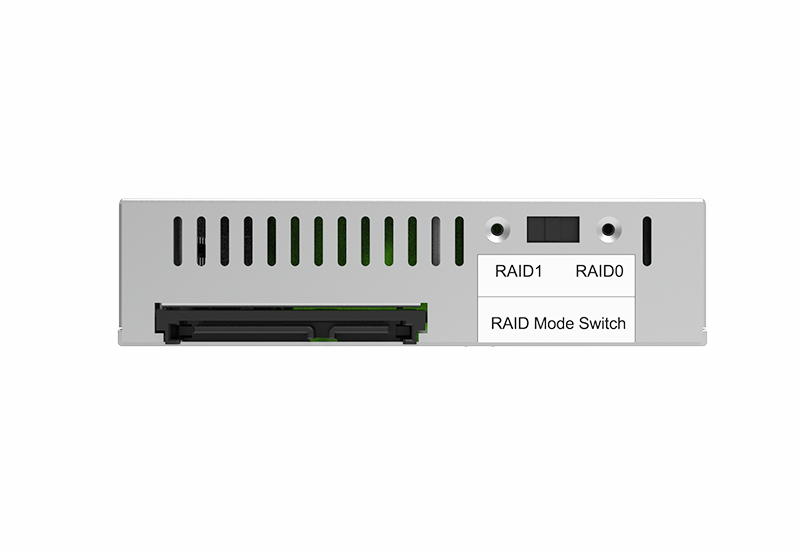

RAID 0 and RAID 1 support

The iR2770 provides support for RAID 0 and RAID 1 configurations. RAID 0 (striping) enhances performance by distributing data across multiple drives, resulting in faster read and write speeds. This is ideal for tasks that require high data throughput, such as video editing or gaming. RAID 1 (mirroring) offers data redundancy by duplicating data across drives, ensuring that if one drive fails, the data remains accessible from the mirrored drive. This provides an extra layer of data protection, safeguarding against potential data loss. With the iR2770, you have the flexibility to configure your storage in a way that optimizes performance or enhances data redundancy, depending on your specific needs.

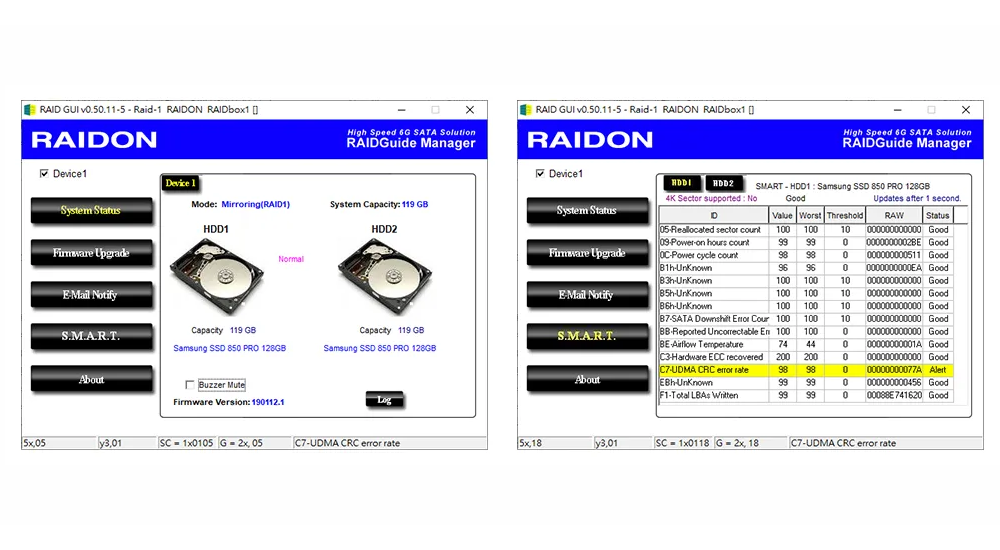

Software monitoring program to easily view hard disk status

The iR2770 offers a user-friendly SATUSGuide GUI and Drive S.M.A.R.T Monitoring for Windows users. The SATUSGuide GUI lets users easily access information about their drive status and health. The S.M.A.R.T (Self-Monitoring, Analysis, and Reporting Technology) monitoring feature helps users to proactively check their drives for health and performance issues. This can prevent data loss or system instability caused by potential failures or problems. The iR2771 enables Windows users to effectively monitor and manage their drives, ensuring high performance and reliability.

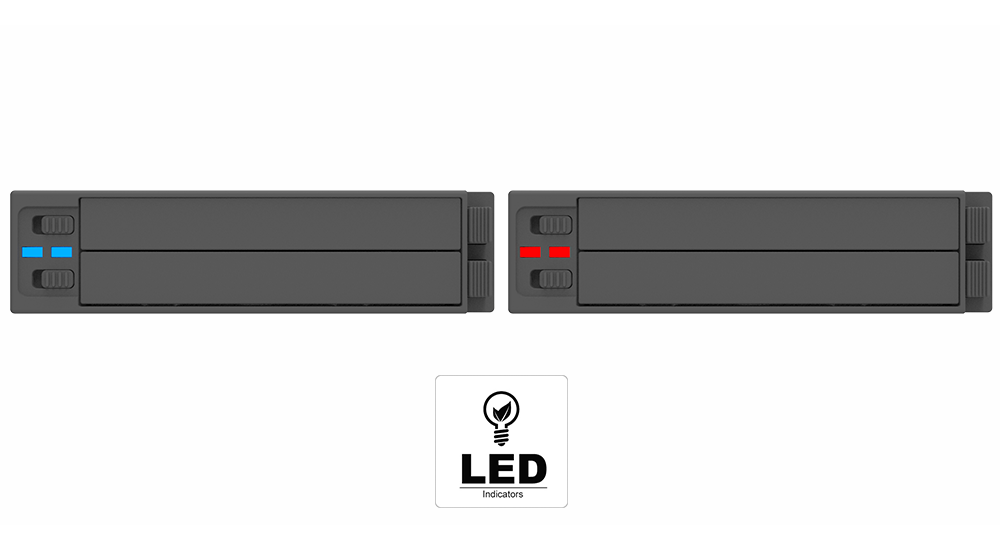

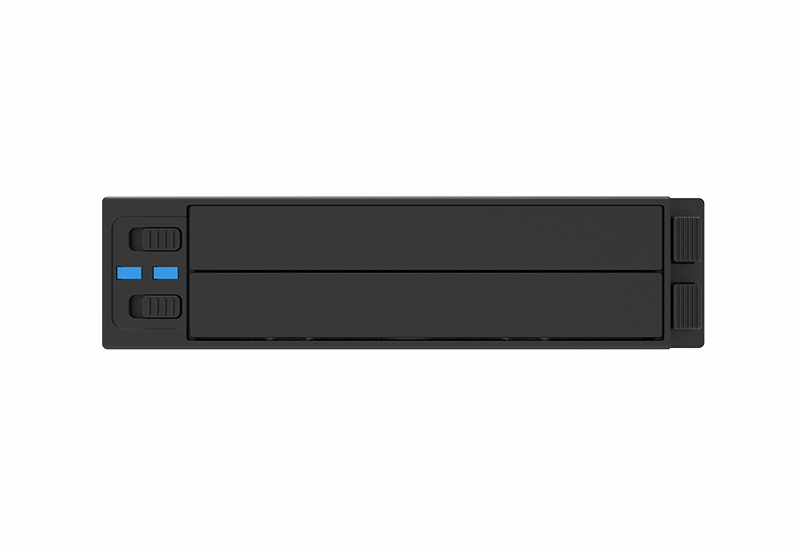

LED indicator

The iR2770 has LED indicators that show drive status visually. You can monitor drive activity, data transfer, and potential issues easily with these LED indicators. The iR2770 helps you to keep track of your drive status and quickly detect any problems, ensuring smooth operation and timely maintenance.

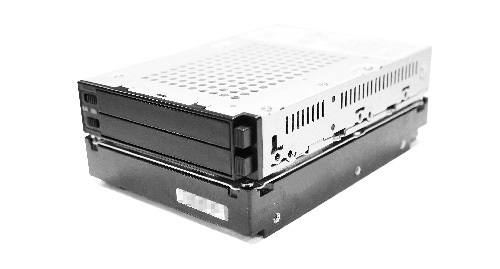

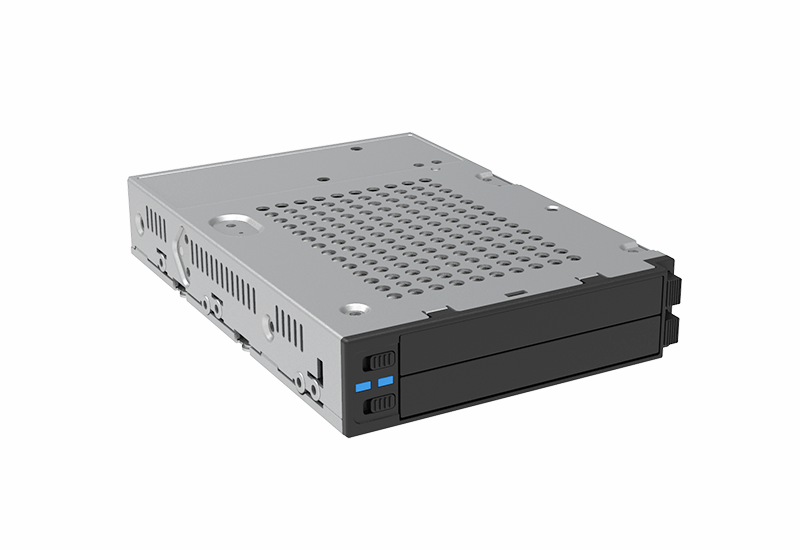

Compact size

The iR2770 is a small but mighty storage device. It can fit in a 3.5-inch hard drive or floppy slot, saving space and maximizing efficiency. The iR2770 delivers high performance and functionality in a compact design, ideal for systems with tight space constraints.

Hot-swappable and plug-and-play

The iR2770 offers easy drive replacement and installation. Users can swap drives without powering off the system, thanks to its hot-swappability. They can also plug in new drives and use them right away, without any hassle. The iR2770 simplifies drive maintenance and upgrade with its hot-swappable and plug-and-play features.

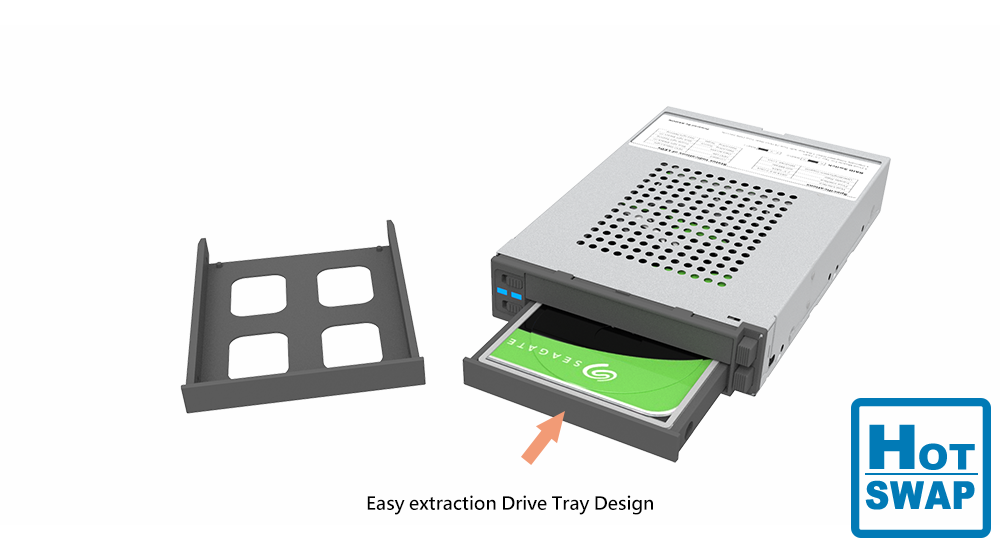

Easy extraction Drive Tray Design

The iR2770 features an easy extraction drive tray design, providing convenient drive replacement. With this design, users can effortlessly remove and insert drives into the tray without the need for additional tools or complex procedures. The tray is designed to make the drive extraction process quick and hassle-free, saving time and effort. The easy extraction drive tray design of the iR2770 ensures smooth maintenance and allows for efficient upgrading or replacement of drives as needed.

Fan-Less cooling

A fan-less cooling design is one of the features of the iR2770. This design has several benefits for the system and the environment. It eliminates noise from fans, making the system silent and reducing noise pollution. It also prevents fan failure, which can compromise cooling performance. Furthermore, it lowers power consumption and maintenance costs. The iR2770's fan-less cooling design ensures effective heat removal for high performance, reliability, and a peaceful operating experience.

Advanced overheats alarm buzzer

The iR2770 has a sophisticated alarm buzzer for overheats that improves system safety. It alerts users with a sound when the system gets too hot, so they can take action to avoid damage and maintain system stability. The alarm buzzer for overheats is an extra safety feature of the iR2770, which ensures the durability and dependability of the storage solution.

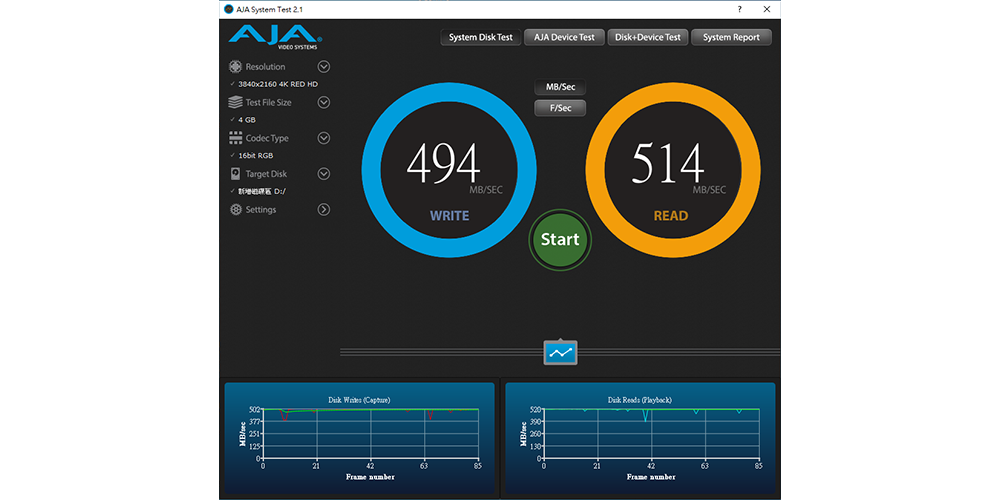

Performance test result for reference. The test result will vary depend on the test environment.

iR2770 Specification

Model No	iR2770
ASIC	WM6182A Chip
Device Interface	SATA III 6.0 Gb/s
RAID Level	RAID 0，1
Support Hard Drive	2×2.5” SATA III 6.0Gb/s HDD/SSD
Auto Rebuilding	YES
LED Indicators	YES
Power Supply	SATA 22pin Interface
Operating System	Windows，Linux
Certifications	CE / FCC
Function Control Interface	GUI (Windows Only)
Packing Content	Quick Installation Guide、Accessory Kit
Dimension	102W×147L× 26H mm
Net Weight	0.4kg
Operating temperature	32° to 104° F (0° to 40° C)
Storage temperature	-4° to 116° F (-20° to 47° C)
Relative humidity	5% to 95% noncondensing

iR2770 Question & Answer

Q1Upgrading Your System: Integrating iR2770 with Legacy RAID 1 Hard Drives.

1. Ensure the legacy device is functioning properly before powering down the system.

2. With the system off, replace the legacy device with the iR2770.

3. Remove a hard drive from the legacy device and install it into the iR2770.

4. Turn on the system, ensuring only one hard drive is installed in the iR2770 initially.

5. Upon booting, verify that all information is accurate and correct.

6. Once you've verified the accuracy of the data, proceed to insert another hard drive (either from the previous model or a new one) into the iR2770 while the computer remains powered on. The iR2770 will detect the newly added hard drive and automatically initiate data rebuilding.

7. Completion of the data rebuild signifies the successful update of the system.

* NOTE 1: If the legacy device is currently rebuilding data, please wait for this process to finish before undertaking the steps mentioned above.

* NOTE 2: In cases where the legacy device has only one functioning hard drive, ensure you back up its data prior to starting these operations to prevent potential data loss from hard drive failure during the process.

* NOTE 3: If the old model contains two hard drives, it's advisable to retain one of them as a precautionary measure to prevent damage during the process, which could lead to irreversible data loss.

Q2Upgrading from a Legacy RAID Device to iR2770 with New Hard Drives.

1. Begin by backing up the data from the functioning legacy device using a third-party application (e.g., Ghost).

2. Turn off the system, then replace the legacy device with the iR2770.

3. Install the two new hard drives into the iR2770 and power on the system.

4. Once the system has booted, proceed to restore the backed-up data onto the iR2770.

*NOTE: If the legacy device is undergoing a data rebuild, wait for this process to complete before starting these procedures.

Q3What causes RAIDbox to be unable to recognize my non-brand-new hard drive?

The issue may arise from existing records or data on the hard drive, preventing RAIDbox from recognizing it. To address this, connect the hard drive to your computer individually, clear its sectors using the operating system, and proceed to reformat it. For step-by-step instructions, please consult the operating system's guidelines. Once completed, you can then reintegrate the formatted hard drive into the RAIDbox for utilization.
