InTANK




iT4300-S3 (1 CD-ROM bay 2.5")



Features



Good Performance & Easy to Upgrade to RAID Solution



iT4300-S3 is an 4 bays internal storage solution for 5.25-inch CD-ROM. Using the JBOD function enables you to store the operating system and data file in different hard disk space.The advantage of storage distribution can help to enhance the performance of system operation.



RAIDON also delivers iT4300-S3 with only JBOD function to mini SAS to 4*SATA cable, users may collocates a RAID card whenever is necessary to upgrade to a RAID storage for desired applications.



More iR4300-S2 product information  >>>>

More iT4300-U5 product information  >>>>



Numerous Data in Compact Space

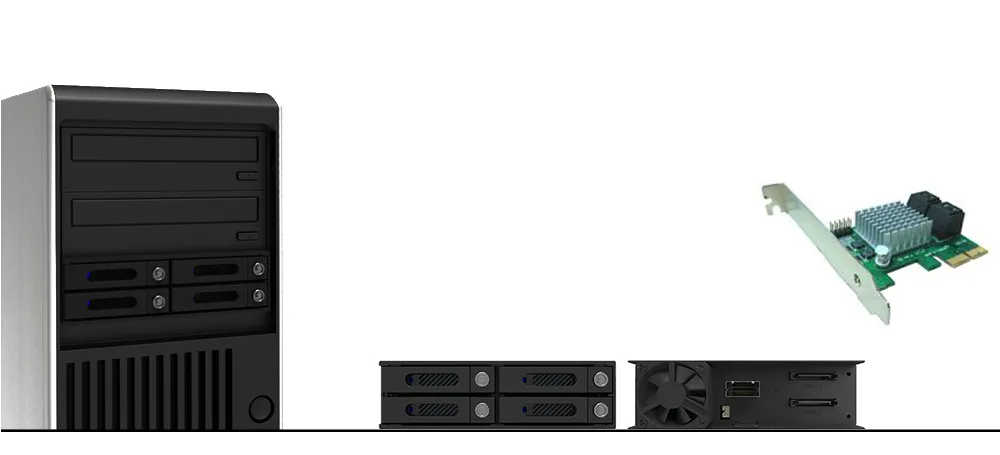

With RAID card, Easy to Upgrade to RAID Solution

Support JBOD Function

Support 4 * SATA 6G Port

Mechanism

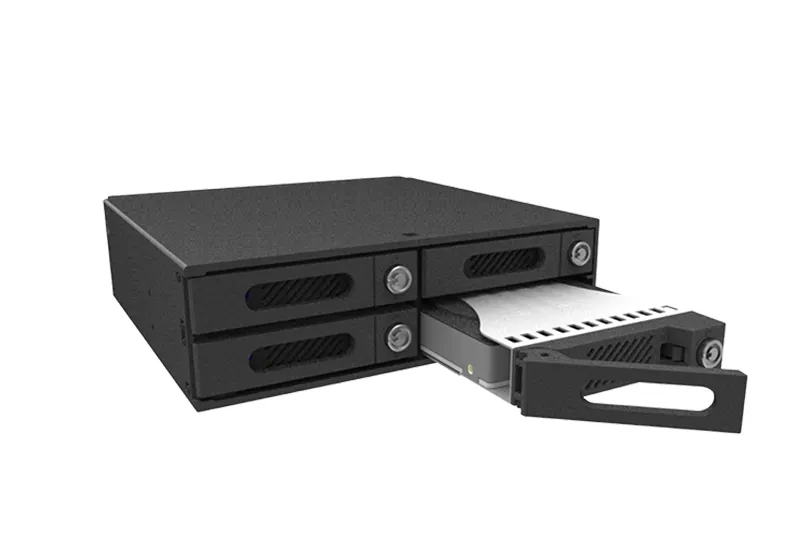

Removable Drive Tray Design

iT4300-S3 comes with four RAIDON’s removable drive trays. It not only makes user easy to install the hard drives to iT4300-S3, but change the failure hard drive easily.


More Tray information  >>>>



More Tray Product information  >>>>



Good Heat Dissipation Can Extend The Life Of The Hard Disk.

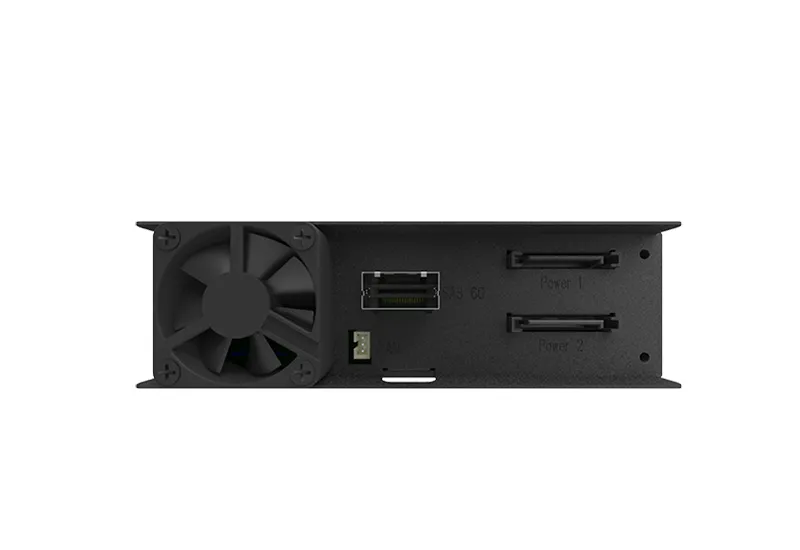

The iT4300-S3 is equipped with a 4-cm silent fan, by constantly creating air flow, heat generated by the high-speed rotation of the hard disk can be easily taken away. This maintains the normal operating temperature of the hard disk at all times. A longer life of your hard disk will properly protect your data.

Application



High-Speed, External for Video Editing Applications.

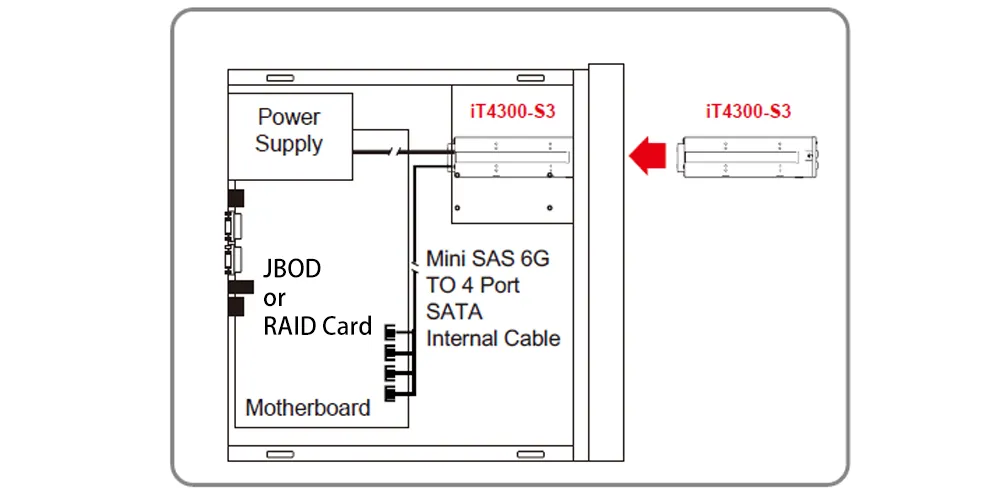

A single mini-SAS to 4*SATA cable provides 6G data transfer. When combined with the iT4300-S3 via RAID card, users can allot 6G of bandwidth each for four separately installed drives, enabling each drive to reach its maximum read and write speeds—even SSDs! Get ready to experience higher transfer rates and increased productivity like never before!

Enterprises nominated Professionals appointed

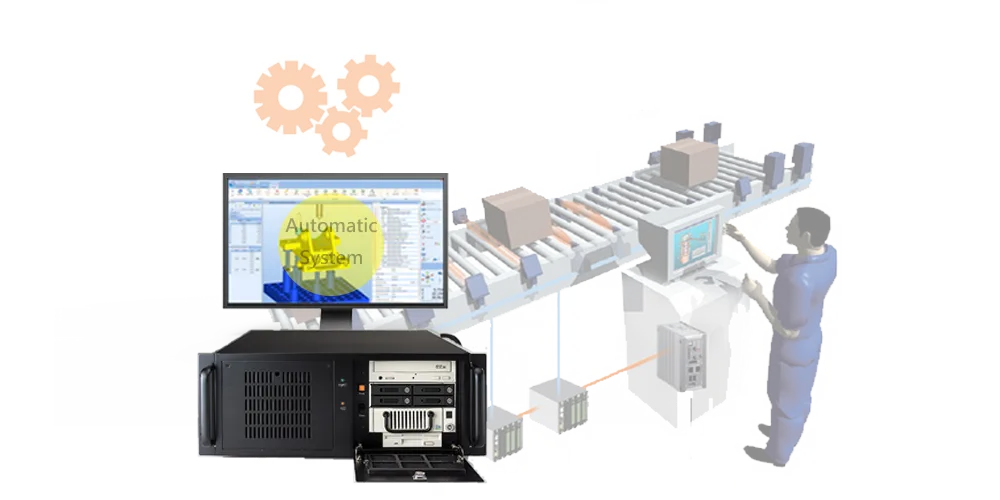

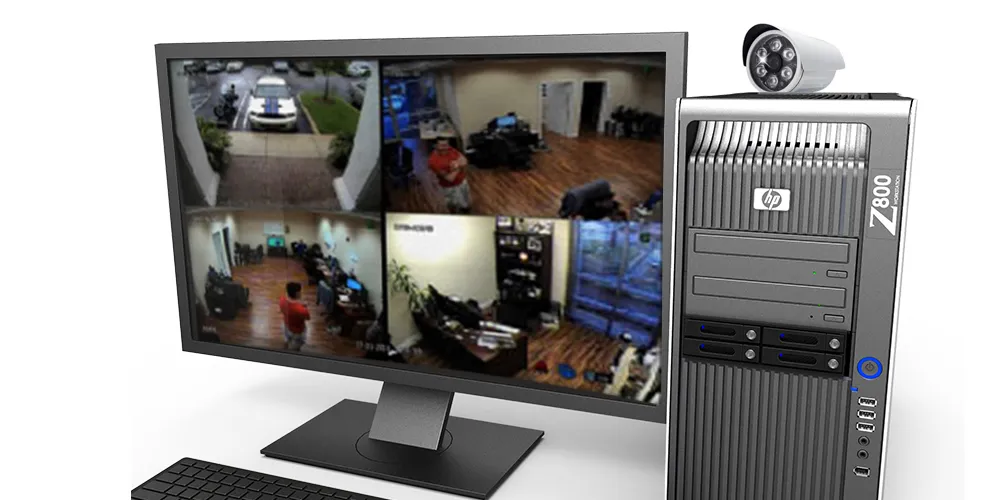

iT4300 is an internal JBOD module designed in 5.25” CD-Rom bay to satisfy the demands of SMB and industrial computing environment. With LCD tents leaving you to easily grasp HDD status.

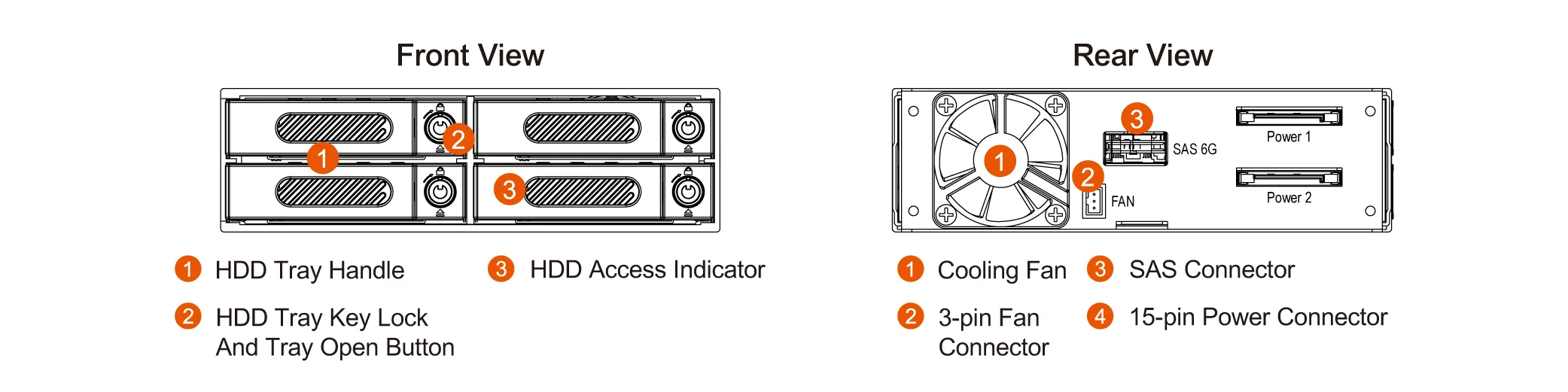

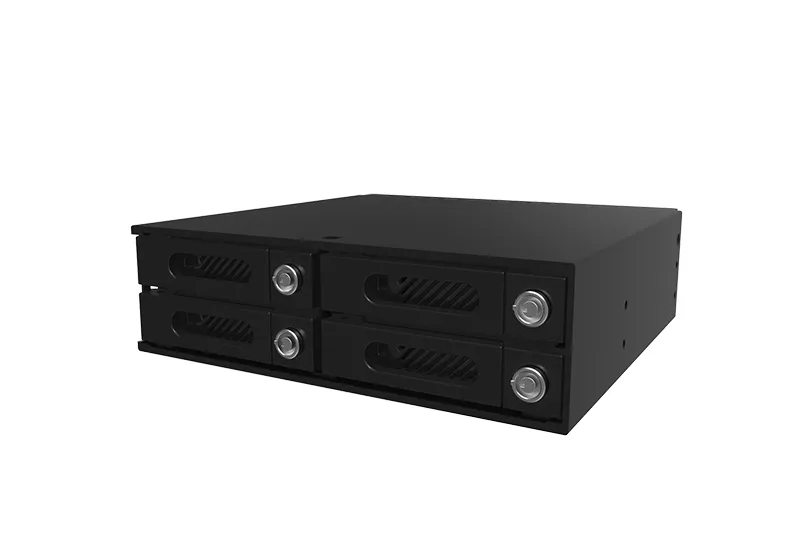

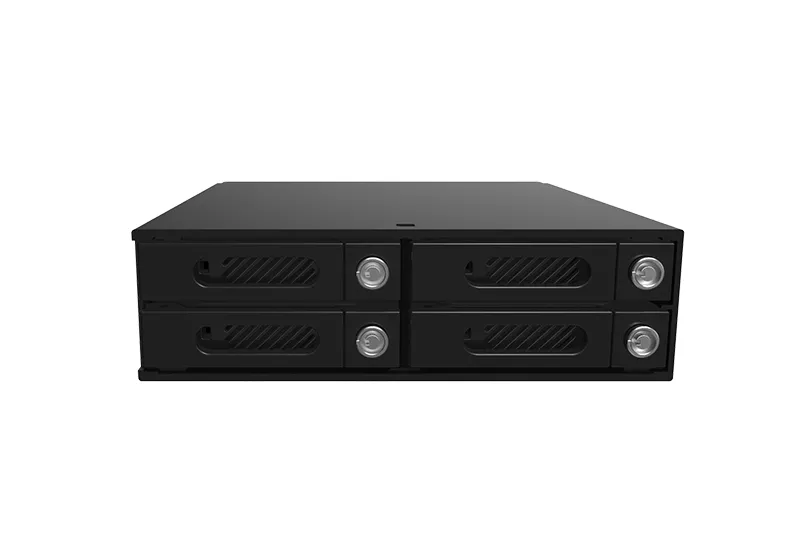

iT4300-S3 Product View

iT4300-S3 Specification



Model no. iT4300-S3
Interface miniSAS
Support Hard Drive 4x 2.5" SATA SSD/HDD(15mm)
RAID Level JBOD
System Monitoring Fan Failure / Overheat (alarm)
The Largest Capacity 2TB
Cooling Fan 4 cm
Power Supply 15-pin Power Connector
LED Indicators Yes
Operating System Windows 7 or above, Linux
Certification CE & FCC
Product Code EAN:4711132864434
UPC:884826503576
Packing Content iT4300-S3 (with removable drive tray enclosed x 4),
Quick Installation Guide, Screws & Keys,
miniSAS 6G TO 4 Port SATA Internal Cable
Dimension 146(W)x 42(H) x 153(L) mm
Operating temperature 50° to 95° F (10° to 35° C)
Storage temperature -4° to 116° F (-20° to 47° C)
Relative humidity 5% to 95% noncondensing
