iR4300-S2 (1 CD-ROM bay 2.5" RAID 5 Storage Solution)


Built-in Hardware RAID 5 Features



iR4300-S2 is built in the RAID features which protects your data from HDD/SSD damage.  Its RAID 5 feature provides you an affordable cost in leveraging your mass data base.


More iT4300-S3 product information  >>>>

More iT4300-U5 product information  >>>>




Numerous Data in Compact Space


With Various RAID Mode

Build-in RAID ASIC

Easy to Expand Storage Space

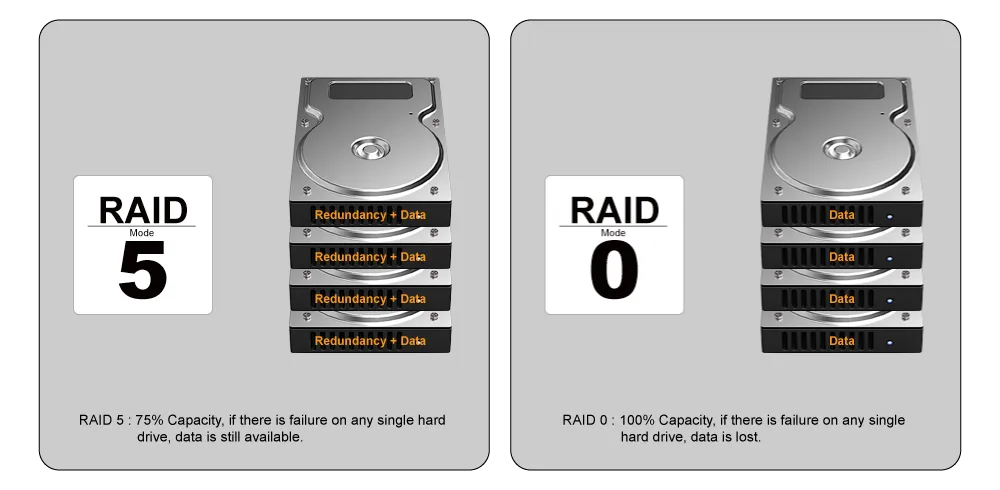

RAID 5 for data safety & RAID 0 for high-speed performance

iR4300-S2 provides multiple storage options. With RAID 5, a user will have the maximum protection of his/her data with allowance for a single drive failure but yet all data will be kept intact. In the RAID 0 mode, a user will have the benefit of a single massive volume for storage with high I/O speed, with sets of data being striped across the four enclosed drives.

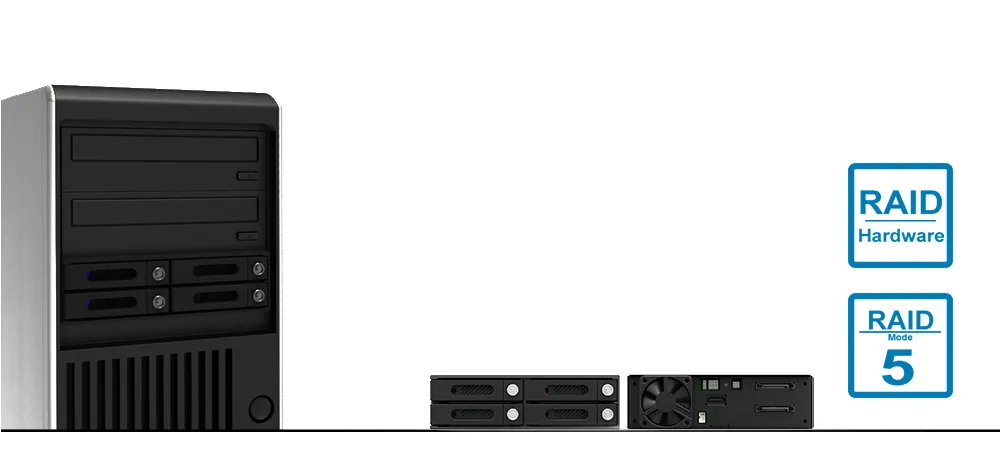

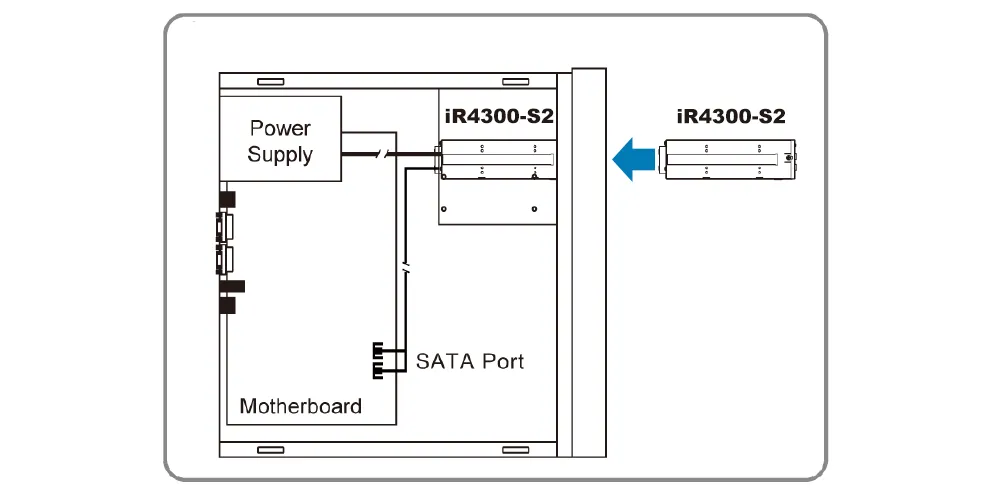

Easy to install it into your PC/Server


iR4300 not only provides you the multiple RAID features but also gives you a simple structure for installation.   You could just install it into your PC/Server easily by yourself for having so many RAID features.


To enjoy these RAID features, you just have to adjust the SWITCH at the real panel by your finger to select one of the following RAID modes for JBOD, Clone, RAID 0, RAID 10, RAID 3, and RAID 5 instead of going thru a complicated software utility.

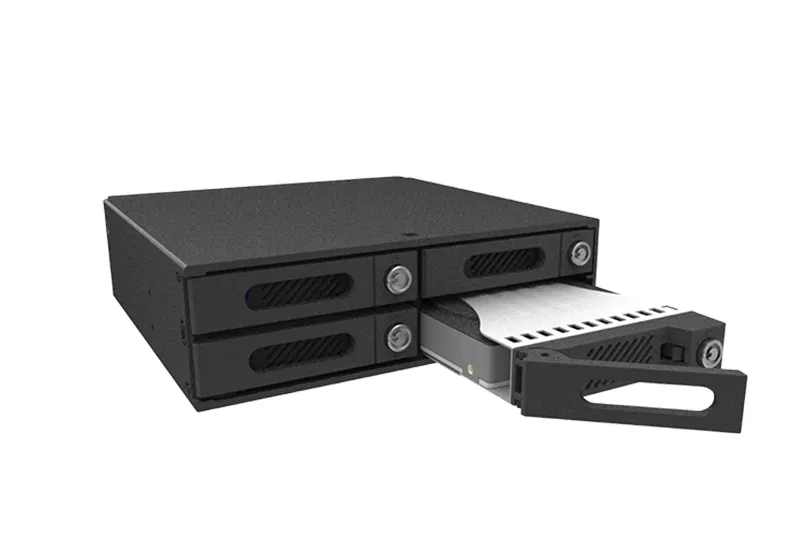

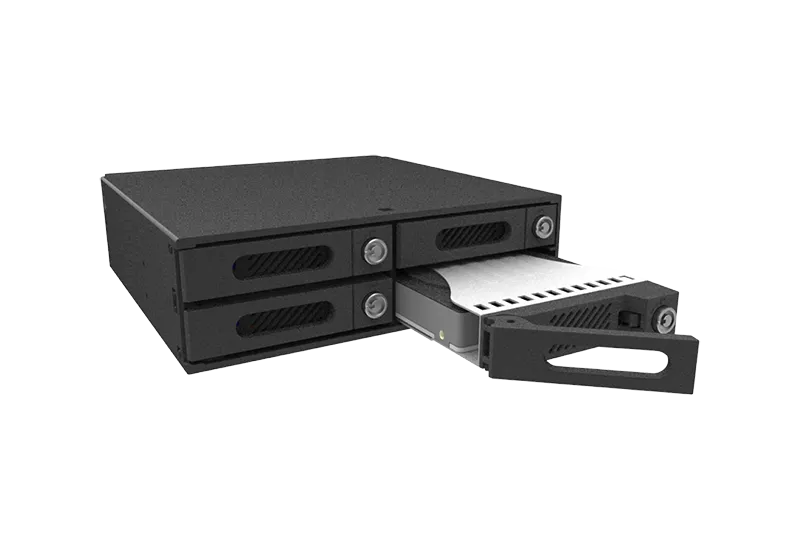

Removable Drive Tray Design

iR4300-S2 comes with four RAIDON’s removable drive trays. It not only makes user easy to install the hard drives to iR4300-S2, but change the failure hard drive easily.


More Tray Product information  >>>>

Good Heat Dissipation Can Extend The Life Of The Hard Disk.

The iR4300-S2 is equipped with a 4-cm silent fan, by constantly creating air flow, heat generated by the high-speed rotation of the hard disk can be easily taken away. This maintains the normal operating temperature of the hard disk at all times. A longer life of your hard disk will properly protect your data.


High-Speed, External for Video Editing Applications.
A single eSATA cable provides 3G data transfer. When combined with the iR4300-S2 via eSATA cable, users can store data according to own need, to enjoy different disk array storage space, even SSDs! Get ready to experience higher transfer rates and increased productivity like never before!


Enterprises nominated Professionals appointed

iR4300 is an internal RAID storage system and compatible 6Gbps drive designed in 5.25” CD-ROM bay to satisfy the demands of SMB and industrial computing environment. With LED signal leaving you to easily grasp HDD status.

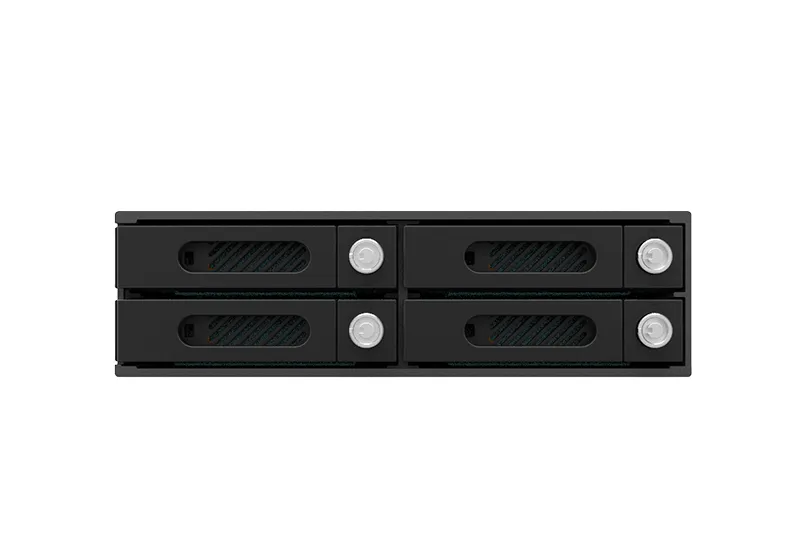

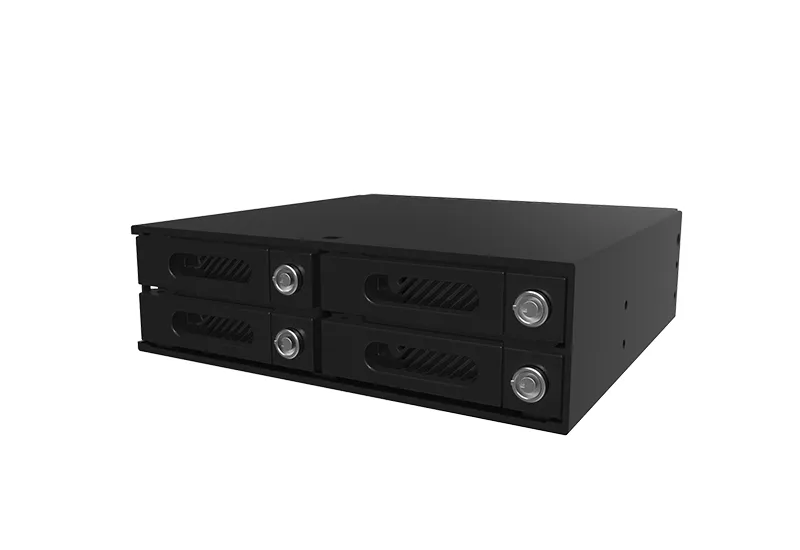

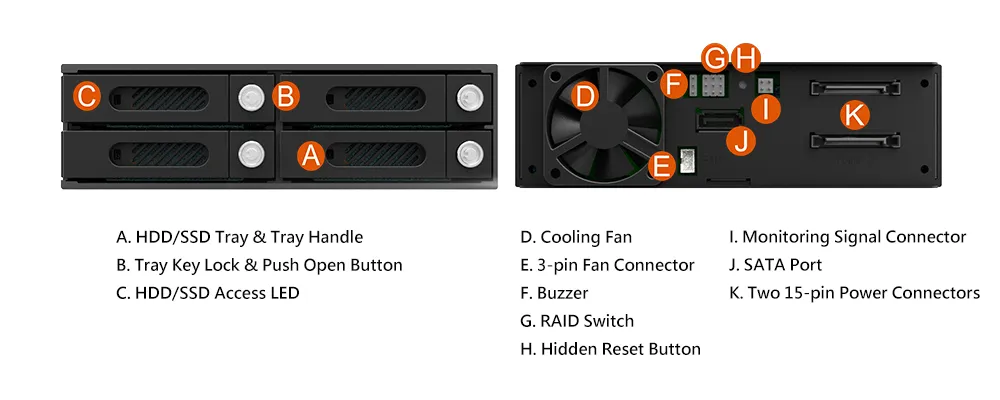

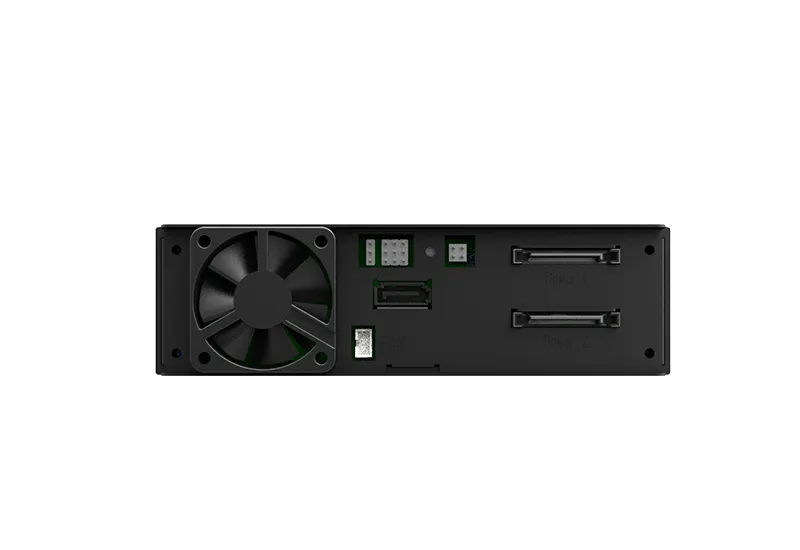

iR4300-S2 Product View

iR4300-S2 Specification

Model no. iR4300-S2
Interface 1x SATA II (3Gbps)
Support Hard Drive 4x 2.5" SATA SSD/HDD(15mm)
RAID Level RAID 0/10/3/5/clone/JBOD
Cooling Fan 4 cm
Power Supply 15-pin Power Connector
LED Indicators Yes
System Monitoring Fan Failure / Overheat (alarm)
Operating System Windows 7 or above, Linux
Certification CE & FCC
Product Code EAN:4713227440127
Packing Content iR4300-S2 (with removable drive tray enclosed x 4),
Quick Installation Guide, Screws & Keys, SATA Cable,
Dimension 146(W)x 42(H) x 153(L) mm
Operating temperature 32° to 104° F (0° to 40° C)
Storage temperature -4° to 116° F (-20° to 47° C)
Relative humidity 5% to 95% noncondensing
