Easy Operate, High-Speed Transmission


Support HDD Swap With UASP Design With More Efficient Transmission

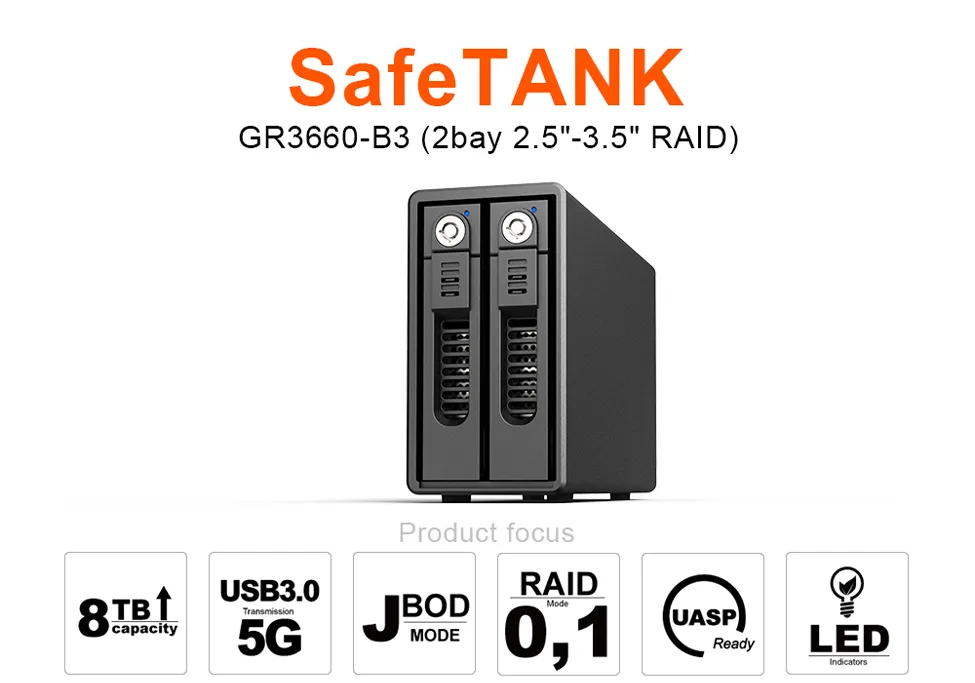

GR3660-B3 is a full-featured simple and easy dual bay storage device, along with RAID 0 (Striping), RAID 1 (Mirroring), and JBOD three application modes, with Super Speed USB3.0 transmission interface, not only with fast transmission performance but also easily content data safety with 16TB large storage capacity or information exchange requirement.

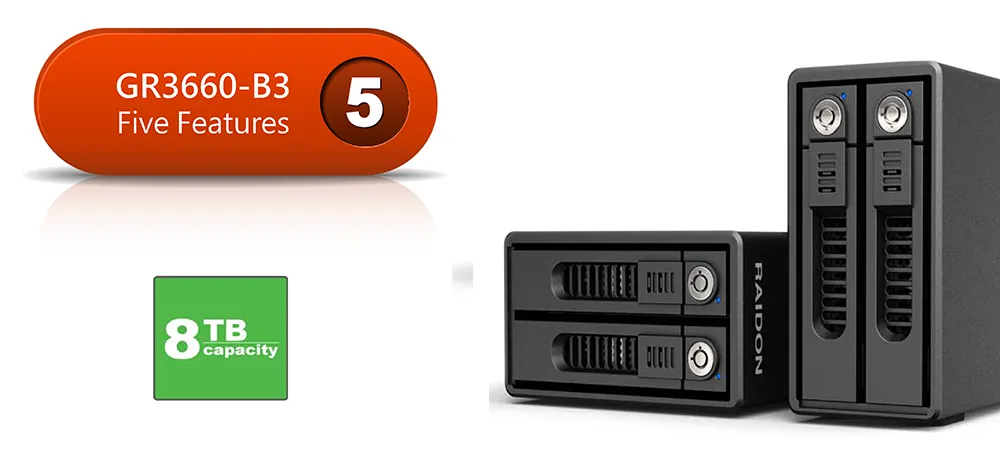

Provides Up To 16TB Of Large Storage Capacity For Your creations


GR3660-B3 is compatible with all brands of 8TB SATA hard drives. Install two 8TB hard drives under RAID 0 mode and the system will provide 16TB of access. Independent JBOD mode can offer independent storage areas even if the hard drives are of different capacities.

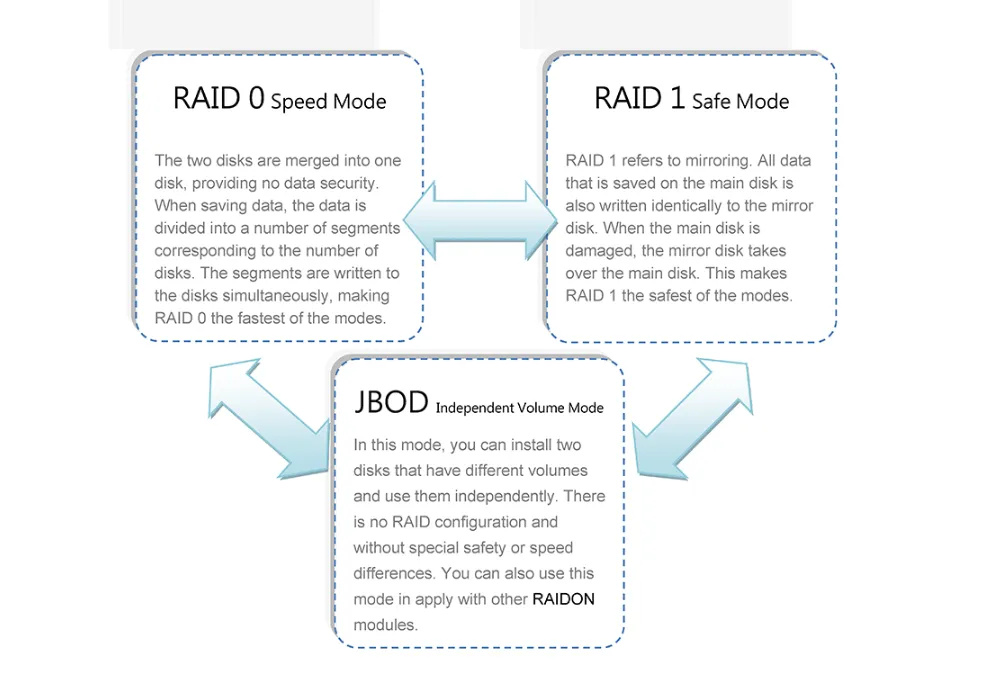

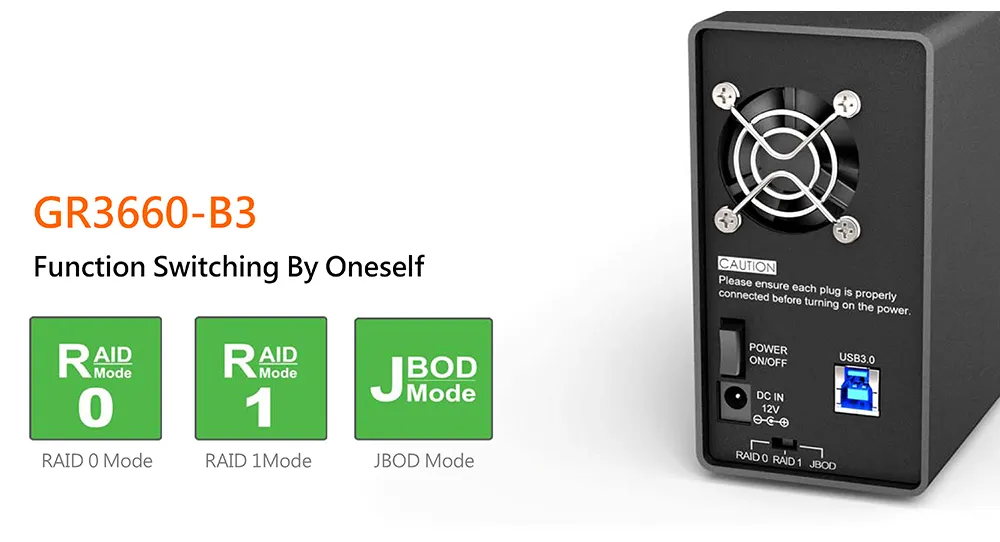

GR3660-B3 has three configuration modes built-in: RAID 1 (Safe Mode), RAID 0 (Speed Mode), and JBOD (Two Independent Volumes) for you to choose according to your needs.

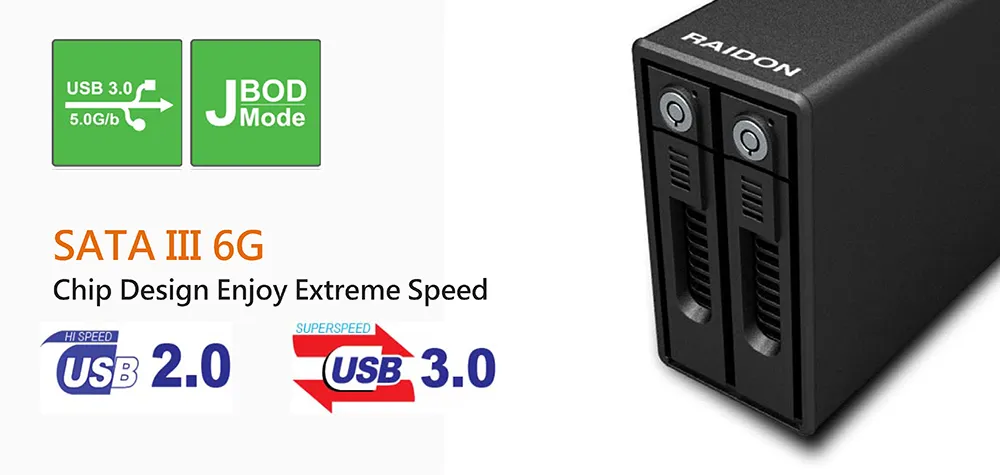

GR3660-B3 internal use SATA III (6G) chip design and transform into the most easy to use USB3.0 (5G) interface, backwards compatible with USB 2.0 and USB 1.1, not only comprehensive range of usage but also leaving your data transfer without waiting to complete an instant. USB 3.0 performance will slight decrease due to maximum and fragmented data transfer mainly due to the transmission technology.
In order to allow better transmission performance, GR3660-B3 add UASP function to transfer data without waiting for previous data transfer is completed before the current transmission data movement, and improved in CPU utilization, data delay and waiting .



Integral Forming Aluminum Enclosure Design Protect Your Precious Data



Designed with sturdy, solid aluminum, the GR3660-B3 can withstand greater impact than the average product with aluminum casing, shielding your hard drive from the impact of various usage conditions. The compact aluminum casing is fitted with a large, low-noise fan to keep your hard drive from failing and eliminate the internal heat of the RAID system.

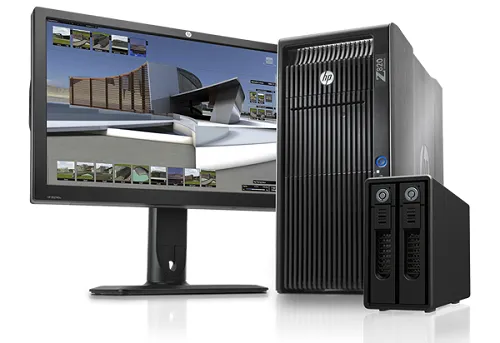

GR3660-B3 A High-Speed Storage System , For An Extensive Range Of Applications



Currently SSD performance beyond traditional hard disk, remarkable performance reads data is replace the traditional hard disk as a boot device.

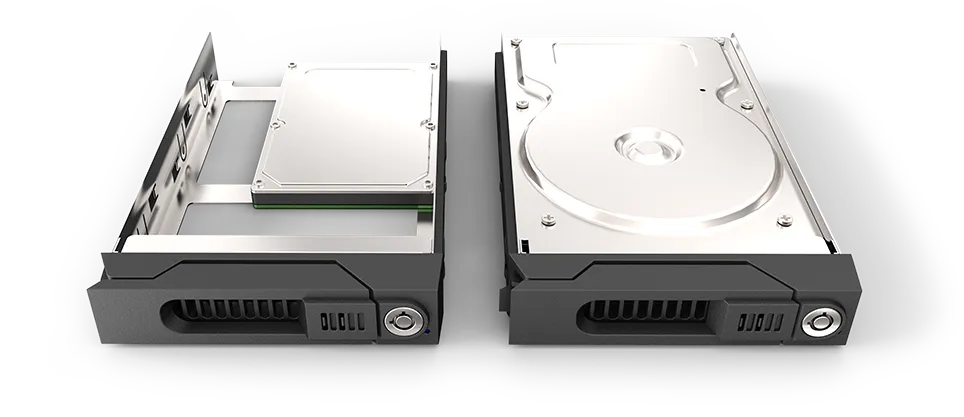

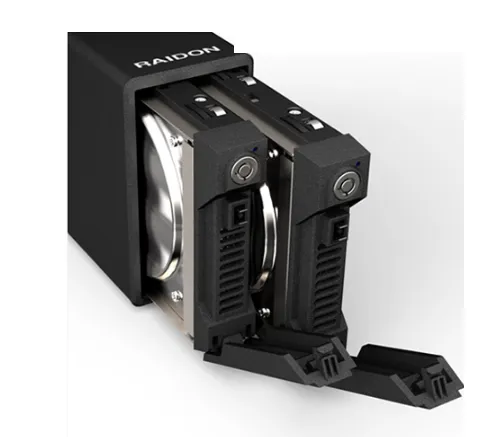

However, when you have 3.5-inch HDD, 2.5-inch HDD or SSD each replacing required to remove enclosure which is a high burden work. Now just through GR3660 can help you achieve both SSD to be a system disk and hard disk swap data store, can be installed through the hot-swap design; removable hard drive tray design, combined with external box convenience the plug and play and stability advantages of a built-in tray, allowing you to easily swap on the move.

GR3660-B3 A High-Speed Storage System For An Extensive Range Of Applications


Currently SSD performance beyond traditional hard disk, remarkable performance reads data is replace the traditional hard disk as a boot device.
However, when you have 3.5-inch HDD, 2.5-inch HDD or SSD each replacing required to remove enclosure which is a high burden work. Now just through GR3660 can help you achieve both SSD to be a system disk and hard disk swap data store, can be installed through the hot-swap design; removable hard drive tray design, combined with external box convenience the plug and play and stability advantages of a built-in tray, allowing you to easily swap on the move.

Never Worry Exhaustion Of Hard Disk



As your Lightroom library grows, it may become too big to store on your computer’s hard drive. Adobe Bridge lets you set up as many external drives as you want and specify where to store each of your photos — without changing anything in your Adobe Bridge library. You can access and edit your photos the way you usually do, no matter where the originals are stored. This feature also allows you to add hard drives one at a time, whenever you need them. So your setup can grow along with your library.

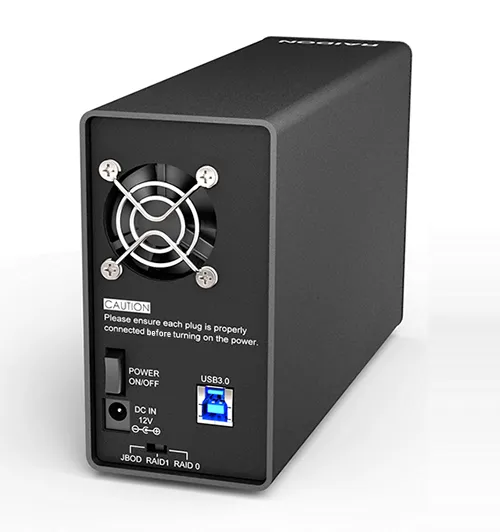

High Efficiency Cooling Fan


One of the most overlooked aspects of external storage devices is maintaining a cool operating temperature inside the unit. The GR3660 features a smart fan in combination design, and front ventilation grill that help with heat dissipation. If the GR3660 will be used for long periods of time, the device will be kept at the right temperature.

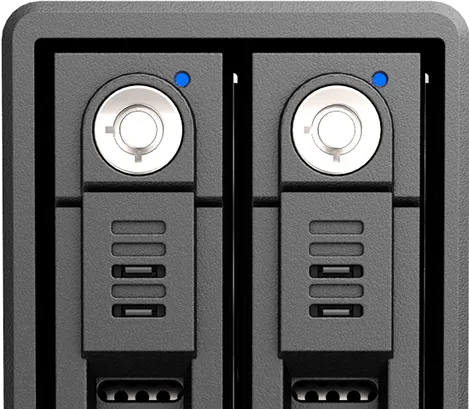

LED Display Status


It seems simple, but the GR3660 LED status lights give users an instant status indication for each of the HDDs, it flash when it is in use, however, many RAID devices on the market only featuring a power light unable to provide user the cause of factor once HDD failed.

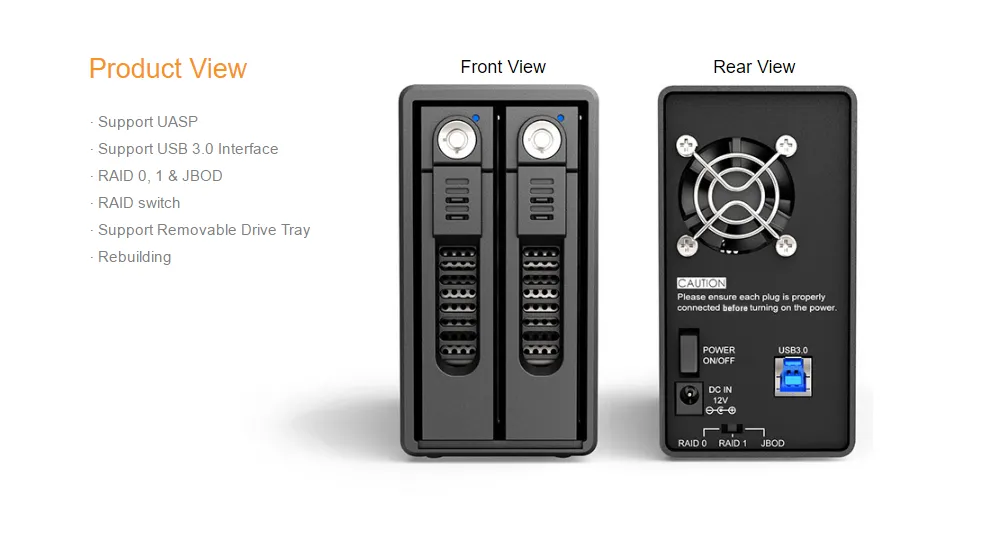

GR3660-B3 Product View

GR3660-B3 Specification



Model No. GR3660-B3
RAID chip JM561
Host Interface USB3.0 UASP
RAID Level RAID 1 / RAID 0 / JBOD
Support Hard Drive 2 x 2.5"-3.5" SATA III SSD/HDD (6.0 Gb/s)
Single HDD Capacity Single HDD tested up to 8TB
Rebuilding YES
LED Indicators Power / HDD Access / HDD Failed / Rebuilding / Connection Status
Fan 1 x 4cm Fan
Power Supply 12V / 4A Adaptor
Certification CE / FCC
Operating System Windows、Mac & Linux
Packing Content Power Adaptor / USB 3.0 Cable / Quick Installation Guide / Accessory Kit
Dimension 120(W) x 64(L) x 220(H) mm
Net Weight 0.83Kg
HDD Capacity Single HDD tested up to 8TB RAID 0
Operating temperature 50° to 95° F (10° to 35° C)
Storage temperature -4° to 116° F (-20° to 47° C)
Relative humidity 5% to 95% noncondensing



GR3660-B3 Download

Product
Datasheet
QM
UM
CE & FCC
other
GR3660-B3
Image Download
Image Download

GR3660-B3 Question & Answer



GR3660-B3 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
GR3660-B3HGST3.5" HDD HUS726060ALE6106TB
GR3660-B3HGST3.5" HDD HUH728080ALE6008TB
GR3660-B3WD3.5" HDD WD3000FYYZ3TB
GR3660-B3WD3.5" HDD WD4000F9YZ4TB
GR3660-B3WD3.5" HDD Red WD40EFRX4TB
GR3660-B3Kingston2.5" SSD 300V120GB
GR3660-B3Kingston2.5" SSD SHSS37A240GB
GR3660-B3Intel2.5" SSD SSDSC2BW120A4120GB
GR3660-B3ADATA2.5" SSD ASX900S3-64GM64GB
GR3660-B3Samsung2.5" SSD 850 PRO128GB
GR3660-B3SanDisk2.5" SSD SDSSDHII-240G240GB
GR3660-B3SanDisk2.5" SSD SDSSDXPS-240G240GB
GR3660-B3SanDisk2.5" SSD SDSSDA-240G240GB
GR3660-B3WD3.5" HDDGoldWD8002FRYZ8TB
GR3660-B3WD3.5" HDDGoldWD6002FRYZ6TB
