iR2771-S3(1 floppy bay 2.5” RAID)

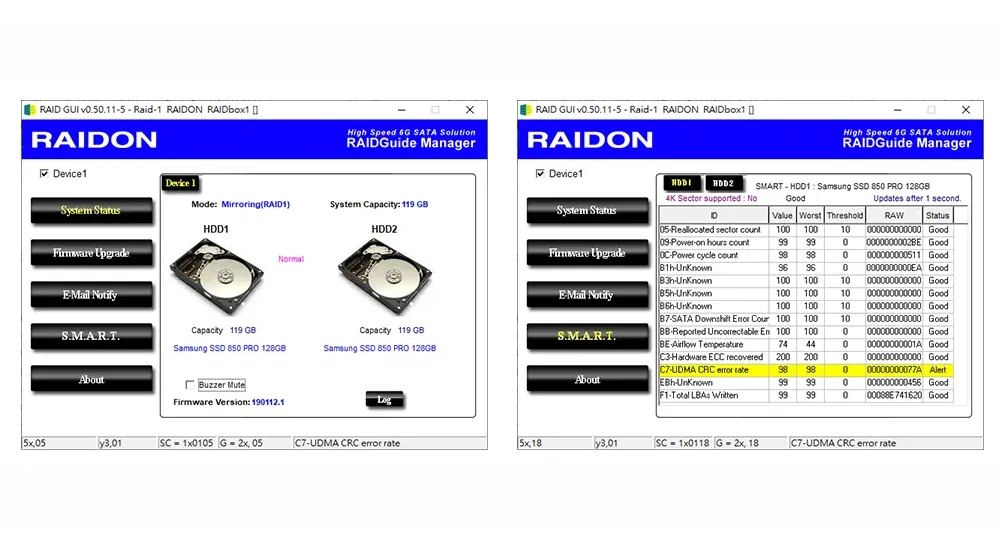

Our RAID Enclosures Start Providing S.M.A.R.T Features



iR2771-S3 storage RAID enclosure product now supports the S.M.A.R.T (Self Monitoring, Analysis, and the Reporting Technology) feature. You just have to open this GUI Utility, you then can enjoy using it to know the HDD quality status, and you could even to replace any HDD which is with critical quality level in advance to help an even better protection for all your data.



Learn more about it. >>>>>

Internal RAID Module



RAIDON InTANK iR2771-S3 has a patented design that allows two 2.5” SATA drives to be fitted into one 3.5” drive space! It’s equipped with optional RAID 0 to enhance the speed of transfer compare to a regular hard drive or switch to RAID 1 for an efficient and securer data backup.

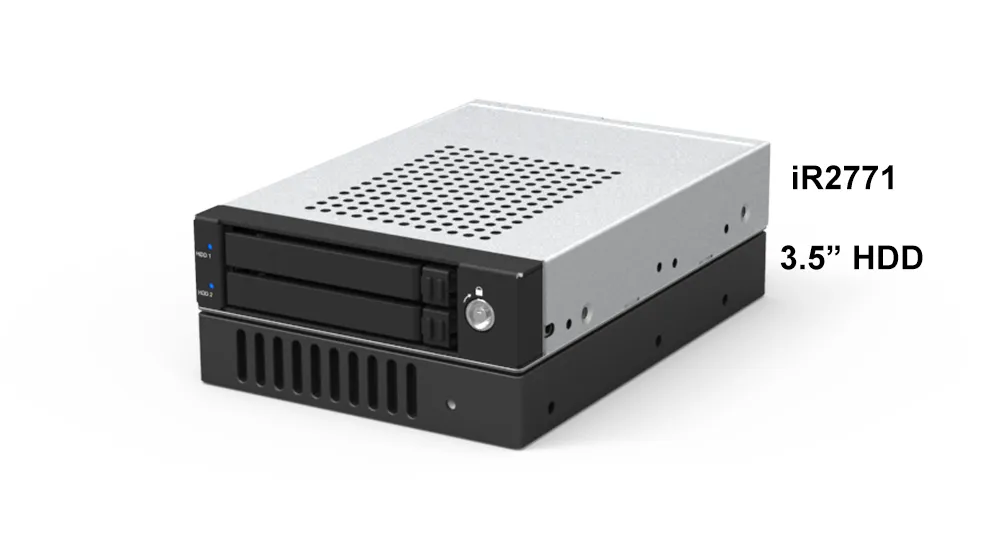

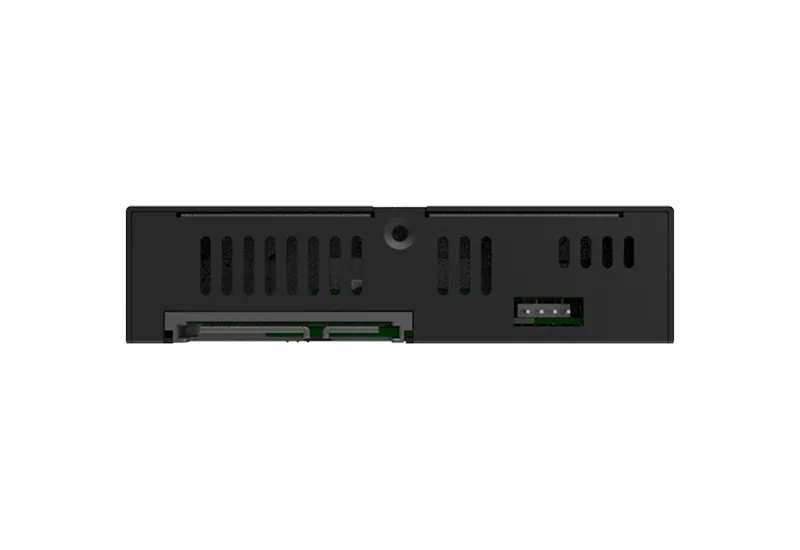

The connector location is the same as 3.5”HDD



RAIDON iR2771-S3 internal RAID module supports SATA III 6.0 Gb/s host interface and SATA 22 pin power supply; the connector’s location exactly as the same as a 3.5” hard drive. Thus, it is not necessary to install any other brackets but just install the iR2771-S3 inside to existing operating system and then the system will be upgraded as a RAID storage!



More iR2772-S3 product information  >>>>

More iR2770-S3 product information  >>>>

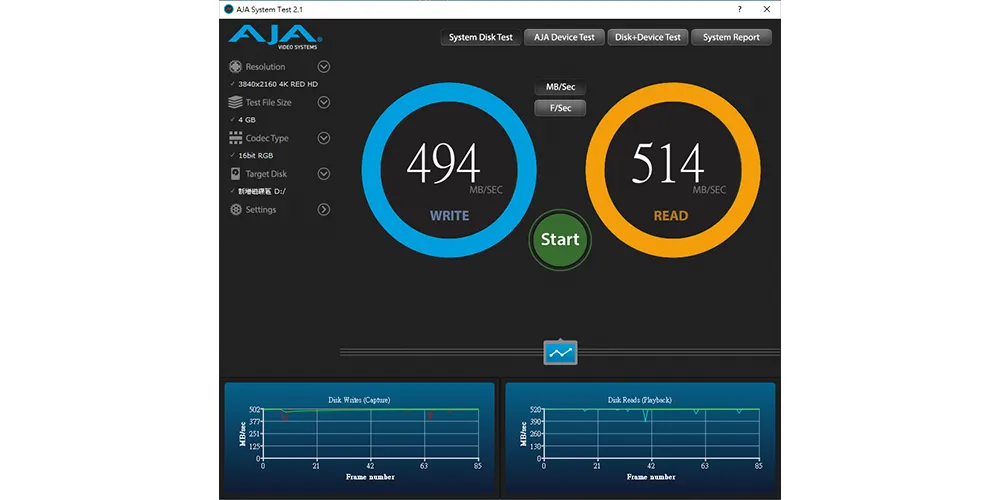

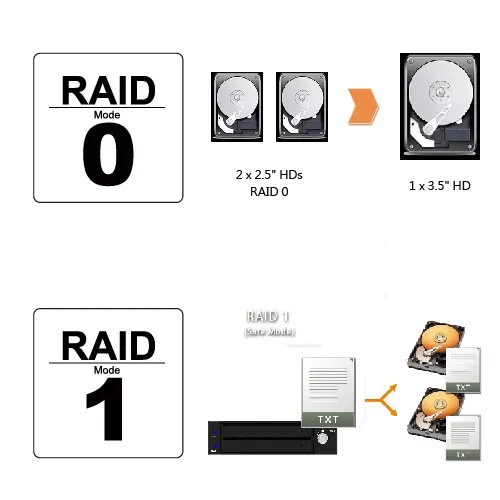

The Performance of RAID 0 mode will faster than one 3.5” HDD



Just set iR2771-S3 to RAID 0 mode and you can get the better and faster data transform ate than one 3.5” hard drive does.



Real-time backup for data security



When using RAID 1 mode (mirroring), the data will write to two hard drive automatically to keep the data safe. If one hard drive failure, just replace a new hard drive (same capacity or bigger) without shutting down the system to keep the system working 24hr. iR2771-S3 will start to rebuild the data from the original hard drive to the new one after the failure hard drive is replaced.

System Upgrade with Ease



Install iR2771-S3 to the floppy or standard 3.5” hard drive slot, your system will become the one with RAID function. If you want to upgrade your system with RAID function but your system don’t have other free space. iR2771-S3 will be the best solution you can find!

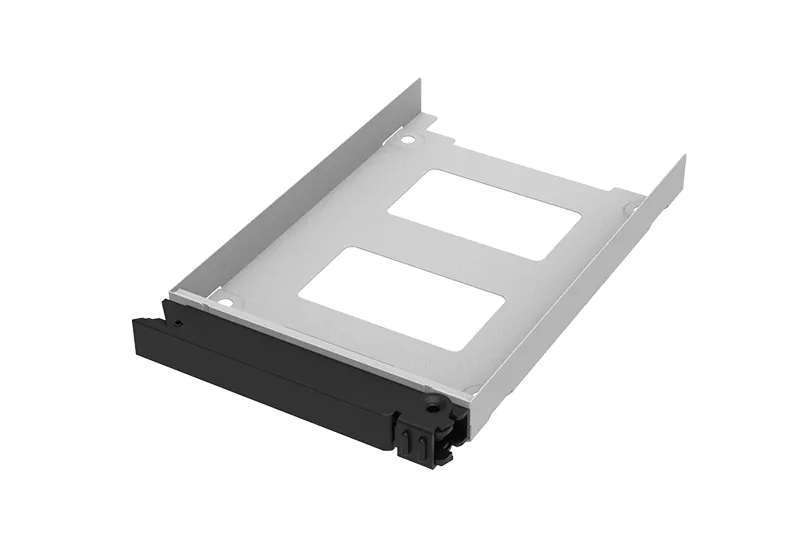

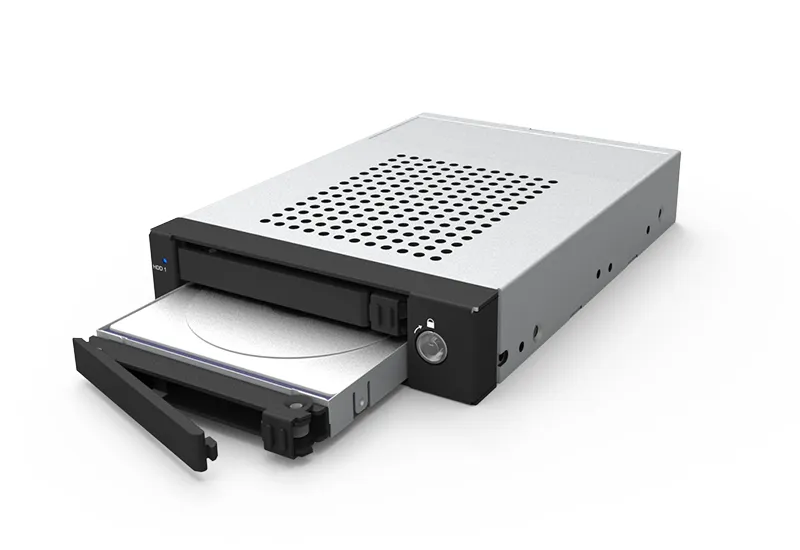

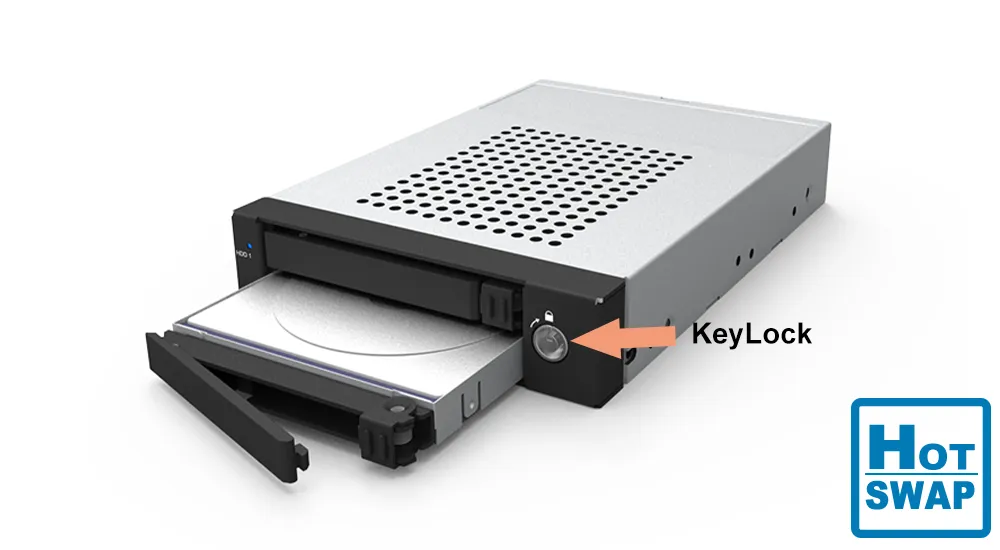

Removable Screwless Tray Design



iR2771-S3 comes with two RAIDON’s removable screwless trays. It not only makes user easy to install the hard drives to iR2771-S3, but change the failure hard drive easily.



More Screwless Tray product information  >>>>



Makes the system faster and keeps the photo data more safe.



iR2771-S3 can be easily used in a workstation for photographers. Using two solid state drives, iR2771-S3 can provide faster performance than hard drive, it will be faster for photographer to run Photoshop, Lightroom or other photo-editing software. By using RAID 1 (mirroring) mode, the RAW files will have a copy automatically when it be save into iR2771-S3. Photographer will be no longer to worry about the data loss caused by the hard drive failure.

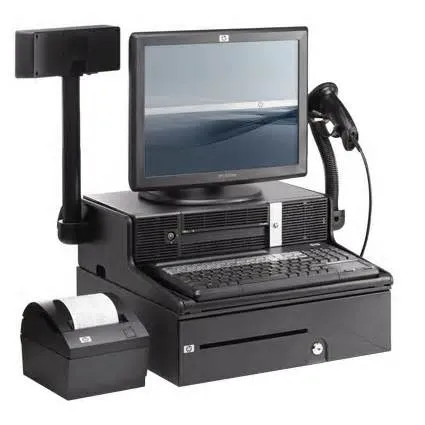

Database Protection for Commercial Accounting System



Install your operating system in one solid-state drive to speed up the system performance and use iR2771-S3’s RAID 1 mode to protect accounting system database. Small and medium business will no longer to worry about the unnecessary data loss of accounting system database which caused by unexpected hard drive failure.

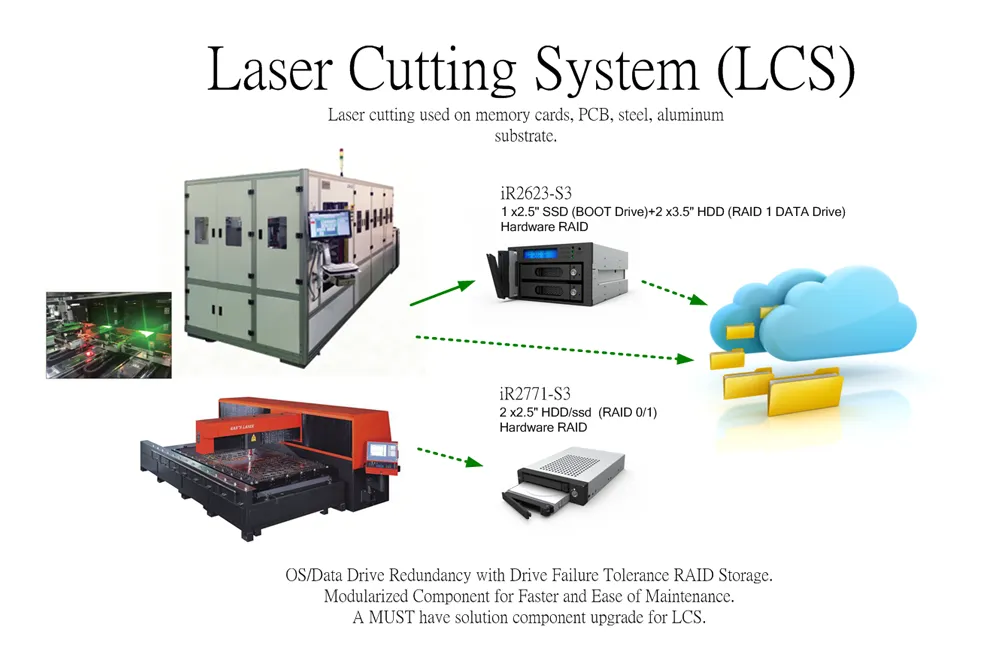

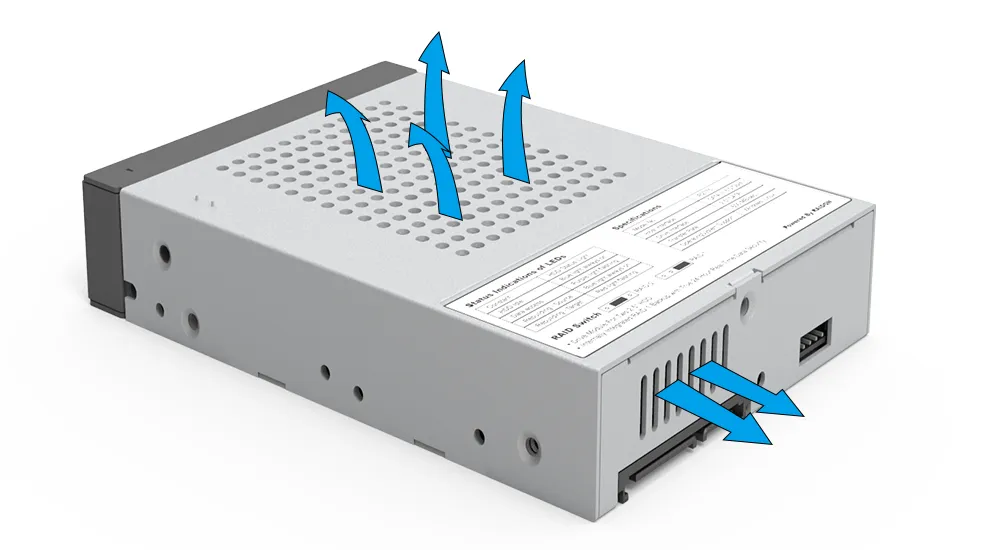

Fan-less, Cooling Hole Design



For high-speed production line, the most worried about is the system failure. It will shut down the production line and cause the money loss. By using iR2771-S3’s RAID 1 mode, you can keep the production line working 24hr and no worry about the system shut down caused by the unexpected hard drive failure. iR2771-S3 is the most cost-effective solution.

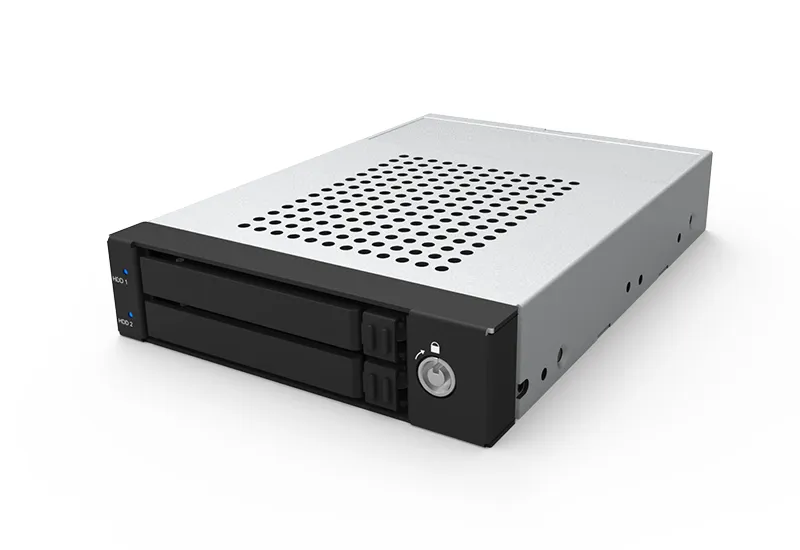

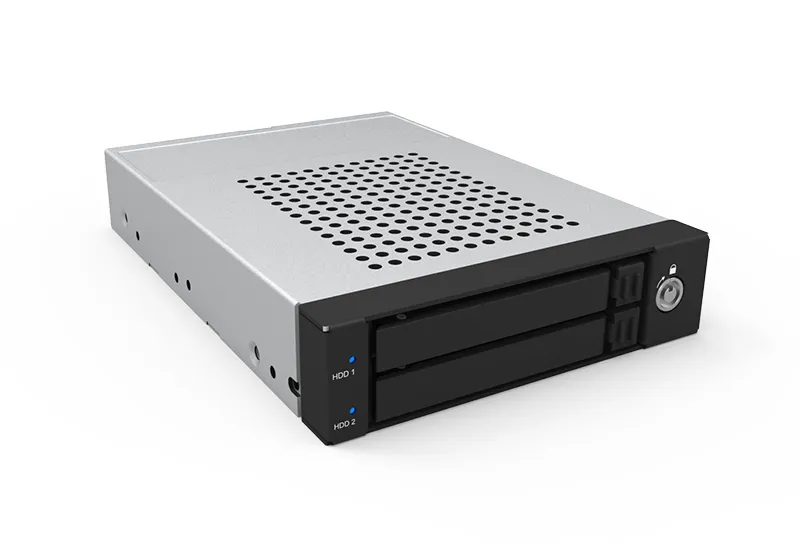

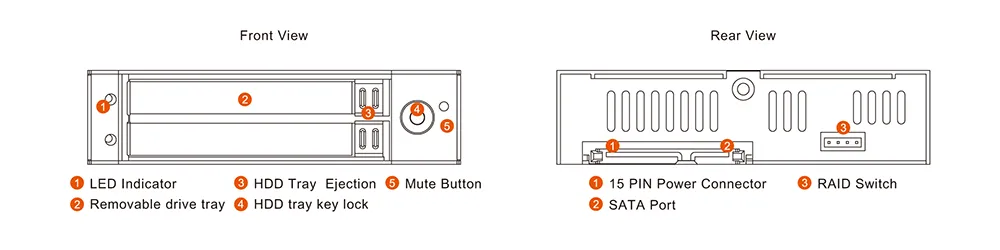

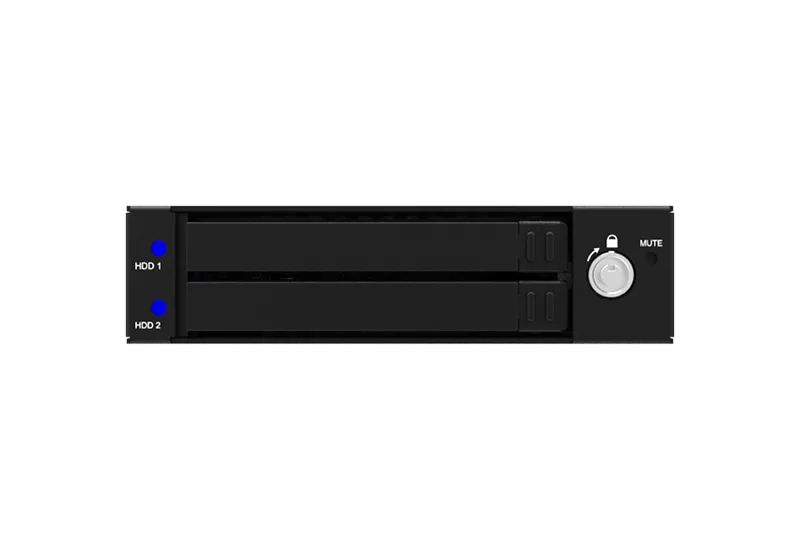

iR2771-S3 Product View

iR2771-S3 Specification



Model no. iR2771-S3
Interface SATA III 6.0 Gb/s
Support Hard Drive 2×2.5” SATA III 6.0Gb/s HDD/SSD
RAID Level RAID 0,1
The Largest Capacity 2TB
Power Supply SATA 15pin (12v/5v)

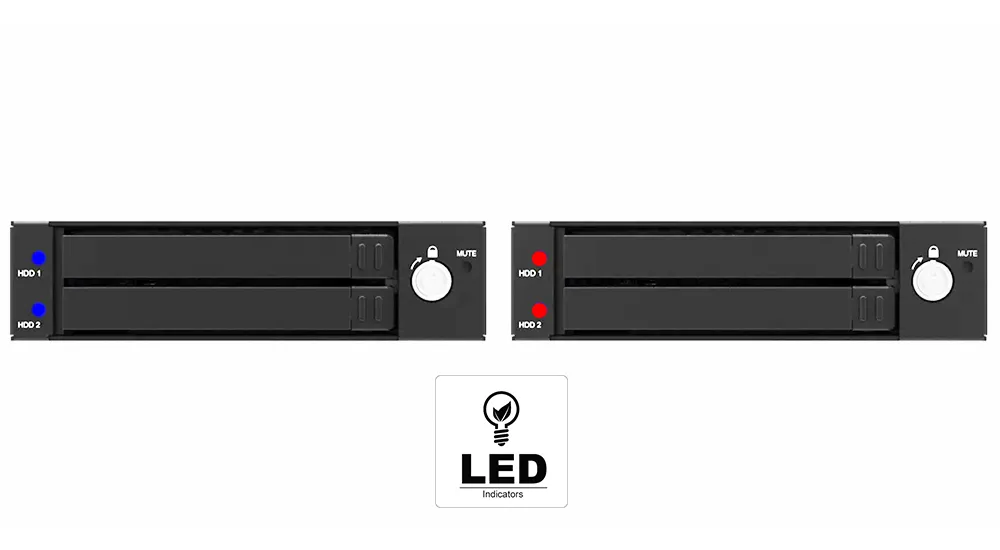

LED Indicators Yes
Operating System Windows, Linux
Function Control
Interface
GUI (Windows Only)
Certification CE & FCC
Packing Content CD, Quick Installation Guide,
Accessory Kit
Dimension 102(W)×26(H)×147(L) mm
Operating temperature 50° to 95° F (10° to 35° C)
Storage temperature -4° to 116° F (-20° to 47° C)
Relative humidity 5% to 95% noncondensing



iR2771-S3  Download

Product
Datasheet
QM
UM
CE & FCC
other
iR2771-S3
Image Download
Dimension Download
GUI Software for Windows

iR2771-S3 Question & Answer

  • Q1Is it possible to lose any part of the data during the data auto rebuilding?
  • Q2What will happen if we turn off the computer’s power while iR2771-S3 / iR2772-S3 is still executing data auto rebuilding?
  • Q3Why does the error message appear when I installed the second hard drive?
  • Q4Under the mirror mode (RAID 1), what will be the system’s total storage capacity when adding a brand new hard drive?


iR2771-S3 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
iR2771-S3Toshiba2.5" HDD MQ01ABF050500GB
iR2771-S3Toshiba2.5" HDD MQ01ACF050500GB
iR2771-S3Toshiba2.5" HDD MQ01ABD1001000GB
iR2771-S3Toshiba2.5" HDD MQ01ABD1001000GB
iR2771-S3Hitachi2.5" HDD HTS545050B9A300500GB
iR2771-S3Hitachi2.5" HDD HTS545050B9A300500GB
iR2771-S3Seagate2.5" HDD ST9160314AS160GB
iR2771-S3WD2.5" HDD WD800BEVS-00LAT080GB
iR2771-S3HGST2.5" HDD HTS721010A9E6301TB
iR2771-S3HGST2.5" HDD HTS721010A9E6301TB
iR2771-S3Kingston2.5" SSD 300V120GB
iR2771-S3Kingston2.5" SSD 300V120GB
iR2771-S3Kingston2.5" SSD SHSS37A240GB
iR2771-S3Kingston2.5" SSD SHSS37A240GB
iR2771-S3Intel2.5" SSD SSDSA2M040G2GC40GB
iR2771-S3Intel2.5" SSD SSD 530 Series120GB
iR2771-S3ADATA2.5" SSD ASX900S3-64GM64GB
iR2771-S3Samsung2.5" SSD 850 PRO128GB
iR2771-S3SanDisk2.5" SSD SDSSDA-240G240GB
