iR2770(1 floppy bay 2.5” RAID)


 Internal RAID Module


RAIDON InTANK iR2770 has a patented design that allows two 2.5” SATA drives to be fitted into one 3.5” drive space! It’s equipped with optional RAID 0 to enhance the speed of transfer compare to a regular hard drive or switch to RAID 1 for an efficient and securer data backup.



Included software monitoring program to easily view hard disk status


In the iR2770, for Windows users, a software RAIDGuide Manager monitoring program is also provided. It allows users to understand the RAID module and hard disk status more directly through the monitoring program. Even better, after setting the monitoring program, it will take the initiative to send letters to users when the hard disk fails. This instant notification allows users to be aware of the situation as soon as possible to remedy the situation faster.

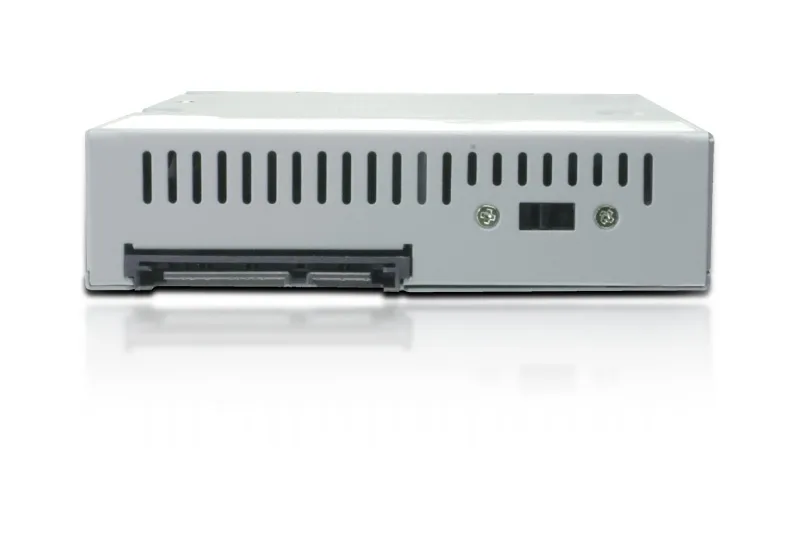

The connector location is the same as 3.5”HDD


RAIDON iR2770 internal RAID module supports SATA III 6.0 Gb/s host interface and SATA 22 pin power supply; the connector’s location exactly as the same as a 3.5” hard drive. Thus, it is not necessary to install any other brackets but just install the iR2770 inside to existing operating system and then the system will be upgraded as a RAID storage!


More iR2771-S3 product information  >>>>

More iR2772-S3 product information  >>>>


The Performance of RAID 0 mode will faster than one 3.5” HDD


Just set iR2770 to RAID 0 mode and you can get the better and faster data transform ate than one 3.5” hard drive does.


Real-time backup for data security


When using RAID 1 mode (mirroring), the data will write to two hard drive automatically to keep the data safe. If one hard drive failure, just replace a new hard drive (same capacity or bigger) without shutting down the system to keep the system working 24hr. iR2770 will start to rebuild the data from the original hard drive to the new one after the failure hard drive is replaced.

System Upgrade with Ease


Install iR2770 to the floppy or standard 3.5” hard drive slot, your system will become the one with RAID function. If you want to upgrade your system with RAID function but your system don’t have other free space. iR2770 will be the best solution you can find!


Removable Drive Tray Design


iR2770 comes with two RAIDON’s removable drive trays. It not only makes user easy to install the hard drives to iR2770, but change the failure hard drive easily.



Makes the System Faster and Keeps the Photo Data more Safer.


iR2770 can be easily used in a workstation for photographers. Using two solid state drives, iR2770 can provide faster performance than hard drive, it will be faster for photographer to run Photoshop, Lightroom or other photo-editing software. By using RAID 1 (mirroring) mode, the RAW files will have a copy automatically when it be save into iR2770. Photographer will be no longer to worry about the data loss caused by the hard drive failure.








Database Protection for Commercial Accounting System


Install your operating system in one solid-state drive to speed up the system performance and use iR2770’s RAID 1 mode to protect accounting system database. Small and medium business will no longer to worry about the unnecessary data loss of accounting system database which caused by unexpected hard drive failure.

Fan-less, Cooling Hole Design


For high-speed production line, the most worried about is the system failure. It will shut down the production line and cause the money loss. By using iR2770’s RAID 1 mode, you can keep the production line working 24hr and no worry about the system shut down caused by the unexpected hard drive failure. iR2770 is the most cost-effective solution.

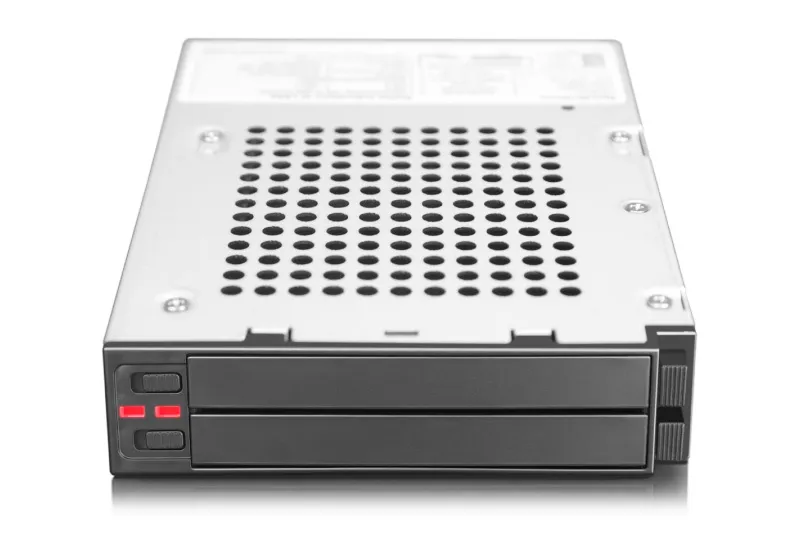

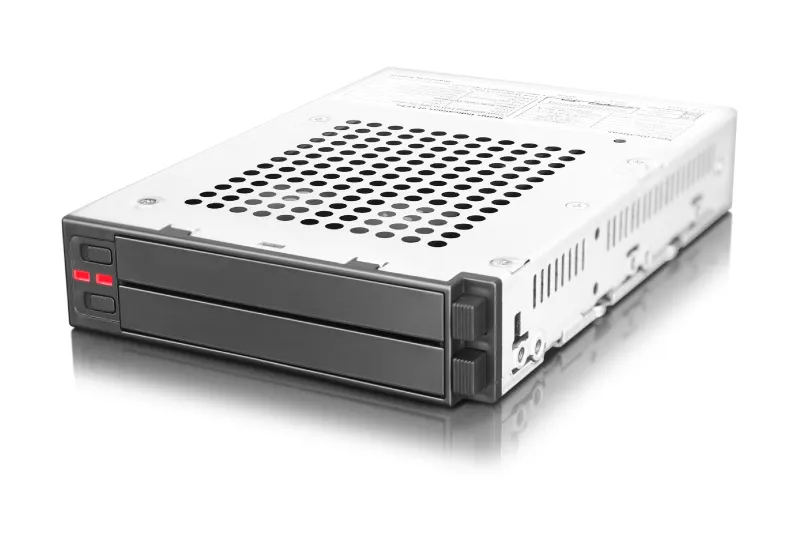

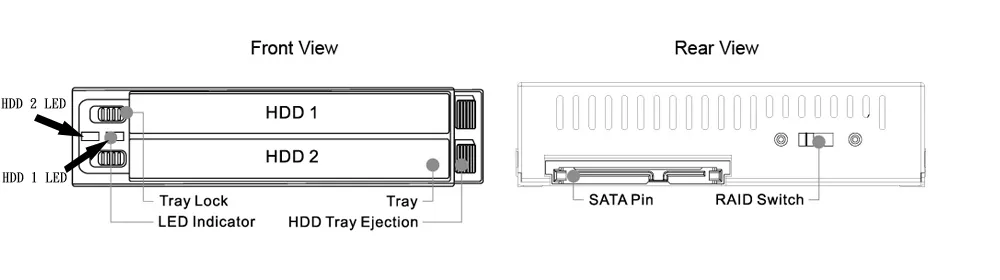

iR2770 Product View

iR2770 Specification

Model No iR2770
ASIC WM6182A Chip
Device Interface SATA III 6.0 Gb/s
RAID Level RAID 0,1
Support Hard Drive 2×2.5” SATA III 6.0Gb/s HDD/SSD
Support Single HDD 2TB
Auto Rebuilding YES
LED Indicators YES
Power Supply SATA 22pin Interface
Operating System Windows,Linux
Certifications CE / FCC
Function Control
GUI (Windows Only)
Packing Content Quick Installation Guide、Accessory Kit
Dimension 102W×147L× 26H mm
Net Weight 0.4kg
Operating temperature 32° to 104° F (0° to 40° C)
Storage temperature -4° to 116° F (-20° to 47° C)
Relative humidity 5% to 95% noncondensing


Related Products









>>>> More External RAID Storage


More videos about RAID GUI Utility  >>>>

iR2770 Download

Dimension Download
Image Download
GUI Software for Windows

iR2770 Question & Answer


iR2770 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
iR2770Toshiba2.5" HDD MQ01ABD1001TB
iR2770ADATA2.5" SSD ASX900S3-64GM64GB
iR2770ADATA2.5" SSDUltimate SU800256GB
iR2770Kingston2.5" SSD SHSS37A240GB
iR2770SanDisk2.5" SSD SDSSDA-240G240GB
iR2770Innodisk2.5" SSD 3MG2-P128GB
iR2770WD2.5" SSD WDS200T2B0A2TB
iR2770Seagate2.5" SSD XA480LE10063480GB
iR2770Seagate2.5" SSD ZA960NM10001960GB
iR2770Samsung2.5" SSD MZ-76E250BW250GB
iR2770Samsung2.5" SSD MZ-76E500BW 500GB
iR2770Samsung2.5" SSD MZ-76E1T0BW 1TB
iR2770Samsung2.5" SSD MZ-76E2T0BW2TB
iR2770Samsung2.5" SSD MZ-76E4T0BW4TB
iR2770Advantech2.5" SSD830 SeriesSQF-S25M8-64G-SAE64GB
iR2770WD2.5" SSDRedSA500500GB
iR2770WD2.5" SSD WDS500G1R0A500GB
iR2770WD2.5" SSD WDS100T1R0A1TB
iR2770WD2.5" SSD WDS200T1R0A2TB
iR2770WD2.5" SSD WDS400T1R0A4TB
iR2770Seagate2.5" SSDIronWolf 125ZA4000NM10002 4TB
iR2770Seagate2.5" SSDIronWolf Pro 125ZA3840NX100013.84TB
iR2770EmBestor2.5" SSD EC3S2T-512GCJDYM44512GB
iR2770Pioneer2.5" SSDAPS-SL3NAPS-SL3N-1T1TB
