SafeTANK Series





GR5640-SB3 (4bay 2.5"-3.5" RAID Storage Solution)

Embedded the latest interface USB3.0 / eSATA, GR5640 delivers the fastest data transfer rate in performance.



Features

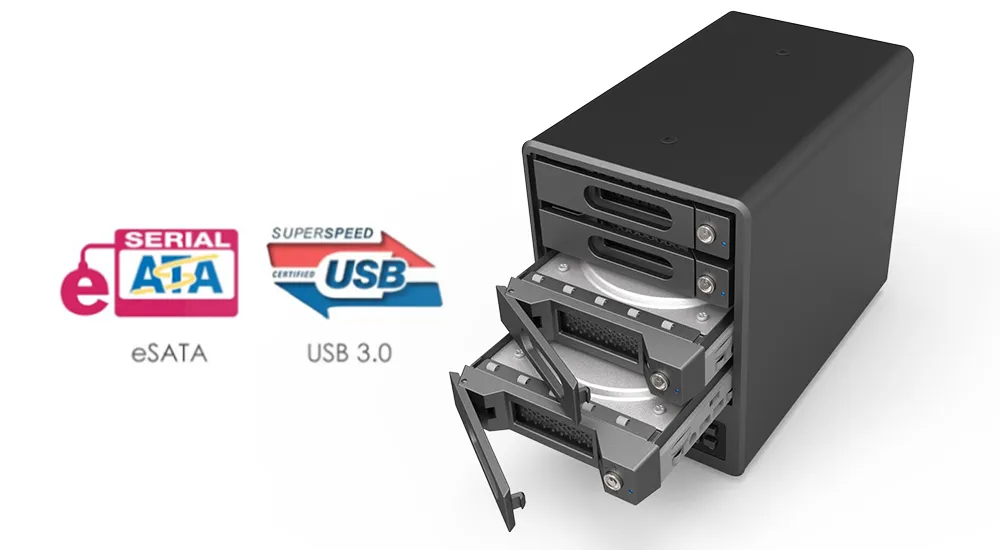

Multiple host interfaces of Super-speed USB3.0/eSATA



GR5640-SB3 offers multiple host interfaces of Super-speed USB3.0/eSATA and the equipped LCM enables the convenience of configuration for a desired RAID level among JBOD / RAID 5 / RAID 0 by fully taking the advantage from the larg- est supporting capacity up to 40TB above. GR5640 is not only giving a big storage capacity , but delivering data security and performance to various applications and environments.

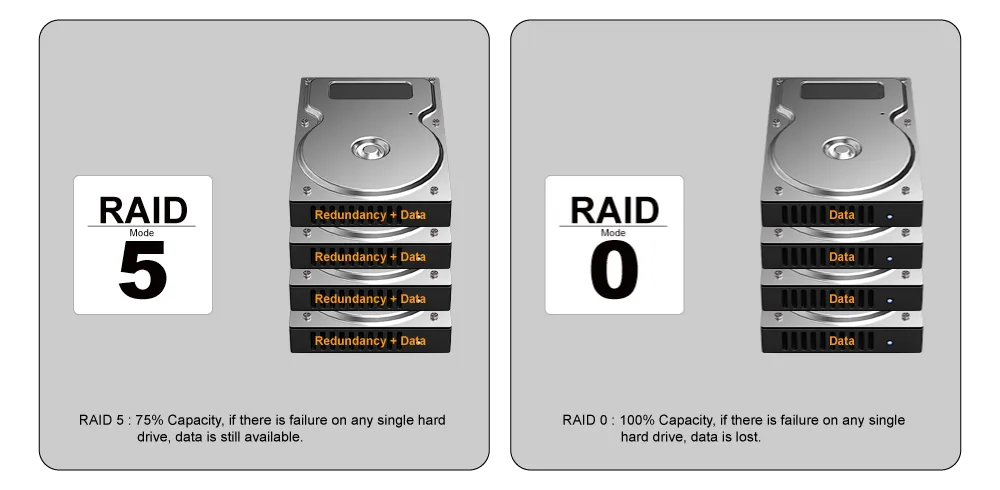

RAID 5 for data safety & RAID 0 for high-speed performance



With RAID 5, a user will have the maximum protection of his/her data with allowance for a single drive failure but yet all data will be kept intact. In the RAID 0 mode, a user will have the benefit of a single massive volume for storage with high I/O speed, with sets of data being striped across the four enclosed drives.

Application

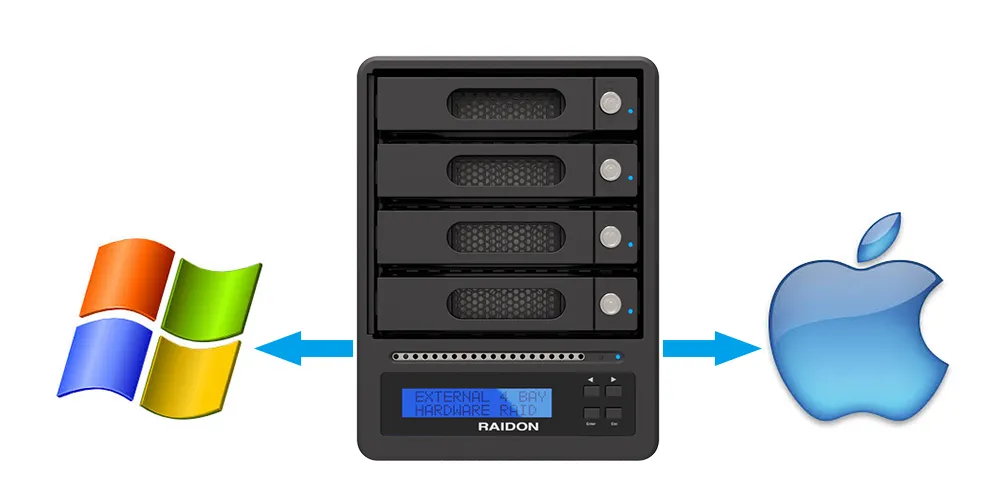

Suitable for PC and Mac user


With USB3.0 / eSATA host inter- faces, GR5640 can be used both in PC and MAC environment flexible.

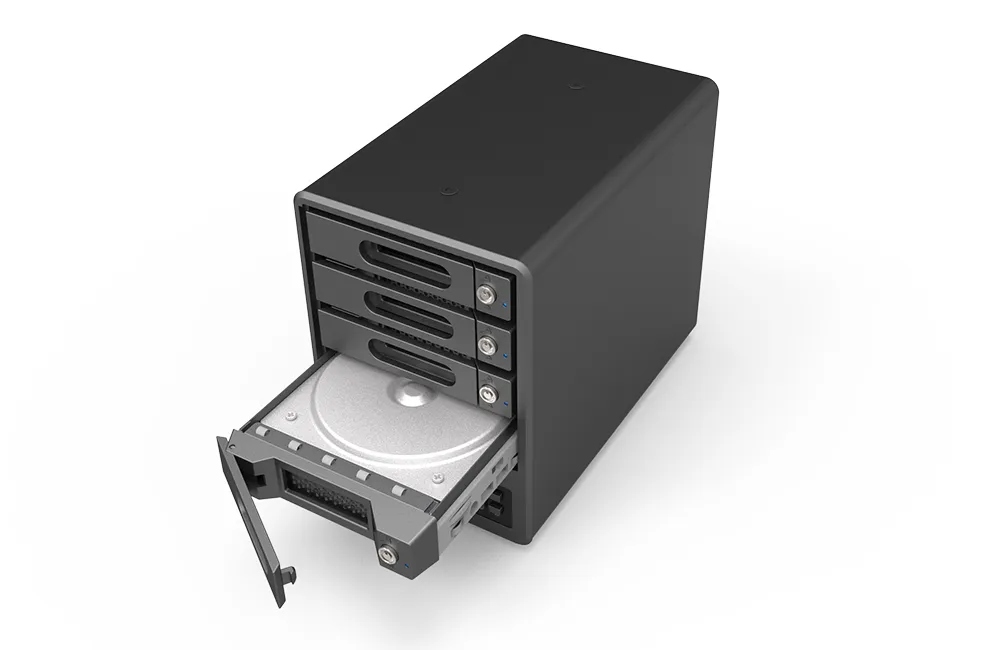

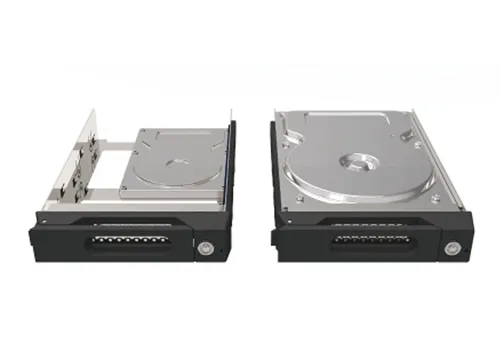

Removable design, use multiple hard drives flexibly



The GR5640-SB3 is a quadruple drive storage enclosure system that supports the latest 3.5" and 2.5" SATA hard drives to deliver high- capacity data storage solutions. Featuring flawless structural design, optimized internal configuration, and a durable aluminum casing to protect your internal drives, the GR5640-SB3 is perfect for creative and highly mobile professionals.

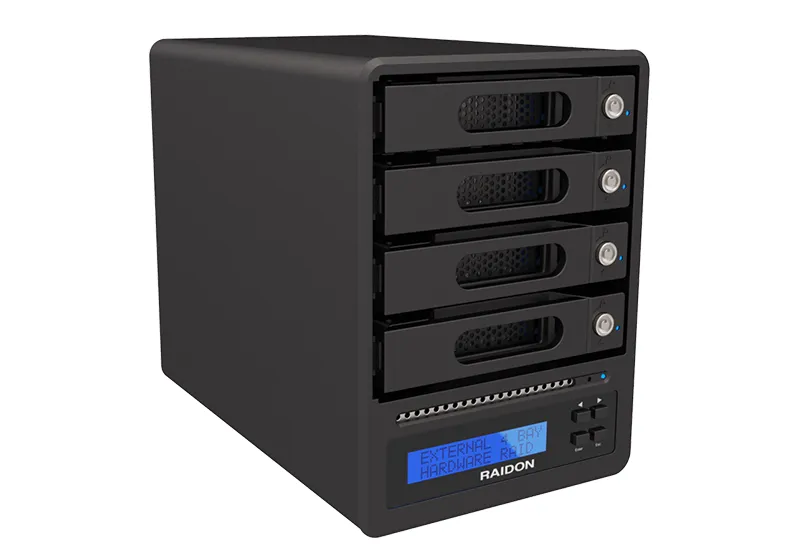

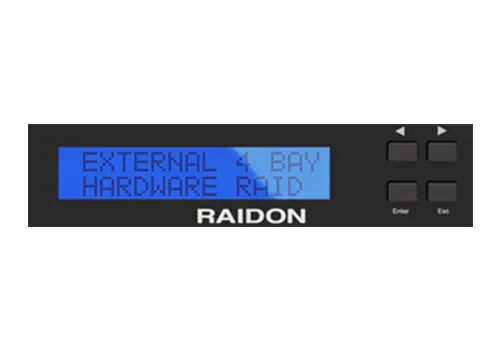

Setting via LCM with ease!



Users can set up GR5640-SB3 via the LCM and buttons on the front panel while clearly knowing the real-time status of GR5640-SB3 from the LCM.

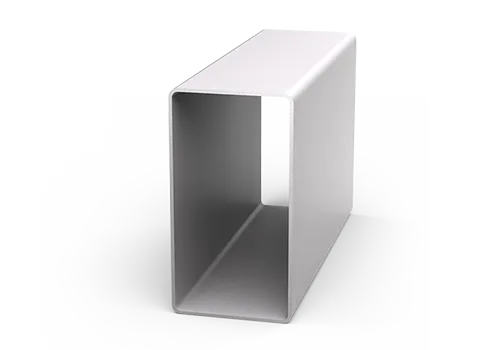

Aluminum housing


With thick Aluminum housing design, not only effectively assisting heat dissipation, but also provides a better physical protection from outer forces, even if moving GR5640-SB3 with four HDD installed there will be no concerns of excessive weight causing exterior deformation.

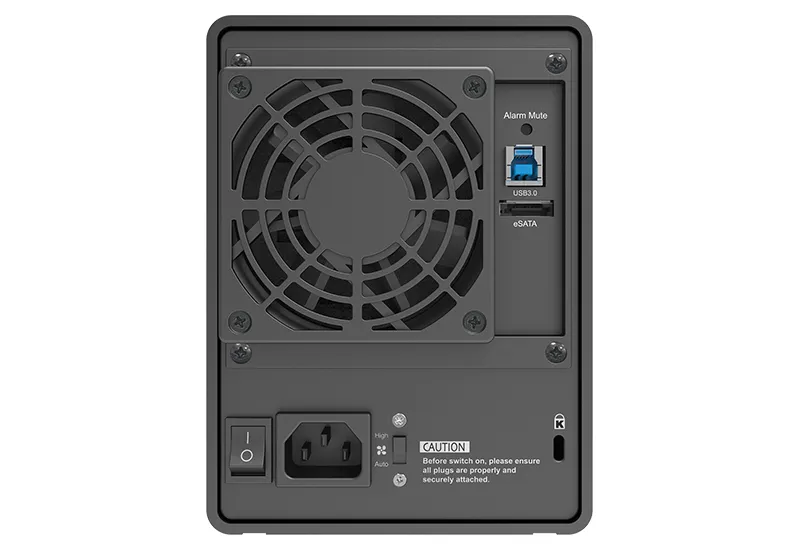

MCU feature to provide you in-chassis temperature control

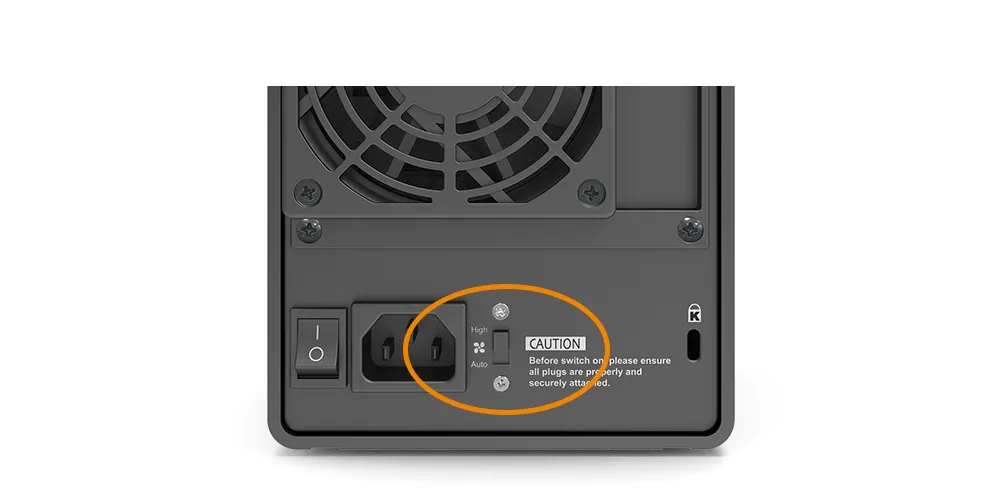

GR5640-SB3 is also designed with the MCU feature which monitors and helps improving its in-chassis system temperature.  While the system temperature rises up to 55 degree-C (131 degree-F), MCU will bump up the fans with full speed; and once system temperature goes down to 50 degree-C (122 degree-F), you could manually adjust fan switch on the rear, MCU would reduce the fan speed down to a half speed for a better green user environment from a less fan noise and lower power consumption.



In addition, if the fan fails or the device temperature is too high, the buzzer will beep and let the user know that the device has failed. The user can turn off or turn on the buzzer through the mute adjustment switch on the back panel.

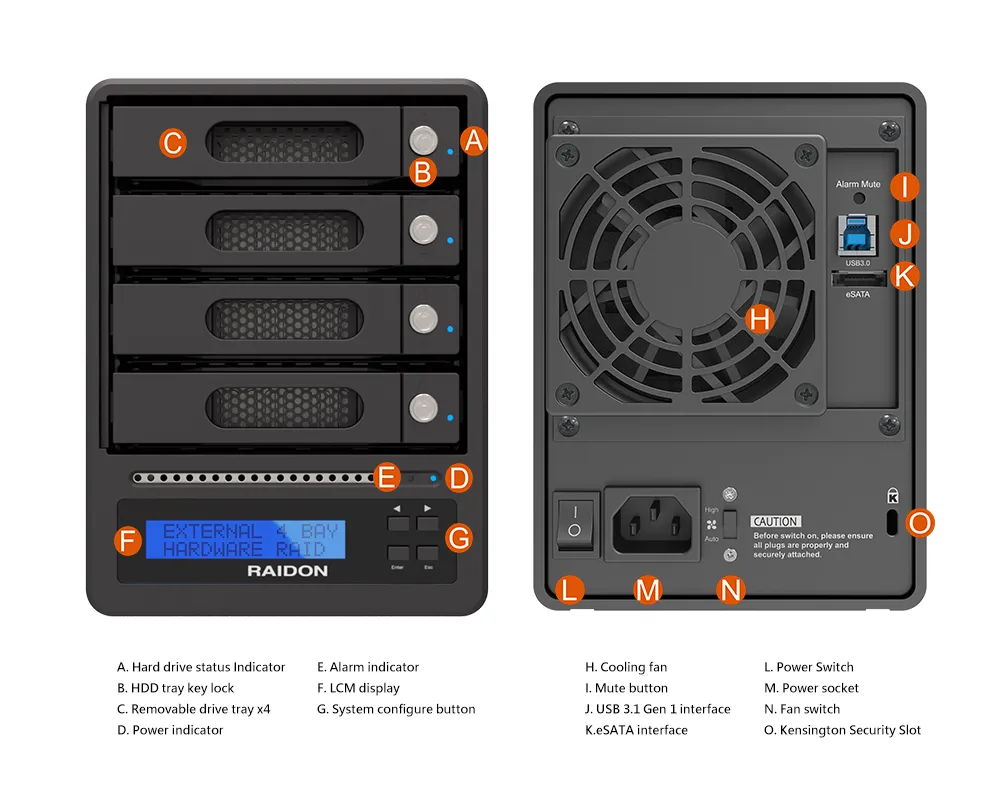

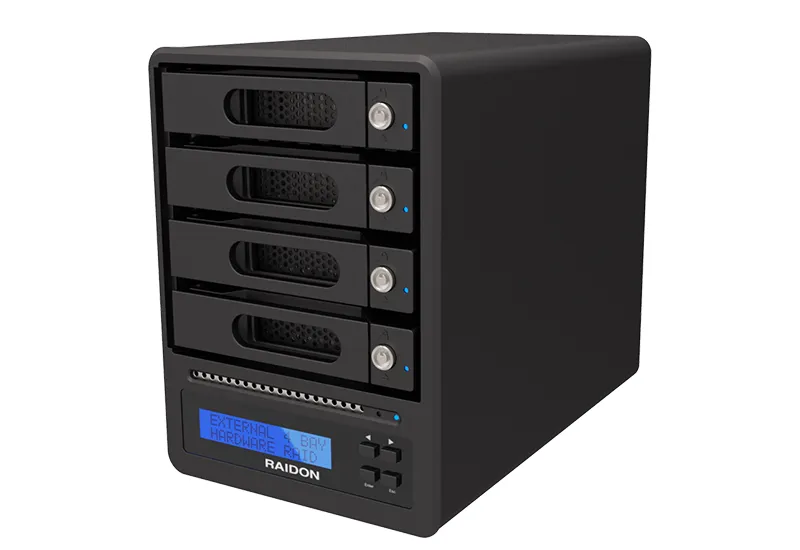

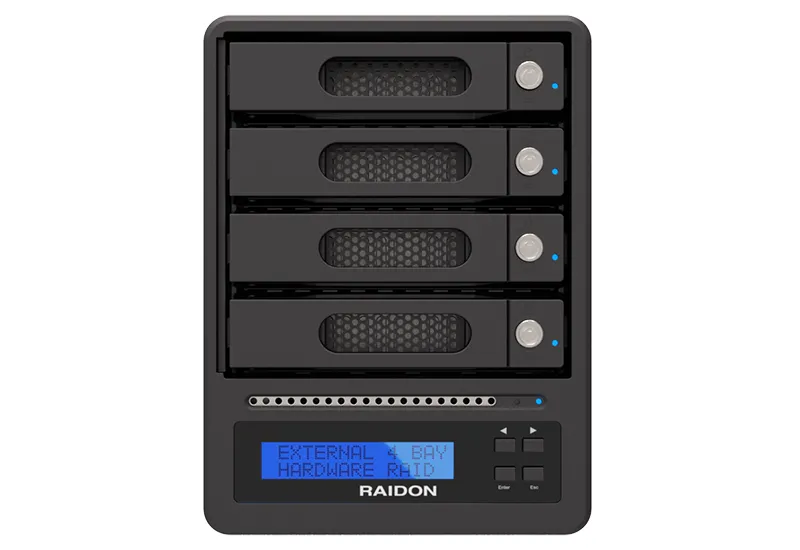

GR5640-SB3 Product View

GR5640-SB3 Specification



Model No. GR5640-SB3
RAID chip JMB578 + JMB394
Drive Fit 3.5" - 2.5" SATA HDD/SSD x 4
RAID Level RAID 0, 5, JBOD
Hot-Swap RAID 5
Auto Rebuilding RAID 5
Host Interface USB 3.0 & eSATA Connector
Power Supply AC Input : 100V ~ 240V
HDD Access Indicator LED
Cooling Fan 8cm Fan
Buzzer Alarm Yes
Environment Detector Fan Failure / Overheat
Color Matt Black
Structure Metal Body
Dimensions (WxHxD) 125x168x212 mm
Weight 3.4(kg)
Certifications CE & FCC
Operating System
Support
Windows, Mac, Linux
Function Control
Interface
GUI (Windows Only)
Packing Content
GR5640-SB3、USB3.0 Cable、eSATA Cable、Power Cable、
Quick Installation Guide、Accessory Kit
Operating temperature
Storage temperature
Relative humidity
32° to 104° F (0° to 40° C)
-4° to 116° F (-20° to 47° C)
5% to 95% noncondensing
