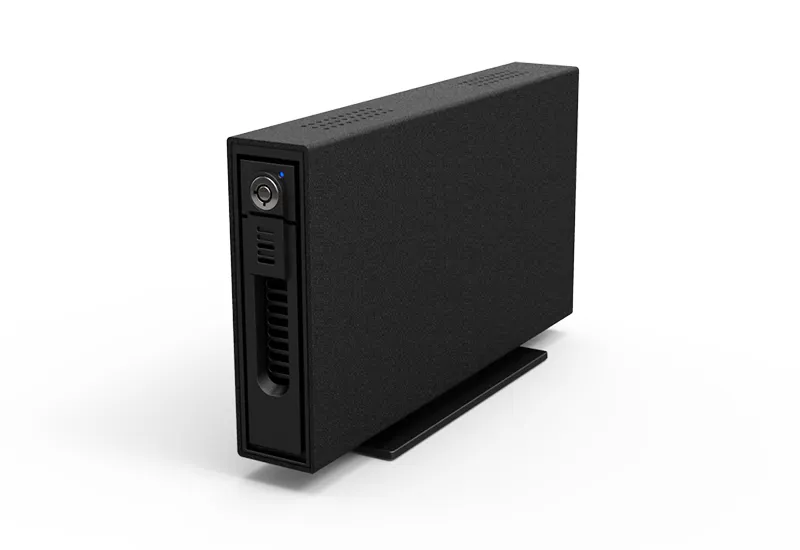

SafeTANK Series

GT1670-SB3 (1bay 2.5"-3.5" SSD/HDD JBOD)



Features e-SATA (6G) and USB 3.0 (5G) Compatibility

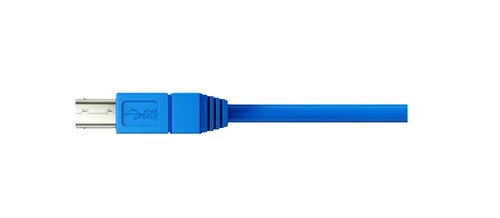

The new SafeTank GT1670-SB3 (6G) is fitted with high-speed e-SATA (6G) and USB 3.0 (5G) interfaces, offering blazingly fast transfer speeds compared to USB 2.0. In addition, the USB 3.0 model is backward compatible with USB 2.0 for users who haven't yet upgraded to USB 3.0.



Note:If connected to USB 2.0 host, the performance speed will only reach that of USB 2.0.

Higher Transmission Bandwidth to Enhance Your Work Efficiency


The GT1670, which is backward compatible with 3.0/1.5 Gb/s, also supports SATA 6.0 Gb/s transmission bandwidth. Its impressively high speed brings you higher efficiency, and works perfectly with high speed solid-state drives. It handles both large video files or graphic design projects with equal ease.

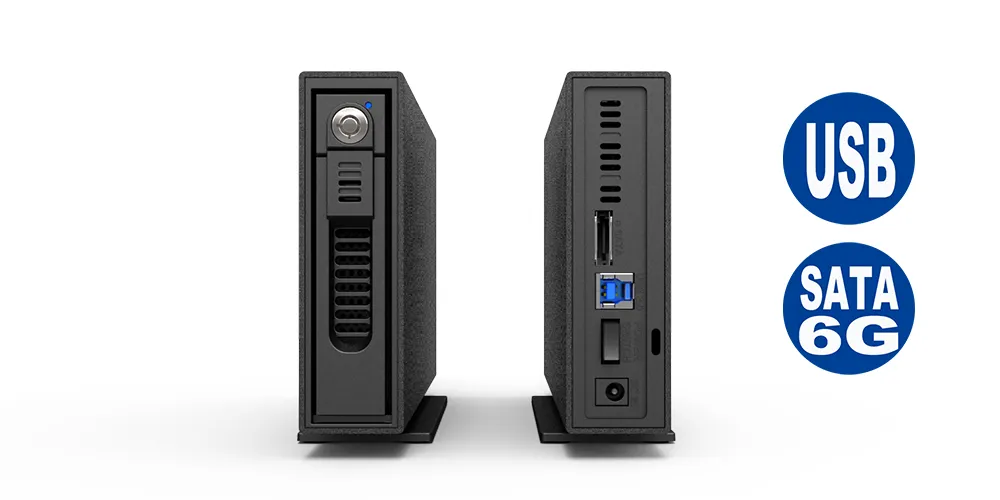

Choose the Interface that Suits You Best



Features a multiform interface that supports e-SATA, and USB 3.0, offering professionals greater flexibility across platforms, more convenience, and superior performance.



A Kingston 2.5" SSD installed in the GT1670 was used for benchmarking purposes. Read and write speeds may vary with other configurations.

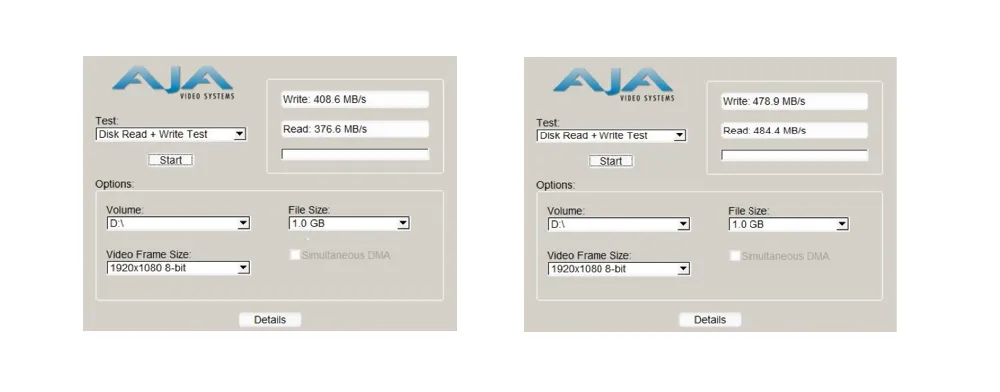

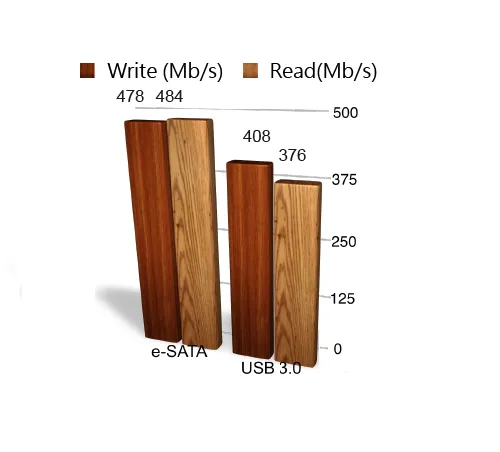

AJA Test Report

Test Environment
Computer : MSI Z77A-GD80
Operation System : WIN8
Test Disk : SSD/KINGSTON/SH103S3120G

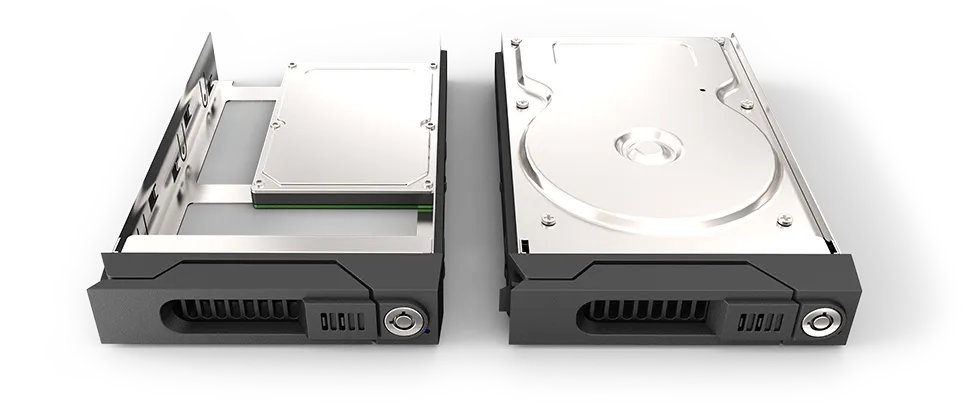

Removable Design Makes it Easier to Use and Switch Out Multiple Hard Drives


The GT1670's newly designed removable drive trays can accommodate 3.5" HDDs, 2.5" SSDs, and 2.5" HDDs (supporting a range of widths including 15 / 12 / 9.5 / 9 / 7 mm) and combine the convenience of external plug and play drives with the advantages in stability offered by internal drives, enabling you to enjoy the best of both worlds and increased mobility.

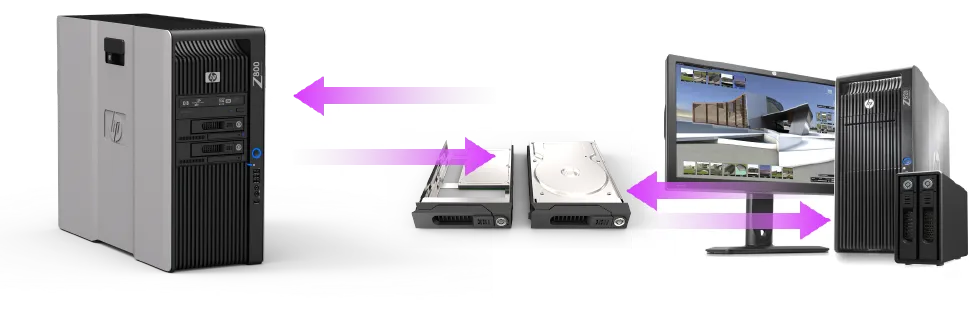

Data in the Whole HD to Go


If your project files are too large to be transmitted via the internet, or you need to send the same data out for use with different devices, for example to edit photo or video files, the removable hard disk tray and protective case design is perfect for your requirements. Dependant on the model you choose, the disks can hold up to 8TB of data.

GT1670 Makes The System Faster And Digital Photos More Secure



The GT1670 can be used as a workstation for photographers.Using the 2.5" hard disk slot to install the solid-state hard disk, the performance of the system can be faster, whether running PhotoShop or Lightroom, to edit photos or to search thumbnails.



Moreover, by using the storage space constructed by the 3.5" RAID 1, it is suitable for gamers to save large amounts of original RAW iles as well as following-up completed files after editing.

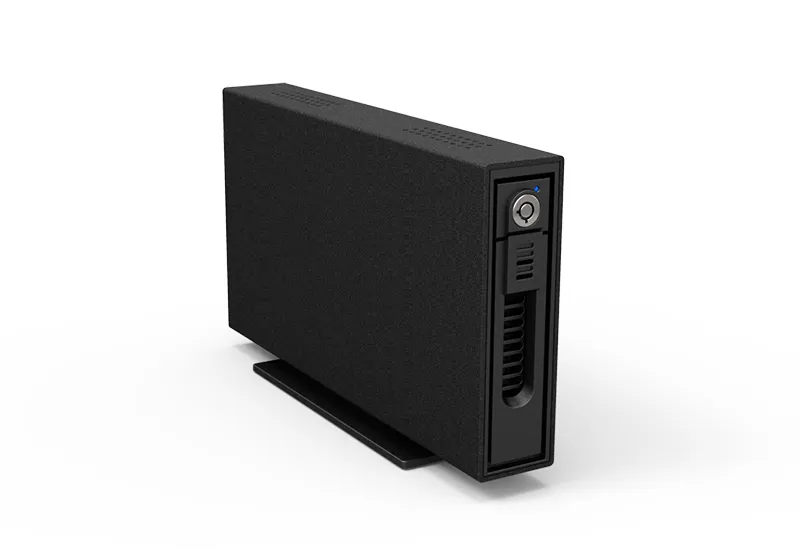

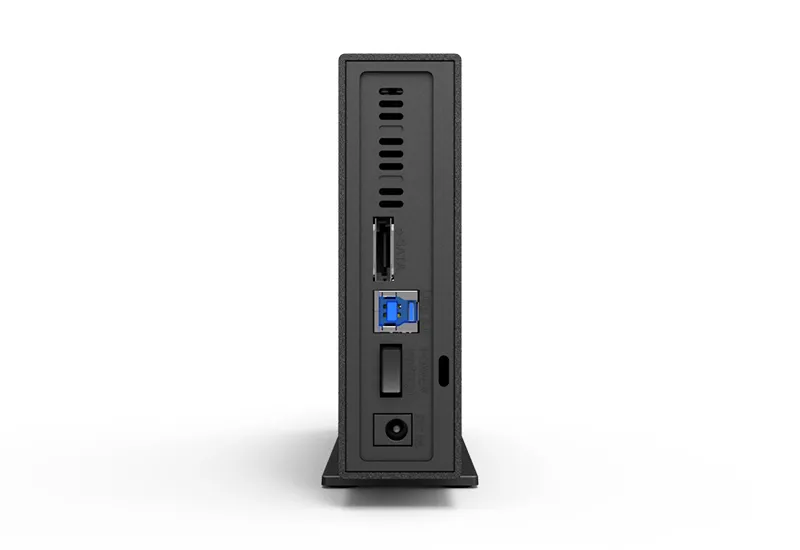

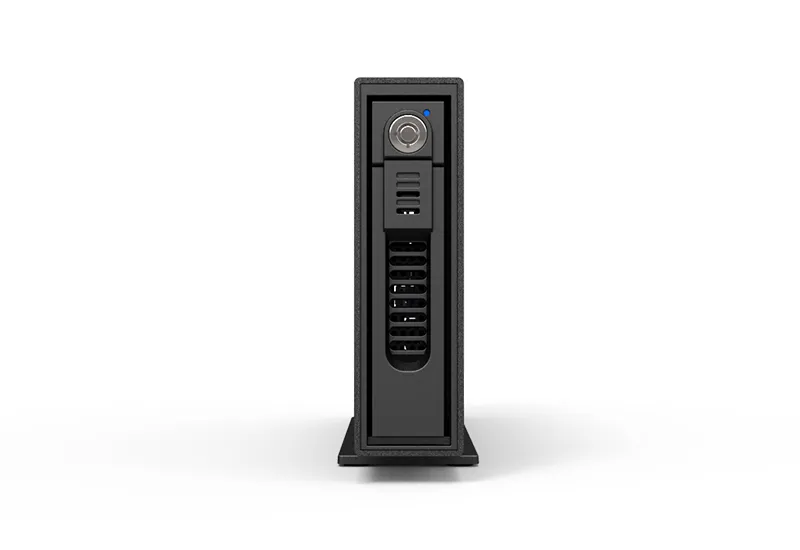

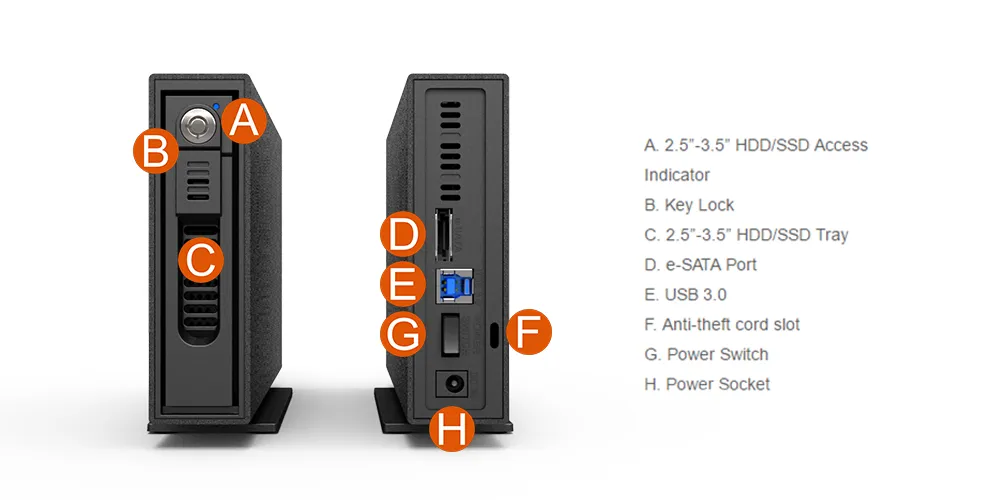

GT1670 Product View

GT1670 Specification



Model No GT1670-SB3
Interfaces e-SATA(6G) Port , USB3.0(5G) Port
Compatible Drives 1 x 2.5”-3.5” SATA III ( 6.0 Gbits) HDD/SSD
Raid Level 1 x Independent volume (JBOD)
Operating System Windows, Linux, Mac
Electrical and Operating  * Line voltage: 100-240V AC
Requirements * Frequency: 50Hz to 60Hz, single phase
* Maximum continuous power: 24W
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% noncondensing
Dimension (H): 131 mm (W): 50 mm (D): 224 mm Wight: 1.6 kg
Product Code EAN:4711132862270 UPC:884826502692
Carton 10 pcs per carton
Package Accessories * GT1670-SB3
( with Removable drive tray enclosed x 1 )
* e-SATA Cable x 1
* USB3.0 Cable x 1
* Adapter x 1
* Power x 1
* Accessory kit
* User Manual x 1
@ Actual product specification is base on delivery, subject to be changed without
further notice.



GT1670-SB3 Download

Product
Datasheet
QM
UM
CE & FCC
other
GT1670-SB3
Image Download(GT1670-SB3)
Image Download

GT1670-SB3 Question & Answer



GT1670-SB3 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
GT1670-SB3Seagate2.5" HDD ST2000NX02532TB
GT1670-SB3ADATA2.5" SSD ASX900S3-64GM64GB
GT1670-SB3Kingston2.5" SSD SHSS37A240GB
GT1670-SB3Hitachi3.5" HDDUltrastarHUS724040ALA6404TB
GT1670-SB3Hitachi3.5" HDDMegaScaleHMS5C4040ALE6404TB
GT1670-SB3Hitachi3.5" HDDUltrastarHUS724040ALE6404TB
GT1670-SB3Hitachi3.5" HDDUltrastarHUS726060ALA6406TB
GT1670-SB3Hitachi3.5" HDDUltrastarHUS726060ALE6106TB
GT1670-SB3Hitachi3.5" HDDUltrastarHUH728080ALE6008TB
GT1670-SB3Hitachi3.5" HDDUltrastarHUA722020ALA3302TB
GT1670-SB3Hitachi3.5" HDD HDS722020ALA3302TB
GT1670-SB3Hitachi3.5" HDDDeskstarHDS723030ALA6403TB
GT1670-SB3Hitachi3.5" HDDDeskstarHDS723030ALA6403TB
GT1670-SB3Hitachi3.5" HDDUltrastarHUA723030ALA6403TB
GT1670-SB3Hitachi3.5" HDD HUS724030ALE6403TB
GT1670-SB3Seagate3.5" HDDIronWolf (NAS)ST10000VN000410TB
GT1670-SB3Seagate3.5" HDDIronWolf Pro (NAS)ST10000NE000810TB
GT1670-SB3Seagate3.5" HDDEnterpriseST10000NM001610TB
GT1670-SB3Seagate3.5" HDDIronWolf (NAS)ST12000VN000712TB
GT1670-SB3Seagate3.5" HDDExos X14ST14000NM042814TB
GT1670-SB3Seagate3.5" HDDIronWolf Pro (NAS)ST14000NE000814TB
GT1670-SB3Toshiba3.5" HDD MG04ACA200E2TB
GT1670-SB3Toshiba3.5" HDD MG03ACA3003TB
GT1670-SB3Toshiba3.5" HDD MG03ACA4004TB
GT1670-SB3Toshiba3.5" HDD MG04ACA50DE5TB
GT1670-SB3WD3.5" HDDRedWD1002FBYS1TB
GT1670-SB3WD3.5" HDDRedWD1503FYYS1.5TB
GT1670-SB3WD3.5" HDDRedWD20EFRX2TB
GT1670-SB3WD3.5" HDDRedWD2003FYYS2TB
GT1670-SB3WD3.5" HDDRedWD3000FYYZ3TB
GT1670-SB3WD3.5" HDDRedWD40EFRX4TB
GT1670-SB3WD3.5" HDDRedWD60EFRX6TB
GT1670-SB3WD3.5" HDDRedWD100EFAX10TB
GT1670-SB3Seagate3.5" HDDIronWolf (NAS)ST8000NE0018TB
GT1670-SB3Seagate3.5" HDDIronWolf (NAS)ST8000VN0048TB
GT1670-SB3WD2.5" SSD WDS200T2B0A2TB
GT1670-SB3HGST3.5" HDD HUS726T4TALE6L44TB
GT1670-SB3HGST3.5" HDD HUS726T4TALA6L44TB
GT1670-SB3HGST3.5" HDD HUS726T6TALE6L46TB
GT1670-SB3HGST3.5" HDD HUS728T8TALE6L48TB
GT1670-SB3HGST3.5" HDD HUH721008ALE6008TB
GT1670-SB3WD3.5" HDD HUH721010ALE60010TB
GT1670-SB3WD3.5" HDD HUH721010ALE60410TB
GT1670-SB3WD3.5" HDD HUH721212ALE60012TB
GT1670-SB3WD3.5" HDD HUH721212ALE60412TB
