InTANK Series



SR2611-2S-S2R+ (2 CD-ROM bay 2.5"-3.5" RAID)





Supports SATA 6.0 Gb/s transmission bandwidth

 to Enhance Your Work Efficiency

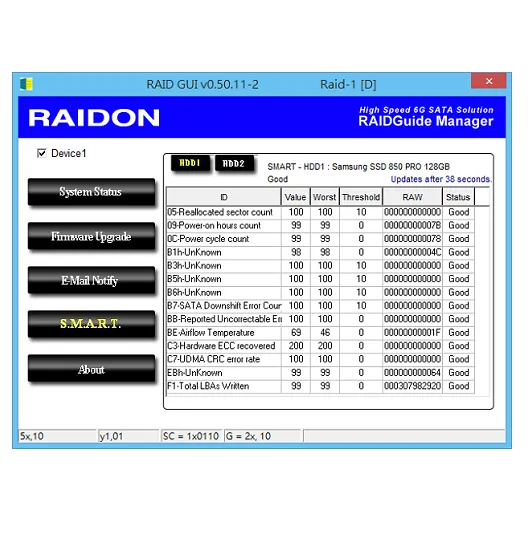

Our RAID Enclosures Start Providing S.M.A.R.T Features



SR2611-2S-S2R+ storage RAID enclosure product now supports the S.M.A.R.T (Self Monitoring, Analysis, and the Reporting Technology) feature. You just have to open this GUI Utility, you then can enjoy using it to know the HDD quality status, and you could even to replace any HDD which is with critical quality level in advance to help an even better protection for all your data.



>> Learn more about it.

Enterprises nominated Professionals appointed

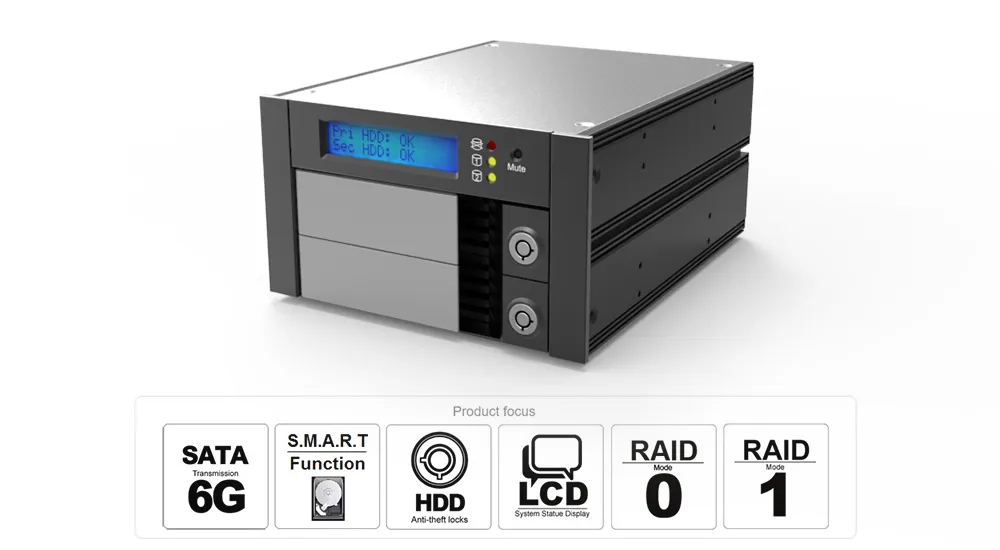

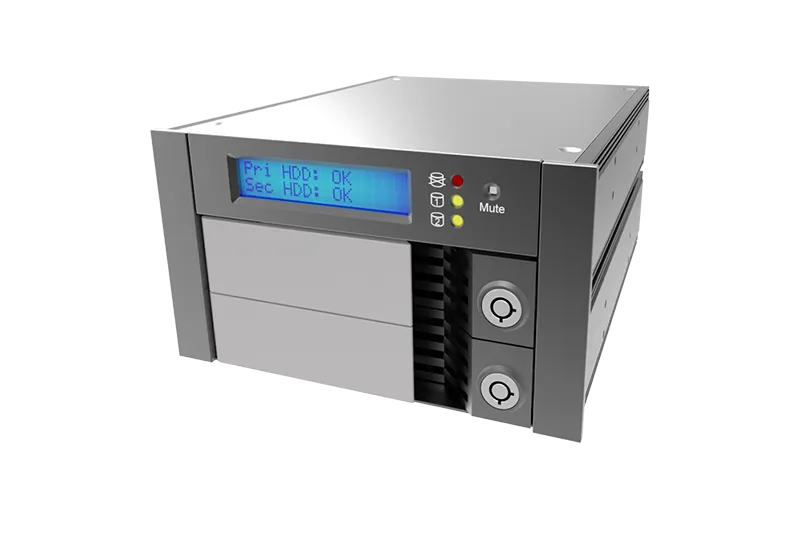

SR2611-2S-S2R+ is an internal (6Gbps) RAID module designed in 2 of 5.25” CD-ROM bay to satisfy the demands of SMB and industrial computing environment. With LCD tents leaving you to easily grasp HDD status.

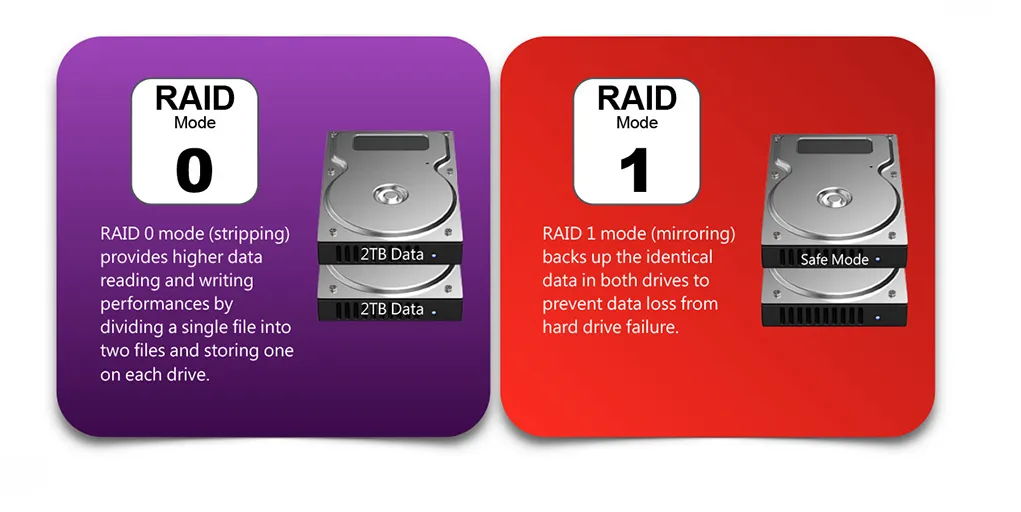

SR2611-2S-S2R+ accommodates 2 of 3.5 ” SATA III hard drive and offering both RAID 0 and RAID 1 functions . Uses the RAID 0 function to integrate the capacity of two hard drives and to enhance both read & write performance. On the other hand, uses RAID 1 function for data redundancy by mirroring data among both hard drives to prevent the event of a hard drive failure causes system shutdown.



More iR2623-S3 Product information  >>>>

More iR2622 Product information  >>>>

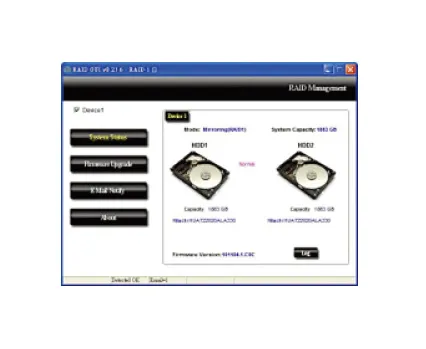

Included Software Monitoring Program To Easily.

View Hard Disk Status, In the SR2611, in addition to the back light screen that can dis- play the module status, for Windows users, a software monitoring program is also provided. It allows users to understand the module and hard disk status more directly through the monitoring program. Even better, after setting the monitoring program, it will take the initiative to send letters to users when the hard disk fails. This instant notification allows users to be aware of the situation as soon as possible to remedy the situation faster

Higher Transmission Bandwidth to Enhance Your Work Efficiency


The SR2611-2S-S2R+, which is backward compatible with 3.0/1.5 Gb/s, also supports SATA 6.0 Gb/s transmission bandwidth. Its impressively high speed brings you higher efficiency, and works perfectly with high speed solid-state drives. It handles both large video files or graphic design projects with equal ease.

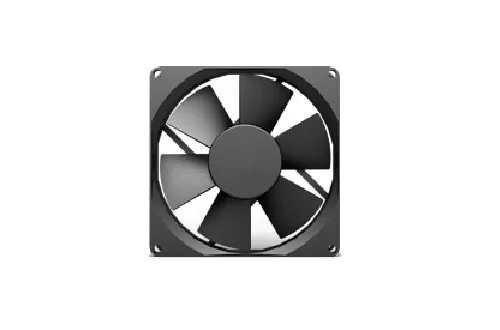

Good Heat Dissipation Can Extend The Life Of The Hard Disk.

The SR2611 is equipped with a 6-cm silent fan, by constantly creating air flow, heat generated by the high-speed rotation of the hard disk can be easily taken away. This maintains the normal operating temperature of the hard disk at all times. A longer life of your hard disk will properly protect your data.

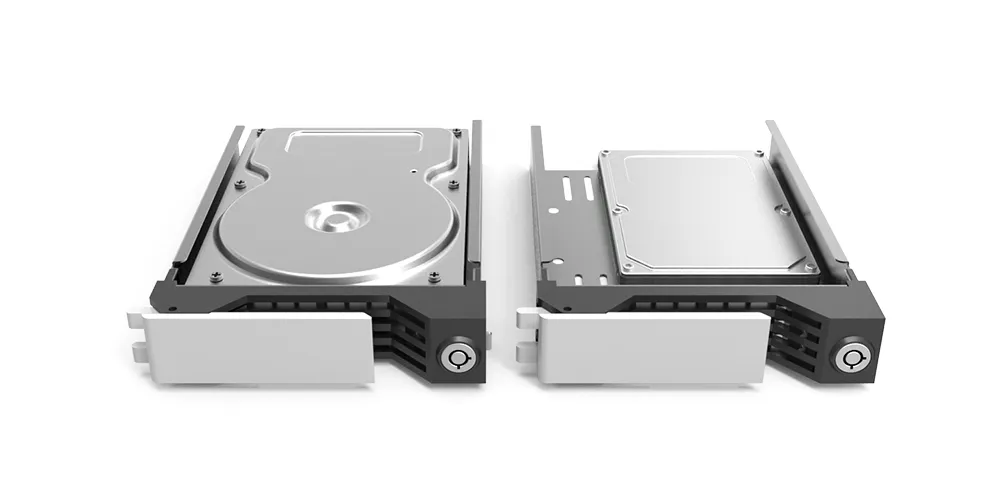

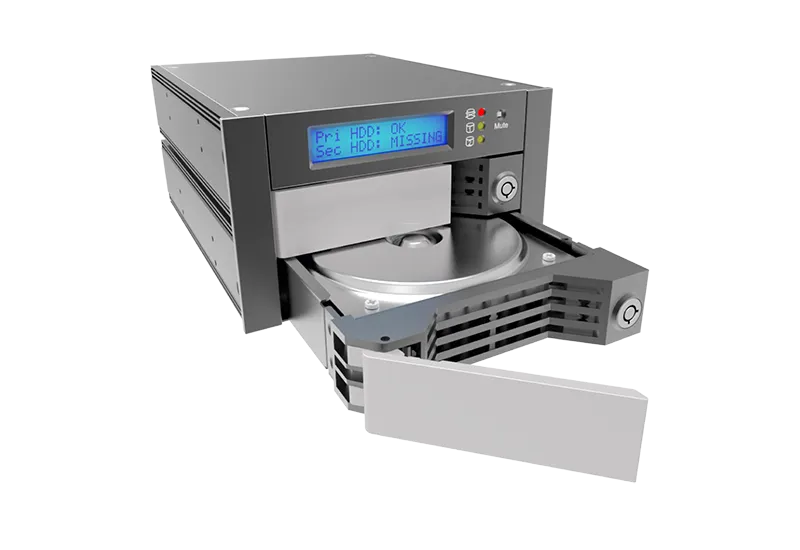

Removable design and lock, use multiple hard drives flexibly


The SR2611+ is two drives storage enclosure system that supports the latest 3.5" and 2.5" SATA hard drives to deliver high- capacity data storage solutions. Featuring flawless structural design, optimized internal configuration, and a durable aluminum casing to protect your internal drives, the SR2611+ is perfect for creative and highly mobile professionals. It can also use the lock function, to avoid hard disk is not accidentally out.

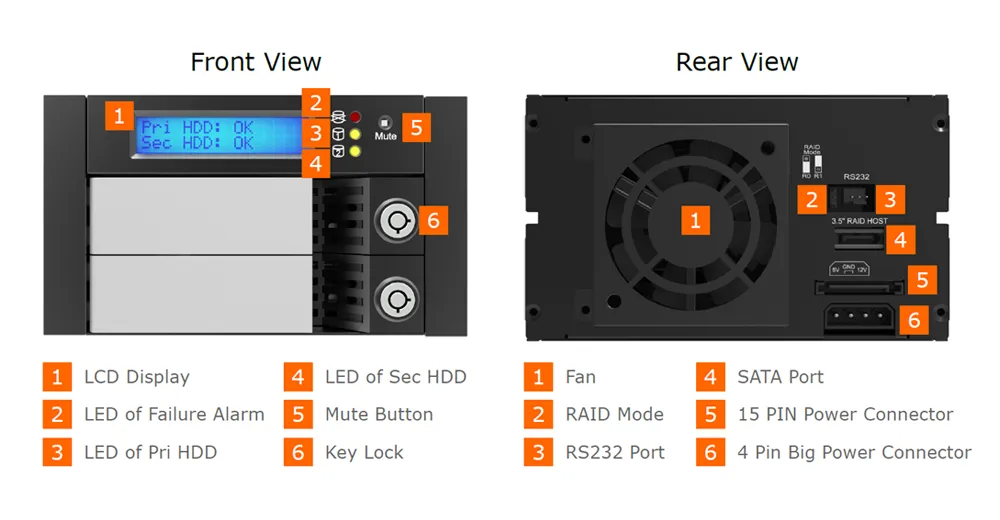

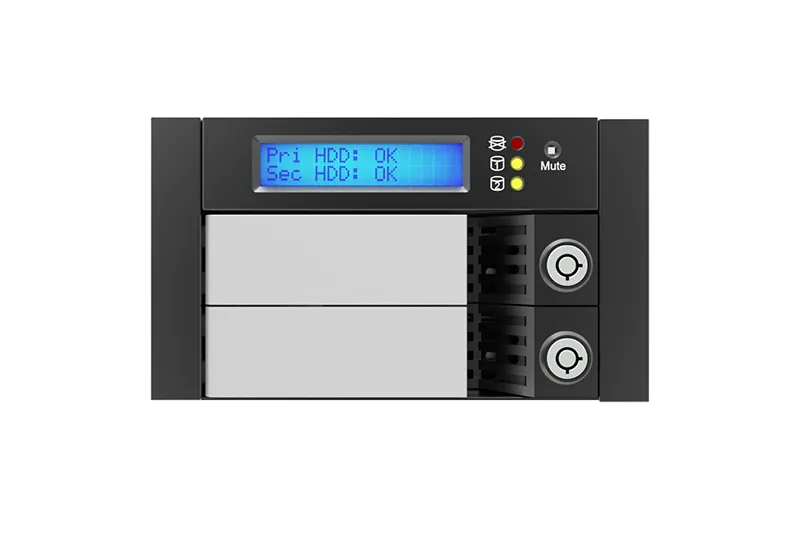

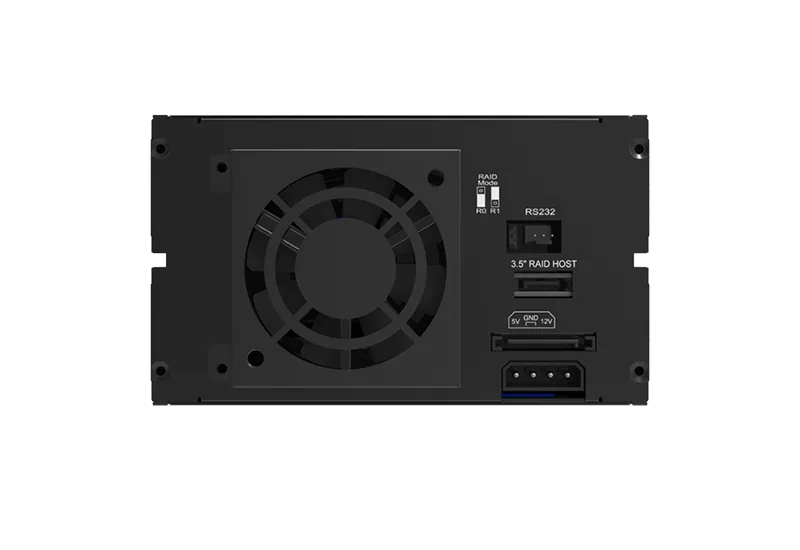

SR2611-2S-S2R+ Product View

SR2611-2S-S2R+ Specification



Model No SR2611-2S-S2R+
Drive Bay 2 CDRom DriveBay
Drive Fit 2.5"/3.5" SATA III HDD x 2
Host Interface SATA III Connector (7Pin)
RAID Level RAID 0 / RAID 1
Hot-Swap RAID 1
Power Supply 15 PIN Power Connector x1,
BIG 4Pin Connector x 1
Engineering
Configuration
Port
RS232
Status Display LCD Display
Cooling Fan 6cm Fan
Buzzer Alarm Yes
Environment Detector Fan Failure / Overheat
Dimension & Weight 146 ( W ) x 196 ( L ) x 85 ( H ) mm / 1.3 KG
Certifications CE / FCC
Operating System Windows, Linux
Function Control
Interface
GUI (Windows Only)
Packing Content SATA Cable、Internal RS232 Cable、External RS232 Cable、CD、Accessory Kit
HDD Capacity Single HDD tested up to 8TB RAID 0
Operating temperature 50° to 95° F (10° to 35° C)
Storage temperature -4° to 116° F (-20° to 47° C)
Relative humidity 5% to 95% noncondensing



SR2611-2S-S2R+ Download

Product
Datasheet
QM
UM
CE & FCC
other
SR2611-2S-S2R+
Download
Download
GUI Software for Windows

SR2611-2S-S2R+ Question & Answer



SR2611-2S-S2R+ HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
SR2611-2S-S2R+WD3.5" HDD RED NAS HDD-WD40EFRX4TB
SR2611-2S-S2R+WD3.5" HDD RED NAS HDD-WD60EFRX6TB
SR2611-2S-S2R+WD3.5" HDD WD5000AAKX500GB
SR2611-2S-S2R+WD3.5" HDD WD5003AZEX500GB
SR2611-2S-S2R+WD3.5" HDD Red WD40EFRX4TB
SR2611-2S-S2R+WD3.5" HDD Red WD60EFRX6TB
SR2611-2S-S2R+Seagate3.5" HDDIronWolf (NAS)ST10000VN000410TB
SR2611-2S-S2R+Seagate3.5" HDDIronWolf Pro (NAS)ST10000NE000410TB
SR2611-2S-S2R+SanDisk2.5" SSD SDSSDA-240G240GB
SR2611-2S-S2R+WD3.5" HDDGoldWD8002FRYZ8TB
SR2611-2S-S2R+WD3.5" HDDGoldWD6002FRYZ6TB
