UBOX-Mini+ | M.2 2280 NVMe to U.2 Adapter

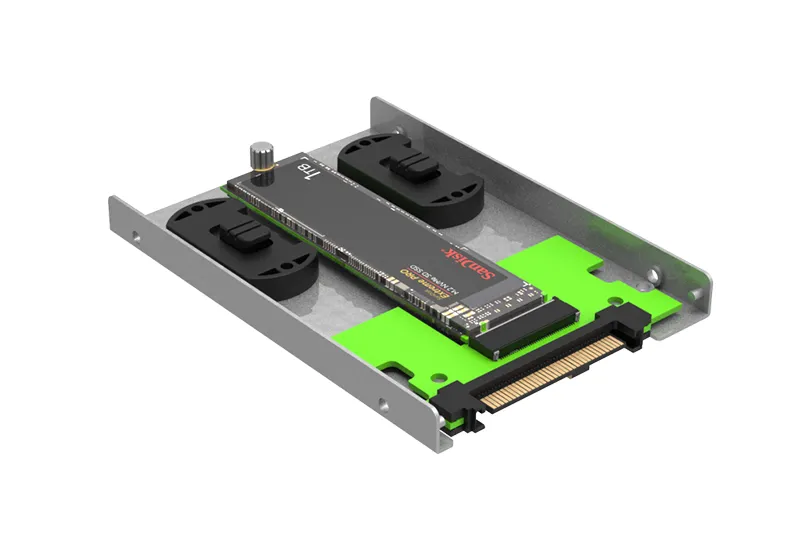

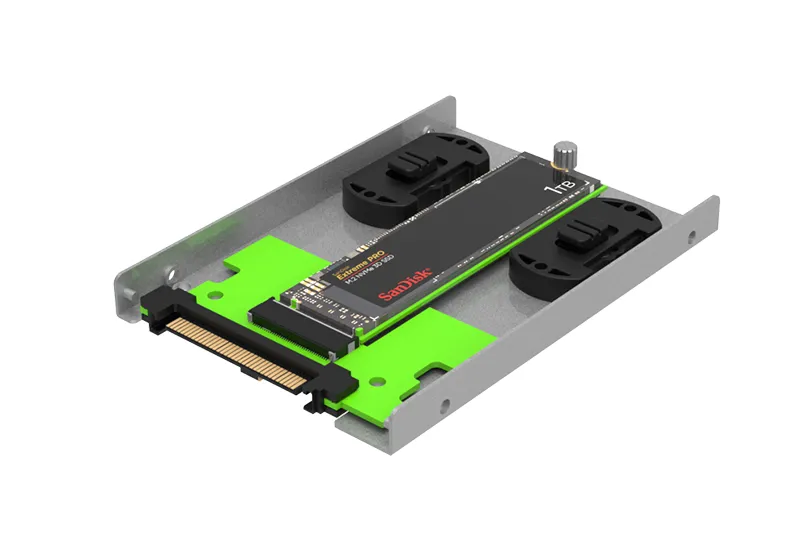

The UBOX-Mini+ accommodates one M.2 2280 NVMe SSD in a 2.5-inch U.2 form factor, providing PCIe Gen4 x4 connectivity through the U.2 SFF-8639 interface for compatible U.2 PCIe NVMe hosts and backplanes.

Featuring tool-free SSD installation and securing with a single thumb nut, the UBOX-Mini+ simplifies SSD installation and replacement without requiring a screwdriver. Its quick-release heatsink cover provides convenient access through a lock/unlock mechanism.

The slim 9.5mm all-metal housing incorporates an aluminum alloy heatsink and thermal pad to help dissipate SSD heat, making the UBOX-Mini+ a practical NVMe integration solution for workstations, servers, industrial systems, and OEM storage applications.

Why Choose the UBOX-Mini+?

Tool-Free SSD Installation & Securing

Install and secure an M.2 2280 NVMe SSD using a single hand-tightened thumb nut, without a screwdriver. The tool-free design simplifies SSD installation, replacement, and maintenance.

M.2 NVMe to U.2 Integration

Use an M.2 2280 NVMe SSD in compatible U.2 PCIe NVMe hosts and backplanes through the U.2 SFF-8639 interface.

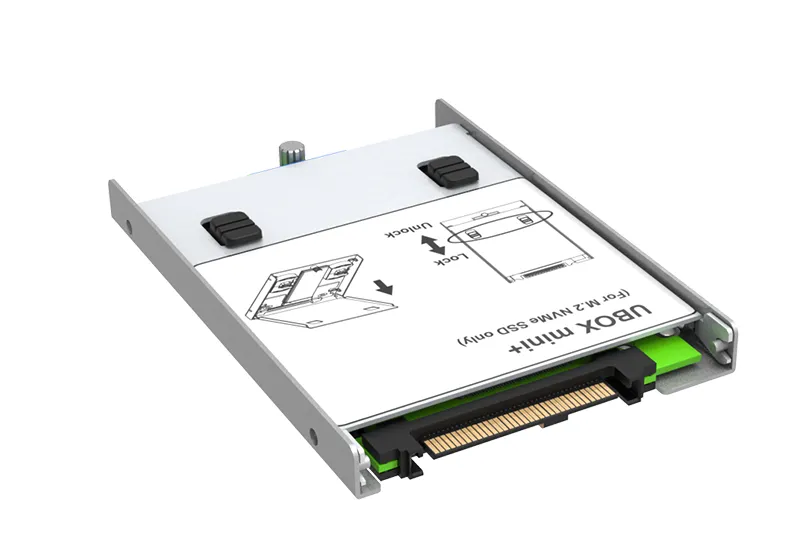

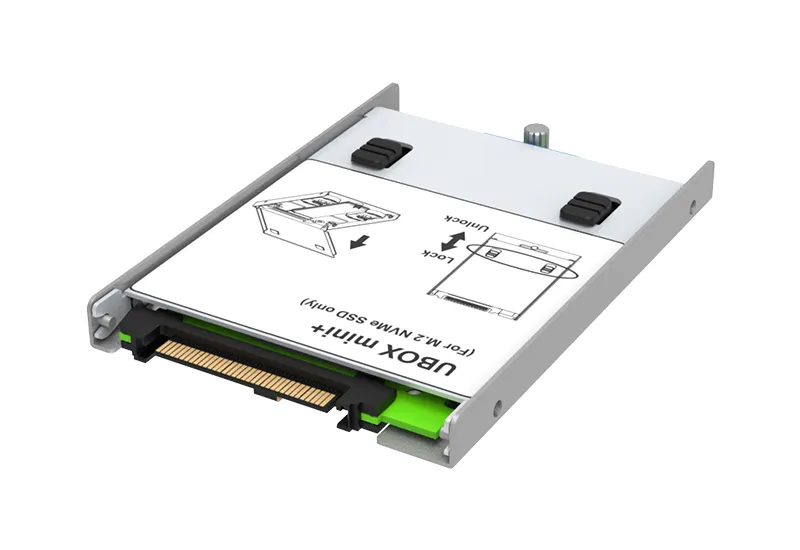

Quick-Release Heatsink Cover

A quick-release cover mechanism with lock/unlock operation provides convenient access to the heatsink cover, simplifying enclosure access during installation and maintenance.

PCIe Gen4 x4 Connectivity

Supports PCIe Gen4 x4 NVMe connectivity, subject to the capabilities of the installed SSD and host system.

Slim and Durable Metal Housing

The compact 2.5-inch enclosure features a slim 9.5mm height and all-metal construction, providing a durable enclosure for the installed SSD.

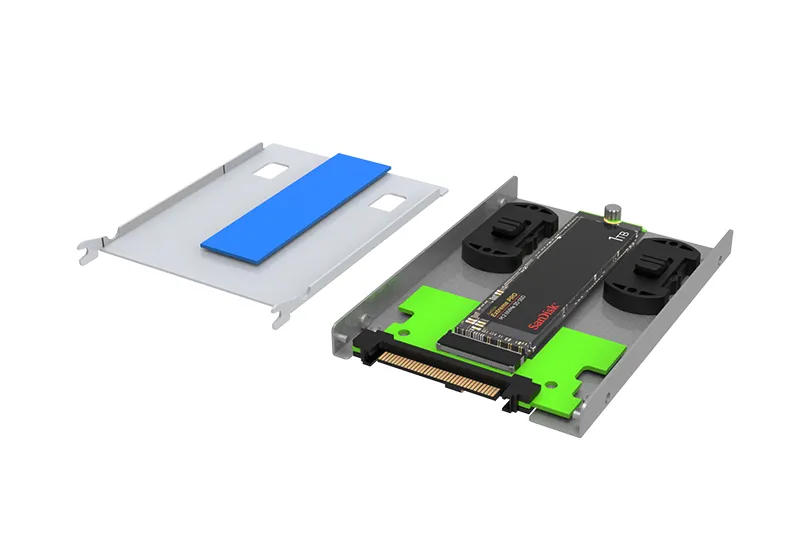

Integrated Heat Dissipation

An aluminum alloy heatsink and thermal pad help transfer heat away from the SSD, supporting thermal management in properly ventilated systems.

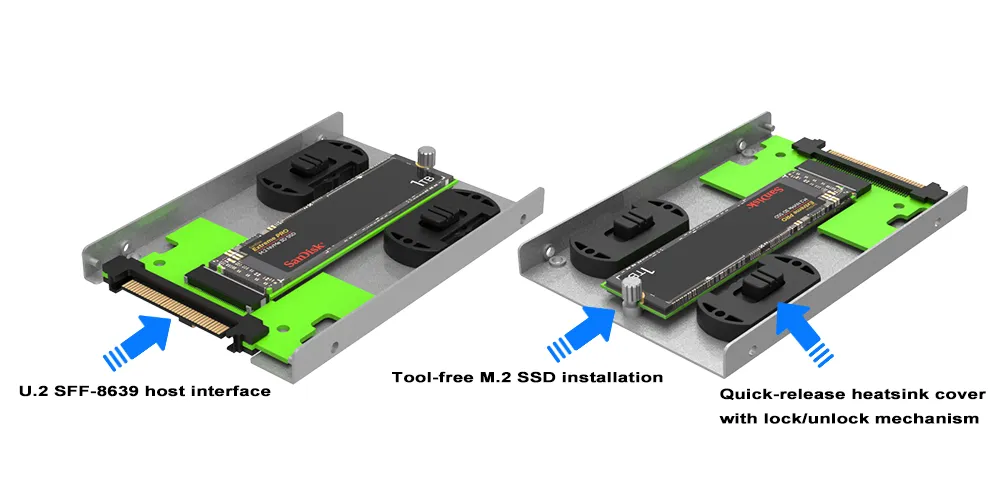

Key Features

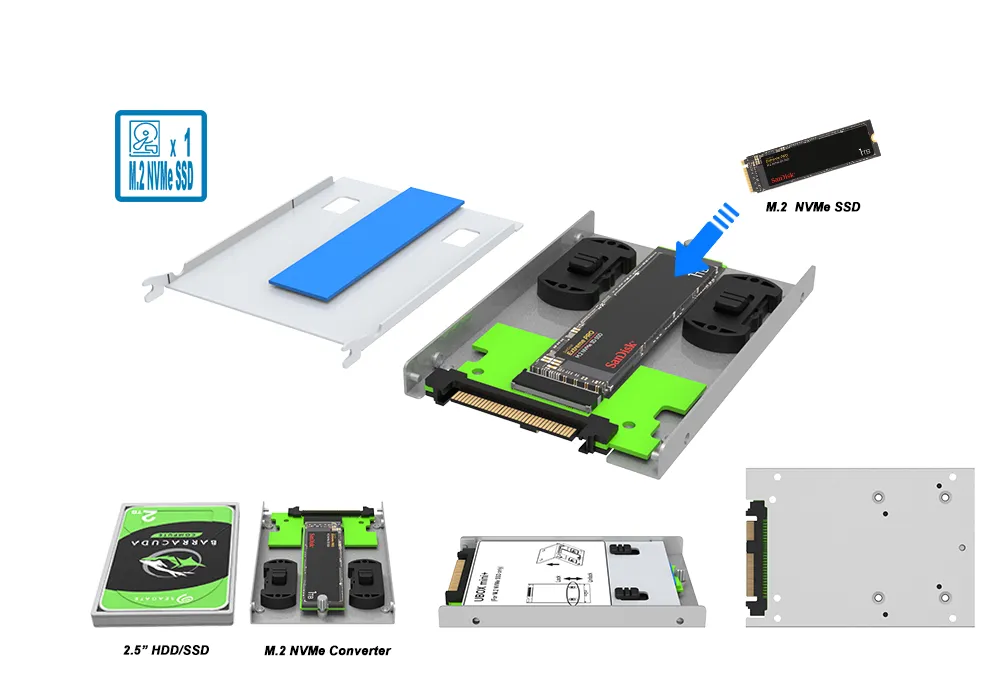

● Accommodates one M.2 2280 NVMe SSD in a 2.5-inch U.2 form factor

● Supports PCIe Gen4 x4 NVMe connectivity

● U.2 SFF-8639 host interface

● Compatible with U.2 hosts and backplanes supporting PCIe NVMe

● Tool-free M.2 SSD installation and securing with a single thumb nut

● Quick-release heatsink cover with lock/unlock mechanism

● Slim 2.5-inch design with a 9.5mm height

● Durable all-metal housing

● Integrated aluminum alloy heatsink and thermal pad

● Designed for professional, industrial, and OEM storage integration

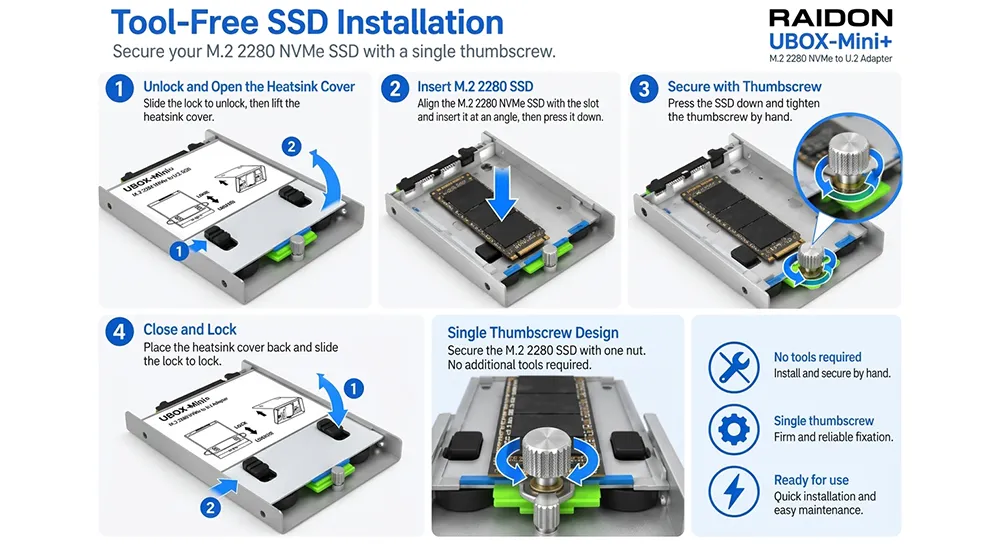

Tool-Free SSD Installation

● Install and Secure Your M.2 NVMe SSD Without Tools

The UBOX-Mini+ combines a quick-release heatsink cover with a single thumb nut for convenient M.2 2280 NVMe SSD installation and securing.

Step 1 — Unlock the Heatsink Cover

Release the lock/unlock mechanism to open the heatsink cover and access the SSD installation area.

Step 2 — Install the M.2 2280 NVMe SSD

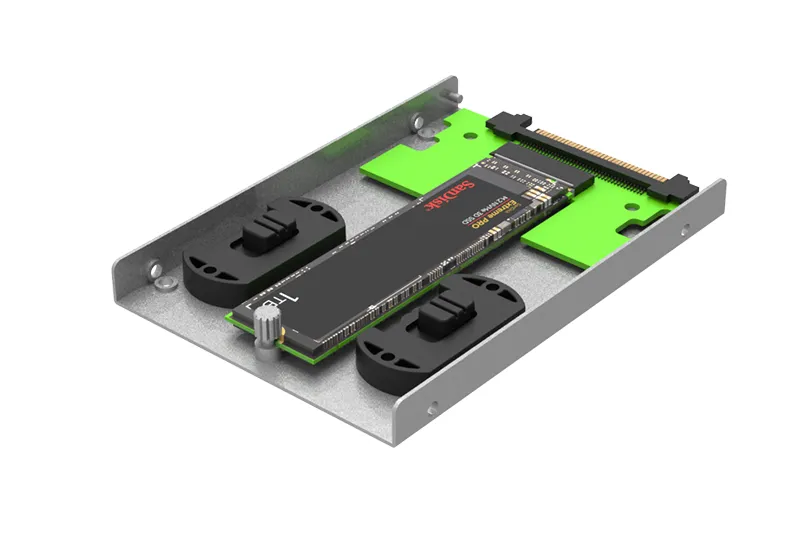

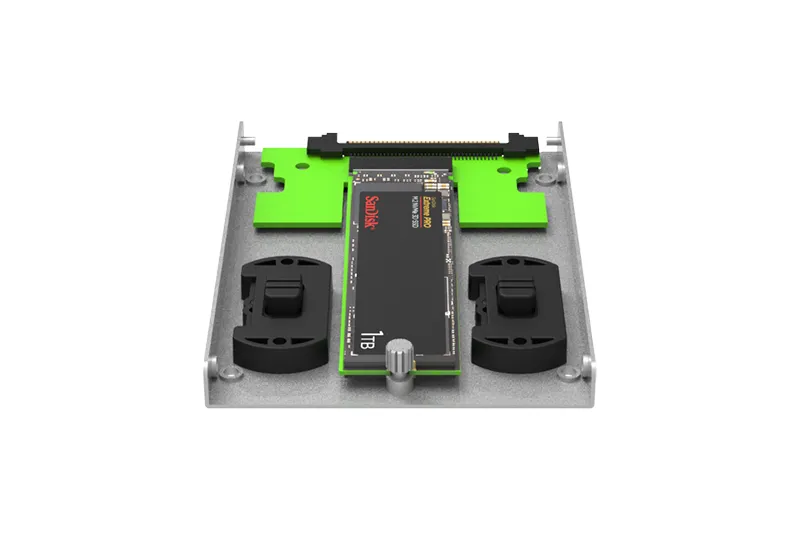

Insert the M.2 2280 NVMe SSD into the internal connector and position it in the center of the adapter housing.

Step 3 — Secure the SSD with the Thumb Nut

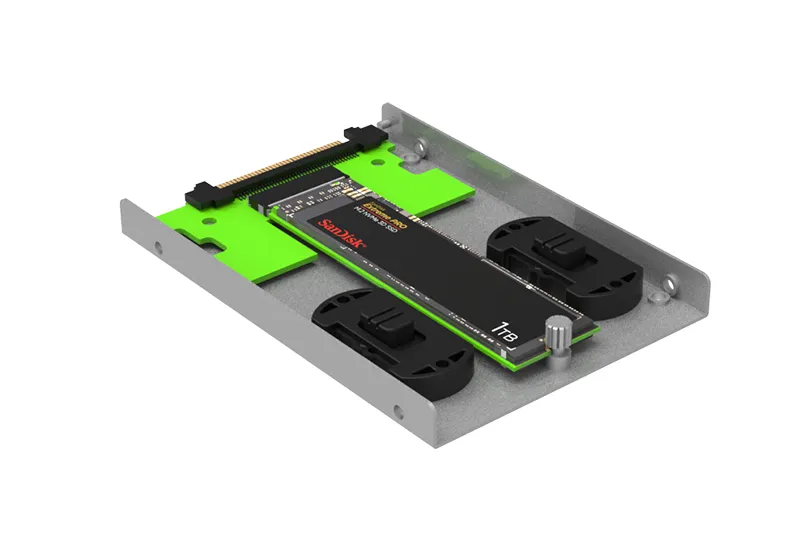

Secure the SSD using the single hand-tightened thumb nut. No screwdriver is required.

Step 4 — Close and Lock the Cover

Close the heatsink cover and engage the locking mechanism.

Tool-Free Installation. Secure SSD Mounting. Convenient Maintenance.

Main Applications

Professional Workstations

Integrate M.2 NVMe SSDs into compatible U.2 PCIe NVMe workstations for video production, 3D design, engineering, and other data-intensive workflows.

Server & Storage Integration

Integrate compatible M.2 2280 NVMe SSDs into U.2 PCIe NVMe server and storage platforms where flexible SSD selection and convenient service access are required.

Industrial Computing & Edge Systems

Support M.2 NVMe SSD integration in compatible industrial computers, embedded platforms, and edge computing systems where compact storage design and convenient maintenance are important.

OEM Storage Integration

Enable system integrators and OEM manufacturers to integrate M.2 2280 NVMe SSDs into compatible U.2 PCIe NVMe storage platforms.

Existing U.2 NVMe System Integration

Use compatible M.2 2280 NVMe SSDs in supported U.2 PCIe NVMe systems through the existing U.2 host interface.

UBOX Mini vs. UBOX-Mini+

Which Model Should You Choose?

Choose UBOX Mini when support for multiple M.2 SSD lengths is the priority.

Choose UBOX-Mini+ when using M.2 2280 NVMe SSDs and tool-free SSD installation with convenient heatsink cover access is preferred.

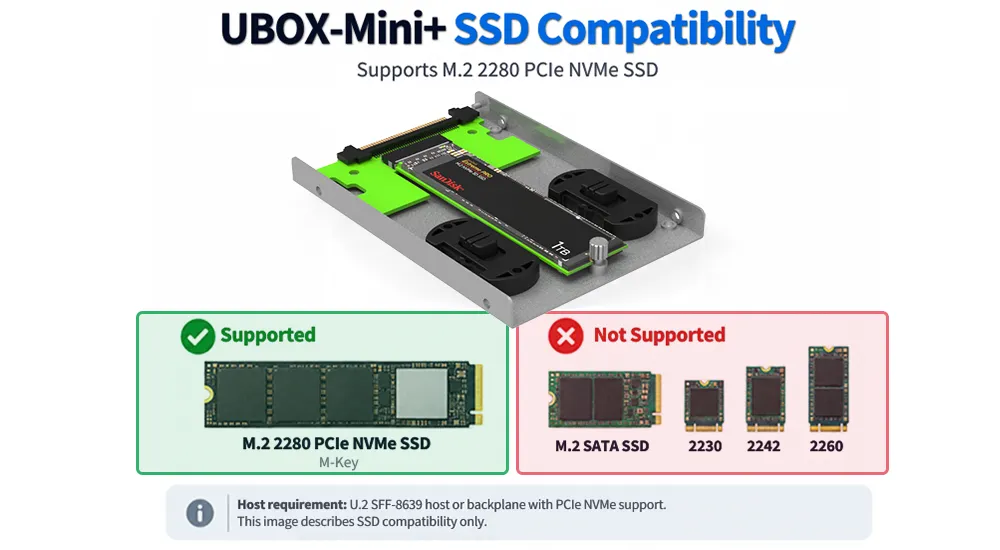

Compatibility Notes

● Requires a U.2 SFF-8639 host interface or backplane with PCIe NVMe support.

● Supports M.2 2280 NVMe SSDs only. M.2 SATA SSDs are not supported.

● Actual performance depends on the installed SSD and host system.

● Tool-free SSD installation and the quick-release heatsink cover do not independently establish SSD hot-swap support.

● Thermal performance depends on SSD power consumption, workload, ambient temperature, and system airflow.

● The adapter does not change the installed SSD's endurance rating, power-loss protection capabilities, or other drive-level characteristics.

OEM / System Integration

Looking for M.2 NVMe Integration in Your U.2 Storage Platform?

Contact RAIDON to discuss product compatibility, system integration, and OEM storage requirements.

   Contact RAIDON

Performance test result for reference. The test result will vary depend on the test environment.
