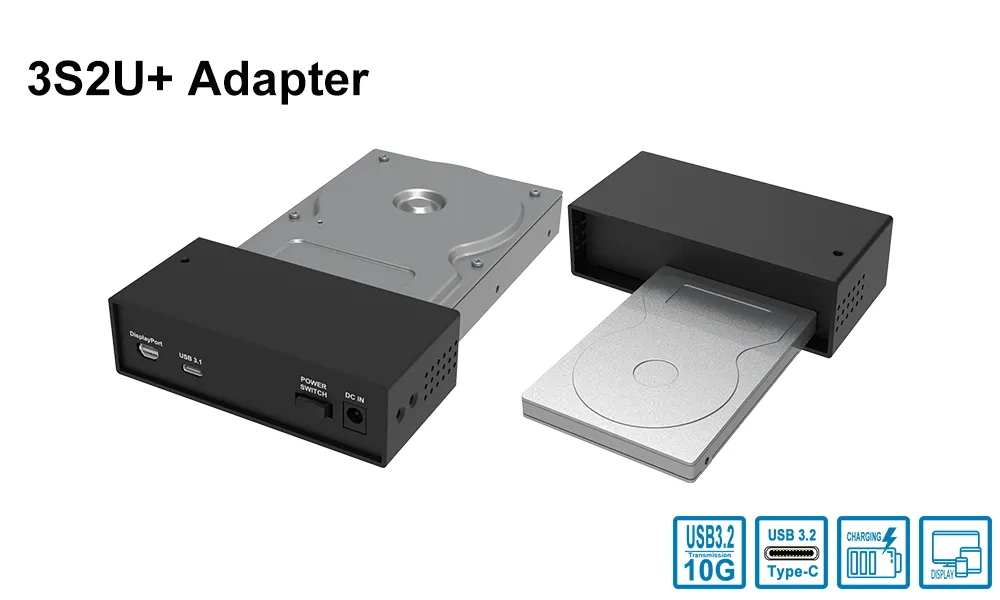

1-Bay 2.5”/3.5” SATA III HDD/SSD Adapter


USB 3.2 Gen 2 Type-C, One USB 3.2 Gen2 Type-C port which supports 24W USB Power Delivery, And One Mini DisplayPort for DP1.1a, Hot-Swappable Drive



Features


1.3S2U+ Adapter Hard Drive External Storage for Mac OS and Windows PC.



2.USB 3.2 Gen 2 brings you 10Gbps extreme high data transfer speed.



3.Support USB Type-C interface, Plug and Play.



4.Hot-Swappable Drive, 3S2U+ Adapter to support 1 x 3.5" / 2.5" SATA HDD/SSD.



5.3S2U+ Adapter that does it all.



●Support 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A ) Power Delivery.



●Mini DP 1.1a DisplayPort connect DVI、HDMI、VGA display devices.

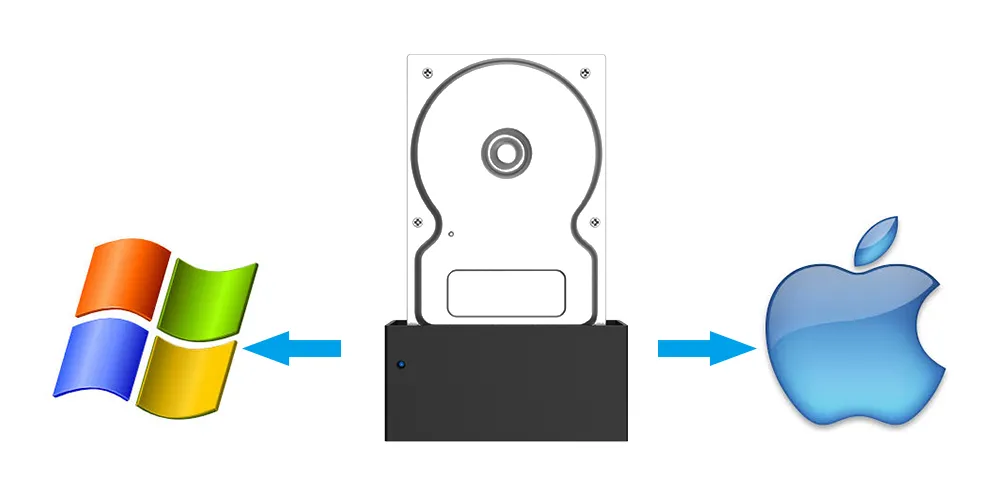

3S2U+ Adapter Hard Drive External Storage For Mac OS and Windows PC


The new 3S2U+ Adapter hard drive external storage is built-in Hi-Speed USB 3.2 Gen 2 transmission interface for Mac OS and PC OS. It provides Charging Port for maximum 24 watts (Power Delivery, PD)and a DP 1.1a Mini DisplayPort that allows users to the display screens which are compatible with existing DisplayPort screens, devices, and wiring that can be contacted with DVI, HDMI, and VGA screen via adapters.

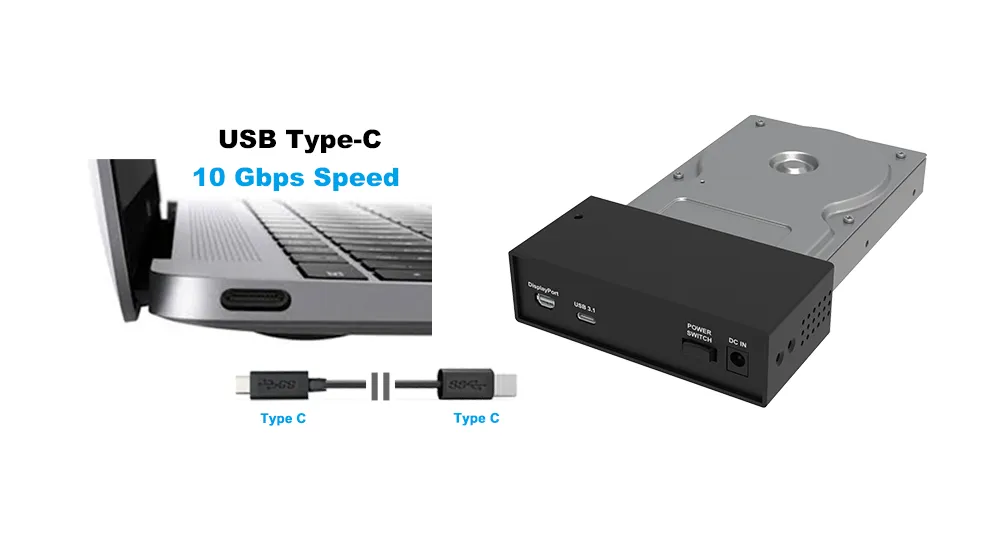

Support USB Type-C interface, Provide Type-C to C cable



3S2U+ Adapter Provide USB 3.2 Gen 2 Type-C to C cable , users can use the Type-C to C cable to connect to any PC or Notebook with USB Type-C or Thunderbolt 3 (USB-C) interface, the transmission performance can be up to 10 Gbps. Whether it is used for searching files, editing photos or watching the 4K high resolution videos, 3S2U+ Adapter will bring you the extremely enjoyment of video and audio quality.

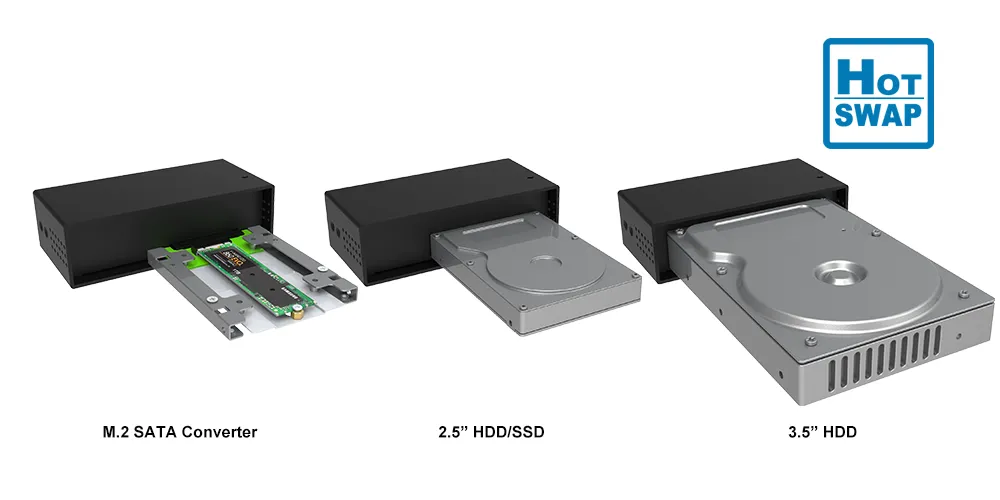

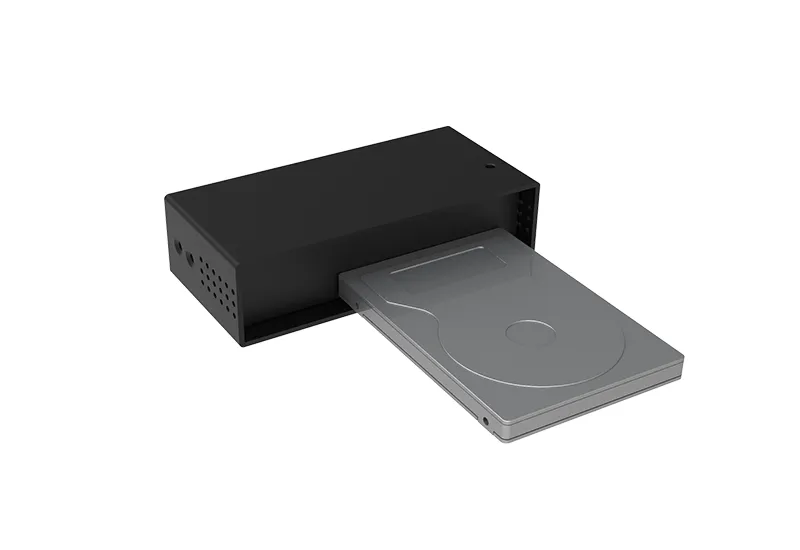

Hot-Swappable Drive, 3S2U+ Adapter to support 1 x 3.5" / 2.5" SATA HDD/SSD



The 3S2U+ Adapter can support any kinds of 3.5" and 2.5" SATA HDD/SSD , and it has the advantage of plug and play.

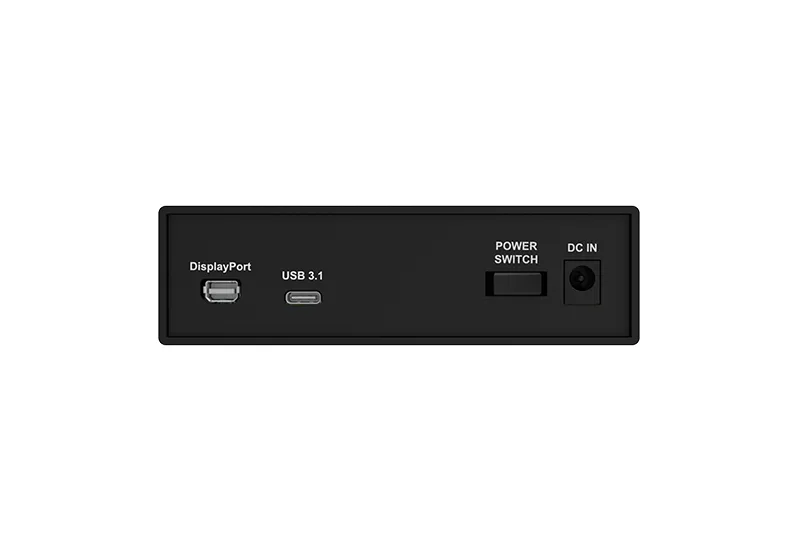

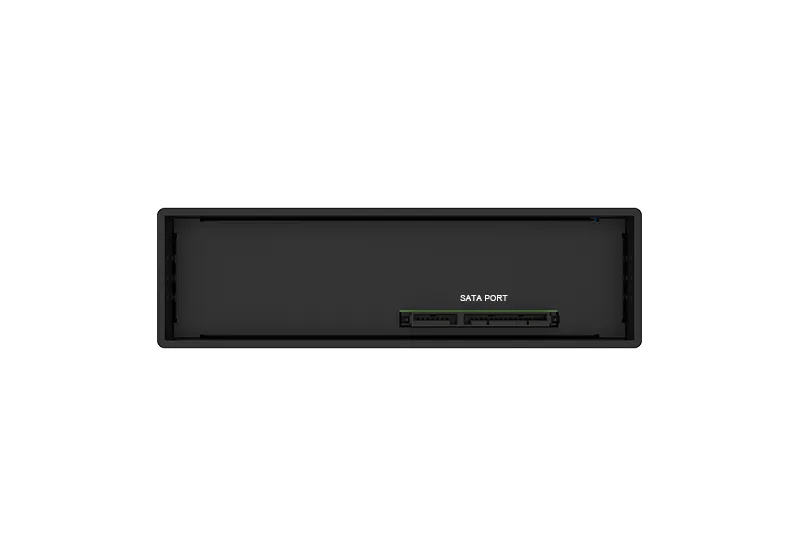

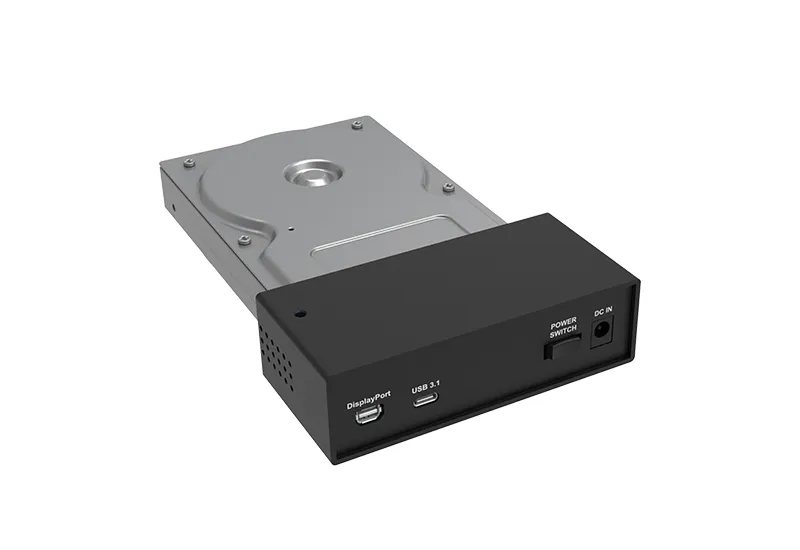

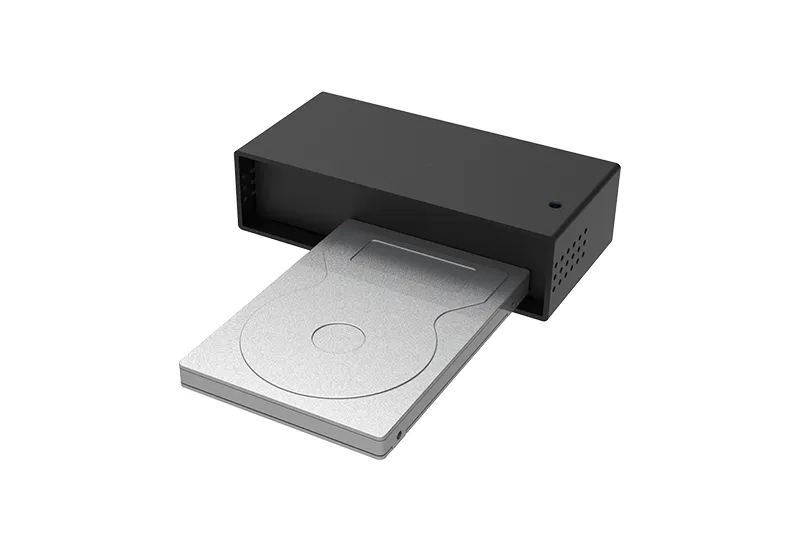

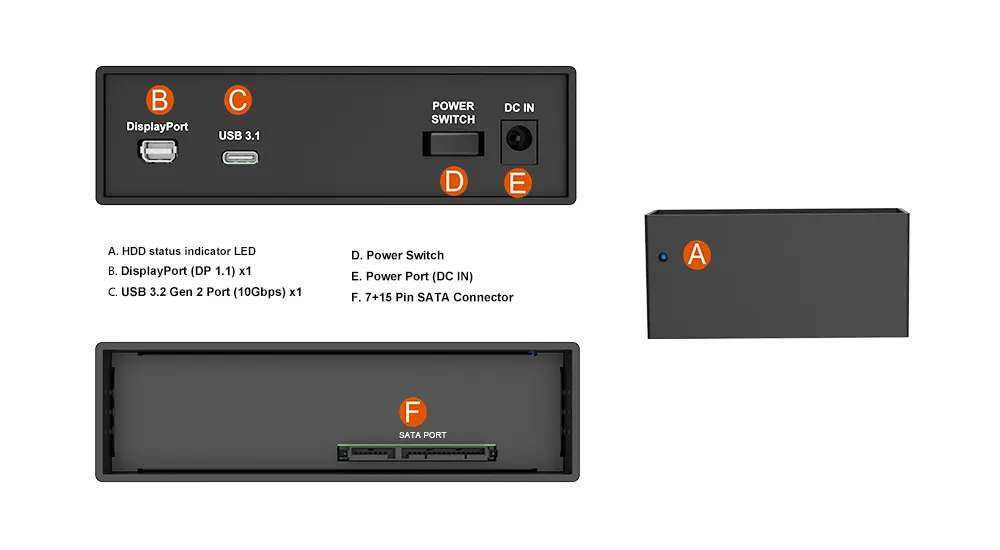

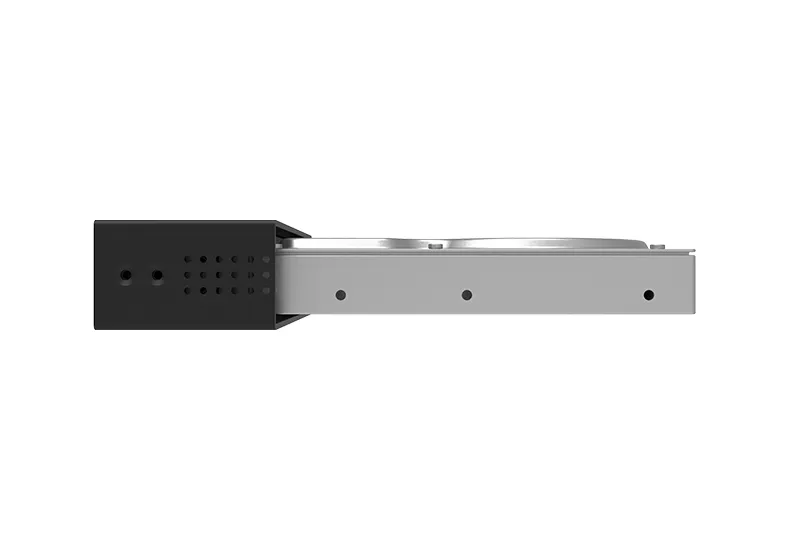

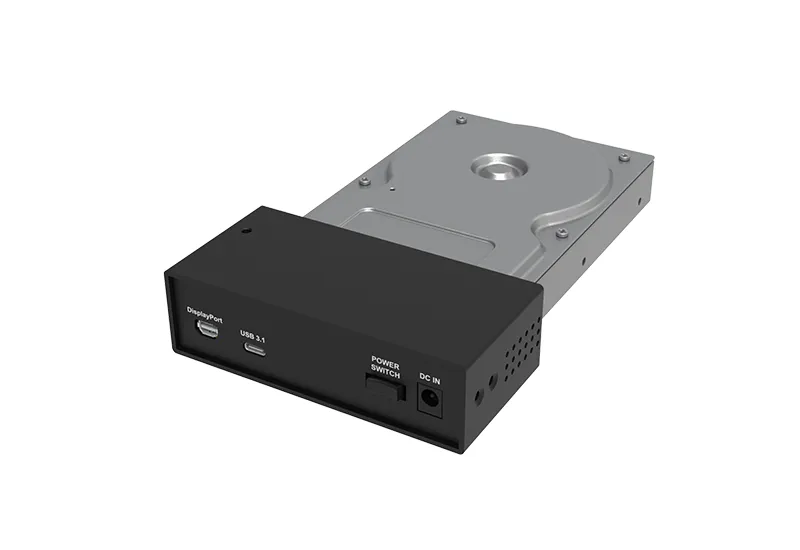

Product View

Specification



Model No 3S2U+ Adapter
Interfaces USB 3.2 Gen 2 ( up to 10 Gbps ),
Support 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A) Power Delivery.
DP 1.1a Mini DisplayPort x 1
Compatible Drive 3.5”/2.5" SATA III HDD/SSD ( up to 6 Gbps )
Certification CE/FCC
Storage Mode JBOD - Independent Mode
Operating System
Support
Windows 7 or above, OS X 10.10 or above
Electrical and
Operating
Requirements
* Line voltage: 100-240V AC
* Frequency: 50Hz to 60Hz, single phase
* Maximum continuous power: 50W
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% noncondensing
Product Code EAN :
UPC :
Carton 10 pcs per carton
Package Accessories * 3S2U+ Adapter x 1
* USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
* AC Power Adapter x 1
* Power Cable x 1
* Accessory kit
* Quick Installation Guide




3S2U+ Adapter Download

Product
Datasheet
QM
UM
CE & FCC
other
3S2U+ Adapter

3S2U+ Adapter Question & Answer
