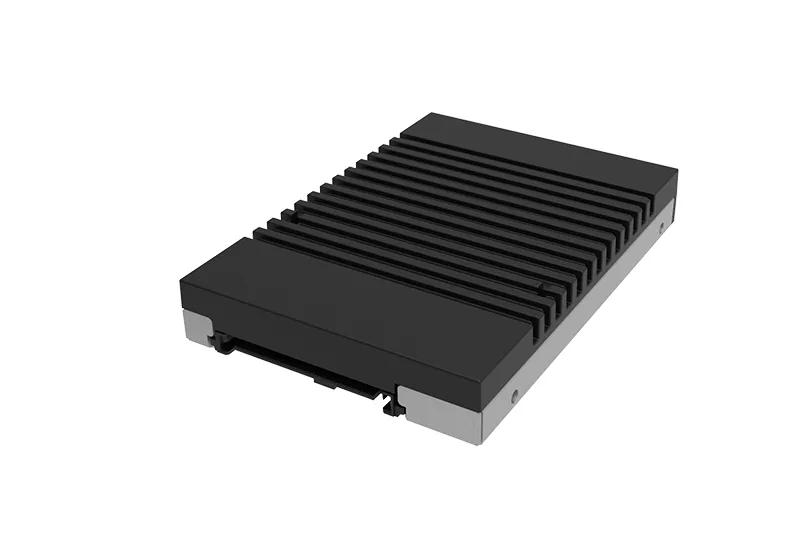

UBOX: Transforming M.2 NVMe SSDs into U.2 NVMe SSDs

This advanced tool expands the versatility of your storage solutions, providing a seamless transition between M.2 and U.2 SSDs, making it a valuable asset in any data-driven environment.



Features



1. Superior Data Transfer Speed: Enables rapid data transfers up to 40Gb (4000MB).


2. M.2 to U.2 Conversion: Converts M.2 NVMe SSDs into a 2.5" U.2 NVMe SSD form factor.



3. Standardized Design: Matches the dimensions, connector (SFF8639) location, and screw-hole positions of a standard U.2 SSD.



4. Universal Compatibility: Supports M.2 NVMe SSDs of varying sizes from 42mm to 80mm in length (2242, 2260, 2280).

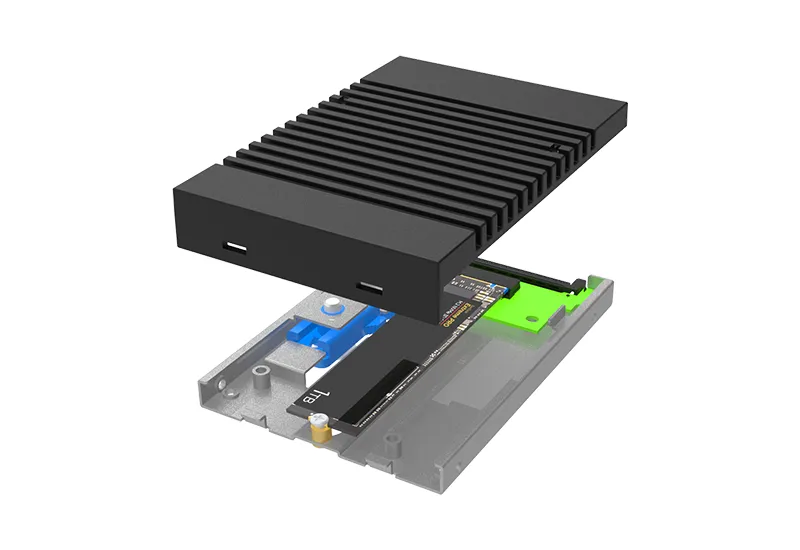

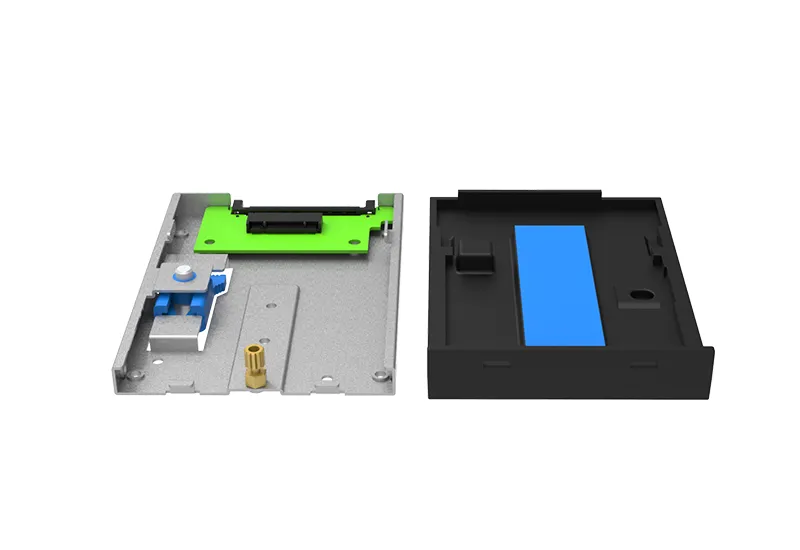

5. Robust Construction: Features an aluminum chassis for superior protection of the SSD.



6. Efficient Cooling: Integrated heat sink for enhanced thermal management and performance.

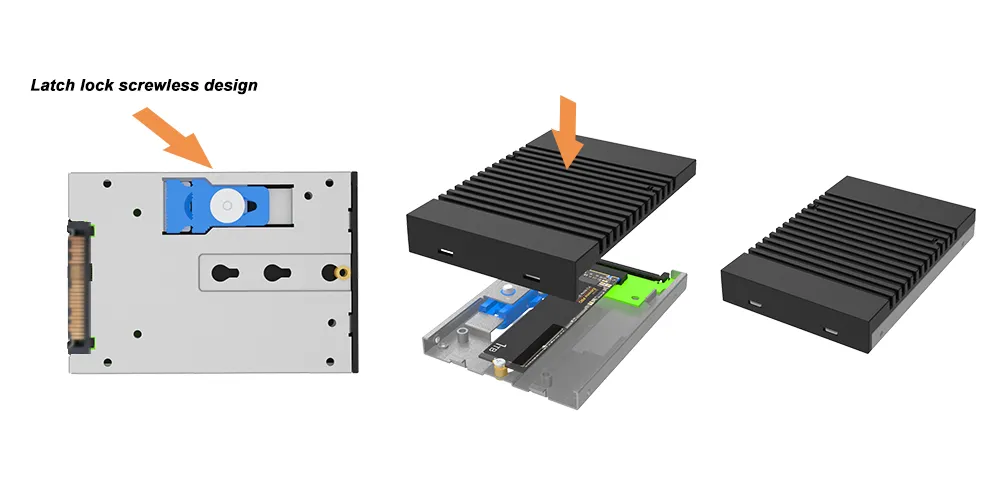

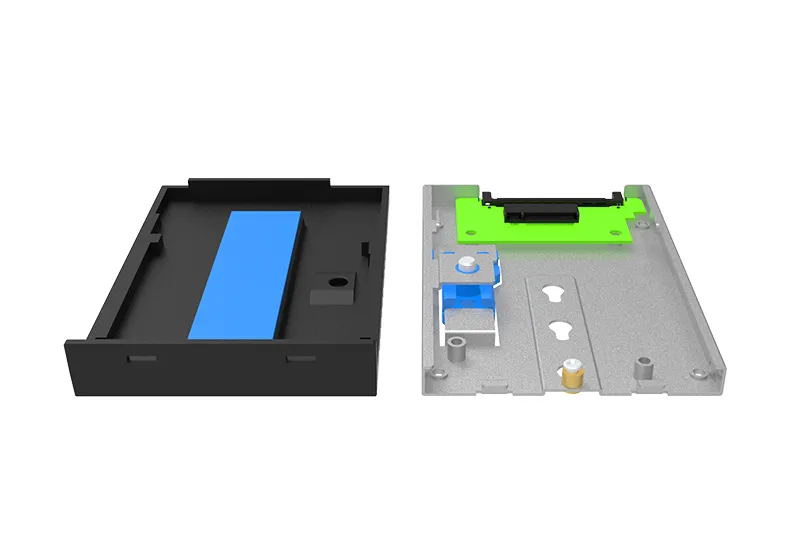

7. User-Friendly Design: Latch lock screwless design for easy SSD installation and removal.



Benefits


1. Versatility: The UBOX allows you to convert M.2 NVMe SSDs into the U.2 form factor, opening up more options for storage solutions in your system.

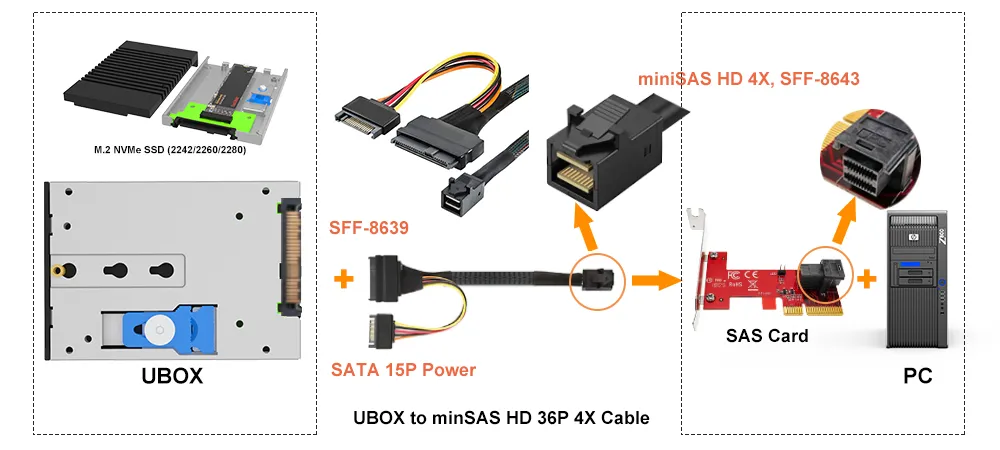

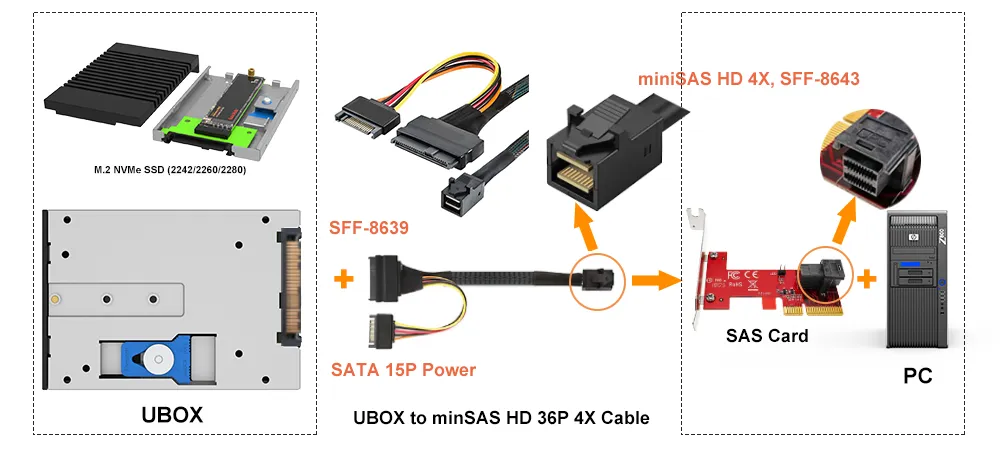

2. Compatibility: With the same dimensions, U.2 connector (SFF8639) location, and screw-hole locations as a standard U.2 SSD, the UBOX ensures easy integration into existing U.2 setups.



3. Protection and Cooling: The aluminum chassis and heat sink provide robust protection and efficient cooling for the SSD, prolonging its lifespan.



4. Ease of Use: The latch lock screwless design simplifies the SSD installation and removal process, making the UBOX user-friendly and easy to manage.



Easily Replaced and Carried

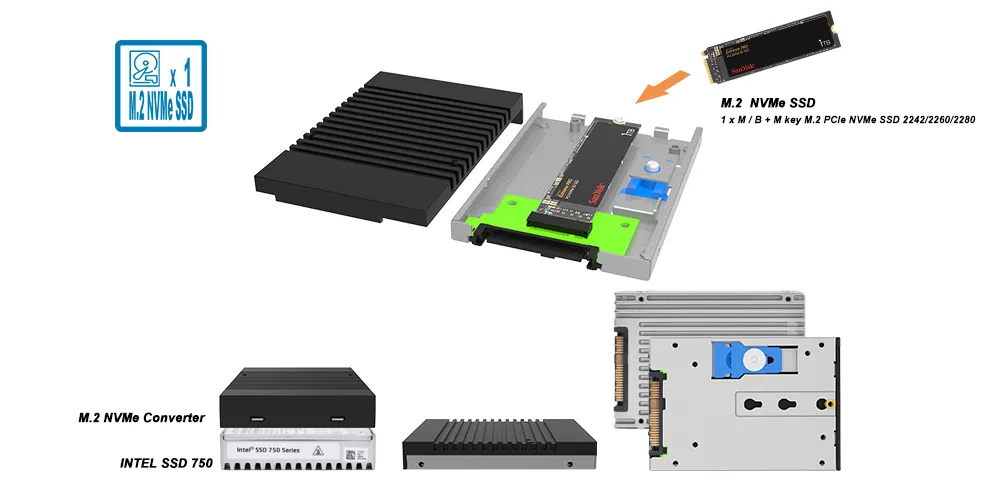

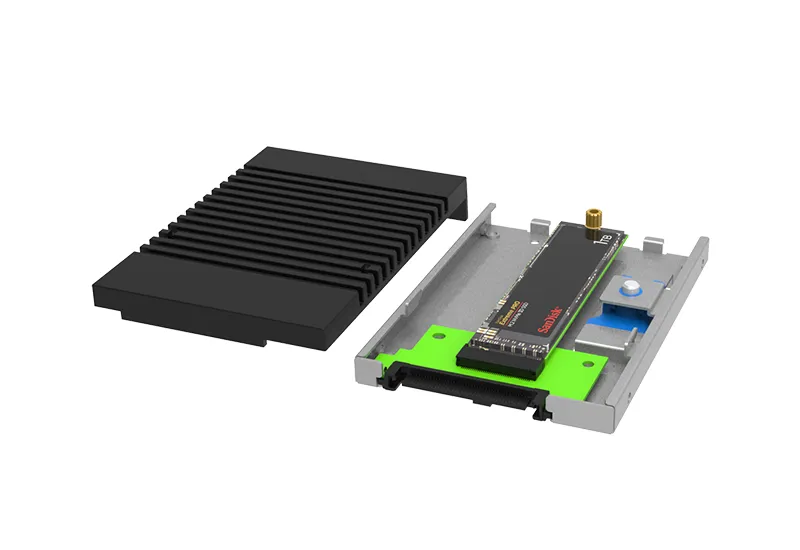

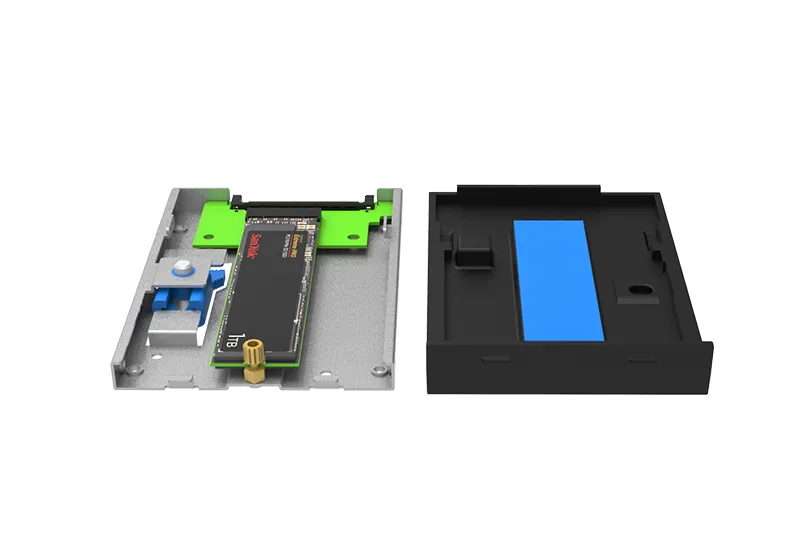

UBOX ( M.2 NVMe Converter ) support 1 x M.2 NVMe SSD, and it has the sturdy aluminum housing to protect your M.2 NVMe SSD. With the attached heat sink and aluminum housing, it can provide excellent heat dissipation effect. M.2 NVMe Converter combined with the convenient plug-and-play advantages of the hard drive drawer, it can make your M.2 NVMe Converter be easily replaced and carried as U.2 NVMe SSD.

Universal Compatibility

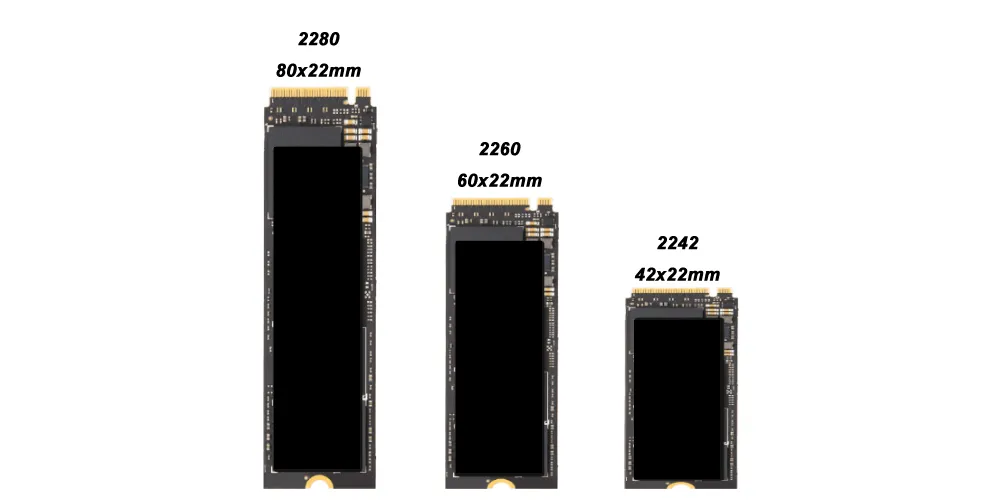

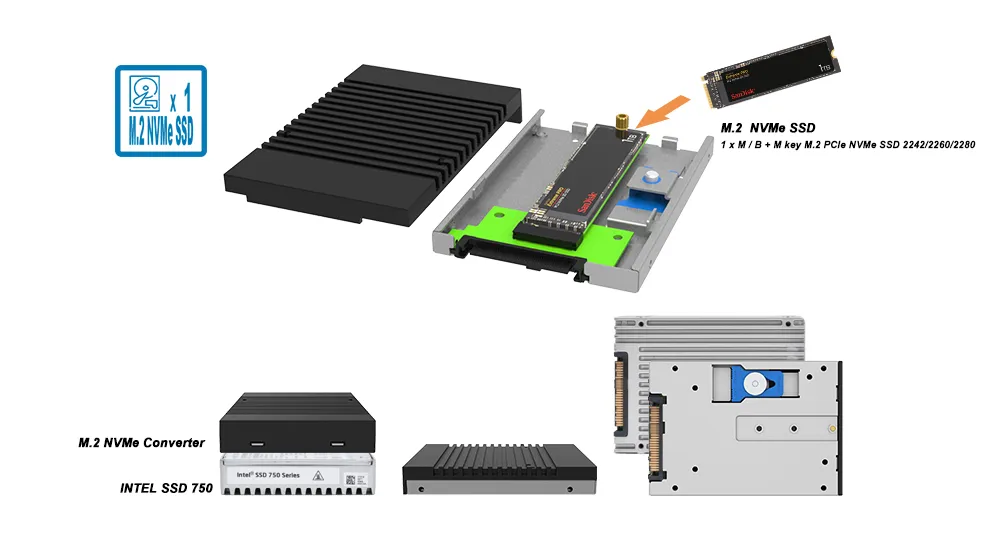

The RAIDON UBOX features a versatile design that supports M.2 NVMe SSDs across a range of sizes, from the more compact 42mm (2242) form factor, through the mid-size 60mm (2260), to the larger 80mm (2280) specification. This extensive support ensures the UBOX is compatible with a wide variety of M.2 NVMe SSDs, providing users the flexibility to choose an SSD that best suits their needs without being constrained by size limitations. Whether it's maximizing storage capacity with an 80mm SSD, or prioritizing a compact build with a 42mm SSD, the UBOX is equipped to accommodate your specific requirements with ease.

Robust Construction

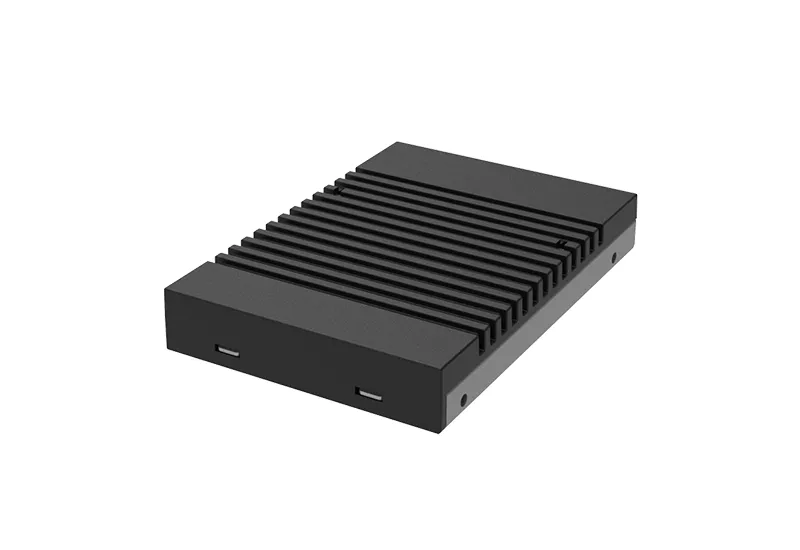

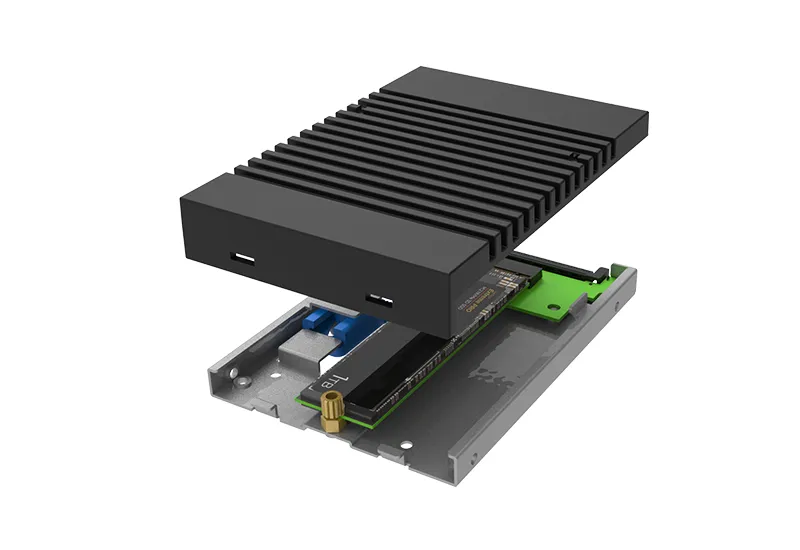

The RAIDON UBOX is engineered with a robust aluminum chassis, providing unparalleled protection for the contained M.2 NVMe SSD. This isn't just a case—it's a fortification against potential damage. The aluminum material is known for its superior strength and durability, providing a resilient safeguard against physical shocks or drops. In addition, aluminum inherently has excellent heat dissipation properties. This means that the chassis doesn't only physically protect the SSD but also contributes to maintaining optimal operating temperatures, ensuring the drive functions at peak performance levels. By housing your SSD in the UBOX, you're not only securing it, but you're also enhancing its longevity and reliability.

Efficient Cooling

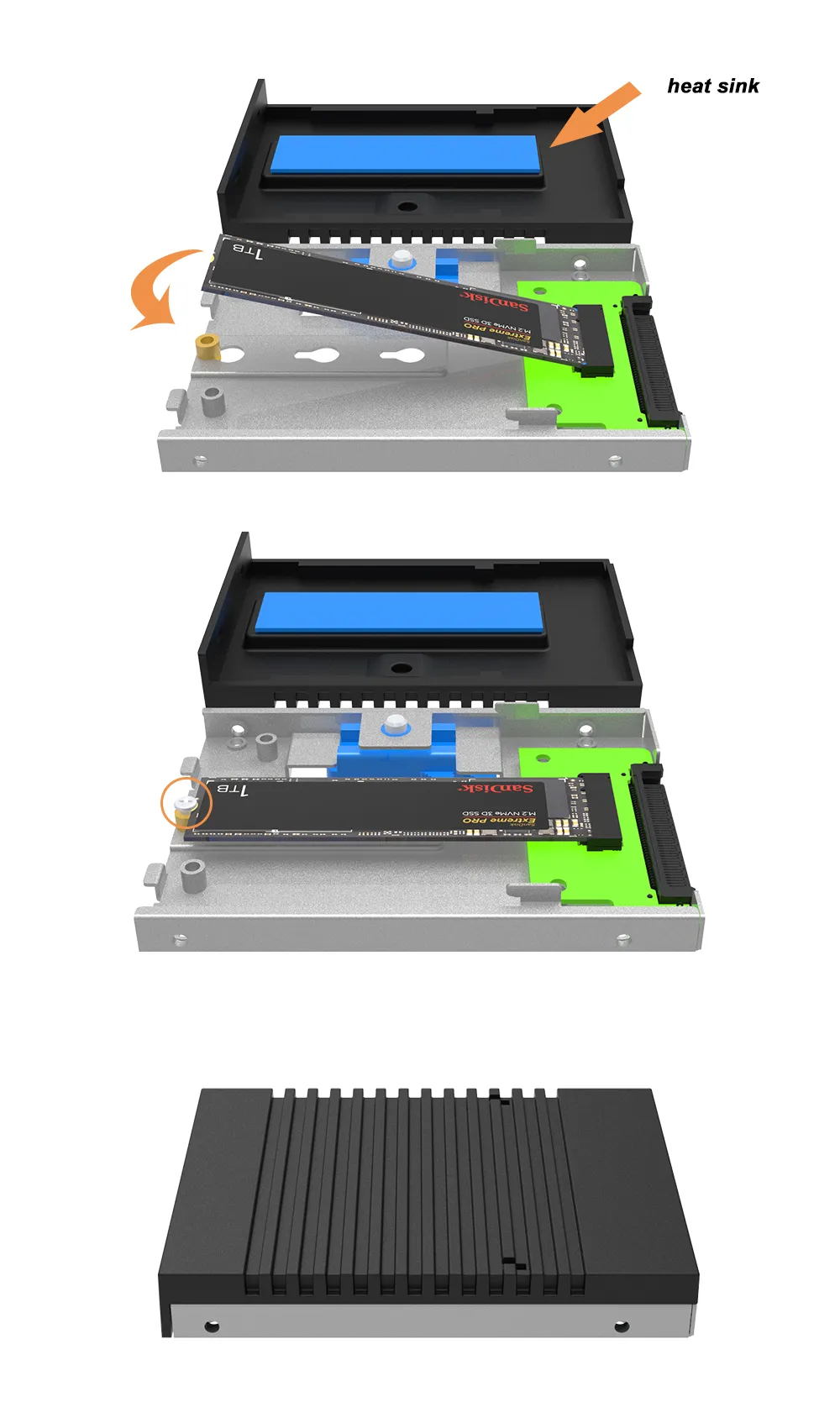

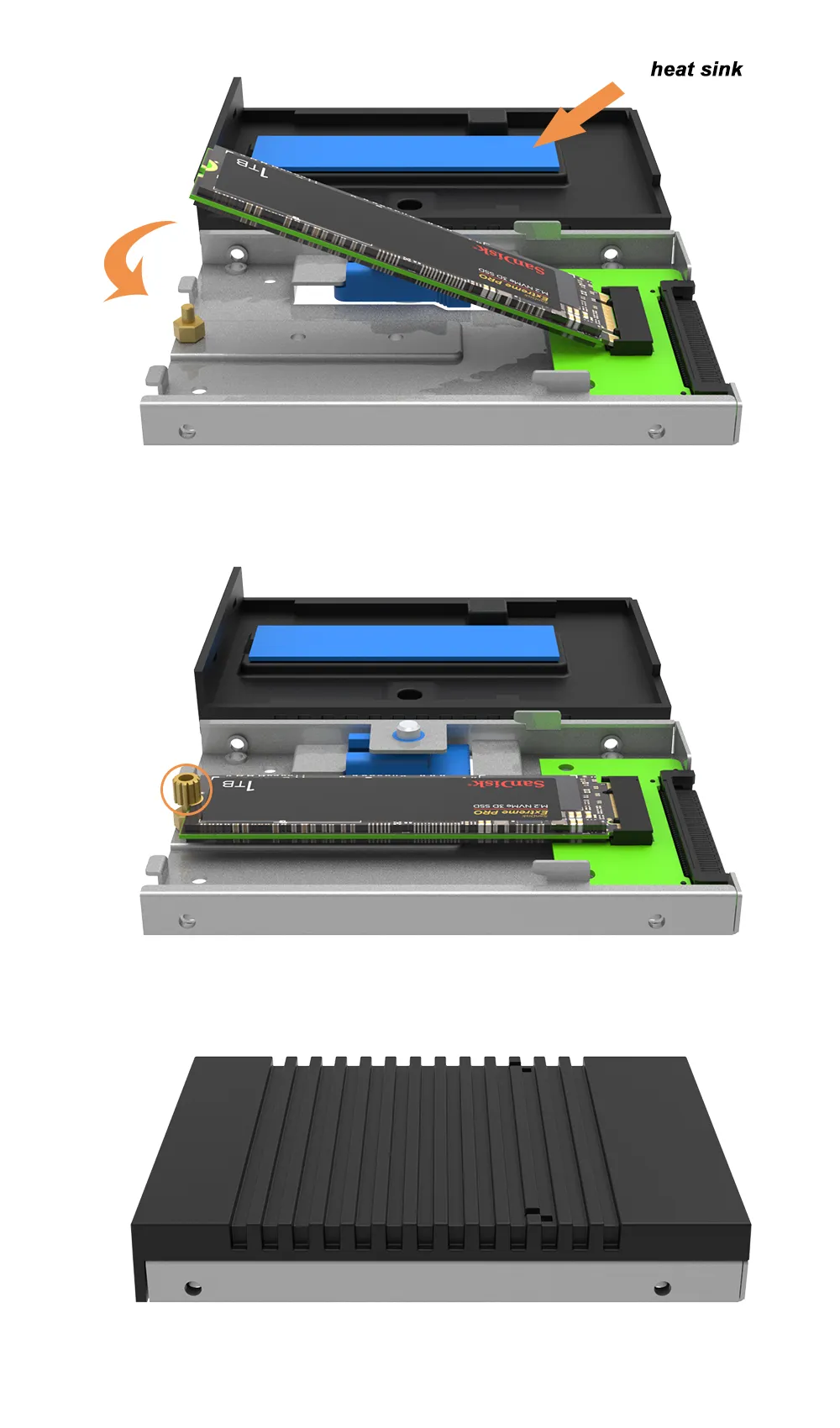

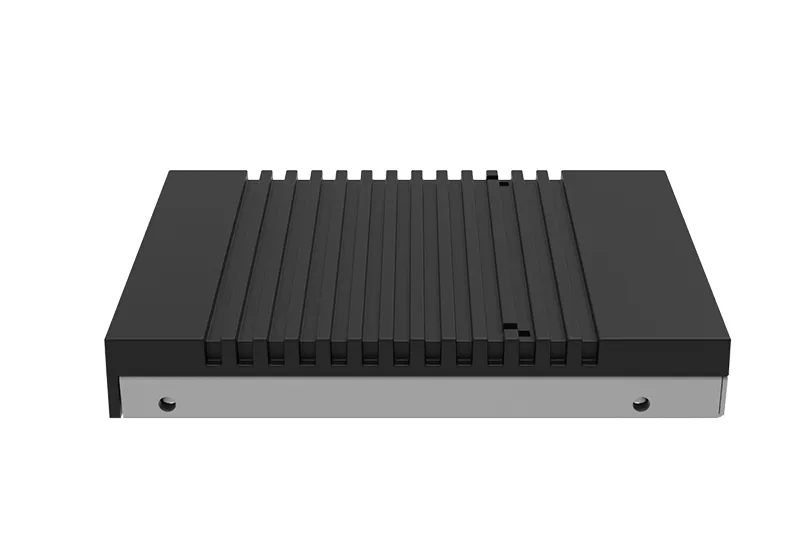

UBOX incorporates an integrated heat sink with thermo pad to ensure superior thermal management. By effectively drawing away and dispersing heat from the SSD, the UBOX maintains optimal drive temperatures, even under high workload conditions. This helps enhance consistent high-speed performance, extend SSD lifespan, and protect the drive from potential heat-related issues.





User-Friendly Design

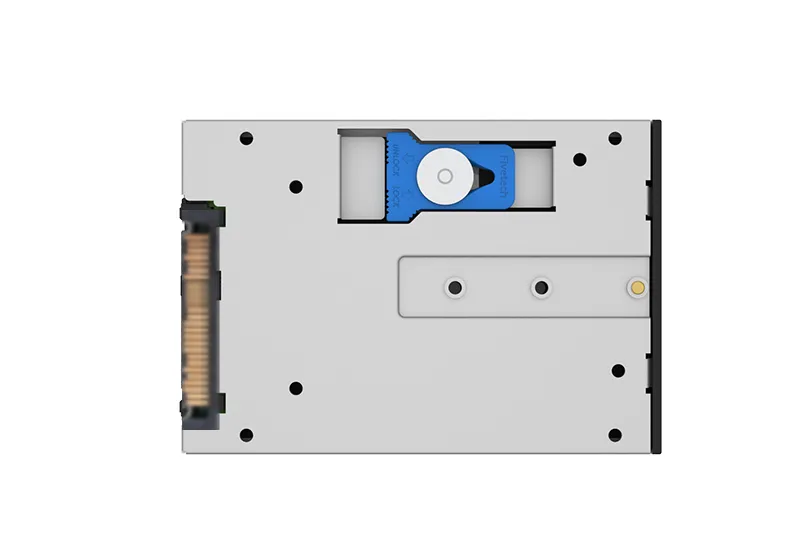

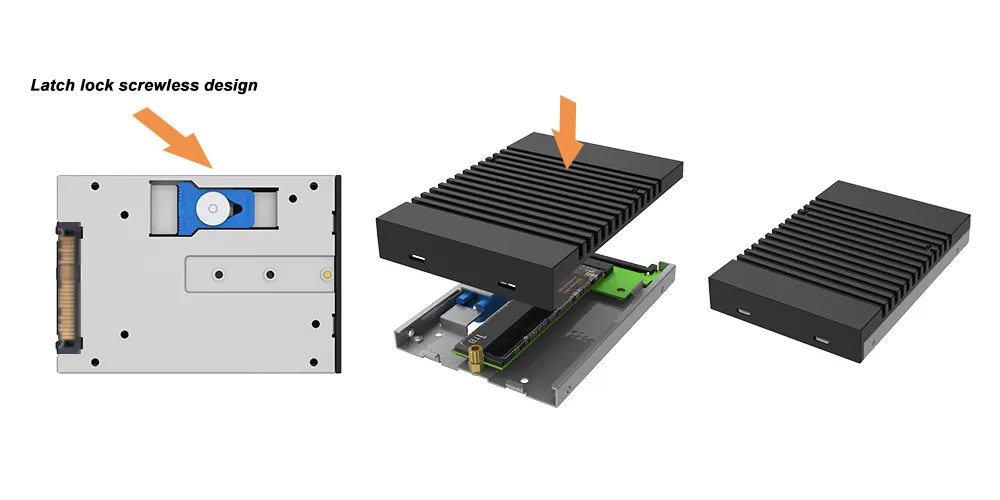

The RAIDON UBOX is designed with a latch lock screwless mechanism, providing a swift and hassle-free process for SSD installation and removal. This user-centric feature eliminates the need for tools, expediting SSD changes and upgrades, and simplifying hardware management for both tech experts and novices.

Applications


The RAIDON UBOX can be utilized in various applications:



1. Data Centers: It can be used to easily upgrade or expand storage in servers due to its compatibility with the U.2 NVMe SSD form factor.



2. High-Performance Computing (HPC): For tasks requiring fast storage, such as machine learning, simulation, and rendering, the UBOX could be an essential tool to leverage the speed of M.2 NVMe SSDs.



3. Media Production: In media editing or animation studios, where fast, reliable, and large storage drives are needed, the UBOX can enable the use of high-capacity M.2 NVMe SSDs in systems with U.2 slots.



4. IT Infrastructure Upgrades: For businesses looking to migrate from traditional storage solutions to NVMe technology, the UBOX can make the transition smoother and cost-effective.



5. Gaming PCs: For gaming enthusiasts who want to enhance their PCs with the speed of M.2 NVMe SSDs, while maintaining compatibility with their existing U.2 connectors, the UBOX can be an ideal solution.

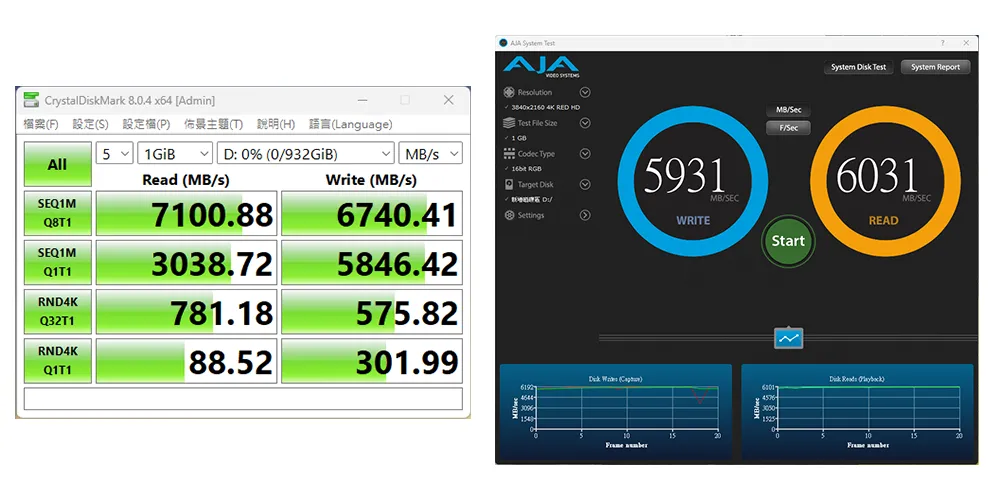

Performance test result for reference. The test result will vary depend on the test environment.



Performance test result (Test File Size: 512MB)





Performance test result (Test File Size: 1GB)





Performance test result (Test File Size: 4GB)





Performance test result (Test File Size: 16GB)





Performance test result (Test File Size: 64GB)





Model No UBOX ( M.2 NVMe Converter )
Interfaces 1 x SFF-8639
Compatible Drives 1 x M / B + M key M.2 PCIe NVMe SSD (2242/2260/2280)
Storage Mode JBOD - Independent Mode
Operating System Windows, Linux
Electrical and
Operating
Requirements
* Line voltage: 12V + 5V DC
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% non-condensing
Dimension 69.85(W)x 15(H) x 108.08(L) mm
