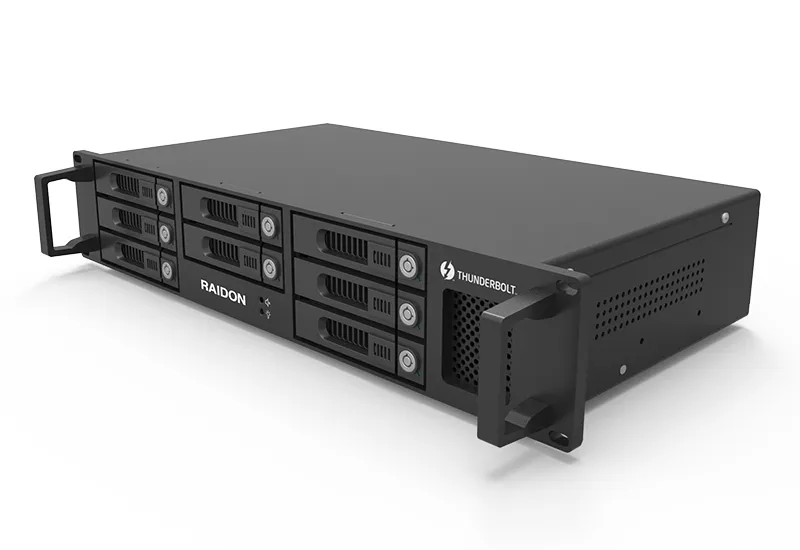

GR8680-TB3

8-Bay 2.5”/3.5" SAS/SATA III HDD/SSD Hardware RAID Storage



2 Thunderbolt™ 3 ports, Charging, 1 Mini DisplayPort, Hot-Swappable Drive



Features



1.Hardware RAID that works seamlessly between Macs and PCs.


2.The GR8680-TB3 is equipped with eight configuration modes to suit every need.


●RAID 0/1/5/6/10/50/60/JBOD.


3.Thunderbolt™ 3 (USB-C) brings you 40Gbps extreme high data transfer speed.


4.GR8680-TB3 to support 8 x 3.5" / 2.5" SAS/SATA HDD/SSD.


5.MCU function provides automatic and manual adjustment of FAN.


6.Thunderbolt™ 3 The USB-C that does it all.


●Support 15W ( 5V/3A ) Power Delivery.


●Mini DisplayPort connect DVI、HDMI、VGA display devices.





A stand-alone hardware RAID could let your Mac & PC work more efficiently


GR8680-TB3 is built-in the easy-to-use hardware RAID, and it won’t hurt system performance during its REBUILDING WORK completely! It would meet your requirement who always requests for both of system performance and the high memory capacity.GR8680-TB3 with RAID 5 or even RAID 6 feature would be your best cost-effective storage solution at both of data protection and the system performance.

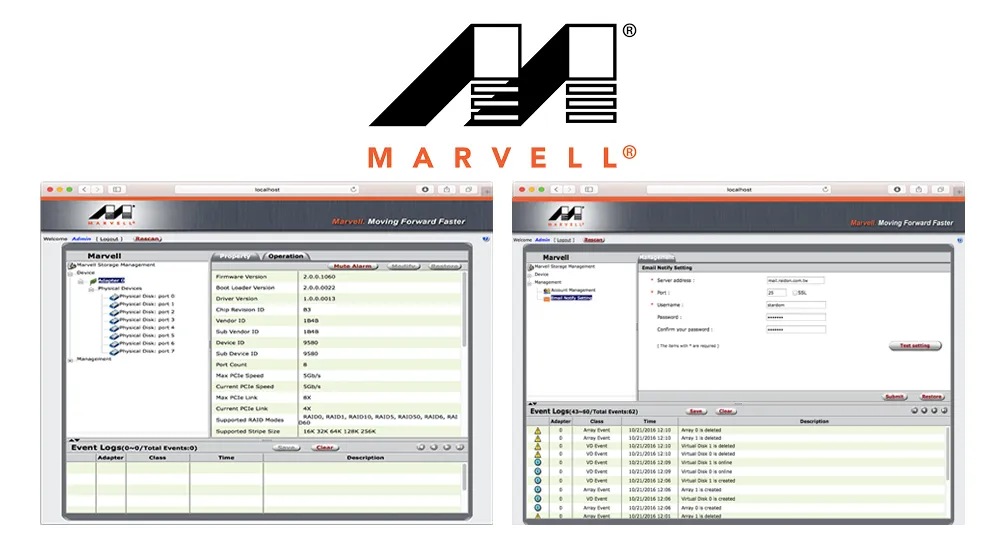

It's really easy for you to set up your new buy GR8680-TB3 in your office or even at home. Thru Marvell's MSU Tool, you could set up its hardware RAID thru a graphic user-friendly interface.  You could choose one of the following 8 different RAID modes, RAID 0, 1, 5, 6, 10, 50, 60 and JBOD, to fit your needs for the available large storage space together with its data protection feature.

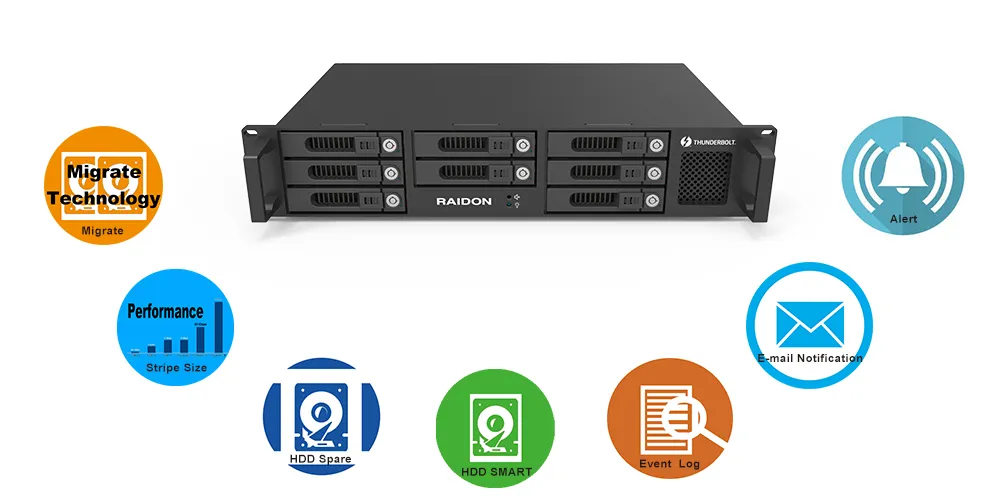

To support monitoring, buzzer, email notification, and S.M.A.R.T. features


The Marvel MSU Utility could help monitoring the RAID status while your GR8680-TB3 is working, and alert you thru beeping sound from a loud buzzer, and sending you a warning message thru e-mail system.  MSU also records all the product status in detailed and helps testing your HDD quality thru its built-in S.M.A.R.T. testing software for you.




To support "SPARE" and "MIGRATE" features



Marvell MSU Utility provides "SPARE" feature which lets you set up a spare HDD/SSD as a redundant storage.  Once any of your HDDs becomes defective, "SPARE" helps protecting your data thru transferring your data from that defect to the free HDD/SSD.



MSU Utility also gives you a very smart feature, called "MIGRATE".  "MIGRATE" lets you easily change your RAID setting. You no need reset your new RAID storage, and just only use "MIGRATE" function of MSU Utility, to migrate easily your RAID configure.





Adjust performance according to application flexibility




 GR8680-TB3 use Marvell software, to adjust the hard drive and GR8680-TB3 transfer data via the "stripe size" function, so that GR8680-TB3 based on your use "stripe size" to achieve the most stable and fastest performance.

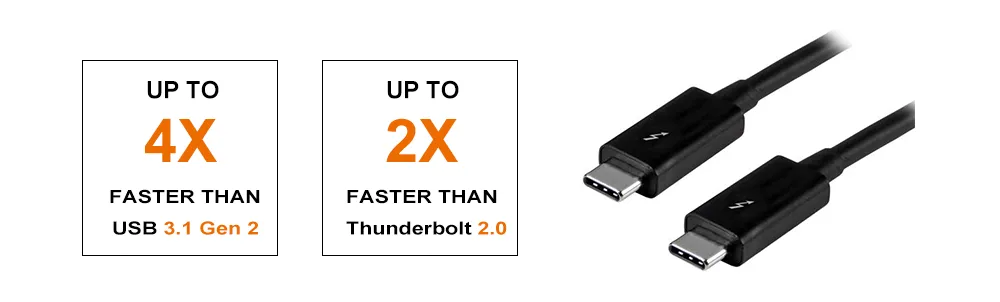

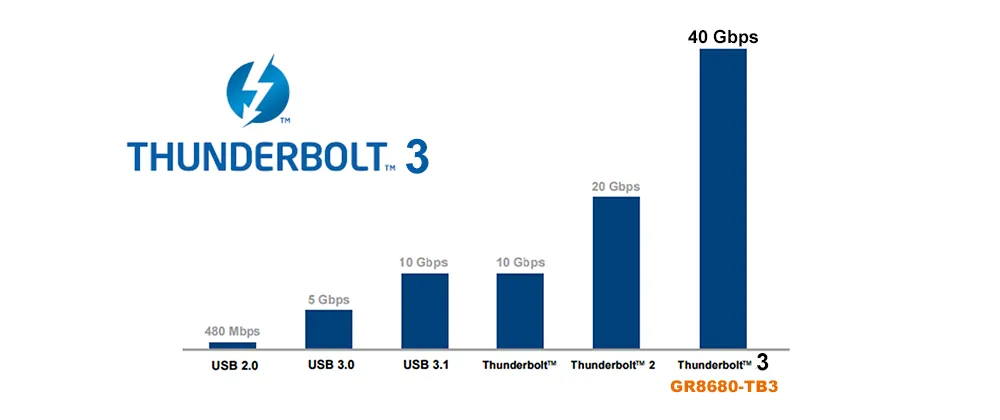

Thunderbolt 3 brings you an extreme high data transfer speed



GR8680-TB3 supports Thunderbolt 3 (TB3) interface for an extreme high data transfer speed.  And both of the two TB3 ports are equipped with up to 40Gb/s data transfer rate which is 4 times faster than USB 3.1 Gen 2 (USB 3.1) and 2 times than Thunderbolt 2 interface.


You could definitely use it to play your 4K high-resolution films with no any lagging hassle.  TB3 interface not only brings you this high data transfer rate advantage, it also let you chain maximum up to 6 GR8680-TB3 products (or other compatible storage products).

Faster data transfer speed

RAID 0 mode to help an efficiency



GR8680-TB3 provides RAID 0 mode, and pluses its Thunderbolt 3 interface protocol, it really gives you an excellent data transfer performance up to 1500MB/s.  It helps your heavy duty video or photos editing works in your Post-production studio.

RAID 5 mode provides highest data parity function ensure your data security



RAID 5 mode provides both of the read-&-write efficiency and the data protection features for your daily works. Under RAID 5 mode, GR8680-TB3 would need at least 3 or more HDDs to start working.  And if anyone of your HDDs is defect, your GR8680-TB3 would still work fine for you, but just with no more data protection feature. Comparing to RAID 0 and RAID 1 modes, it's no doubt that RAID 5 is your best choice.

RAID 6 mode, double security is an even better solution in enterprise



To you, an Enterprise MIS supervisor, the data protection feature would be your first priority to choose your storage product.  Comparing to RAID 5, RAID 6 provides you a way better data protection level.  Under RAID 6 mode, GR8680-TB3 would need at least 4 HDDs to start working.  RAID 6 mode provides you the even better data protection than that of RAID 5's from its extremely ZERO Possibility that two HDDs become defect at the same time!  GR8680-TB3 still works perfect even though two of the whole HDDs are defect at the same time which won't happen at all!

To support charging to your notebook and mobile phone



All our Thunderbolt 3 products support USB C type connector and you could always use it to charge not only your mobile phone but notebook thru its 15W 5V/3A PD (Power Delivery) feature.

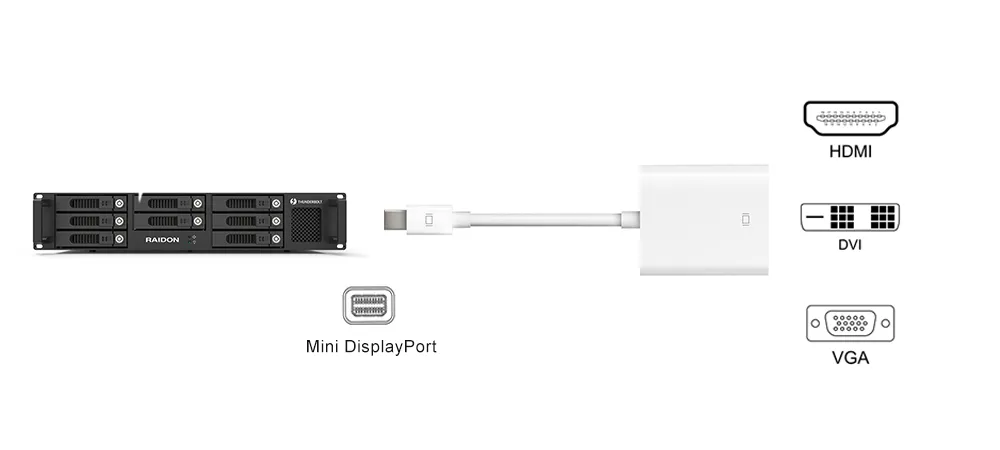

Its Mini DisplayPort to give you an easy connecting to display device


All our Thunderbolt 3 products also support a Mini DisplayPort which gives you a very easy way to connect to your display device.  This Mini DisplayPort is fully complaint to all the existing DVI, HDMI, and VGA display devices thru an adapter.

Mechanism

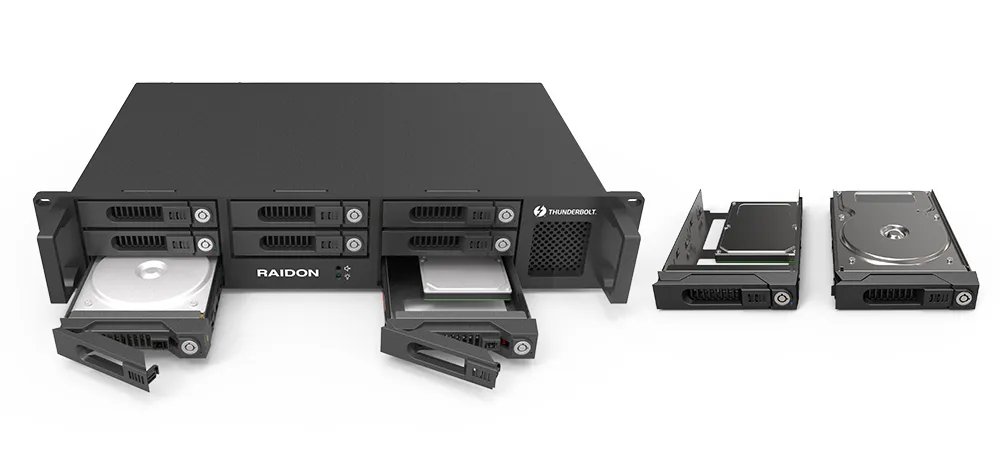

GR8680-TB3 to support both of 3.5" HDD and 2.5" HDD & SSD products



To bundle with eight new easy-to-use Trays, GR8680-TB3 supports any kinds of 3.5" & 2.5" HDDs/SSDs.  And also, GR8680-TB3's aluminum housing help protecting your data
from its solid structure design and the excellent heat dissipation.

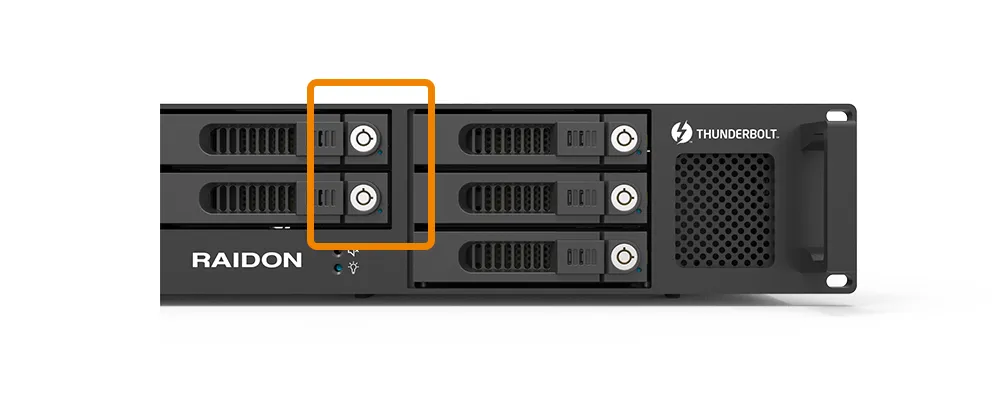

Since this new easy-to-use Tray is dimensional compliant to all our RAIDON products, you could easily transfer your data among different storage devices.  And also, its key lock design could provide a double protection at your data from any improper Tray extracting.

Two die-casting rackmount ears to help moving your GR8680-TB3 easily



The two aluminum die-casting rackmount ears are strong enough for you to move GR8680-TB3 easily among your system racks in your server room!

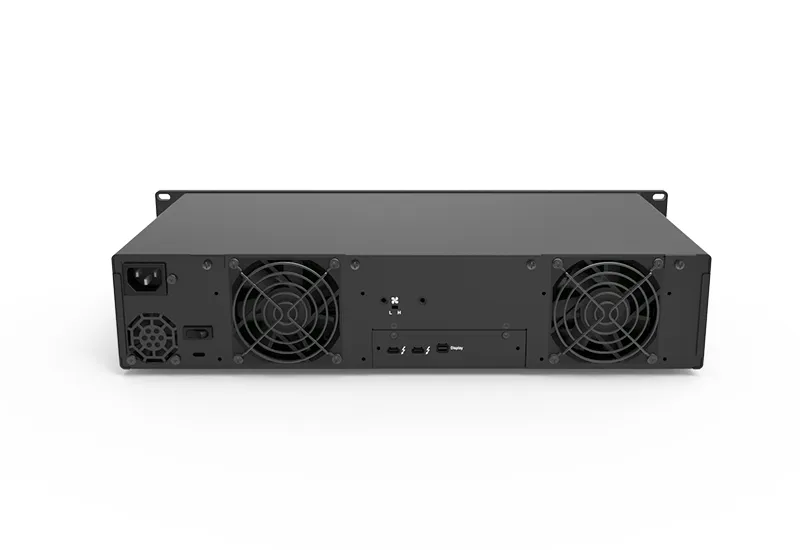

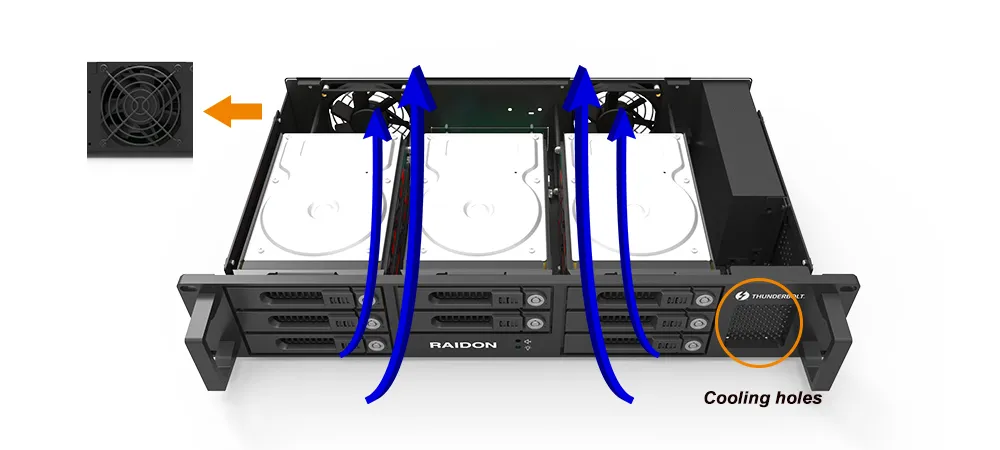

The solid aluminum chassis pluses two powerful low noise Fans


GR8680-TB3's solid chassis is made by a thickness aluminum-alloy plate.  And its aluminum housing and the two 8 cm FANs (with safe FAN GUARDs) really help an efficient heat dissipation for your long time use.

To support SGPIO feature (Serial General Purpose Input & Output)



GR8680-TB3 provides the SGPIO (Serial General Purpose Input & Output) features.   The SGPIO feature detects the following system failure symptoms: by different LED signal, user is easily to find out which HDD(s) defect to ensure GR8680-TB3 running smoothly.

MCU feature to provide you in-chassis temperature control


GR8680-TB3 is also designed with the MCU feature which monitors and helps improving its in-chassis system temperature.  While the system temperature rises up to 55 degree-C (131 degree-F), MCU will bump up the fans with full speed; and once system temperature goes down to 50 degree-C (122 degree-F), you could manually adjust fan switch on the rear, MCU would reduce the fan speed down to a half speed for a better green user environment from a less fan noise and lower power consumption.

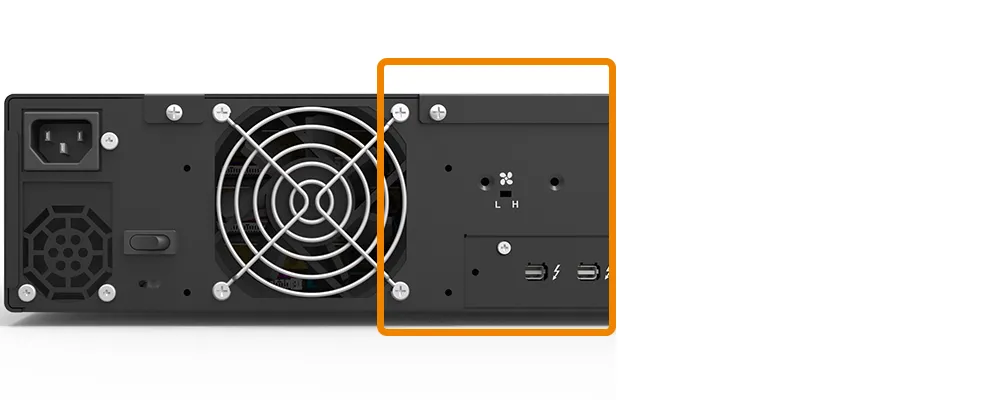

In addition, if the fan fails or the device temperature is too high, the buzzer will beep and let the user know that the device has failed. The user can turn off or turn on the buzzer through the mute adjustment switch on the back panel.

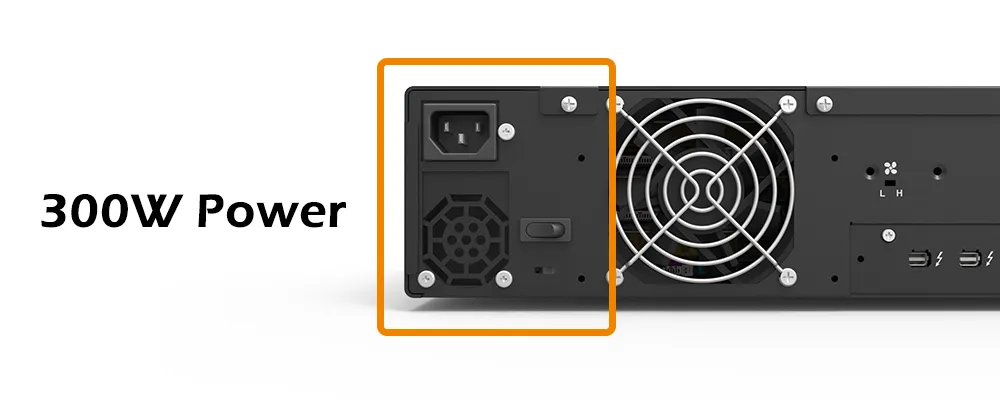

The built-in power supply unit


GR8680-TB3 uses conform with safety regulation certified 300W power supply unit which provides a stable and high efficient power output and definitely satisfies the big power consumption from all 8 HDDs.

Application

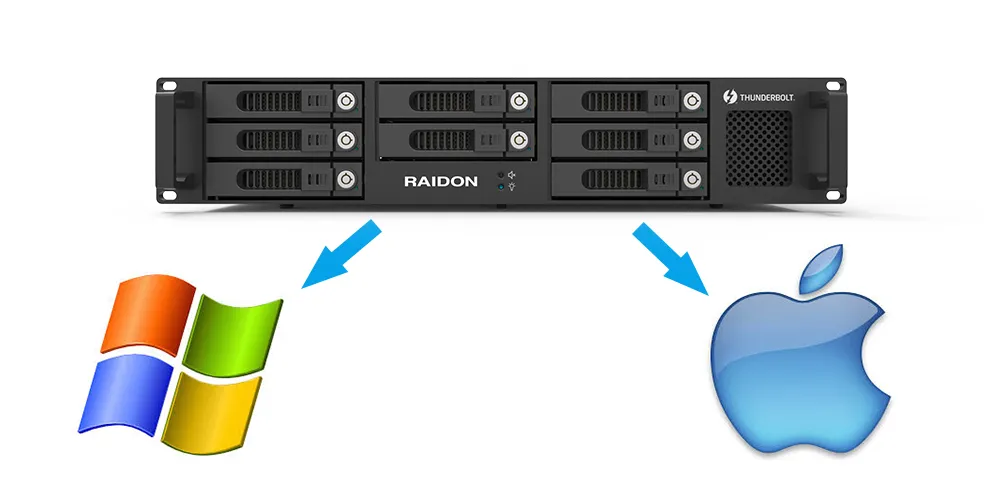

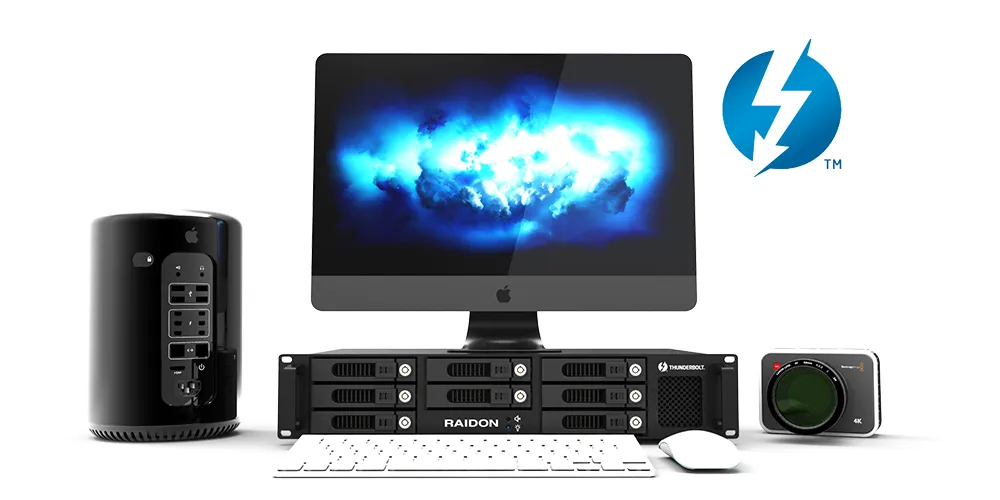

Suitable for PC and Mac user



With Thunderbolt host interfaces, GR8680 can be used both in PC and MAC environment flexible.



More GR8670-TB3 Product information  >>>>



Thunderbolt 3 With GR8680-TB3 Stylish and rugged


The GR8680-TB3 has a sleek exterior design that will never go out of style when placed next to your Mac. It’s also built tough with thickness aluminum to shield the enclosed drives durably and to dissipate the heat created by the drives for the drives to work comfortably.

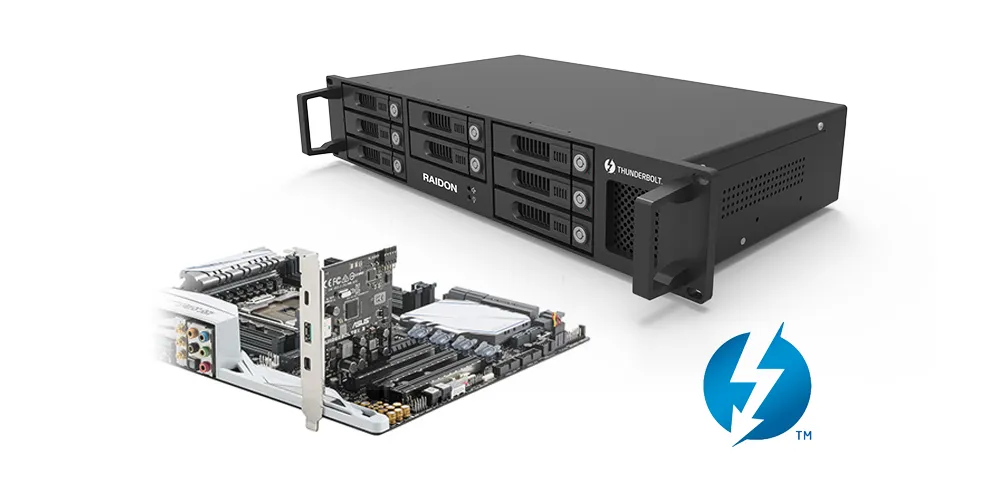

Windows systems can also extend Thunderbolt storage devices



For Windows operating system environment, GR8680 is also the best tool for your external storage, you need Thunderbolt 3 card via GR8680 to set the different raid mode, and to expand high-speed external storage devices for your Server.



Your Server could connect to one GR8680-TB3 and chain to at most 6 more GR8680-TB3 products for a huge memory storage capacity thru its high performance Thunderbolt 3 interface, and through the network to share storage space for other users, to achieve multi-purpose data sharing.

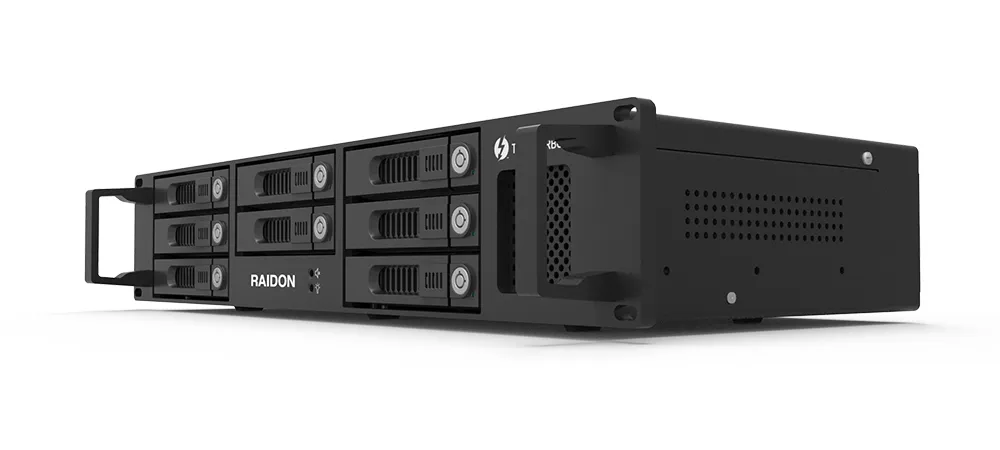

The standard 2U Rackmount chassis



Even though it's a standard 2U rackmount chassis size, GR8680-TB3 still has a fashion ID to match your Mac or PC while standing beside it.  It's well protected under its 4mm aluminum chassis which also helps dissipating heat too!

(You need an adapter, let you connect TB3 and TB3 devices.)

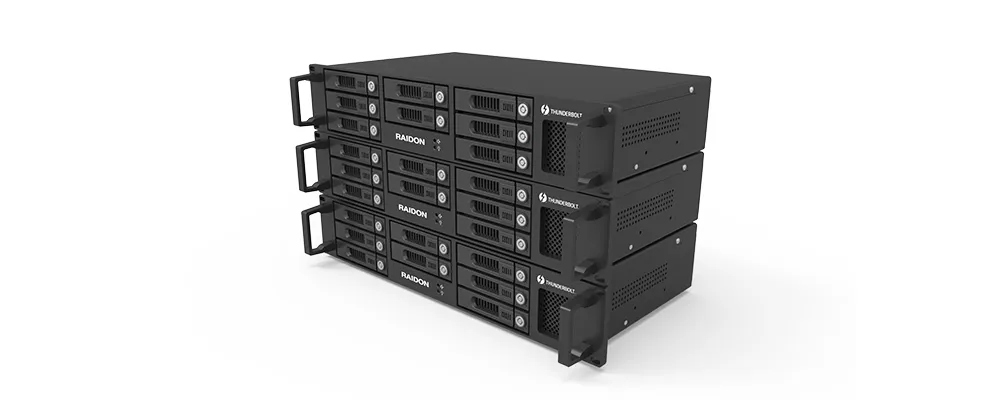

You could pile up them together for space saving



GR8680-TB3 is designed for you to pile them up together firmly.  It occupies only for two A4 paper size at your desk if you pile them up together.  And of course, you could mount GR8680-TB3 at your server rack too!

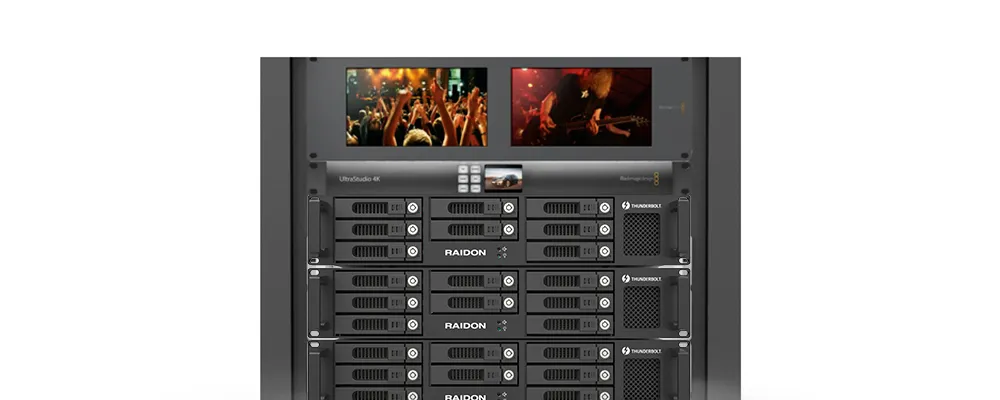

To meet and fit the standard 2U-19" server rack



You could easily install your new GR8680-TB3 into your standard 19" server rack for both of server and workstation applications.

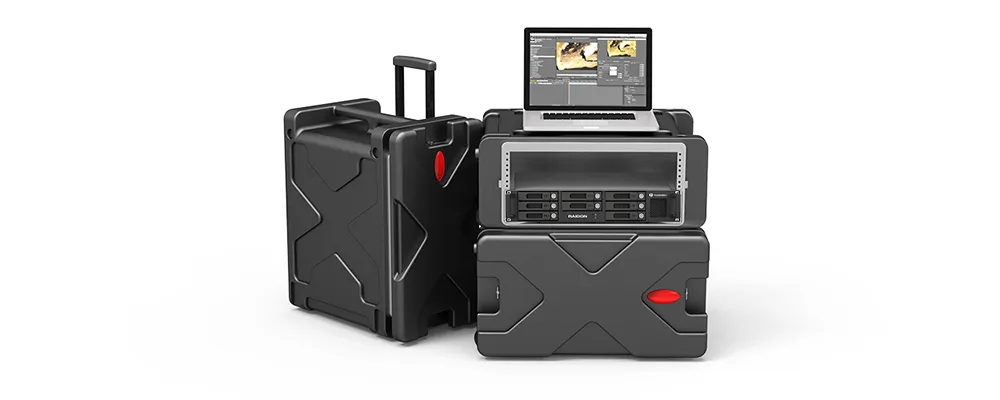

Being with a transportable case, GR8680-TB3 travels with you to anywhere



It's no longer a tough work for you to travel with the GR8680-TB3 unit(s).  You just need a transportable case to carry it with you for trip!  The full aluminum GR8680-TB3 chassis helps reducing the total weight for your travelling.

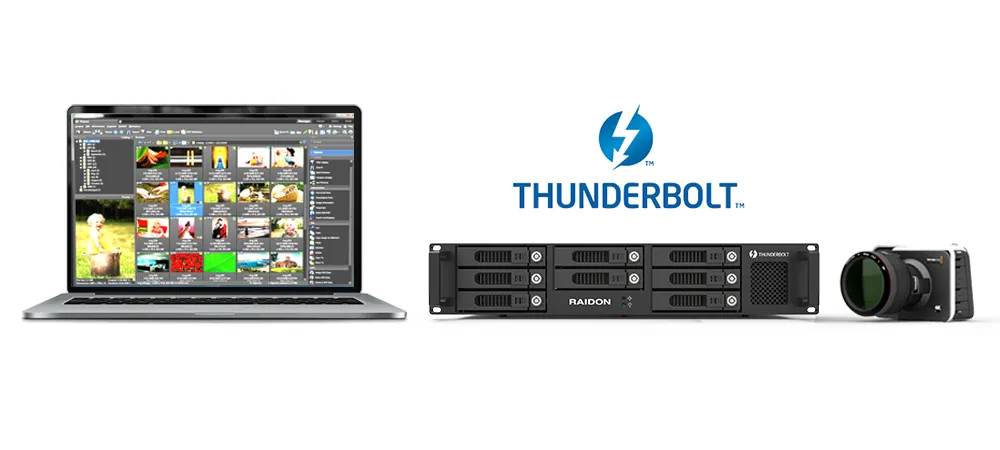

Help you to achieve various photos editing



Since GR8680-TB3 provides two Thunderbolt 3 ports, just use your MacBook Pro, you could set up your own full function photo studio right away.  You could then save tons of RAW images.  And of course, you could edit and process the images quickly once you set up your GR8680-TB3 with RAID 0 feature.

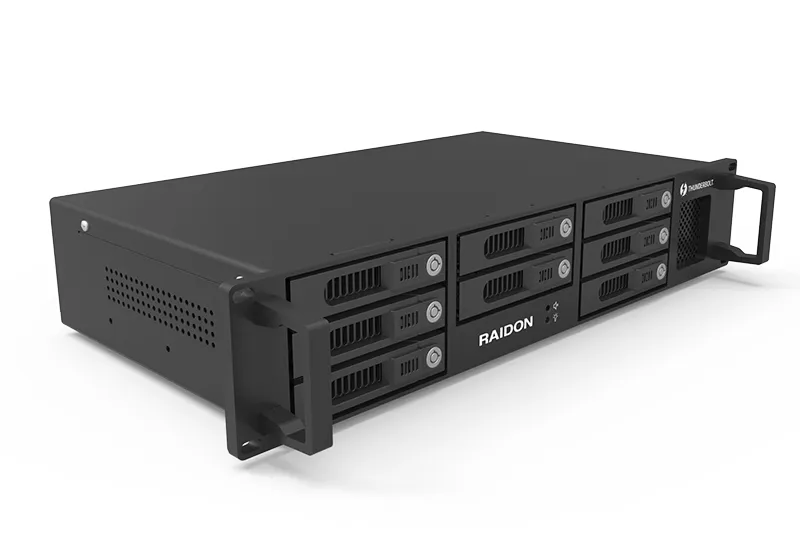

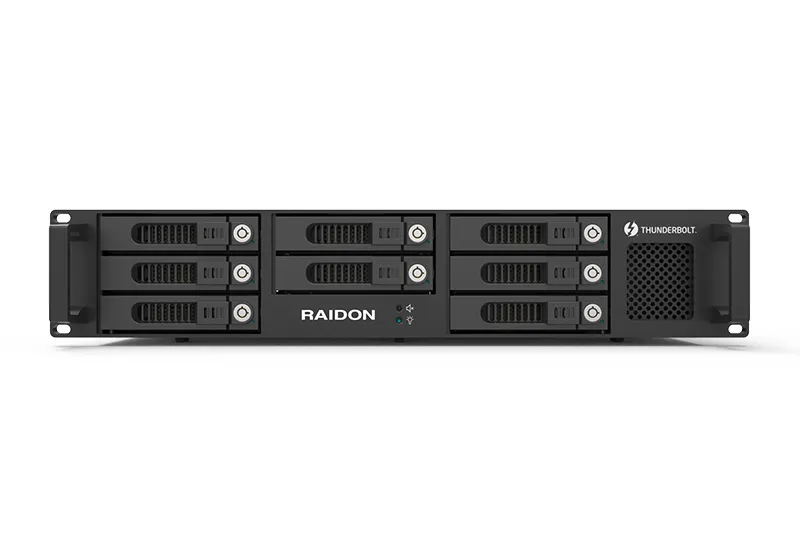

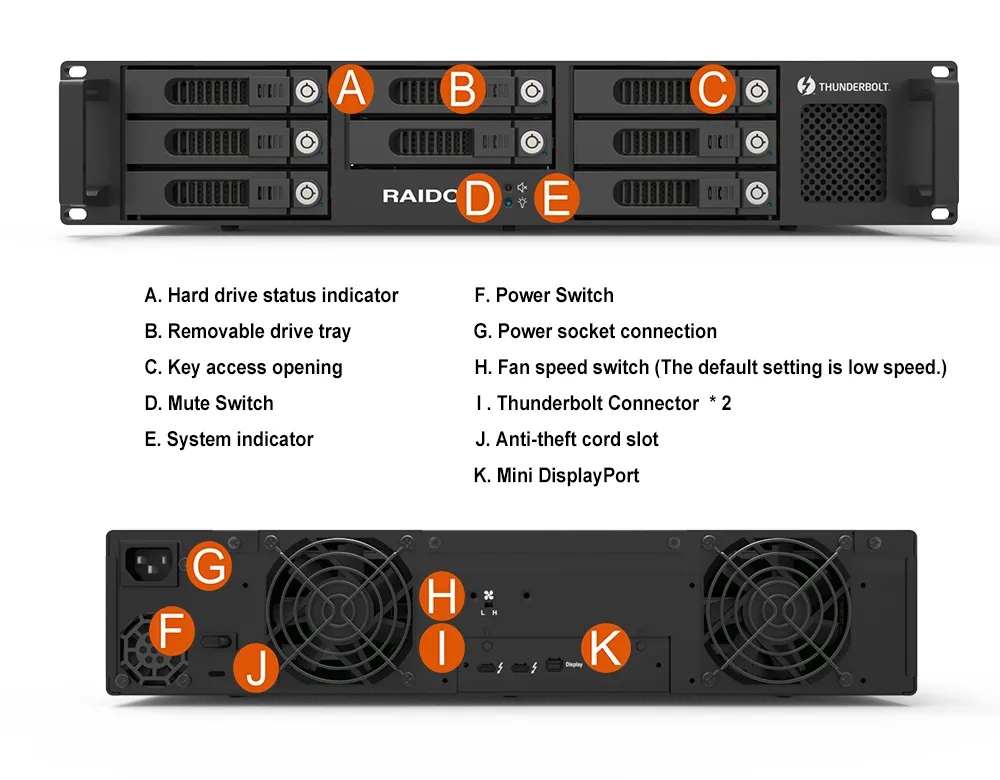

GR8680-TB3 Product View

GR8680-TB3 Specification



Model No GR8680-TB3
Interfaces
Thunderbolt 3 Port x 2( up to 40 Gbps ), Support 15W (5V/3A) Power Delivery.
Mini DisplayPort x 1
Compatible Drive 8 x 3.5" / 2.5" SAS/SATA HDD/SSD ( up to 6 Gbps )
Storage Mode RAID 0, 1, 5, 6, 10, 50, 60 and JBOD
Operating System
Support
Windows 7 (64-bit), Windows 10 (64-bit) and later, macOS 10.13 and later*
For PC, Windows 10 (64-bit) and later is recommended
Cooling System 8cm Low noise fan x 2
Electrical and
Operating
Requirements
* Line voltage: 100-240V AC
* Frequency: 50Hz to 60Hz, single phase
* Maximum continuous power: 300W
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 113° F (-20° to 45° C)
* Relative humidity: 5% to 95% noncondensing
Size and Weight 427(W)×94(H)×244.4(L) mm
Product Code EAN: 4713227440271
UPC: 884826504450
Carton 2 pcs per carton
Package Accessories * GR8680-TB3 x 1 ( with removable drive tray enclosed x 8 )
* Thunderbolt Cable x1
* Power Cord x1
* Accessory Kit
* Quick Installation Guide x1
Remarks * Please be advised the Marvell Storage Utility (MSU) has not been updated to
support macOS Catalina yet. Please remain on macOS Mojave until an updated is
released.



GR8680-TB3 (EOL) Download

Product
Datasheet
QM
UM
CE & FCC
other
GR8680-TB3 (EOL)
1.MSU Utility,MSU Utility Manual & Driver Download & note
2.MSU for macOS Catalina (Beta)
