GR3660-TB3

2-Bay 2.5”/3.5” SATA III HDD/SSD Hardware RAID Storage


2  Thunderbolt™ 3 ports, 1 Mini DisplayPort, Hot-Swappable Drive



Features



1.Hardware RAID that works seamlessly between Macs and PCs.


2.The GR3660-TB3 is equipped with three configuration modes to suit every need.


●RAID 0/1/JBOD.


3.Thunderbolt™ 3 (USB-C) brings you 40Gbps extreme high data transfer speed.


4.GR3660-TB3 to support 2 x 3.5" / 2.5" SATA HDD/SSD.


5.Thunderbolt™ 3 The USB-C that does it all.


●Support 15W ( 5V/3A ) Power Delivery.


●Mini DisplayPort connect DVI、HDMI、VGA display devices.

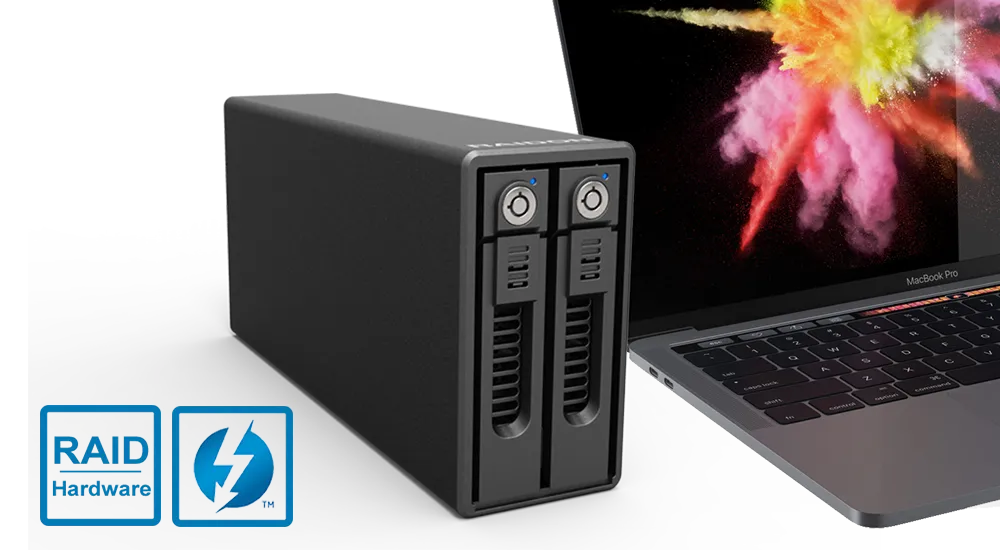

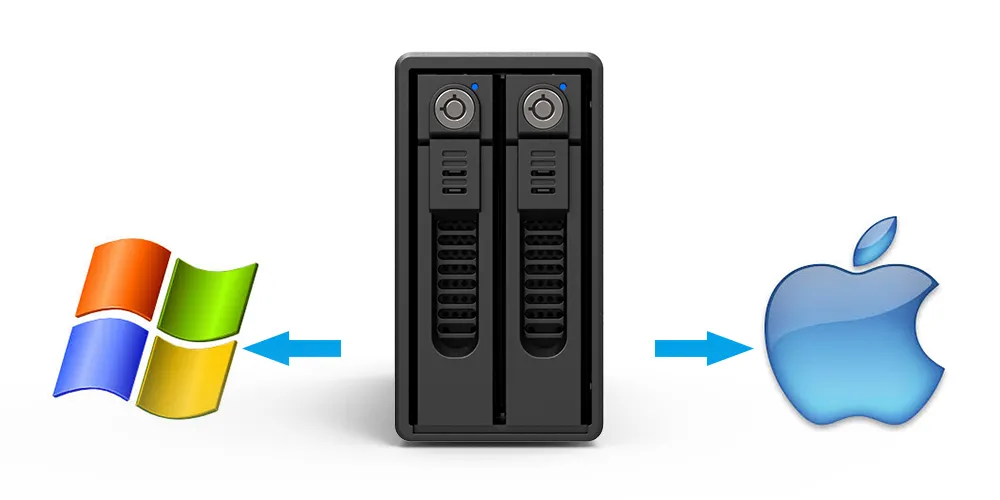

Hardware RAID that works seamlessly between Macs and PCs



A software RAID storage system is unable to overcome the problems associated with cross-platform usage. It is only through hardware RAID controller chipsets that users can use these hard drives concurrently in Mac or Windows computers. With the GR3660's built-in hardware RAID controller chipset and Thunderbolt™ 3 host interface, not only does it promise high transmission speed, it also eliminates the cross-platform usage issues associated with RAID 0 or RAID 1 setups. Also, with hardware RAID, all data is computed and processed by the built-in CPU. With such advantages, your computer performance can be focused on running the software and work, instead of handling the storage device's transmission issues.

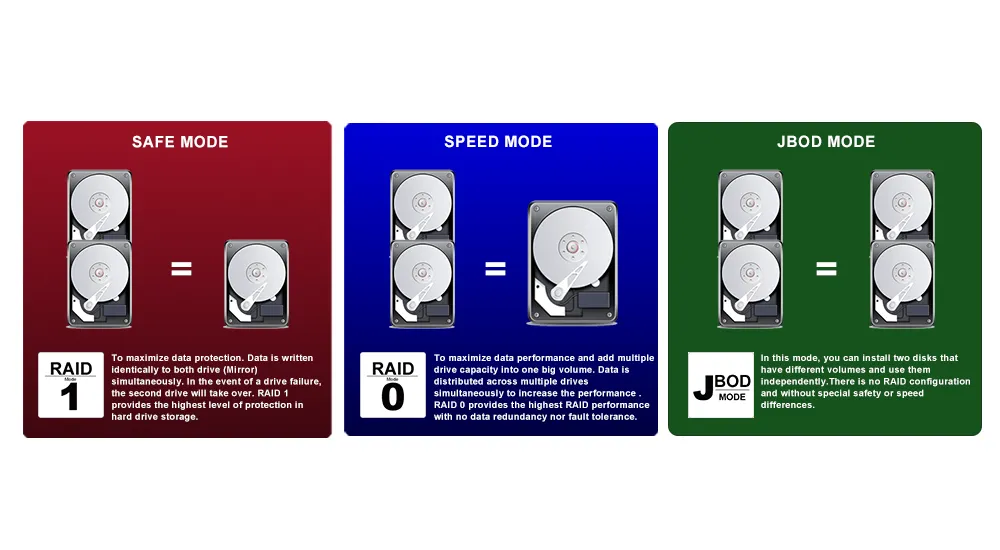

The GR3660-TB3 is equipped with three configuration modes to suit every need



The GR3660-TB3 has three built-in disk configuration modes: RAID 1 (Safe Mode), RAID 0 (Speed Mode), JBOD (Two Independent Volumes) for you to choose according to your needs.



The RAID 1 function provides fully automatic backup that ensures data security.



RAID 0 functionality increases storage speed and performance.



JBOD function provides two independent disk data access convenience.

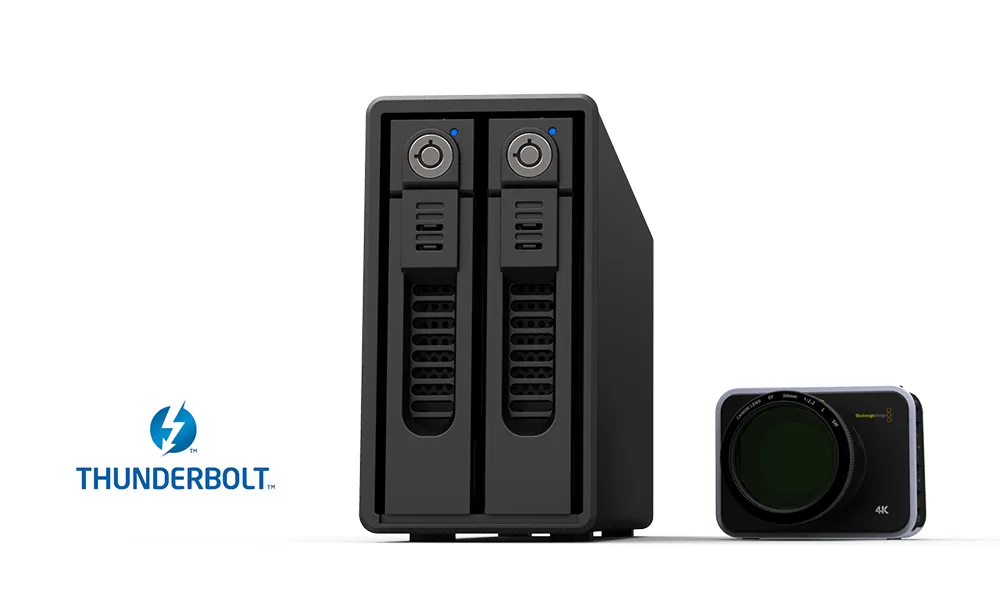

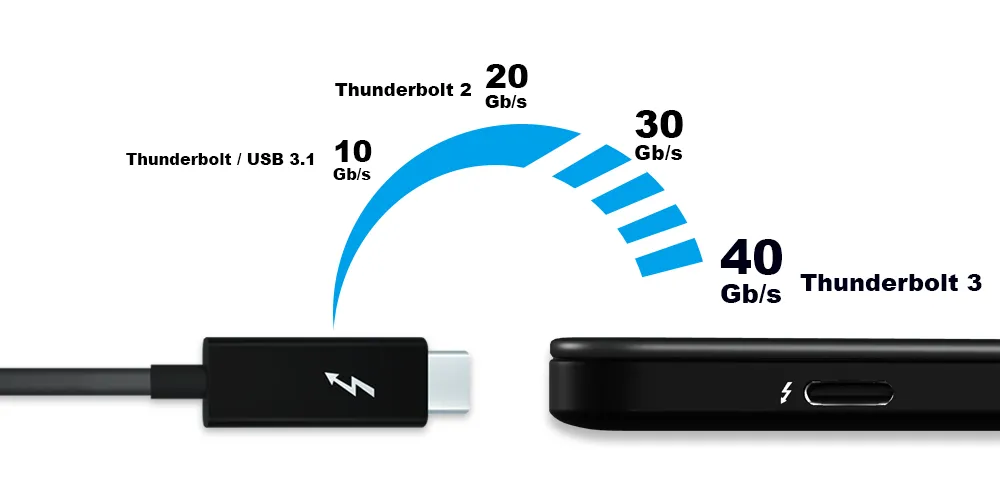

Thunderbolt™ 3 (USB-C) brings you 40Gbps extreme high data transfer speed



GR3660-TB3 supports Thunderbolt™ 3 interface for an extreme high data transfer speed.  And both of the two Thunderbolt™ 3 ports are equipped with a up to 40Gb/s data transfer rate which is 4 times faster than USB 3.1 Gen 2 ,2 times faster than Thunderbolt™ 2 interface.



You could definitely use it to play your 4K high-resolution films with no any lagging hassle.  Thunderbolt™ 3.0 interface not only brings you this high data transfer rate advantage, it also let you chain maximum up to 6 GR3660-TB3 products (or other compatible storage products).

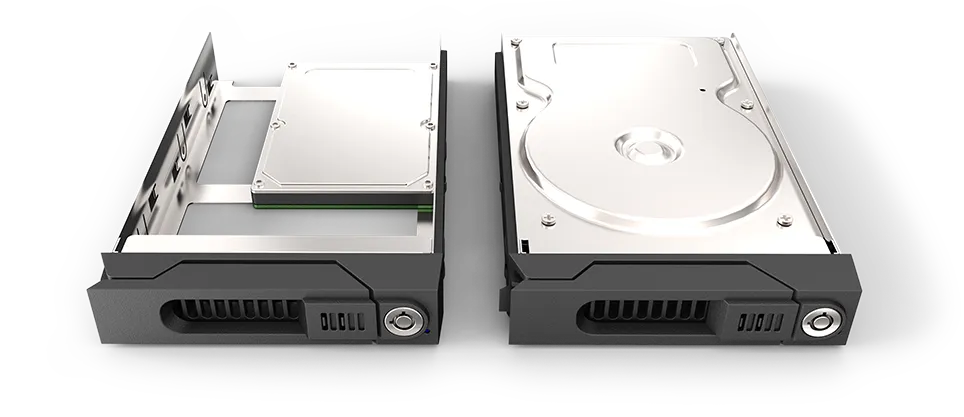

GR3660-TB3 to support both of 3.5" HDD and 2.5" HDD & SSD products



To bundle with two new easy-to-use Trays, GR3660 supports any kinds of 3.5" & 2.5" HDDs/SSDs.  And also, GR3660's aluminum housing help protecting your data from its solid structure design and the excellent heat dissipation.



Since this new easy-to-use Tray is dimensional compliant to all our Stardom products, you could easily transfer your data among different storage devices.  And also, its key lock design could provide a double protection at your data from any improper Tray extracting.

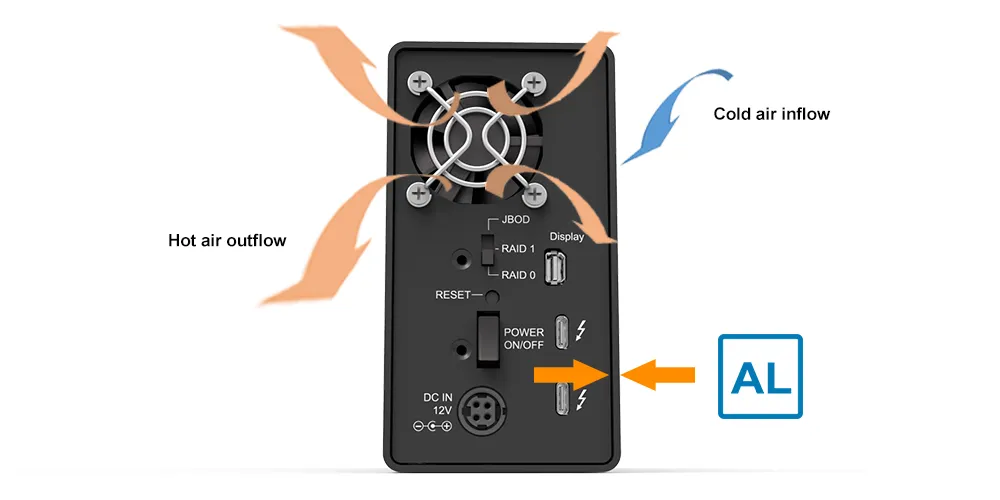

The solid aluminum chassis pluses one powerful low noise Fans




GR3660-TB3's solid chassis is made by a thickness aluminum-alloy plate.  And its aluminum housing and the 4 cm FANs (with safe FAN GUARDs) really help an efficient heat dissipation for your long time use.

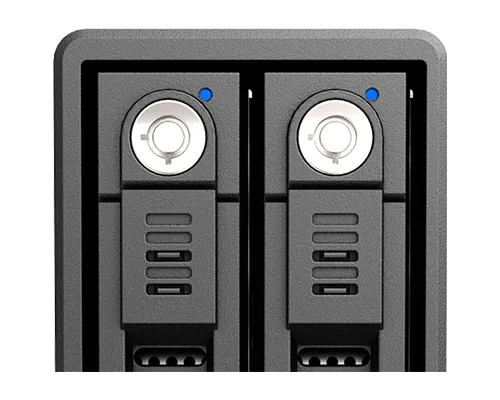

LED Display Status


It seems simple, but the GR3660 LED status lights give users an instant status indication for each of the HDDs, it flashes when it is in use, however, many RAID devices on the market only featuring a power light unable to provide user the cause of factor once HDD failed.

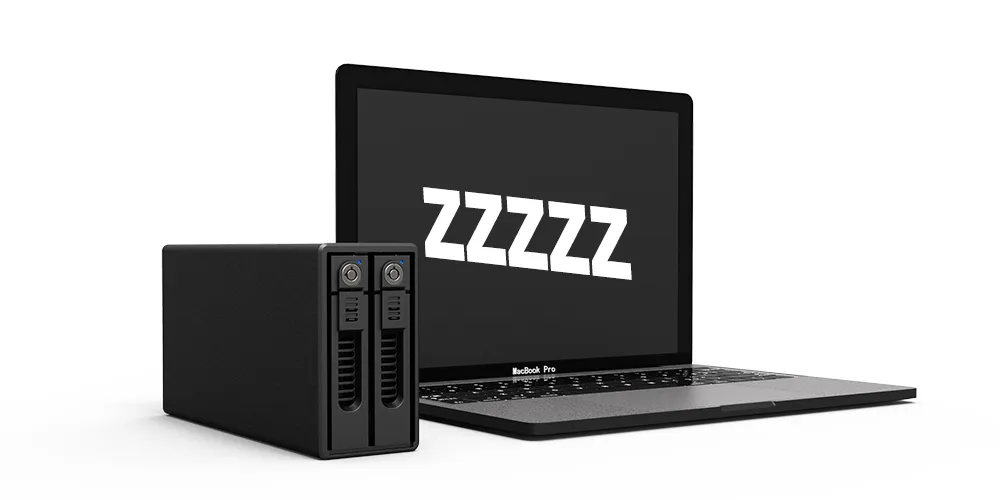

Advanced power management



GR3660-TB3 uses energy-efficient hardware components that work hand in hand with the Mac system to conserve power. It spins down hard drives and activates sleep mode after a period of inactivity.

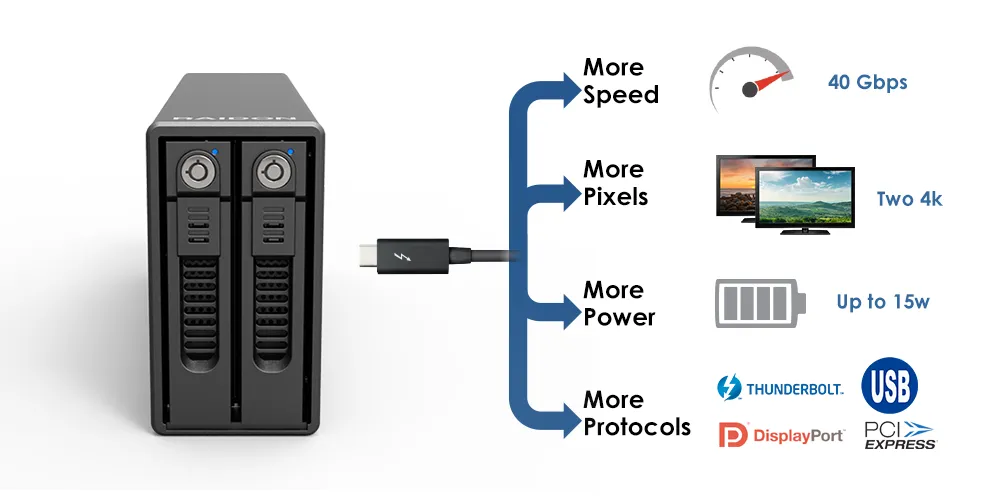

Thunderbolt™ 3 The USB-C that does it all



All our Thunderbolt™3 products support USB C type connector and you could always use it to charge not only your mobile phone but notebook thru its 15W 5V/3A PD (Power Delivery) feature.



All our Thunderbolt™ 3 products also support a Mini DisplayPort which gives you a very easy way to connect to your display device.  This Mini DisplayPort is fully complaint to all the existing DVI, HDMI, and VGA display devices thru an adapter.

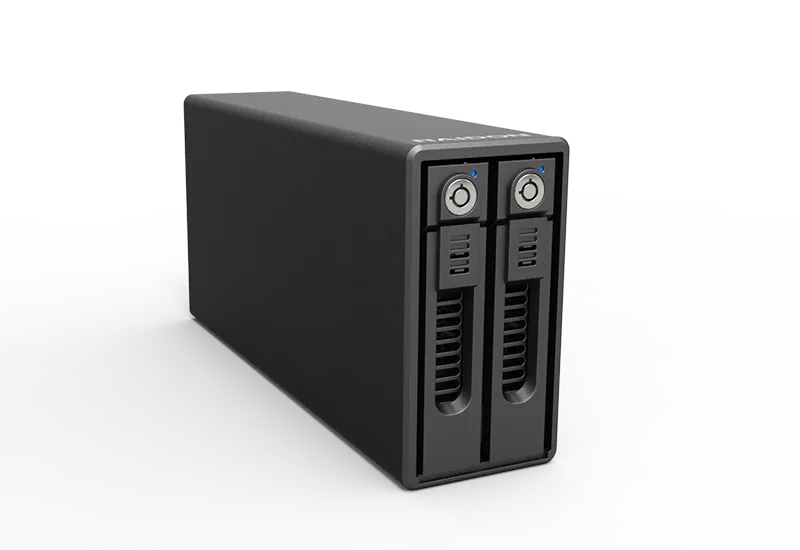

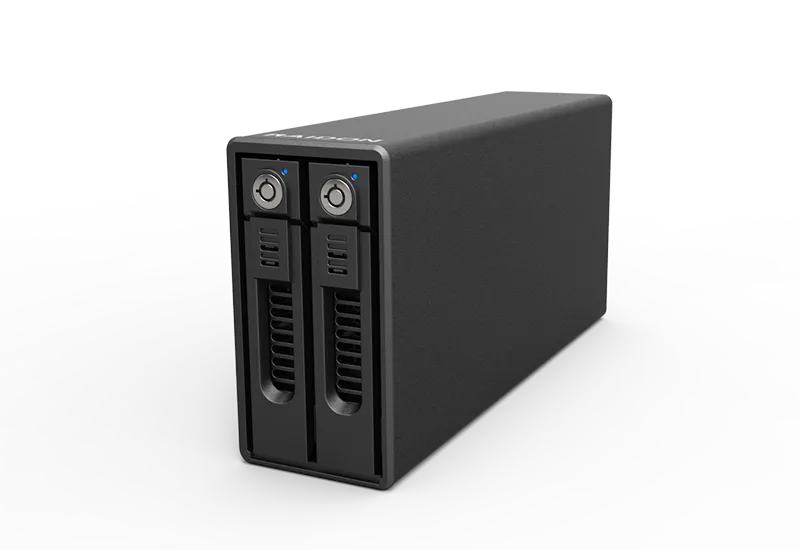

Thunderbolt™ 3 With GR3660-TB3 Stylish and Rugged



The GR3660-TB3 has a sleek exterior design that’ll never go out of style when placed next to your Mac. It’s also  built tough with thickness aluminum to shield the enclosed drives durably and to dissipate the heat created by the drives faster for the drives to work comfortably.

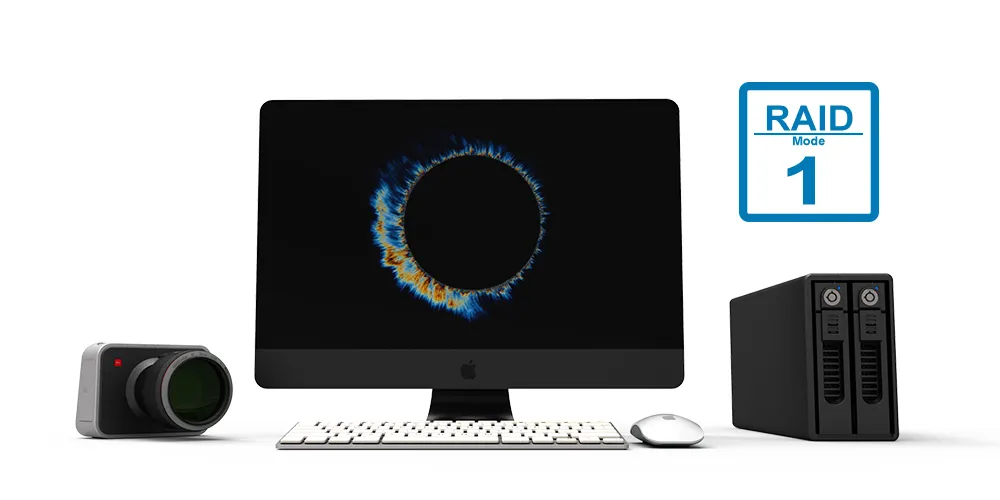

Just to use GR3660-TB3 for data backup



You can also easily extend your legacy device with Thunderbolt™ 3 (USB-C) interface, which connects to a iMac Pro device with Thunderbolt™ 3 (USB-C) interface. Your iMac Pro could connect to one GR3660-TB3 for a huge memory storage capacity thru its high performance Thunderbolt™ 3 interface.  You could definitely enjoy its huge memory capacity together with the RAID 1 for an excellent data protection.

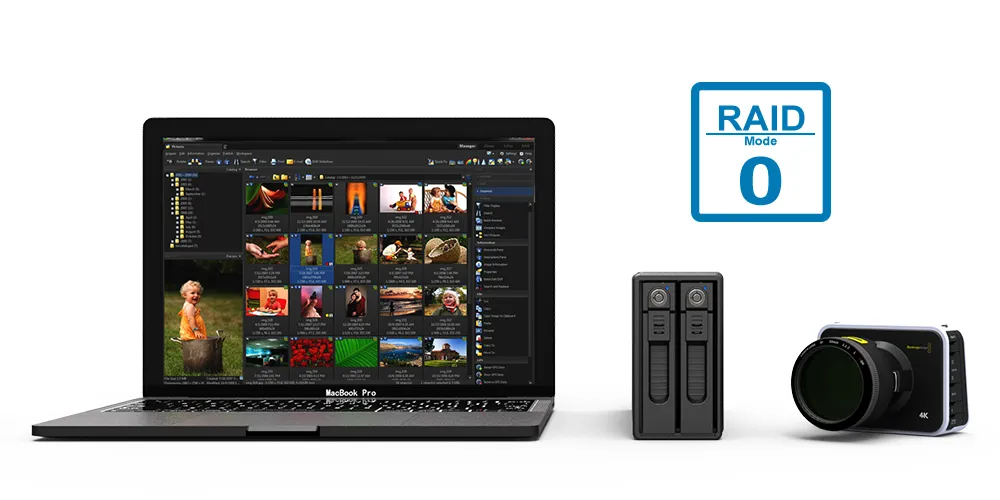

To help you complete your photography projects



With two ultrafast Thunderbolt™ 3 ports, you can build a photo studio around Macbook Pro and GR3660-TB3. Or take them with you and import thousands of RAW images on location. Once your photos are on your computer, editing in Aperture is faster and more responsive than before.
GR3660-TB3's RAID 0 mode lets you quickly browse large image libraries from external storage. So you have instant access to any photo in your library.

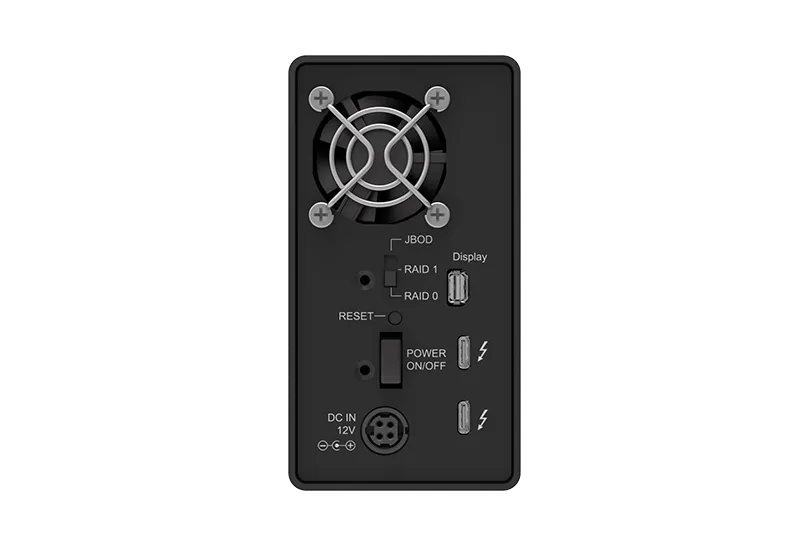

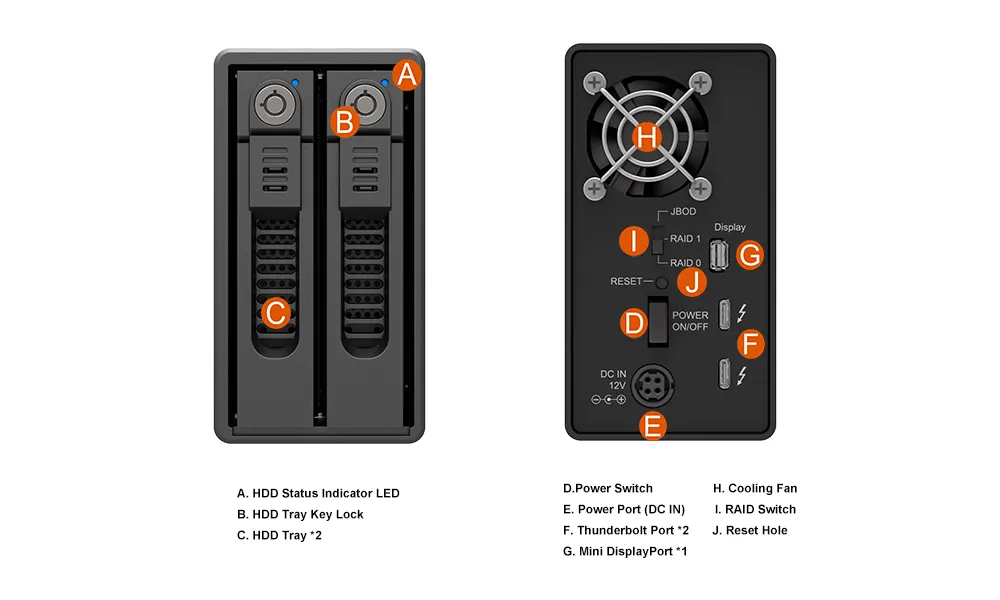

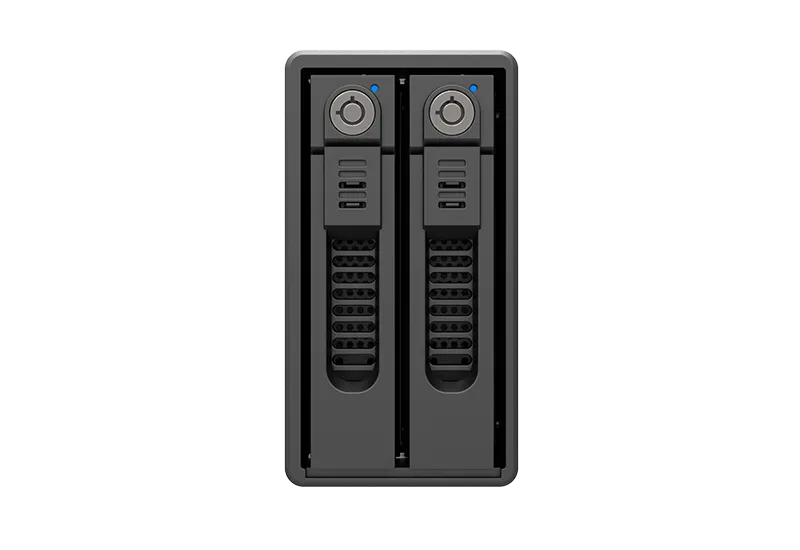

GR3660-TB3 Product View

GR3660-TB3 Specification



Model No GR3660-TB3
Interfaces
Thunderbolt™ 3 Port x 2( up to 40 Gbps ), Support 15W (5V/3A) Power Delivering.
Mini DisplayPort x 1
Compatible Drive 2 x 3.5" /2.5" SATA HDD/SSD ( up to 6 Gbps )
Storage Mode 2 x Independent ( JBOD ) / RAID 0 / RAID 1
Cooling System 4 cm Low noise fan
Operating System Windows 7 (64-bit), Windows 10 (64-bit) and later, macOS 10.13 and later
Electrical and
Operating
Requirements
* Line voltage: 100-240V AC
* Frequency: 50Hz to 60Hz, single phase
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 113° F (-20° to 45° C)
* Relative humidity: 5% to 95% noncondensing
Size and Weight Height: 122 mm Width: 63 mm Depth: 244 mm Weight: 1.2 kg
Product Code EAN:4713227440240
UPC:884826504429
Carton 8 pcs per carton
Package Accessories * GR3660-TB3 Product Unit x1(Removable Tray x2)
* Thunderbolt Cable x 1
* AC/DC Adapter x1
* Power Cable x 1
* Accessory kit
* Quick Installation Guide x1



GR3660-TB3 Download

Product
Datasheet
QM
UM
CE & FCC
other
GR3660-TB3

GR3660-TB3 Question & Answer



GR3660-TB3 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
GR3660-TB3Toshiba2.5" HDD MQ01ABD1001TB
GR3660-TB3ADATA2.5" SSD ASX900S3-64GM64GB
GR3660-TB3ADATA2.5" SSDUltimate SU800256GB
GR3660-TB3Kingston2.5" SSD SHSS37A240GB
GR3660-TB3SanDisk2.5" SSD SDSSDA-240G240GB
GR3660-TB3Hitachi3.5" HDD HMS5C4040ALE6404TB
GR3660-TB3Seagate3.5" HDDIronWolf (NAS)ST10000VN000410TB
GR3660-TB3Seagate3.5" HDDEnterpriseST10000NM001610TB
GR3660-TB3Seagate3.5" HDDIronWolf (NAS)ST12000VN000712TB
GR3660-TB3Seagate3.5" HDDIronWolf ProST14000NE000814TB
GR3660-TB3Toshiba3.5" HDD MG04ACA200E2TB
GR3660-TB3Toshiba3.5" HDD MG04ACA50DE5TB
GR3660-TB3WD3.5" HDD WD3000FYYZ3TB
GR3660-TB3WD3.5" HDD WD4000F9YZ4TB
GR3660-TB3WD3.5" HDD Red WD40EFRX4TB
GR3660-TB3WD3.5" HDD RED NAS HDD-WD60EFRX6TB
GR3660-TB3WD3.5" HDDGoldWD6002FRYZ6TB
GR3660-TB3WD3.5" HDDGoldWD8002FRYZ8TB
GR3660-TB3WD3.5" HDDRedWD100EFAX10TB
GR3660-TB3WD3.5" HDD WD5000AAKX500GB
GR3660-TB3WD3.5" HDD WD5003AZEX500GB
