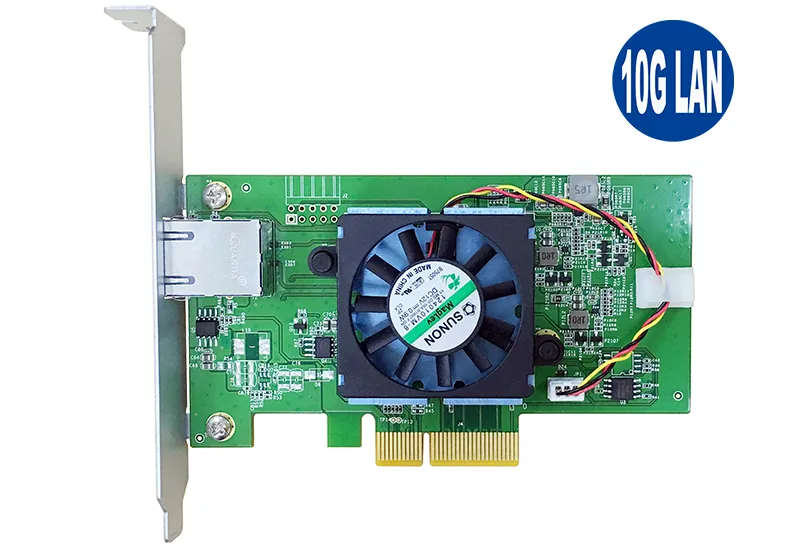

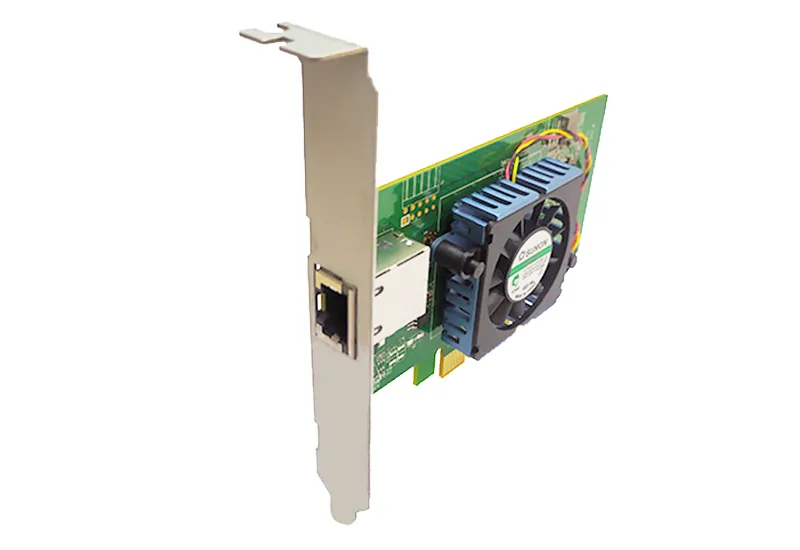

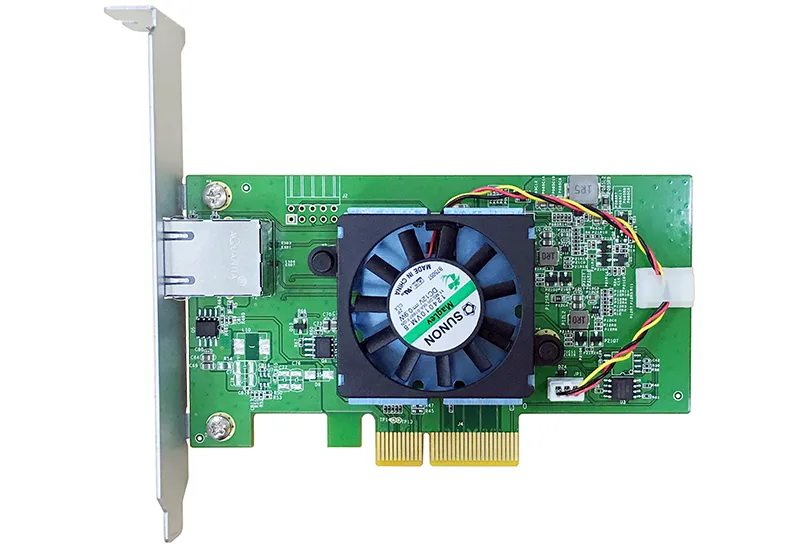

PC03-10G LAN Card



Ultra-High Speed 10GbE Ethernet Expansion Card



The PC03-10G is equipped with an RJ45 connector and using next-generation 10GBase-T networking technology to deliver up to 10Gbps transfer speed.It is designed in use for server servers, workstations, PCs for those needs high-speed network transmission connections. This Ethernet expansion card is easy to upgrade to 10GbE network environment with existing architecture and supports automatic switching with 10/5/2.5/1Gbps and 100Mbps transmission speed.



Feature:

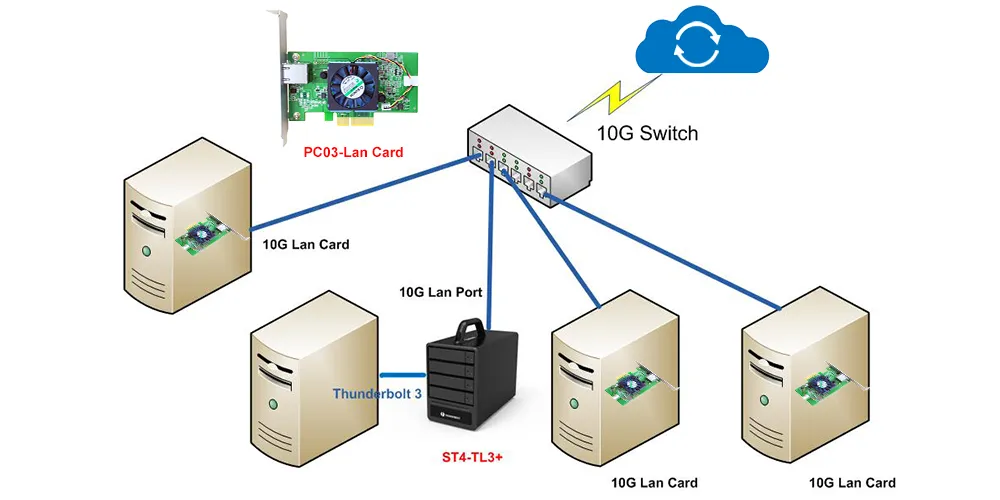

Application:

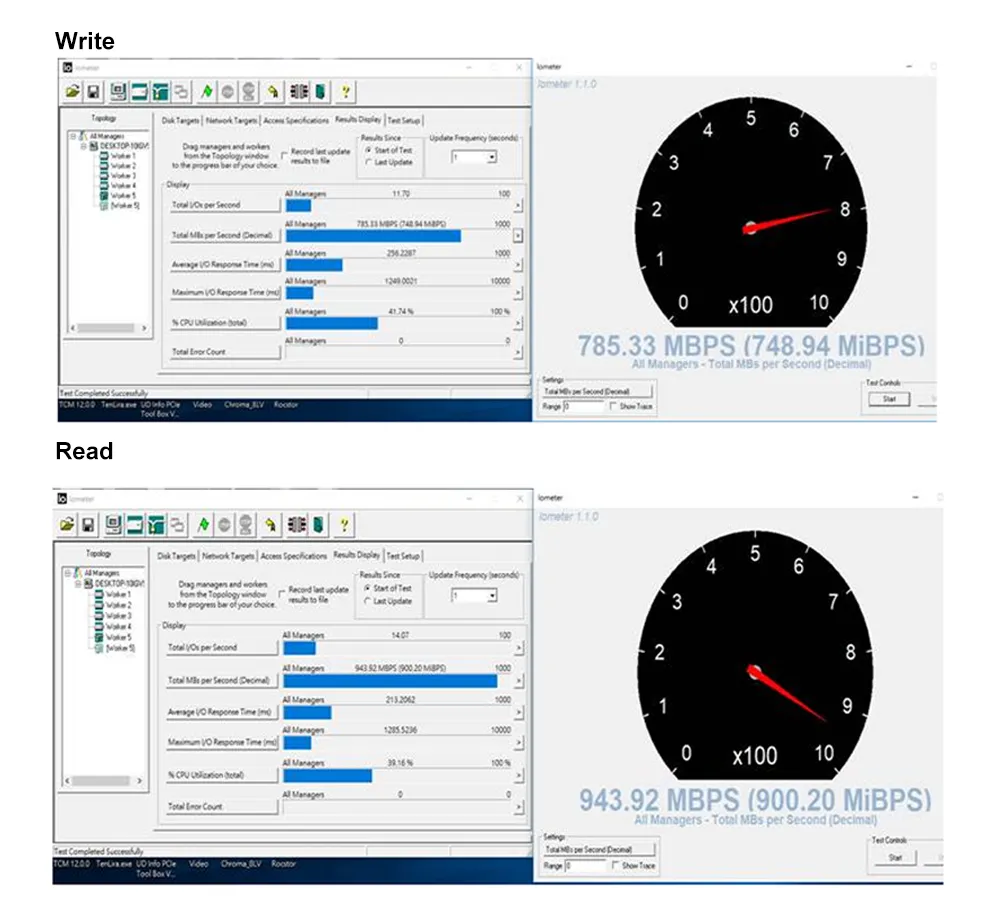

Performance:

Specification



Model No PC03-10G
Controller Aquantia AQtion AQC107
Interface PCIe 3.0 x 4
Certification CE /FCC, RoHS, KCC
Transmission rates 10/5/2.5/1Gbps and 100Mbps
Operating System
Support
Win7/8.1/10/Server 2008R2/2012/2012R2,Linux
Dimension 70(W) x 120(L) mm
Operating temperature 0° to 40° C (32° to 104° F)
Storage temperature -20° to 47° C (-4° to 116° F)
Relative humidity 5% to 95% noncondensing
Package Accessories * PC03-10G x 1
* Quick Installation Guide x 1
* Screw
