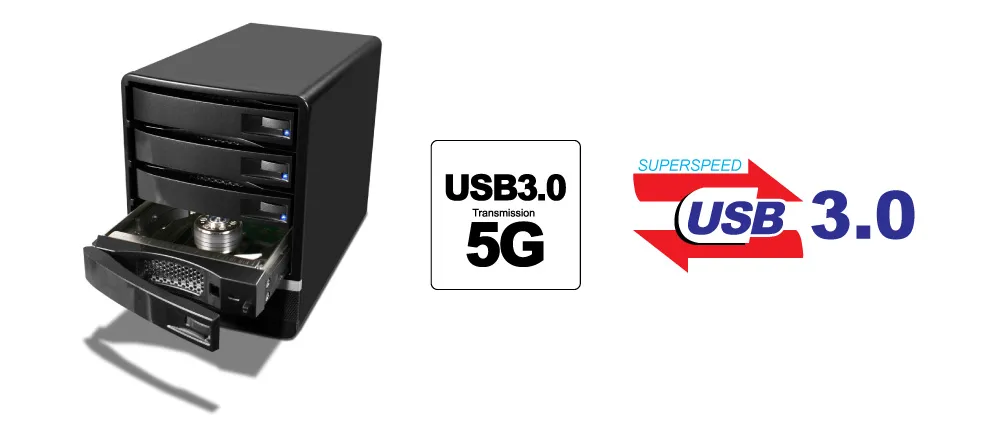

Embedded the latest interface USB3.0, GR5630 delivers the fastest data transfer rate in performance.
Data can be access through USB3.0 interface or via eSATA port to eliminate the possibility of upgrade hassles.GR5630 provides 4 of 3.5” SATA 3.0 Gb/s HDD housing to bring the massive data storage volume in usage, meanwhile supports high level data protection RAID 5 function which allowing one HDD failure tolerance , meaning when a HDD failed to function every stored data remains accessible in operation.
GR5630 offers the best choice to users who pursuing demands of speed, capacity and stability.

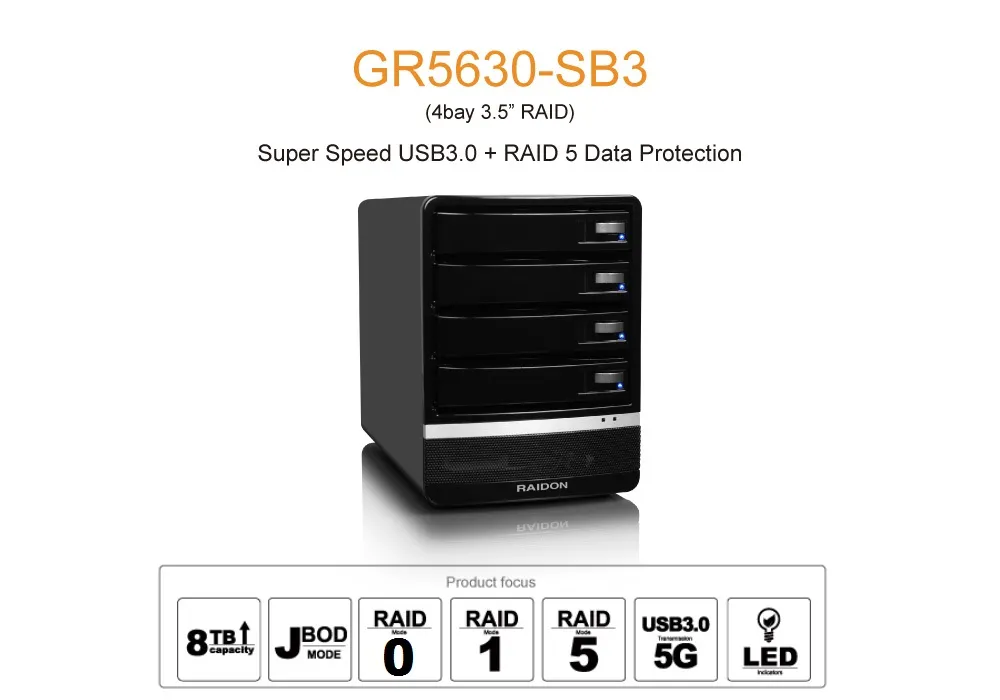

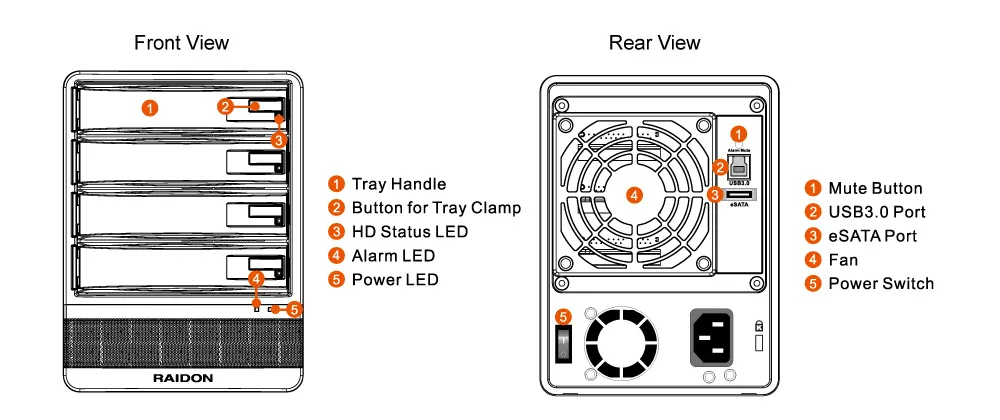

GR5630-SB3 Product View
Please click here to download the GUI of GR5630-SB3 for use.
NOTE : This GUI only for GR5630-SB3. If there is any questions, please contact Technical Customer Service.
GR5630-SB3 Specification
| Model No. | GR5630-SB3 |
|---|---|
| RAID chip | JM539 + JMB393 |
| Drive Fit | 3.5” SATA II HDD x 4 |
| RAID Level | RAID 0, 1, 5, JBOD |
| Hot-Swap | RAID 1, 5 |
| Auto Rebuilding | RAID 1, 5 |
| Host Interface | USB 3.0 & eSATA Connector |
| Power Supply | AC Input : 100V ~ 240V |
| HDD Access Indicator | LED |
| Cooling Fan | 8cm Fan |
| Buzzer Alarm | Yes |
| Environment Detector | Fan Failure / Overheat |
| Color | Matt Black |
| Structure | Metal Body |
| Dimensions | 125W x 212L x 168H(mm) |
| Weight | 3.4(kg) |
| Certifications | CE & FCC |
| Operating System Support |
Windows, Linux, Mac |
| Function Control Interface |
GUI (Windows Only) Please refer to note |
| Packing Content |
GR5630-SB3、USB3.0 Cable、eSATA Cable、Power Cable、 CD、 Quick Installation Guide、Accessory Kit |
| Operating temperature Storage temperature Relative humidity |
50° to 95° F (10° to 35° C) -4° to 116° F (-20° to 47° C) 5% to 95% noncondensing |
| GR5630-SB3 (EOL) |  |
|
|
|
Image Download Image Download |
