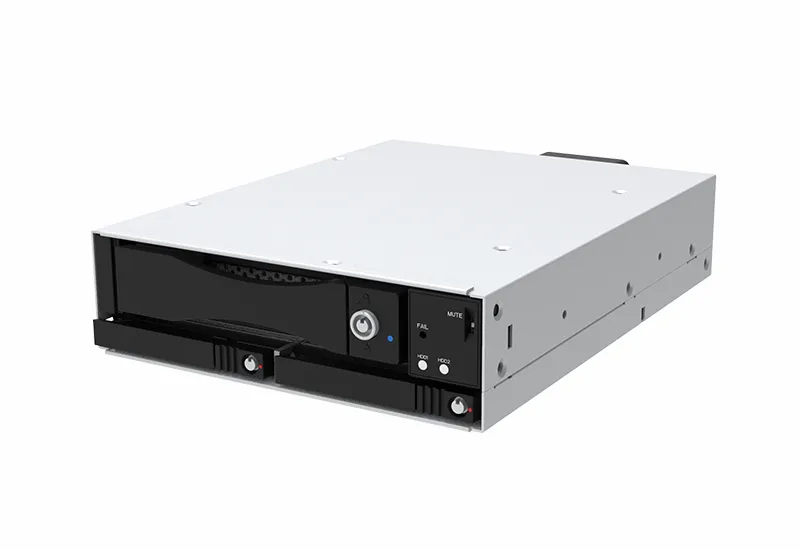

iR2301

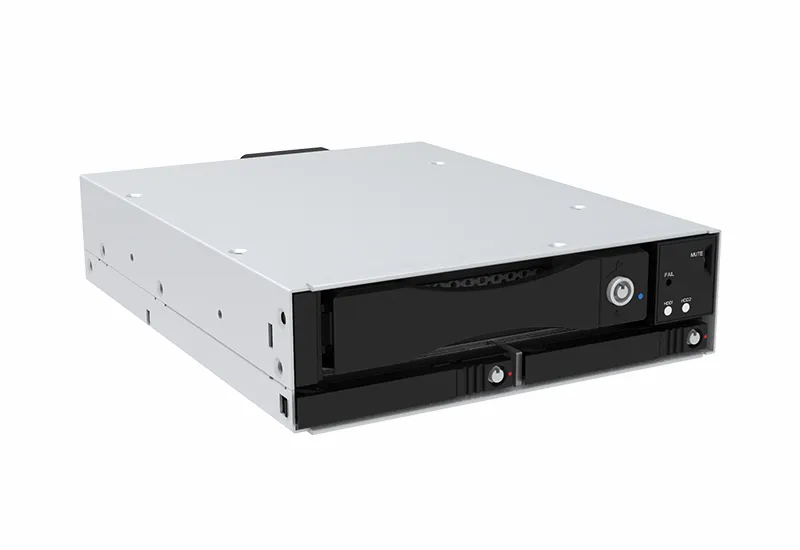

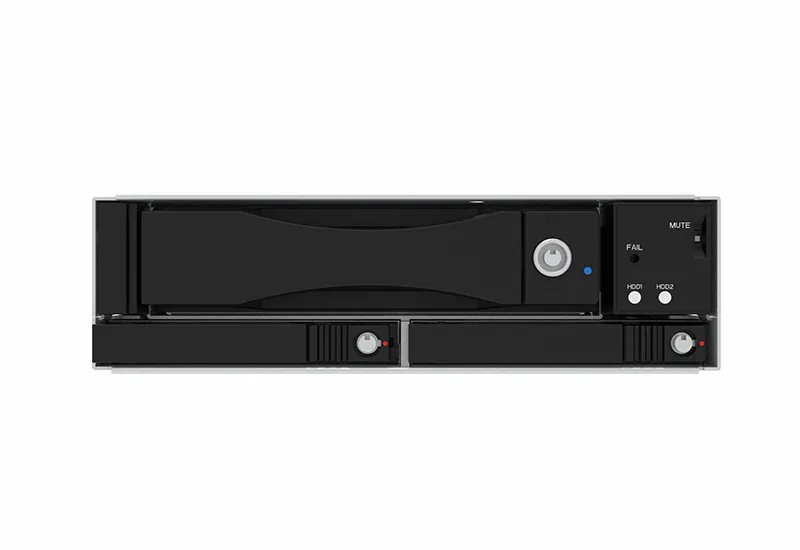

The iR2301, with a form factor equivalent to a CD-ROM drive, presents an innovative approach to data storage by supporting a RAID 1 configuration involving two 2.5” SATA SSDs. This setup ensures continuous operation by designating one SSD as the primary boot disk and providing real-time backup capabilities. In addition, the iR2301 houses an independent 3.5-inch bay suitable for either 3.5-inch or 2.5-inch SATA hard disk or SSD, which serves as a dedicated space for data backup. This makes the iR2301 a flexible and reliable solution for optimizing data storage and backup processes.

Features

1. Independent stand alone 3.5” drive bay: This feature allows for seamless and flexible data management with hot-swapping capabilities.

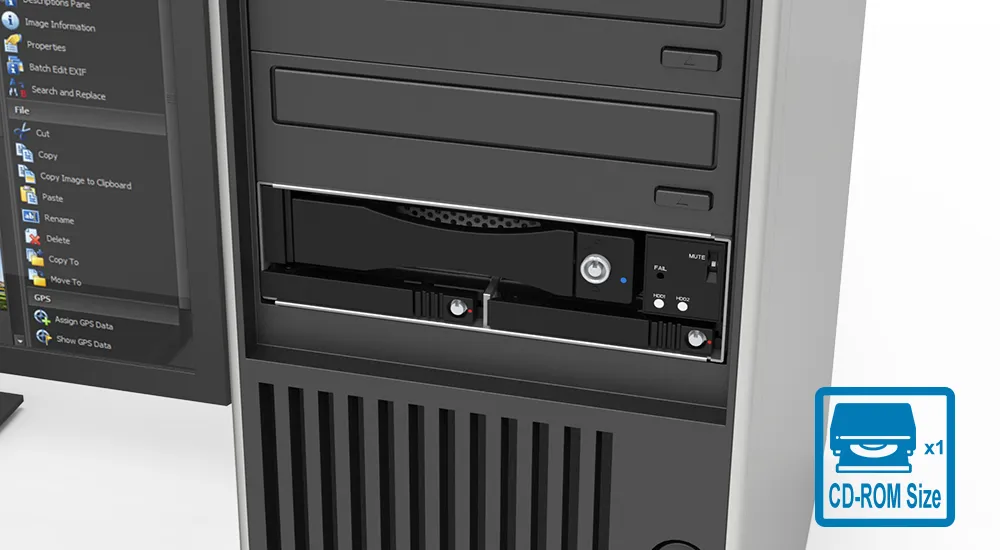

2. CD-ROM Drive Equivalent Form Factor: The device showcases an innovative design, fitting compactly into a single CD-ROM bay.

3. Support for 2.5" SATA Hard Disks or SSDs: Ensures compatibility with a wide range of storage devices for versatility in usage.

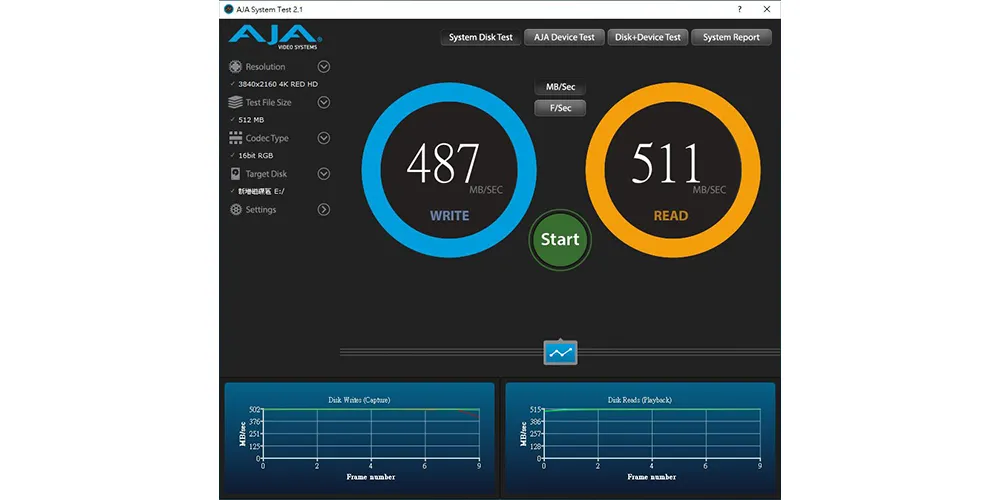

4. Intensive Multiple RAID Modes Support: Provides comprehensive RAID configuration options, including RAID 1 and RAID 0.

5. Extensive Storage Configuration with an independent 3.5-inch bay: This feature increases flexibility and control over data storage and management.

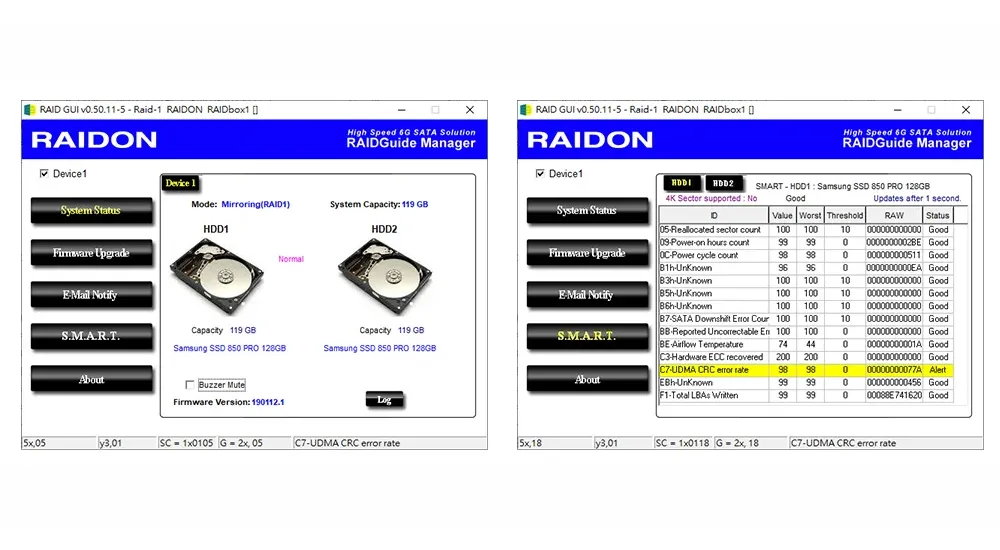

6. RAIDON STATUSGUARD GUI Software: Includes proprietary software (compatible with Windows only) for enhanced data protection and storage monitoring.

7. Hot-swappable and Plug-and-play: Facilitates easy replacement and upgrades of drives without system interruption.

8. Key Lock Feature: Provides an additional layer of security to protect the drives.

9. Efficient Heat Dissipation with Silent Fan: Ensures the device runs optimally while minimizing noise.

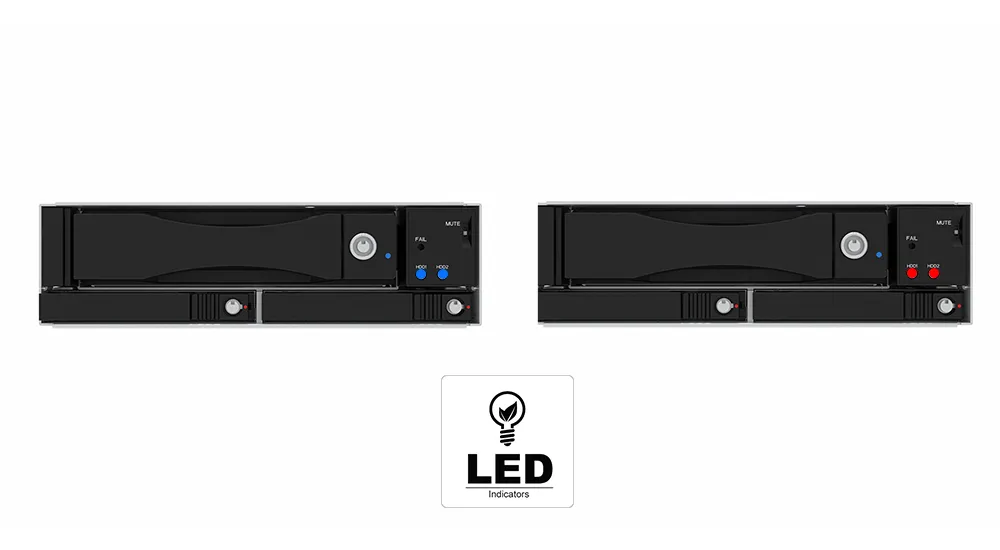

10. LED Light Indicator for Drive Monitoring: Allows for quick and easy monitoring of drive status.

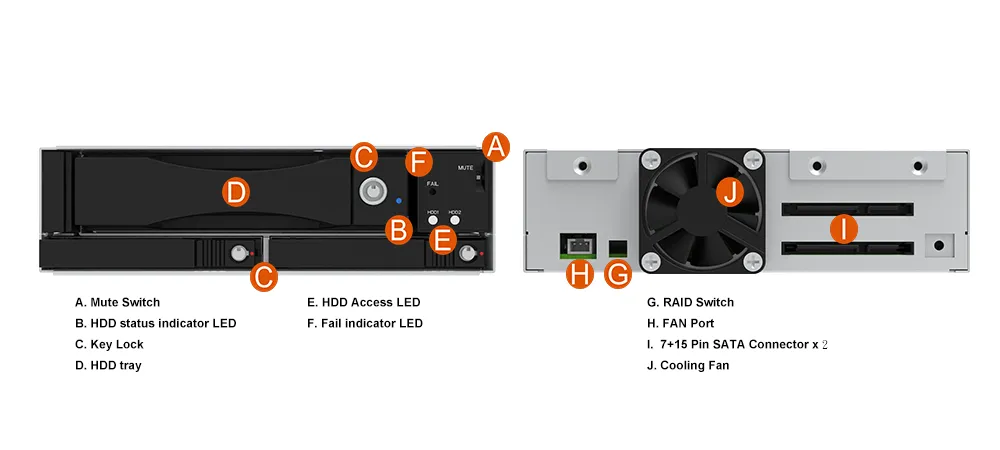

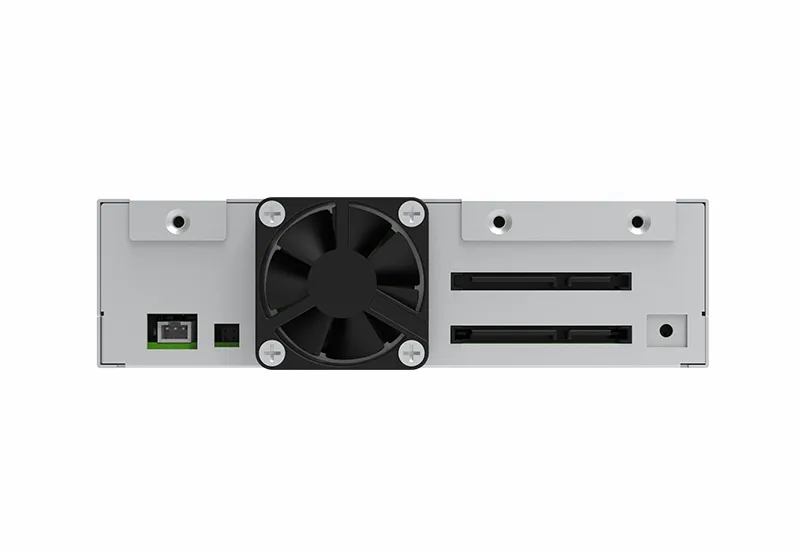

11. Easy Access RAID Mode Switch on back Panel: Facilitates simple and convenient switching between RAID modes.

12. Durable Metal Construction: Offers a robust and resilient build for long-lasting performance.

Benefits

1. Space Efficiency: Compact form factor saves valuable workspace.

2. Versatility: Supports two RAID modes and both SATA hard disks and SSDs.

3. Reliability: RAID 1 mode and hot-swappable feature for continuous operation.

4. Ease of Use: User-friendly with RAIDON STATUSGUARD GUI software (for Windows only).

5. Data Security: Key lock feature protects against unauthorized access.

6. Effective Cooling: Silent fan extends the lifespan of your drives.

7. Durability: Robust metal construction for long-lasting performance.

8. Real-Time Monitoring: LED indicators for instant drive status checks.

9. Efficient Data Management: Independent 3.5-inch bay allows precise, targeted data handling.

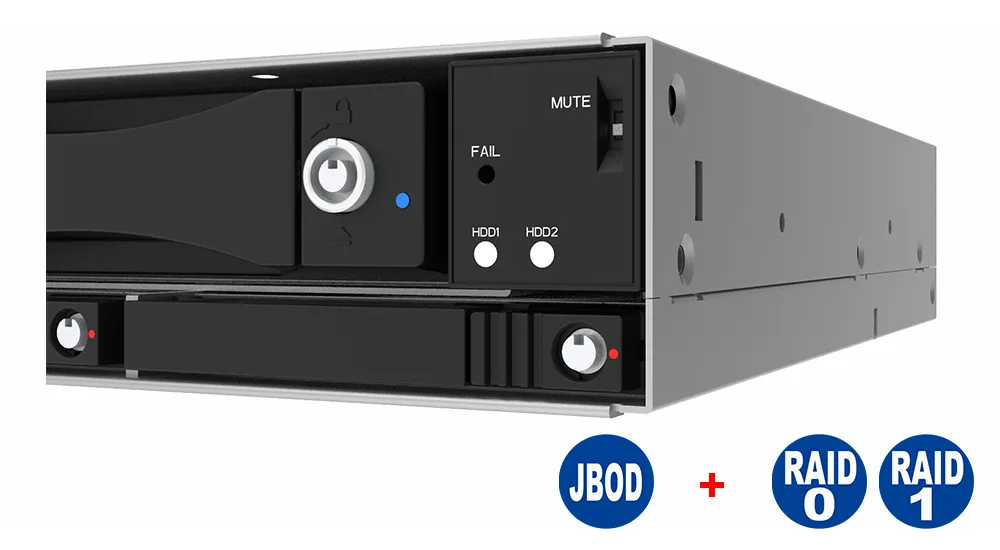

The iR2301 features a JBOD independent 3.5-inch bay

The iR2301 features a JBOD independent 3.5-inch bay. This allows you to independently interface with multiple hard disks at once, without needing to configure them into a complex RAID (Redundant Array of Independent Disks) system. In this manner, each drive operates as a separate entity, providing you with the flexibility of data management and simplified drive extraction. This feature is highly beneficial for those seeking ease and speed of data accessibility and storage.

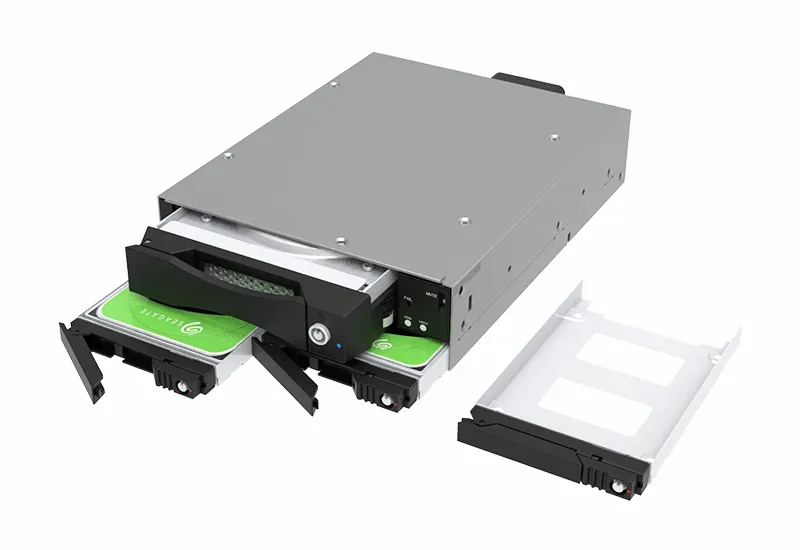

Dual RAID drives tray features a separate security key lock for enhanced protection

Each hard drive tray for RAID in the iR2301 comes equipped with an individual security key lock. This feature adds an extra layer of protection, ensuring the physical security of the stored data. By enabling lock-based access control to each hard drive, it prevents unauthorized removal or tampering of the drives, thereby safeguarding the crucial data stored within.

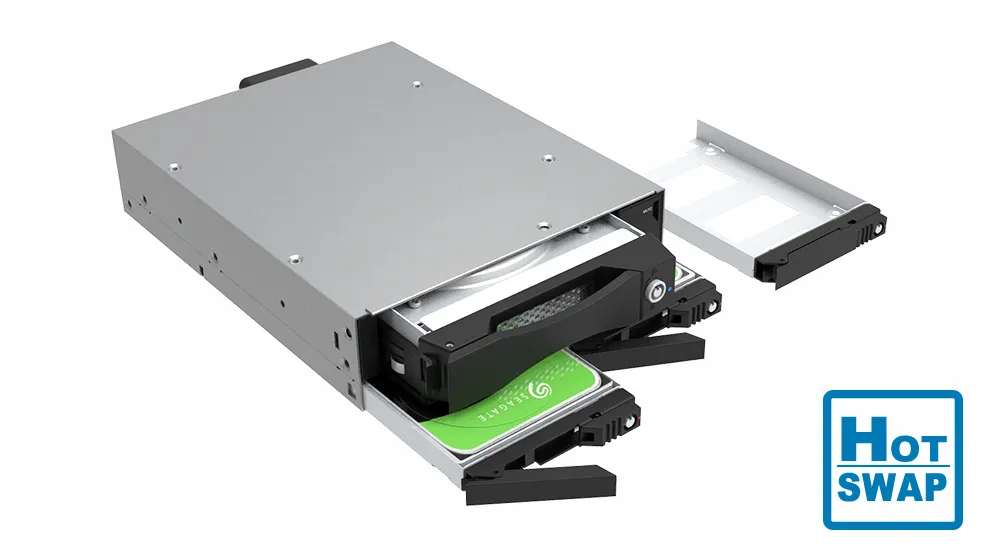

The iR2301 features a unique tray design that simplifies disk installation or removal with its hot-swappable functionality

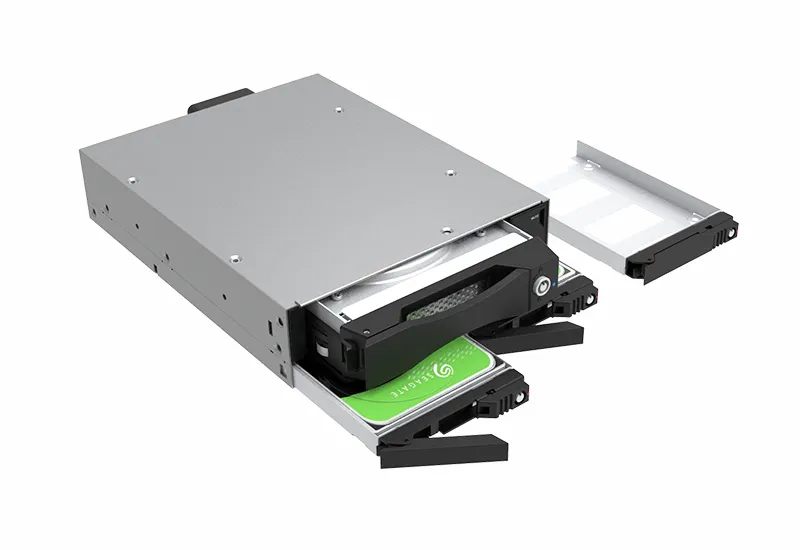

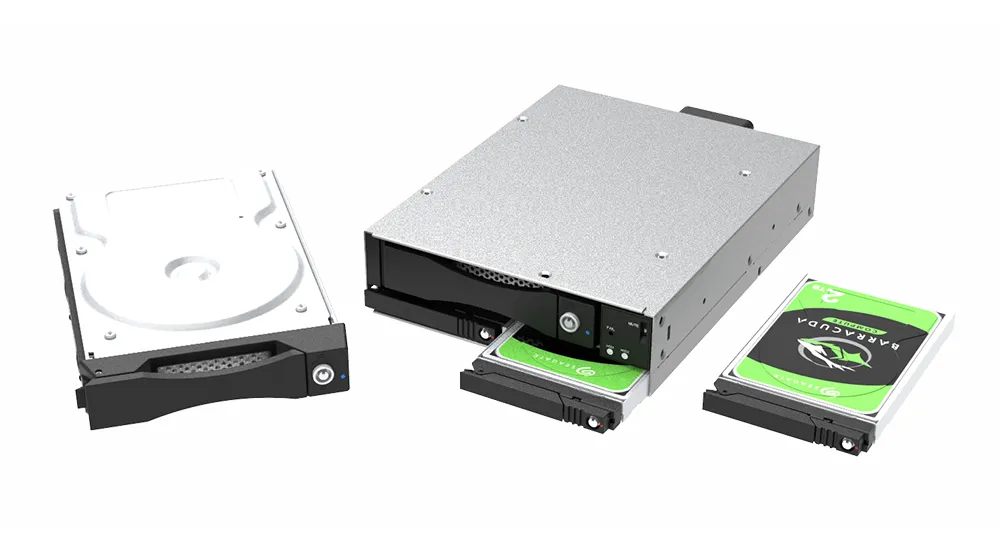

The iR2301's hard disk tray design allows for easy locking of HDDs or SSDs, providing users with the convenience of hot-swapping drives when the system is powered on, making disk or SSD replacement a breeze. Users can purchase additional hard disk trays and pre-install HDDs or SSDs, ensuring that if a drive encounters an issue; it can be promptly replaced via hot-swapping. This simplifies the replacement process, minimizes system downtime due to drive malfunctions, and enhances operational efficiency.

Each iR2301 hard disk tray (for RAID) is equipped with a key lock design that securely fastens the entire tray to the device according to actual usage requirements, preventing it from being easily removed and improving data security.

Applications

The iR2301, with its versatile features and robust construction, can find application in a variety of scenarios:

1. Small to Medium-Sized Businesses (SMBs): For businesses with growing data storage needs, the iR2301 offers an efficient and compact solution for data backup and redundancy.

2. Workstation Users: Professionals in data-intensive fields like graphic design, video editing, or 3D modeling could benefit from the speed and reliability of the iR2301's RAID configurations.

3. IT Infrastructure: The iR2301 can serve as a key component in servers, data centers, and other IT environments that require high availability and data integrity.

4. Educational Institutes and Research Facilities: The device can be used for storing and managing large amounts of research data, providing both speed and redundancy.

5. Home Use: Tech-savvy home users or home office setups would find the iR2301 useful for managing personal data, media libraries, or as a part of a home server.

6. CCTV and Surveillance Systems: The device's large storage capacity and RAID functionalities make it ideal for use in CCTV and other surveillance systems that require constant data recording and backup.

7. Healthcare Facilities: Medical institutions with the need to store large volumes of patient data, including imaging data like MRIs and CT scans, could make use of the iR2301.

8. Audio/Video Production Houses: The device could be used to store large files, edit videos in real time, and ensure that no data is lost in the event of a drive failure.

Model No	iR2301
Interfaces	2 x SATA III (6Gbps) Ports (1 for 2.5" HDD/SSD RAID module，1 for 3.5"/2.5" SATA HDD/SSD JBOD)

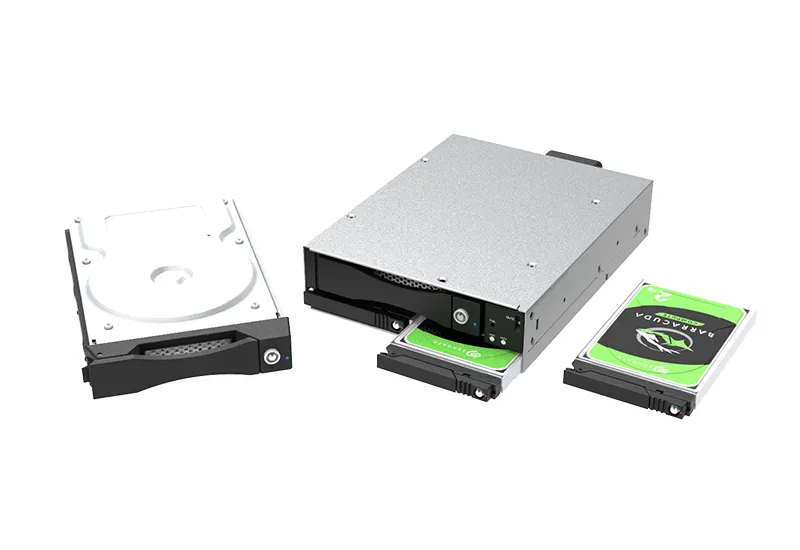

Compatible Drives	1. 1 x 3.5" Tray >> For 1 x 3.5"/2.5" SATA HDD/SSD 2. 2 x 2.5" Tray >> For 2 x 2.5" SATA HDD/SSD
Storage Level	RAID 0/1 + Independent volume( 3.5"/2.5" SATA HDD/SSD )
System Monitoring	Fan Failure / Overheat
Operating System	Windows, Linux
Function Control Interface	GUI (Windows Only)
Cooling System	4 cm Low noise fan
Electrical and Operating Requirements	* Line voltage: 12V + 5V DC * Operating temperature: 32° to 104° F (0° to 40° C) * Storage temperature: -4° to 116° F (-20° to 47° C) * Relative humidity: 5% to 95% non-condensing
Dimension & Weight	146(W)x 42(H) x 198(L) mm
Product Code	iR2301 EAN: UPC:
Carton	10 pcs per carton
Package Accessories	iR2301 SATA Cable x 2 Accessory Kit-for Tray Accessory Kit-for Case *Quick installation guide

iR2301 Download

Product	Datasheet	QM	UM	CE & FCC	Photo	other
iR2301						GUI Software for Windows

iR2301 Question & Answer

Q1How to update RAIDbox firmware without disassembly it if it's the system disk?

Please prepare the GUI, firmware file, and Windows PE boot CD in advance, and follow the steps below.
1. Save the GUI file (.exe) and firmware file (.bin) to the HDDs/SSDs inside the RAIDbox, then shut down the computer.
2. After turning on the computer, change the BIOS setting to boot using the Windows PE boot CD.
3. When enter the Windows desktop, copy the GUI file (.exe) and firmware file (.bin) from the HDDs/SSDs inside the RAIDbox to the desktop.
4. Execute the GUI file (.exe) and load the firmware file (.bin) to upgrade the firmware of RAIDbox.
5. When the firmware upgrade process is complete, remove the Windows PE boot CD and shut down the computer.
6. Turn on the computer and change the BIOS setting to boot using RAIDbox, then execute the GUI file (.exe) to check if the firmware version is correct.
Q2The correct operations to replace the damaged disk under RAID 1 mode.

When power on RAIDbox, it will check the disk status at port 0 first. If the disk at port 0 is damaged when power on, the RAIDbox may retry again and again to get the disk status at port 0, then might cause the system boot failed or cannot recognize the RAIDbox. Please pay attention to the following operations if one disk damaged under RAID 1.
1. If one disk is damaged during operation, and the RAIDbox is still power on, please replace the damaged disk by hot-swap to start rebuild. Please DO NOT turn off the power during rebuild. After rebuild finished, you can turn on / off RAIDbox normally.
2. If the disk at port 0 is damaged and the RAIDbox has been powered off (the system has been shut down), please remove the damaged disk and move the disk at port 1 to Port 0 before turning it on again. Hot-swap in a new disk to port 1 to start rebuild after turn RAIDbox on.
3. The port 0 slot for each RAIDbox might be different. Please contact the customer service (supporting@raidontek.com) if need to check.
These operations applies to these RAIDbox models: iR2770, iR2771, iR2774, iR2775, iR2777, iR2970, iR2975, iR2022, iR2023, iR2024, iR2025, iR2300, iR2301, iR2302, iR2320, iR2321, iR2822, iR2823, iR2824
Q3Upgrading Your System: Integrating iR2301 with Legacy RAID 1 Hard Drives.

1. Ensure the legacy device is functioning properly before powering down the system.
2. With the system off, replace the legacy device with the iR2301.
3. Remove a hard drive from the legacy device and install it into the iR2301.
4. Turn on the system, ensuring only one hard drive is installed in the iR2301 initially.
5. Upon booting, verify that all information is accurate and correct.
6. Once you've verified the accuracy of the data, proceed to insert another hard drive (either from the previous model or a new one) into the iR2301 while the computer remains powered on. The iR2301 will detect the newly added hard drive and automatically initiate data rebuilding.
7. Completion of the data rebuild signifies the successful update of the system.
* NOTE 1: If the legacy device is currently rebuilding data, please wait for this process to finish before undertaking the steps mentioned above.
* NOTE 2: In cases where the legacy device has only one functioning hard drive, ensure you back up its data prior to starting these operations to prevent potential data loss from hard drive failure during the process.
* NOTE 3: If the old model contains two hard drives, it's advisable to retain one of them as a precautionary measure to prevent damage during the process, which could lead to irreversible data loss.
Q4Upgrading from a Legacy RAID Device to iR2301 with New Hard Drives.

1. Begin by backing up the data from the functioning legacy device using a third-party application (e.g., Ghost).
2. Turn off the system, then replace the legacy device with the iR2301.
3. Install the two new hard drives into the iR2301 and power on the system.
4. Once the system has booted, proceed to restore the backed-up data onto the iR2301.
*NOTE: If the legacy device is undergoing a data rebuild, wait for this process to complete before starting these procedures.
