A compact enclosure for two M.2 NVMe SSDs, Tray with lock

iU2776-U6P3 supports JBOD mode, provides 2 x SFF-8643 (PCIe Gen3 x4) host interface, iU2776-U6P3 requires SFF-8643 to PCIe Gen3 x4 Adapter, and can install 2 x M.2 NVMe SSDs.

iU2776-U6P3 is a compact size like a 3.5" HDD product for two M.2 NVMe SSDs products.  You could use it for your tower/1U server, DVR, Mail Exchange Server, POS, …, etc. applications.  Its compact size fits into most of your systems which require the compact chassis.

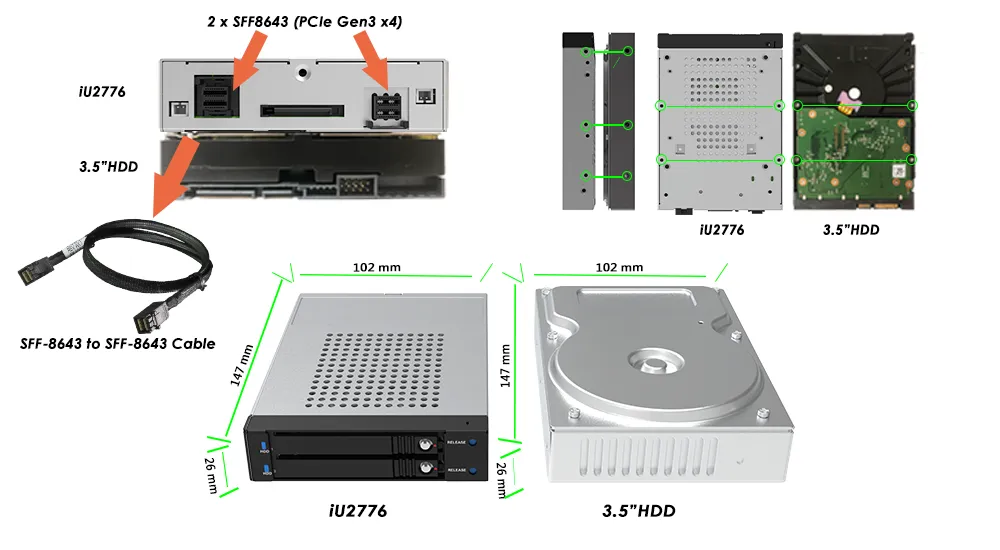

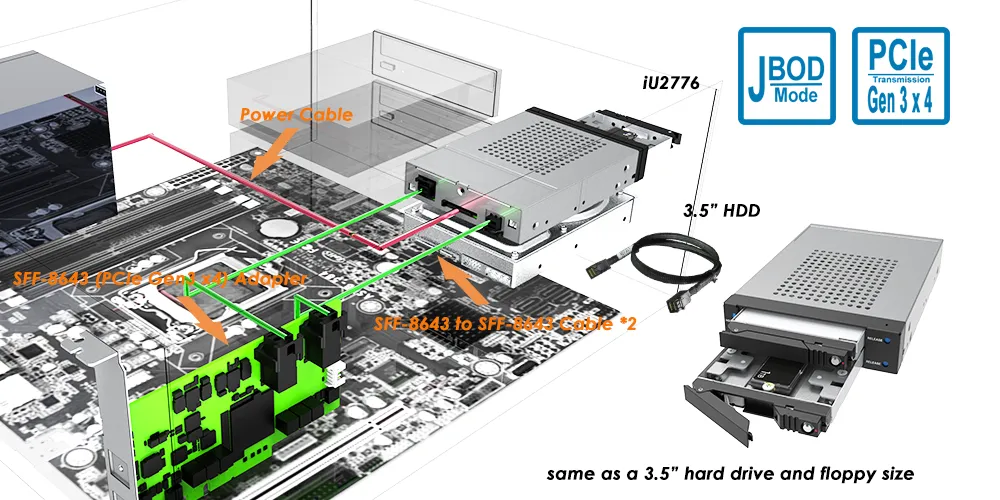

iU2776-U6P3 exact same Dimension, and Screw Holes as 3.5” hard drive

RAIDON iU2776-U6P3 internal JBOD module provides 2 x SFF-8643 (PCIe Gen3 x4) and 15-pin Power Connector; the Dimension, and Screw Holes exactly as the same as a 3.5” hard drive. Thus, it is not necessary to install any other brackets but just install the iU2776-U6P3 inside to existing PC and then it will be upgraded to be a PC system with 2 x M.2 NVMe SSD (2242/2260/2280) JBOD storage!

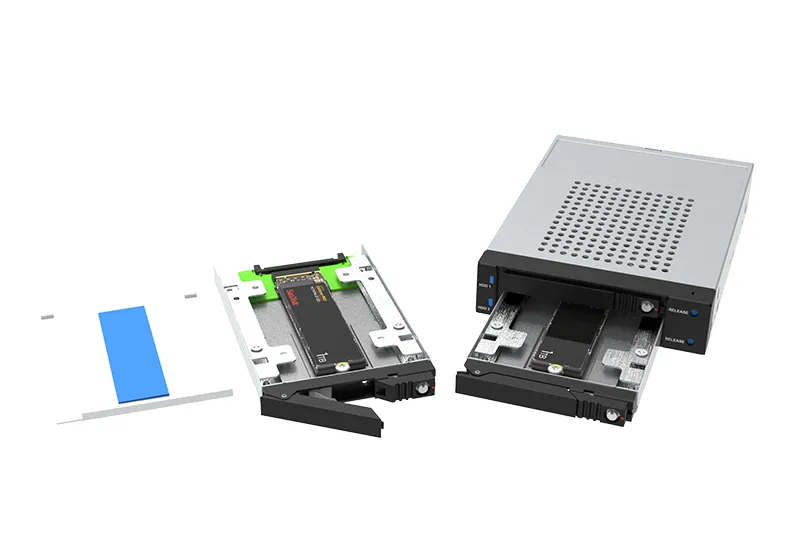

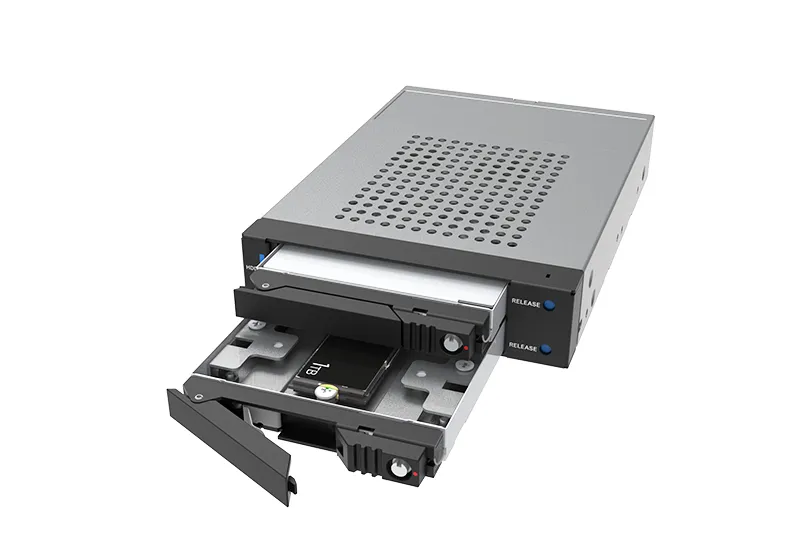

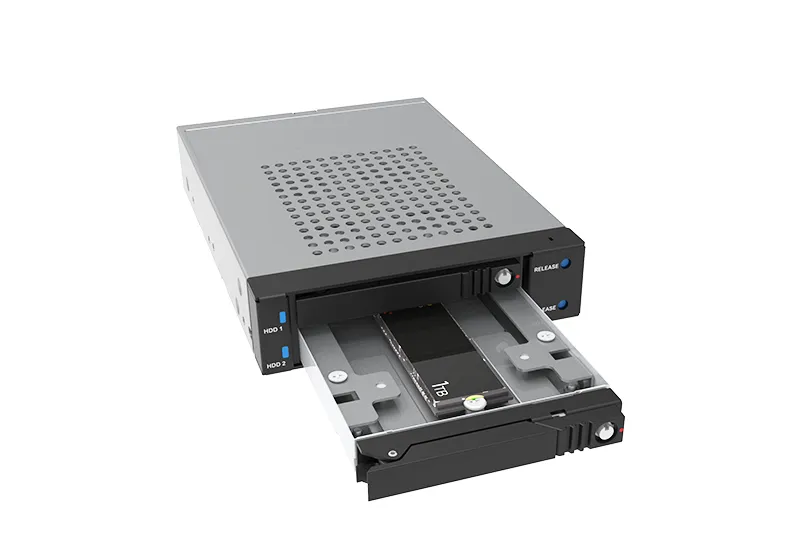

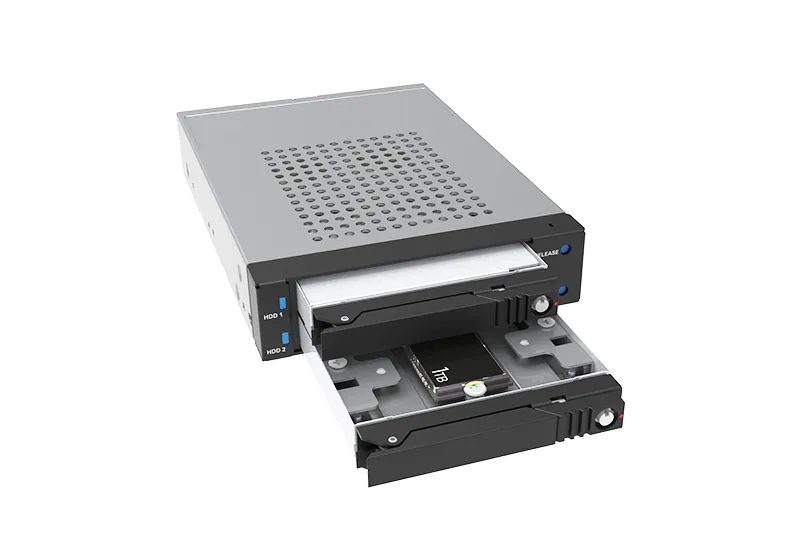

Easy-to-use M.2 NVMe SSD Tray module

RAIDON's easy-to-use disk tray module comes with lock the tray and secure the disk with screws. User can buy several disk tray modules and secured the disks first, once there is one M.2 NVMe SSD in iU2776-U6P3 is failure, just replace the M.2 NVMe SSD directly. It can greatly reduce the wait time for system maintenance.

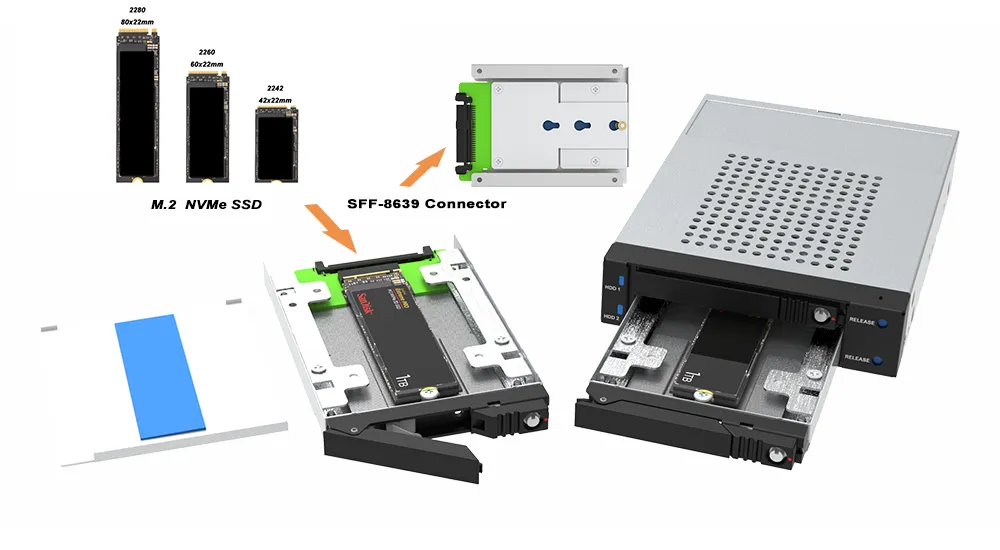

iU2776-U6P3 supports M.2 NVMe Converter or U.2 SSD (height 9.5mm) install in the Tray.

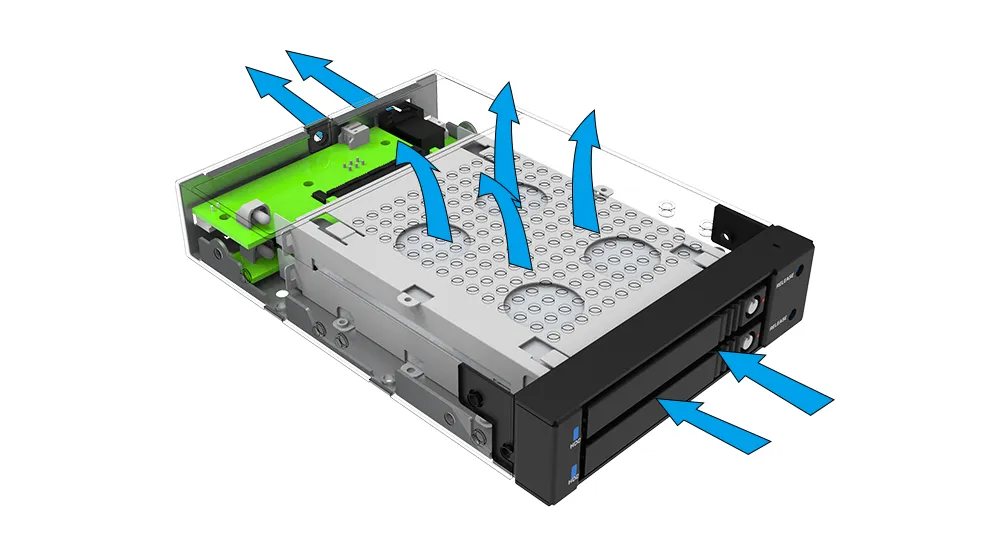

Fan-less, Cooling Hole Design

Overheat is one of the major problems to cause system failure, and causes a huge loss at the downtime period in the 24-hour full-automation production equipment. Our iU2776-U6P3 has an excellent ventilation design to help dissipating the heat generated from two HDDs/SSDs efficiently and reduces the loss caused by system downtime.

iU2776-U6P3 is recommended being used in your CNC machinery to the huge IC production equipment.

Help Upgrading Your System with Software RAID features

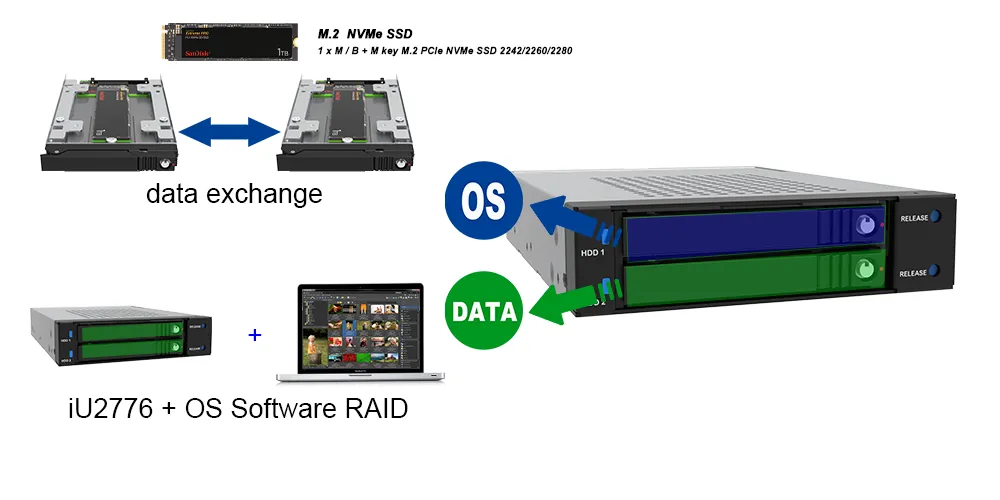

iU2776-U6P3 provides JBOD feature and it lets you keep OS and DATA separately in two M.2 NVMe SSDs. And you could easily upgrade it with RAID feature from OS software RAID thru SFF-8643 to SFF-8643 Cable.

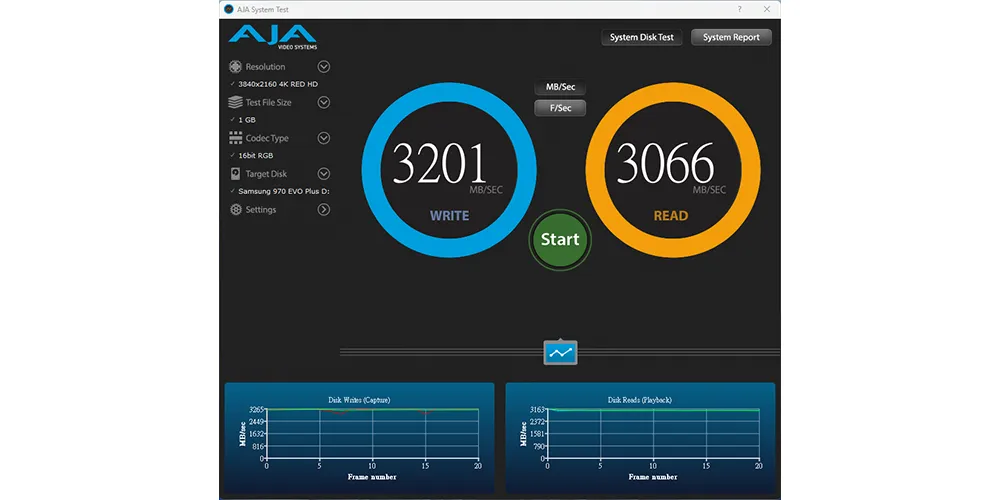

Performance test result for reference. The test result will vary depend on the test environment.

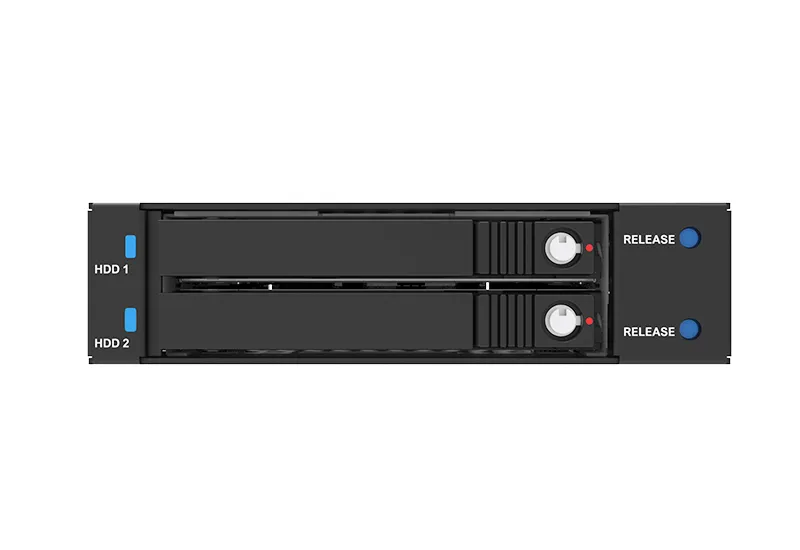

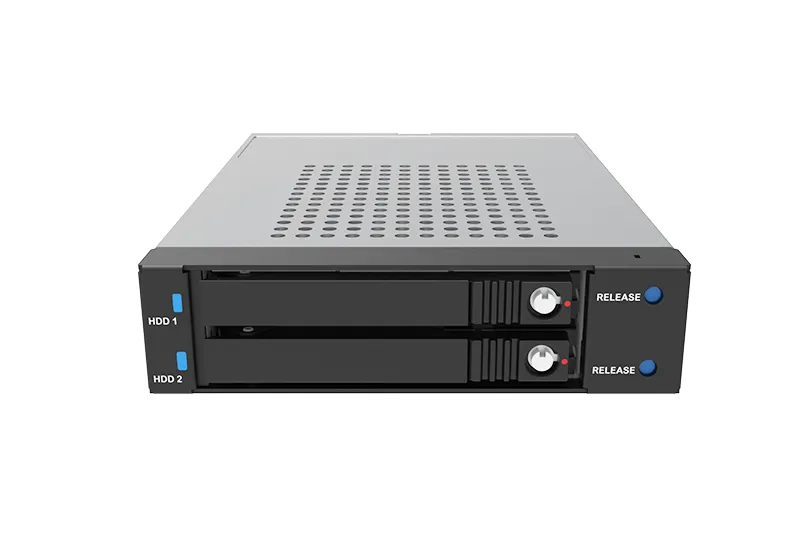

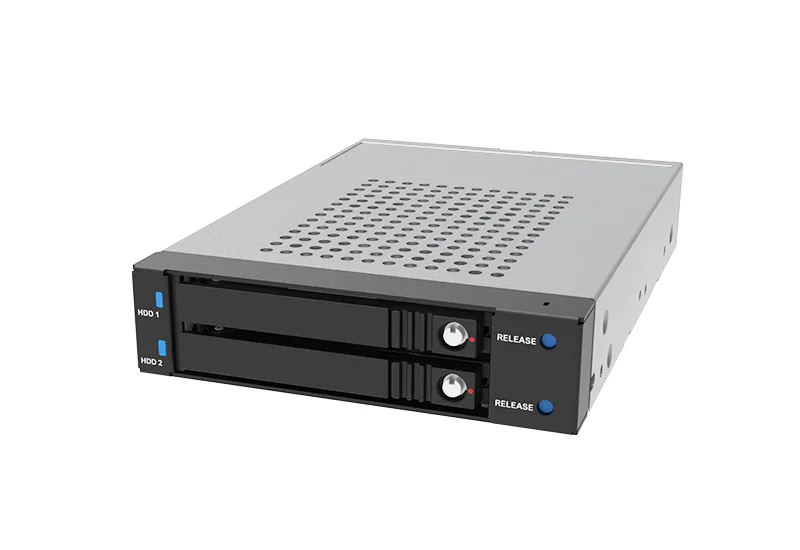

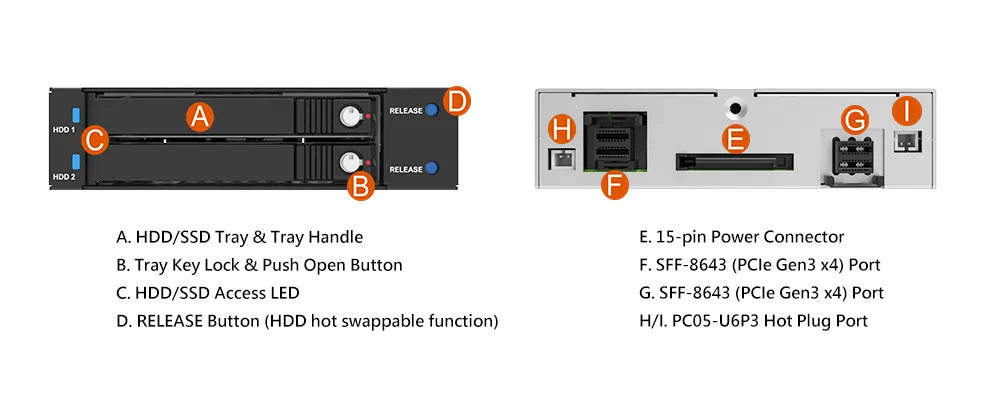

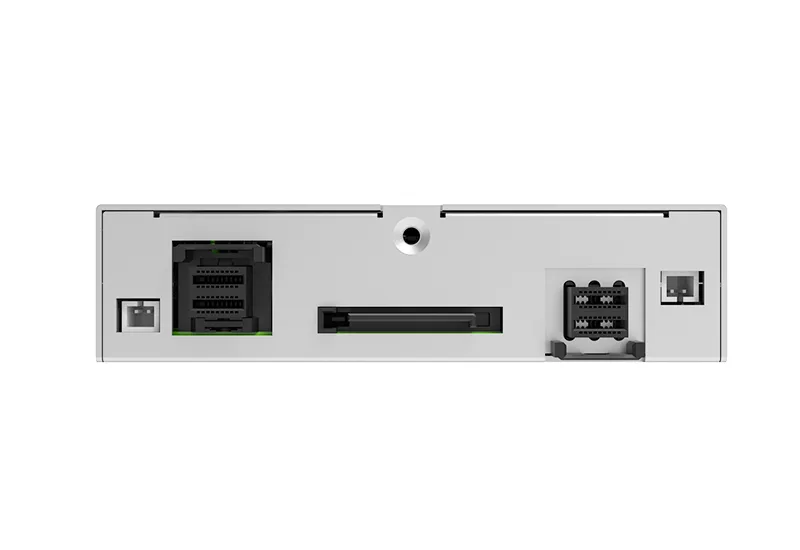

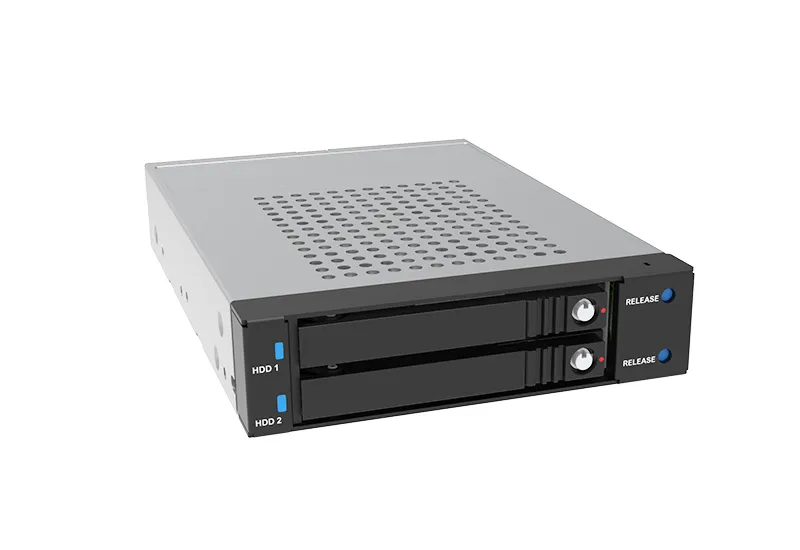

Product View

Specification
