SafeTANK Series
GR3680-B31A (2bay 2.5"-3.5" RAID)
Support 2 x 2.5" / 3.5" SATA III HDD/SSD Hardware RAID 0/1 Storage
Provide USB 3.2 Gen 2 Type-C to A cable, drive hot swappable, LCM display
Product Feature:
1. Hardware RAID storage, suitable for MAC and PC.
2. Supports two RAID modes, based on usage demand.
* RAID 1 for data protection doubled, RAID 0 for transmission speed doubled.
3. Support host computer with Type-A.
* Provide USB 3.2 Gen 2 Type-C to A cable.
* Transmission speed can be up to 6Gbps.
4. Removable and hot swappable design, support 3.5" and 2.5" hard drive trays.
5. LCM display and LED indicator for use convenience.
6. Low noise fan design with fast heat dissipation.
7. Rugged aluminum structure design with high quality and fast heat dissipation.

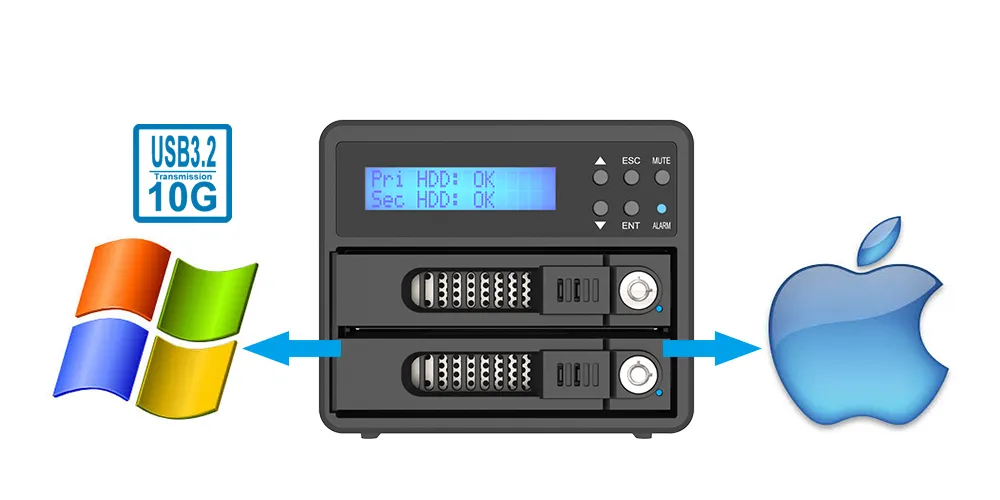

Multifunctional Hardware RAID Storage, support Mac and PC
GR3680-B31A is a hardware RAID storage has RAID 0 and RAID 1 function. It is deisgned with rugged aluminum structure. It is also equipped with removable and hot swappable trays that can protect hard drives and with convenience usage, suitable for various application.
It supports USB 3.2 Gen 2 Type-C to A interface, tranmission speed can be up to 6Gbps . Suitable for Mac and Windows PC, and provide extreme usgae convenience and flexible applicabilities.

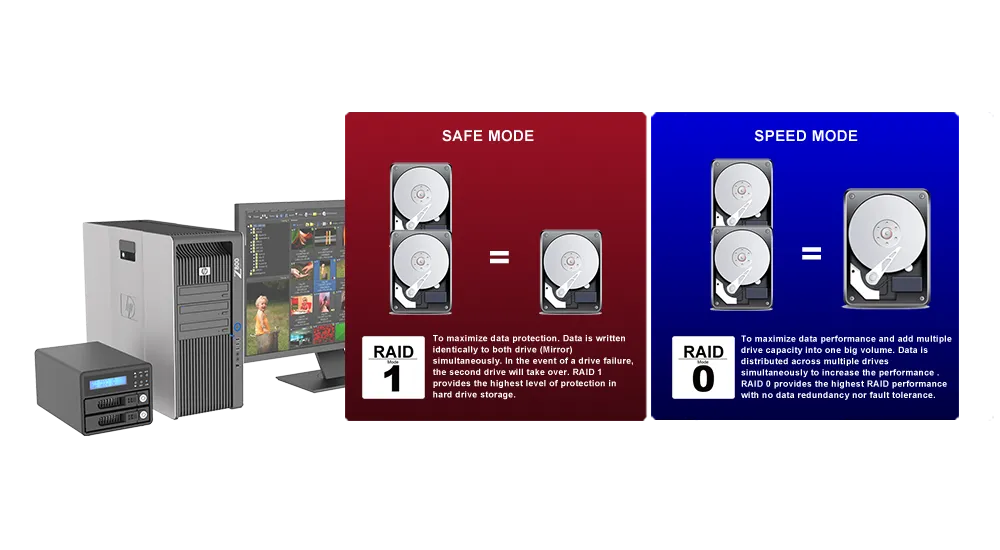

GR3680-B31A supports two RAID modes, based on usage demand
GR3680-B31A can back up your important office files, family photos, movies and download data or other digital assets reliably and efficiently.
Under the RAID 1 mode, If one of hard drive is damaged, users just need to remove the damaged hard drive, and exchange the new hard drive, then still can miantain and keep the important data. GR3680-B31A will automatically rebuild these data, and users do not need to worry about the backup.
Under the RAID 0 mode, GR3680-B31A can provide the higher speed and capacity effectively, users can use the large capacilty space after the combination of two hard drives, and use the high speed transmission to complete the work demands.

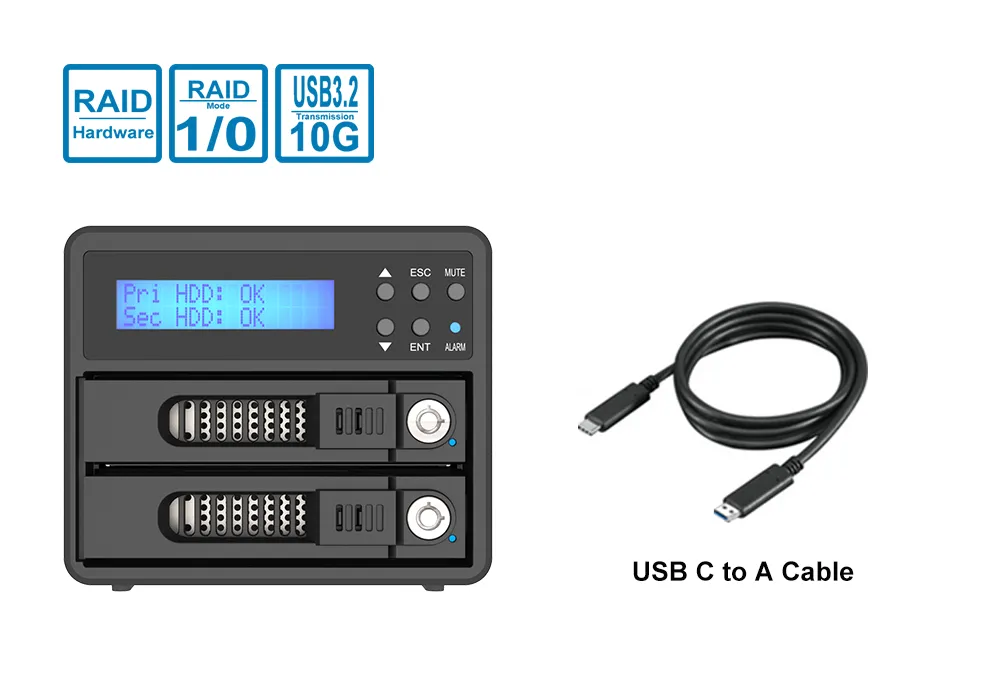

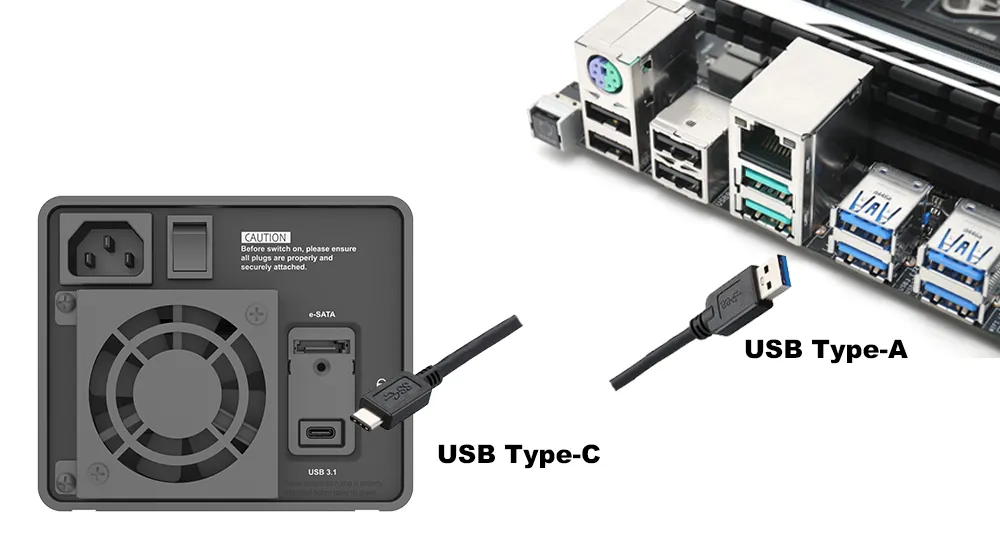

Provide Type-C to A cable
GR3680-B31A is equipped with RAID 0/1 modes, users can use the Type-C to A cable to connect to any host PC or notebook with USB Type-A, and the transmission performance can be up to 6Gbps . Whether it is used for searching files, editing photos or watching the 4K high resolution videos, GR3680-B31A will bring you the extremely enjoyment of video and audio quality.

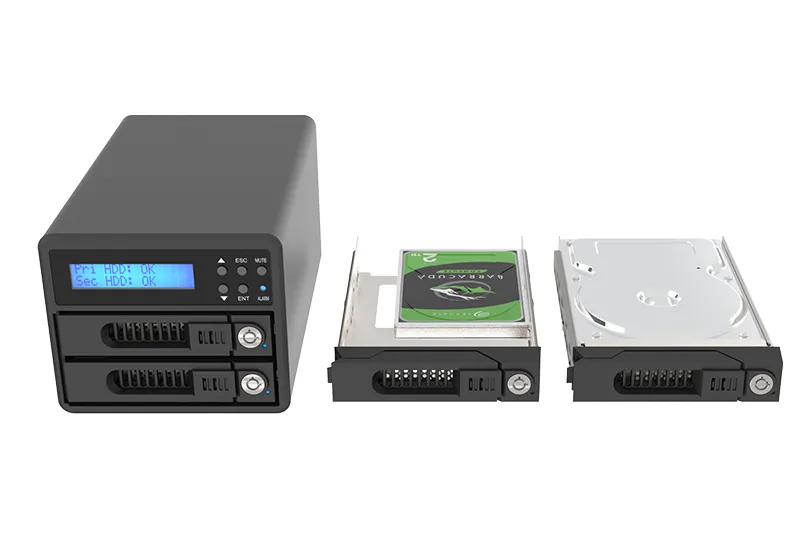

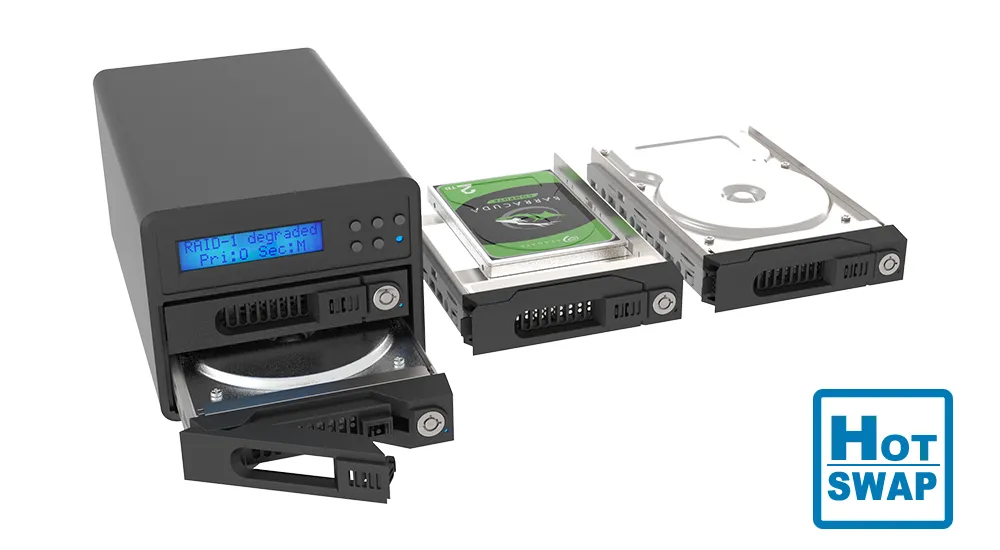

Removable and hot swappable drive trays, support 2.5" & 3.5" HDD/SSD
GR3680-B31A is the high capacity data storage, and has two easy to use trays for 2.5" or 3.5" SATA HDD/SSD. It is designed with the solid aluminum structure and casing to protect the hard drives from damaged. It is suitable for the professional creative field and mobile applications.

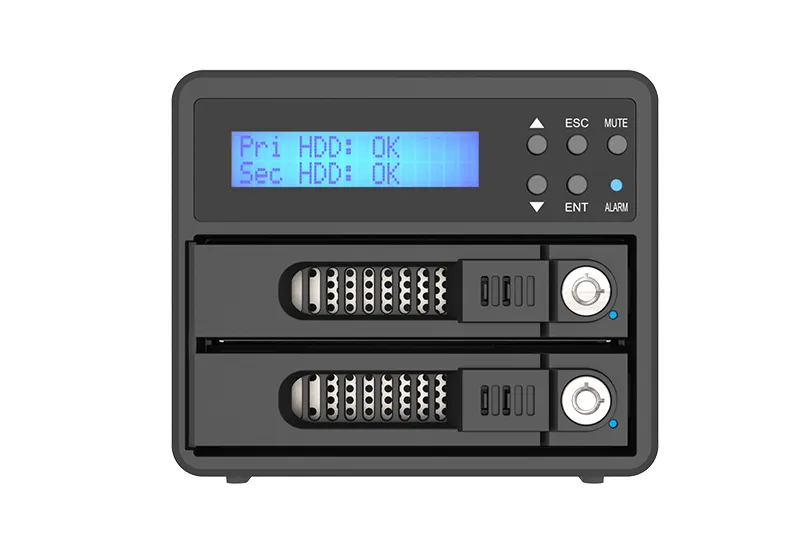

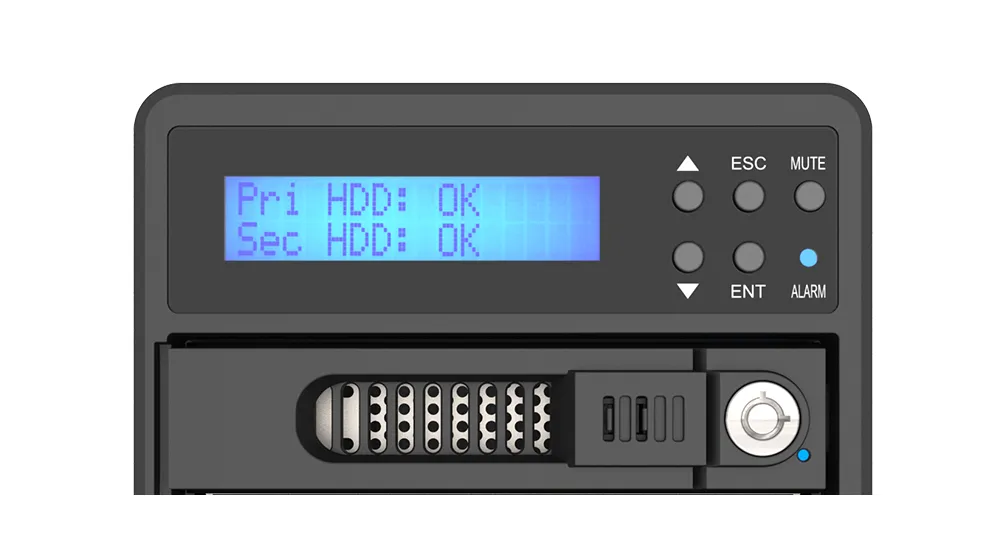

LCM display and LED Indicator make GR3680-B31A more user friendly
Equipped with clear readable LCM display and LED indicators for system monitoring during operation, so users can easily grasp the status of the system at all times. Moreover, it comes with visual and audio alarms whenever failure occurs.
In addition, GR3680-B31A provides the mute button on the front panel, so that the buzzer can be turned off when the device has the failure, to avoid constant beeping caused noise.

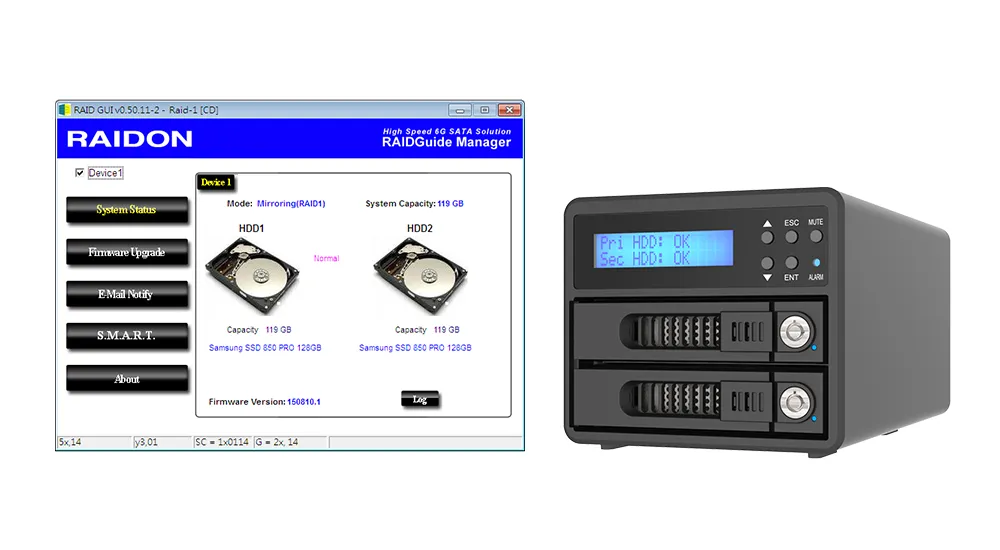

Included software monitoring program to easily view hard disk status
GR3680-B31A, in addition to the back light screen that can display the module status, for Windows users, a software RAIDGuide Manager monitoring program is also provided. It allows users to understand the RAID module and hard disk status more directly through the monitoring program. Even better, after setting the monitoring program, it will take the initiative to send letters to users when the hard disk fails. This instant notification allows users to be aware of the situation as soon as possible to remedy the situation faster.

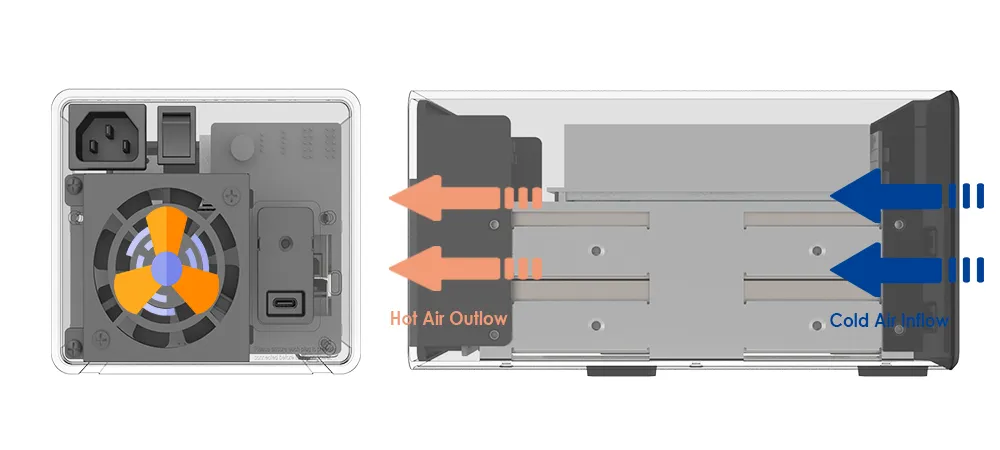

Low noise fan design with fast heat dissipation
The new GR3680-BA31 has a built-in low-noise fan, to allows the device to quickly dissipate heat without affecting the transmission perofrmance.

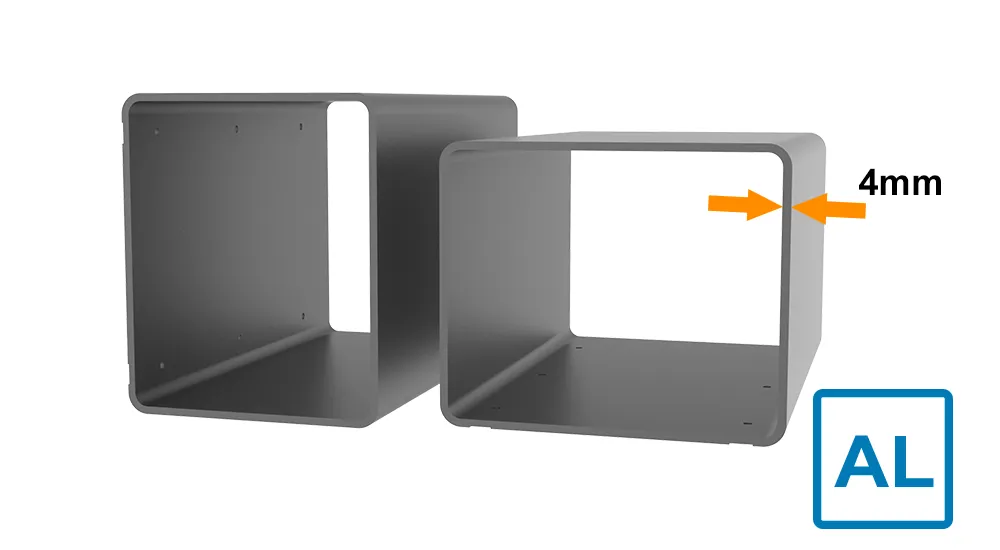

Rugged Aluminum Chassis Design
GR3680-B31A's solid chassis is made by a thickness aluminum-alloy plate which can withstand greater impact than ordinary aluminum shell products, and it can really protect your hard disk and cope with various usage conditions. And its aluminum housing really help an efficient heat dissipation for your long time use.

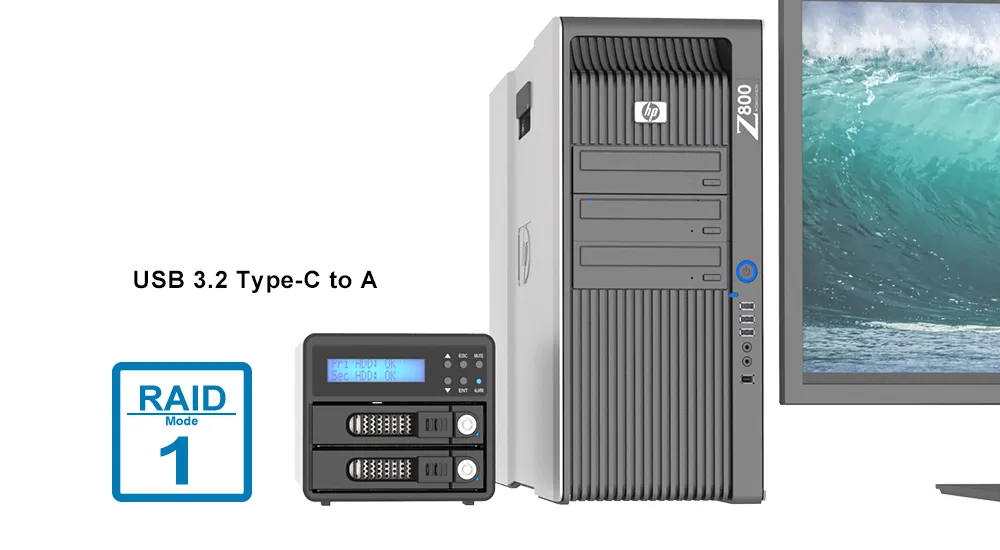

Raid 1 Mode, use with Server to backup the important data
You can also use the Type-C to A cable to connect to a Server device with a Type-A interface. Using RAID 1 mode, the GR3680-B31A can be easily expand to be a personal storage center. Users do not need to worry about the hard drive damaged to lost the important data, and can achieve comprehensive data backup.

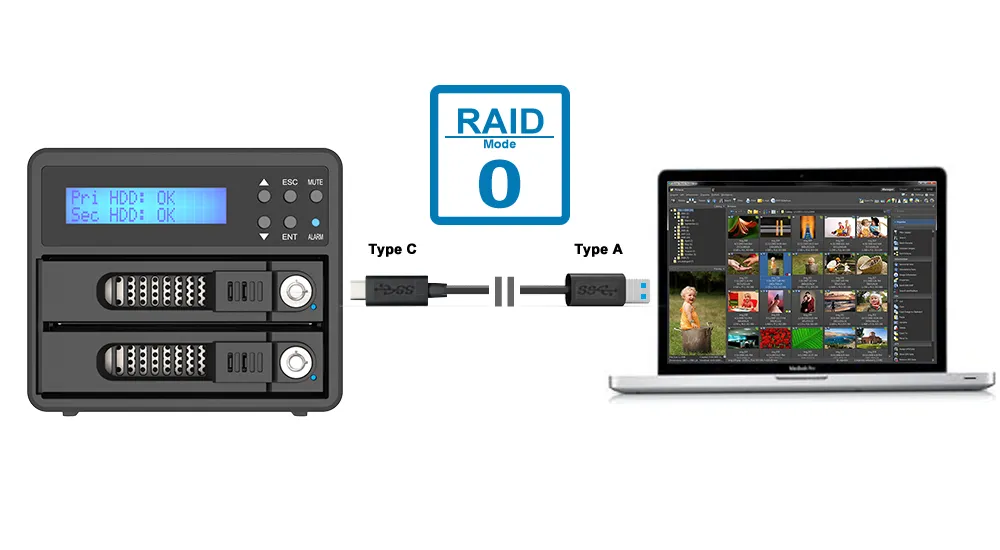

RAID 0 mode, complete various photo editing quickly
GR3680-B31A has an ultra-fast Type-C to A cable. Users can connect GR3680-B31A to any host device that has USB Type-C to A interface. Using RAID 0 mode, the GR3680-B31A can be created an entire photography studio to import or backup thousands of RAW images at any time, and help users to complete various photo editing quickly.

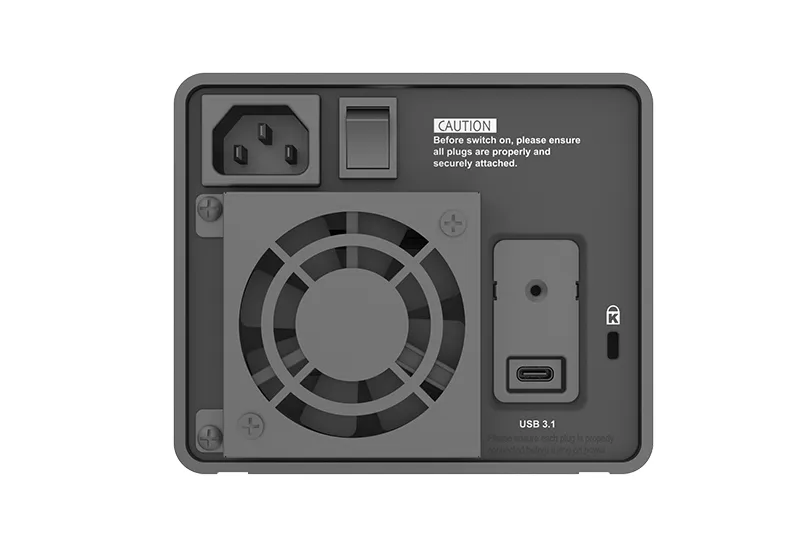

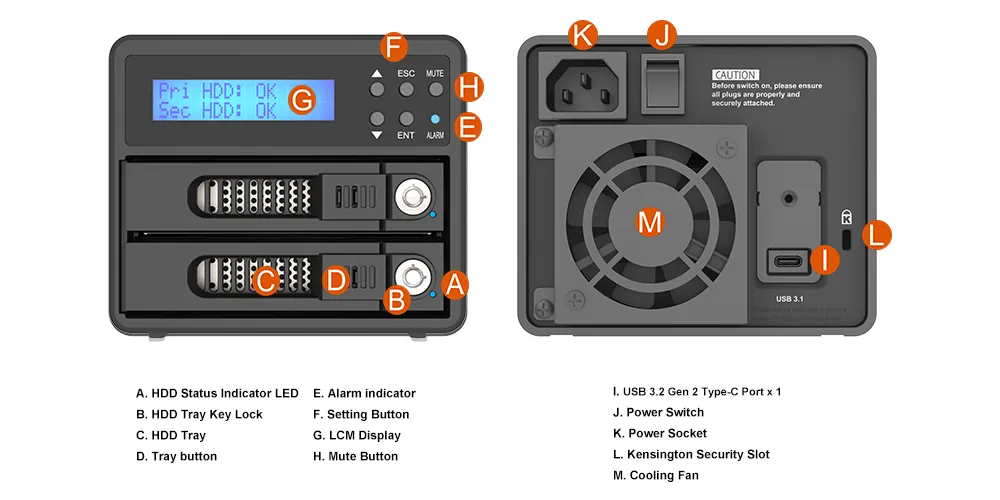

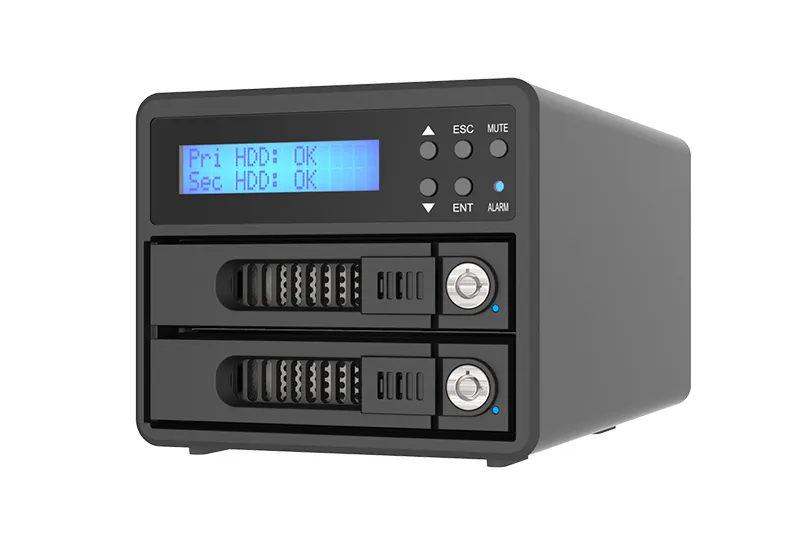

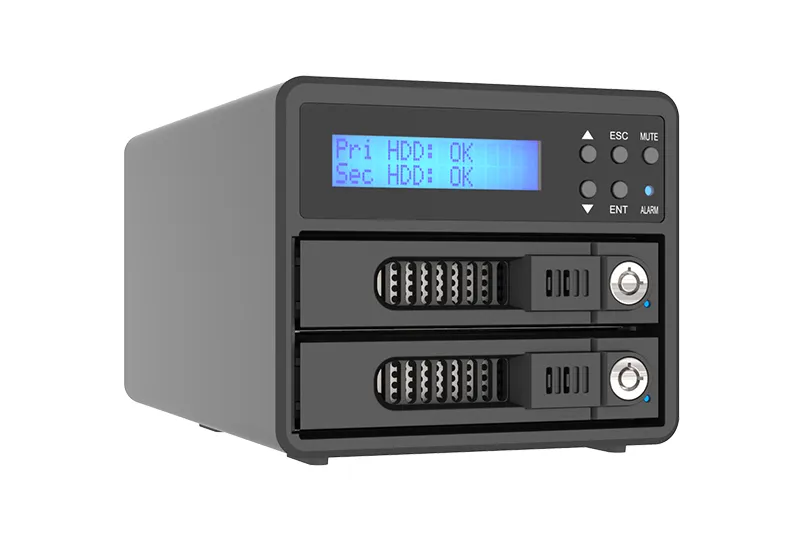

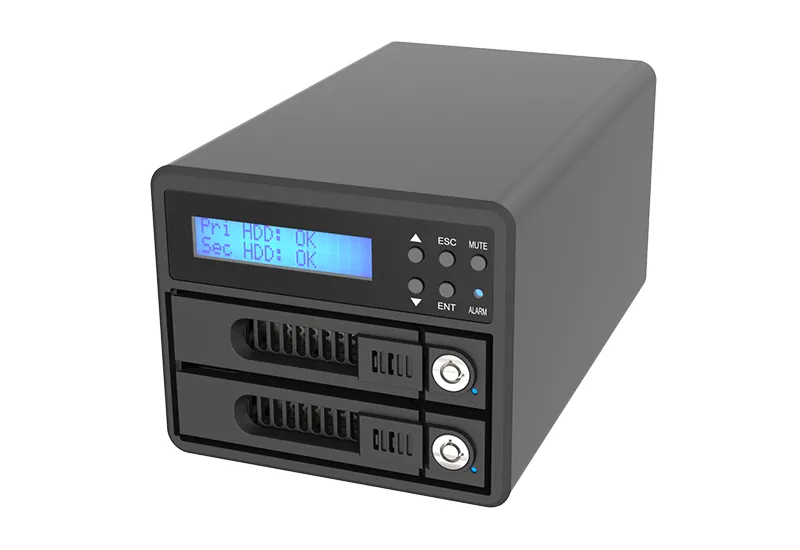

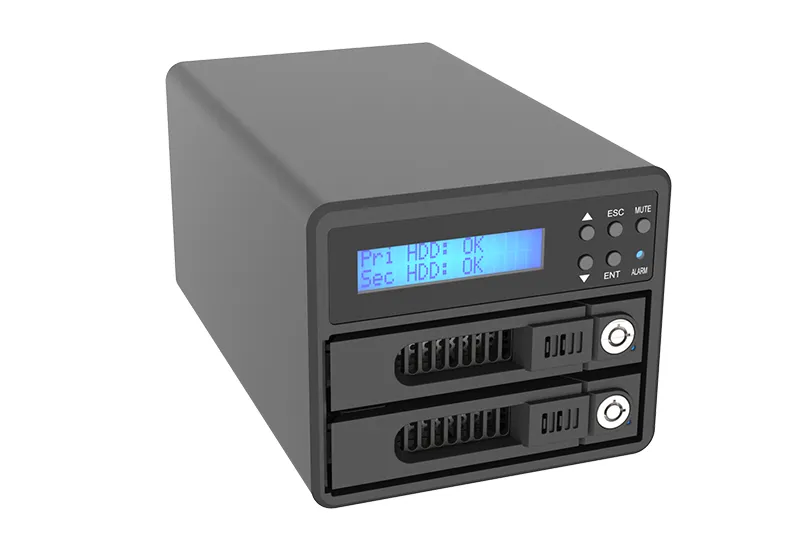

Product View
Specification
Model No | GR3680-B31A |
---|---|
Interfaces | USB 3.2 Gen 2 ( up to 6 Gbps ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications |
Compatible Drive |
2 x 2.5"/3.5" SATA III ( 6.0 Gbits) HDD/SSD |
Storage Mode | RAID 1 / RAID 0 |
Operating System Support |
Windows 7 or above, OS X 10.10 or above, Linux OS |
Cooling System | 6 cm Low noise fan |
Electrical and Operating Requirements |
* Line voltage: 100-240V AC * Frequency: 50Hz to 60Hz, single phase * Maximum continuous power: 68W * Operating temperature: 32° to 104° F (0° to 40° C) * Storage temperature: -4° to 116° F (-20° to 47° C) * Relative humidity: 5% to 95% non-condensing |
Size and Weight | 122 mm (W) x 102 mm (H) x 205mm (D) |
Product Code | GR3680-B31A EAN:4713227441100 UPC:884826505662 |
Package Accessories | * GR3680-B31A x 1 (with removable drive tray enclosed x 2) * USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1 * Power Cord x1 * Accessory Kit * Quick Installation Guide x1 |
GR3680-B31A | ![]() |
![]() |
![]() |
Image Download | GUI Software for Windows |
Product Name | Brand | HD Type | HD Category | Model Number | Capacity | Note |
---|---|---|---|---|---|---|
GR3680-B31A | WD | 2.5" SSD | WDS500G1R0A | 500GB | ||
GR3680-B31A | WD | 2.5" SSD | WDS100T1R0A | 1TB | ||
GR3680-B31A | WD | 2.5" SSD | WDS200T1R0A | 2TB | ||
GR3680-B31A | WD | 2.5" SSD | WDS400T1R0A | 4TB | ||
GR3680-B31A | Seagate | 3.5" HDD | ST8000NM000A | 8TB | ||
GR3680-B31A | Seagate | 3.5" HDD | ST16000VN001 | 16TB | ||
GR3680-B31A | Seagate | 3.5" HDD | ST14000VN0008 | 14TB | ||
GR3680-B31A | Seagate | 3.5" HDD | Ironwolf | ST6000VN001 | 6TB | |
GR3680-B31A | Seagate | 2.5" SSD | IronWolf 125 | ZA4000NM10002 | 4TB | |
GR3680-B31A | Seagate | 2.5" SSD | IronWolf Pro 125 | ZA3840NX10001 | 3.84TB | |
GR3680-B31A | WD | 3.5" HDD | WD181KFGX | 18TB | ||
GR3680-B31A | WD | 3.5" HDD | Ultrastar DC HC520 | HUH721212ALE600 | 12TB | |
GR3680-B31A | WD | 3.5" HDD | Red Pro | WD121KFBX | 12TB | |
GR3680-B31A | WD | 3.5" HDD | Red | WD120EFAX | 12TB | |
GR3680-B31A | Seagate | 3.5" HDD | SkyHawk AI | ST16000VE000 | 16TB | |
GR3680-B31A | Seagate | 3.5" HDD | IronWolf Pro | ST18000NE000 | 18TB | |
GR3680-B31A | Seagate | 3.5" HDD | Exos X18 | ST18000NM000J | 18TB | |
GR3680-B31A | Pioneer | 2.5" SSD | APS-SL3N | APS-SL3N-1T | 1TB | |
GR3680-B31A | Seagate | 3.5" HDD | Ironwolf | ST10000VN000 | 10TB | |
GR3680-B31A | Seagate | 3.5" HDD | IronWolf Pro | ST10000NE000 | 10TB | |
GR3680-B31A | Seagate | 3.5" HDD | SkyHawk AI | ST18000VE002 | 18TB | |
GR3680-B31A | Seagate | 3.5" HDD | IronWolf | ST12000VN0008 | 12TB | |
GR3680-B31A | Seagate | 3.5" HDD | Exos 7E10 | ST10000NM017B | 10TB | |
GR3680-B31A | Seagate | 3.5" HDD | IronWolf Pro | ST20000NE000 | 20TB | |
GR3680-B31A | Seagate | 3.5" HDD | Exos X20 | ST20000NM007D | 20TB |
