High performance, low cost, large capacity supported RAID system for high definition Video/Audio post-production workflows. Supports multiple HD Video/Audio streams, GR3680-SB3 is designed specifically for professional content creation applications and features high-speed interfaces including USB3.0 (5G) and e-SATA (6G) ports.

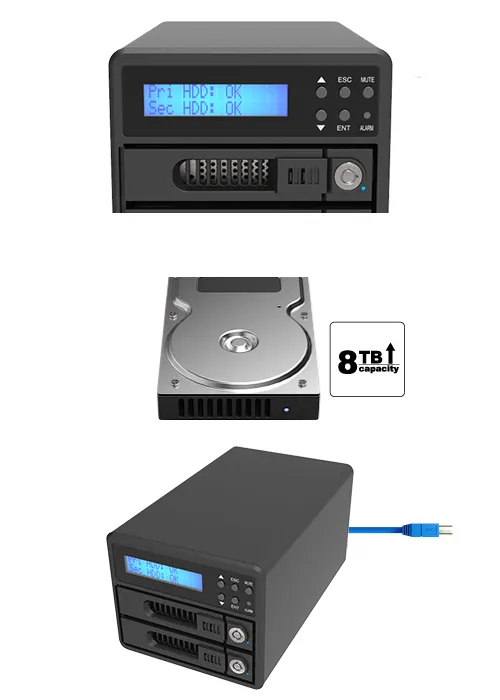

Configure, Monitor,



No Software Needed.


Configure, setup and monitor system status via front panel LCD without installing any software. GR3680 is ready to use right out of the box to start protecting your data or enhance your digital content creation workflow.





Massive Space, Compact Size.


The GR3680 supports two 8 TB (6Gbit / 3Gbit) drives to store more,back up and protect space intensive project files.





10 Times Faster.


When connected to a SuperSpeed USB 3.0 port, GR3680 lets you access and save files up to 10 times faster than USB 2.0. *Performance may vary based on user's hardware and system configuration.

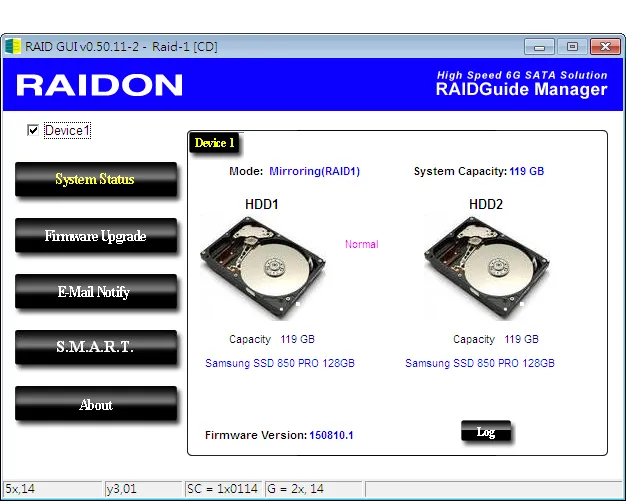

Included software monitoring program to easily view hard disk status



In the GR3680-SB3, in addition to the back light screen that can display the module status, for Windows users, a software RAIDGuide Manager monitoring program is also provided. It allows users to understand the RAID module and hard disk status more directly through the monitoring program. Even better, after setting the monitoring program, it will take the initiative to send letters to users when the hard disk fails. This instant notification allows users to be aware of the situation as soon as possible to remedy the situation faster.

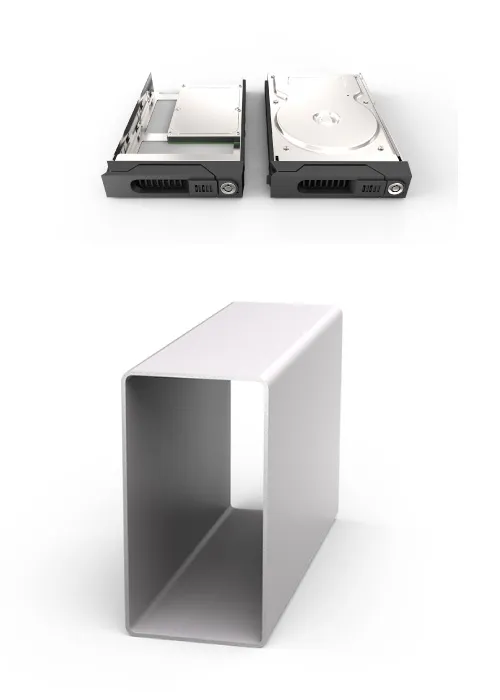

Secured Drive Module Design


GR3680-SB3’s drive module is built-in with locking mechanism to prevent from accidently removing hard drives. In the event hard drive should fail, simply swap out the defective drive with the same drive module to shorten the downtime and reduce the cost of repair.







Heat-dissipating, Sleek Aluminum



Design Complements Your PC or MAC


Encased in a thick aluminum enclosure and large size, low noise fan to keep hard drives healthy and dissipate heat from the RAID.





Internal Power Supply.



GR3680-SB3 uses an industry standard power cord and professional quality internal power supply for the most efficient and reliable power source possible.

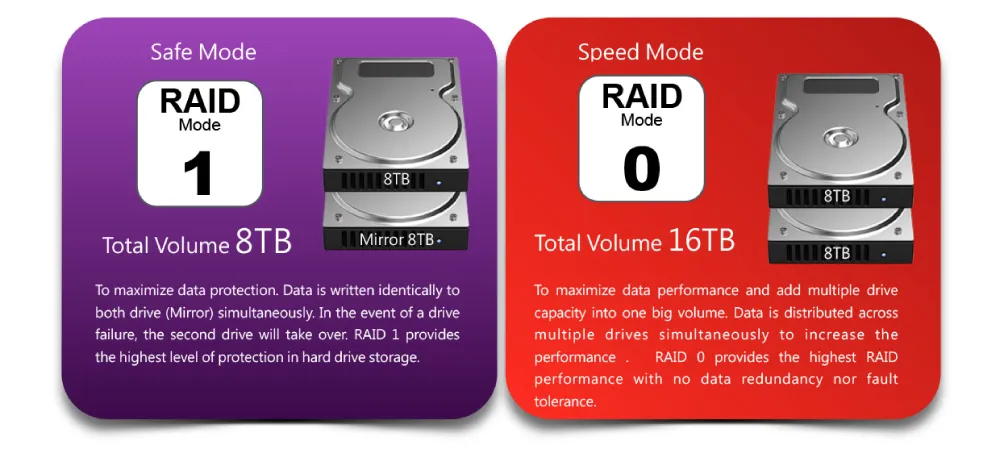

High Performance or High Reliability.



GR3680-SB3 is equipped with 2 sophisticated RAID levels.



More GR3660-TB2 Product information  >>>>

GR3680-SB3

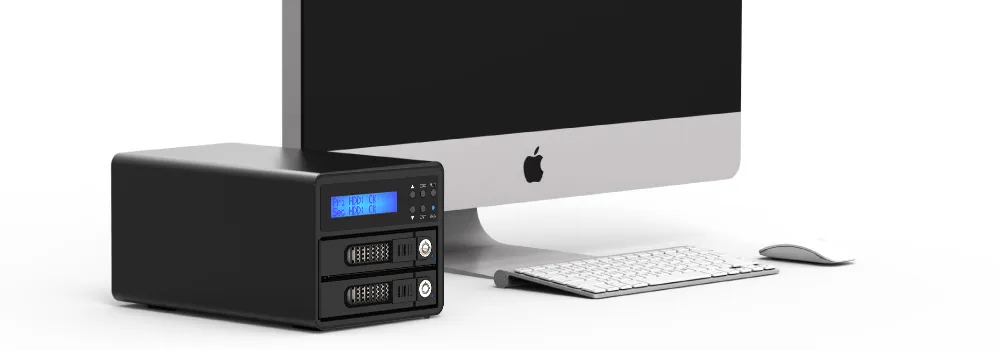

iMac Workstation

Ideal for Apple ProRes HD offline editing on a iMac.

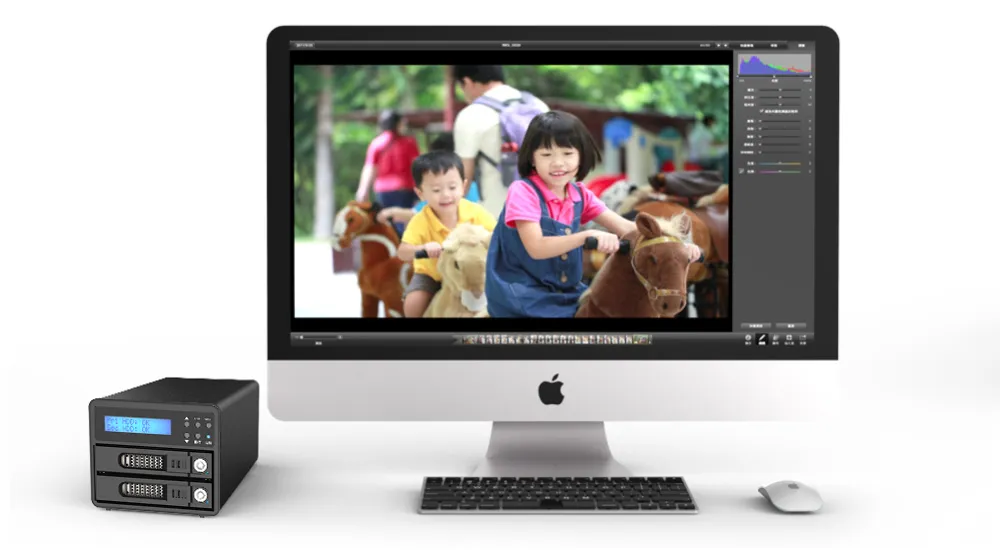

Auto Backup Your Important Photos.



High reliable RAID 1 (Mirrored) offers ultimate protection beyond RAID level.

All data are written simultaneously to both drives. If one drive should fail, your data is

still accessible and the second drive will take over.



Treasure your important photos as time and tide wait for no one.



Do you remember all the wonderful family gatherings? Do you know that not even one single element captured in any picture can be replicated? All the photos gathered in the past are key assets through- out your life. It’s not a tough job to protect these digital photos. Whether you are just an iPhoto® user or a professional photographer running Aperture®, you can transfer your photo library into a GR3680-SB3 device and let GR3680-SB3 protect your beautiful time and memory.



High performance RAID 0 ( Striped ) yields the speed you need for smooth video editing, rendering complex 3D objects or special effects in ultra high speed.

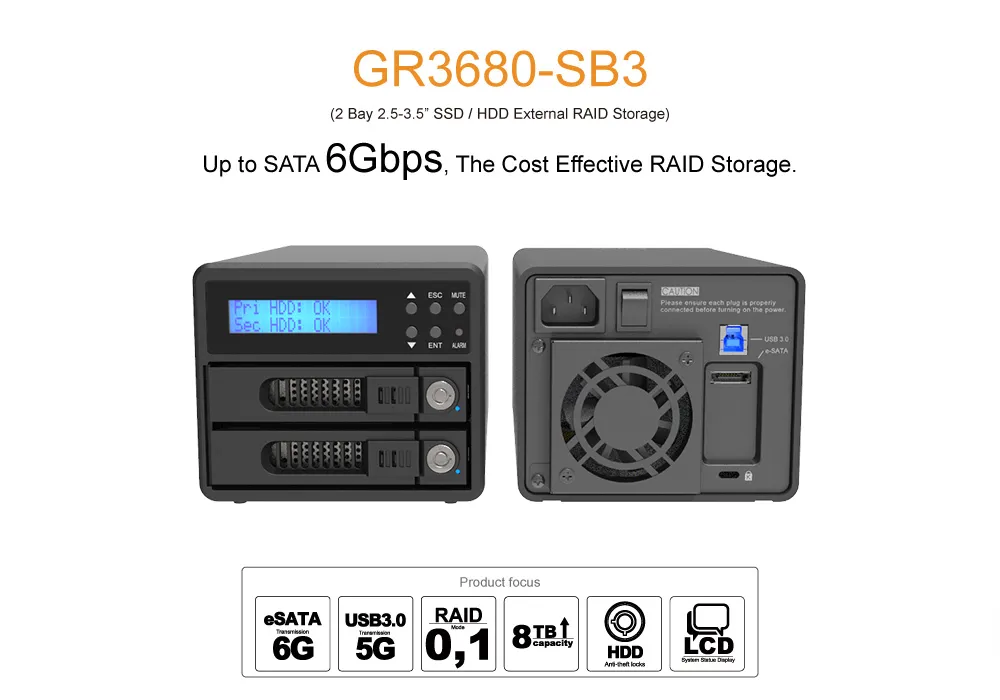

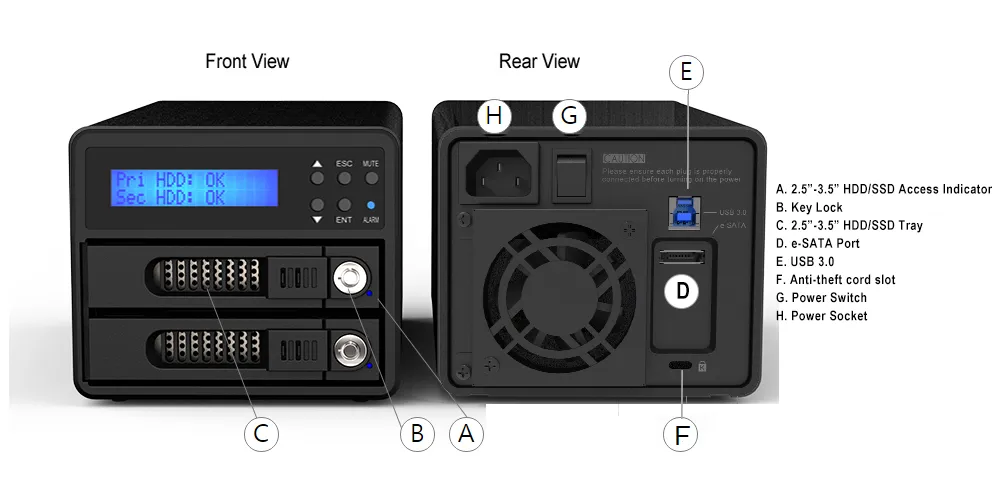

GR3680-SB3 Product View







GR3680-SB3 Specification



Model No

Interfaces

Compatible Drives

Raid Level

System Monitoring


Cooling System

Operating System

Function Control
Interface

Electrical and Operating
Requirements





Dimension & Weight

Product Code

Carton

Package Accessories







Operating temperature

Storage temperature

Relative humidity
GR3680-SB3

e-SATA(6G) , USB3.0(5G)

2 x 2.5”-3.5” SATA HDD/SSD

RAID 0 / RAID 1

Drive and data rebuilding failures, System temperature, Fan failure,
Hard drive failure

6 cm Low noise fan

Windows, Linux,Mac

GUI (Windows Only)


* Line voltage: 100-240V AC
* Frequency: 50Hz to 60Hz, single phase
* Maximum continuous power: 60W
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% noncondensing


Height: 102 mm Width: 122 mm Depth: 205 mm Weight: 2.38 kg

EAN : 4711132864892 UPC :884826504108

8 pcs per carton

* GR3680-SB3 x 1
* USB3.0 Cable x 1
* e-SATA Cable x 1
* AC Power Cable x 1
* Accessory kit
* CD x 1
* Quick Installation Guide x 1

50° to 95° F (10° to 35° C)

-4° to 116° F (-20° to 47° C)

5% to 95% noncondensing
